Home > G125-FV12005L0R
Active Product

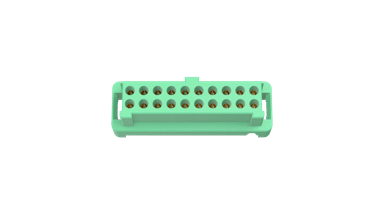

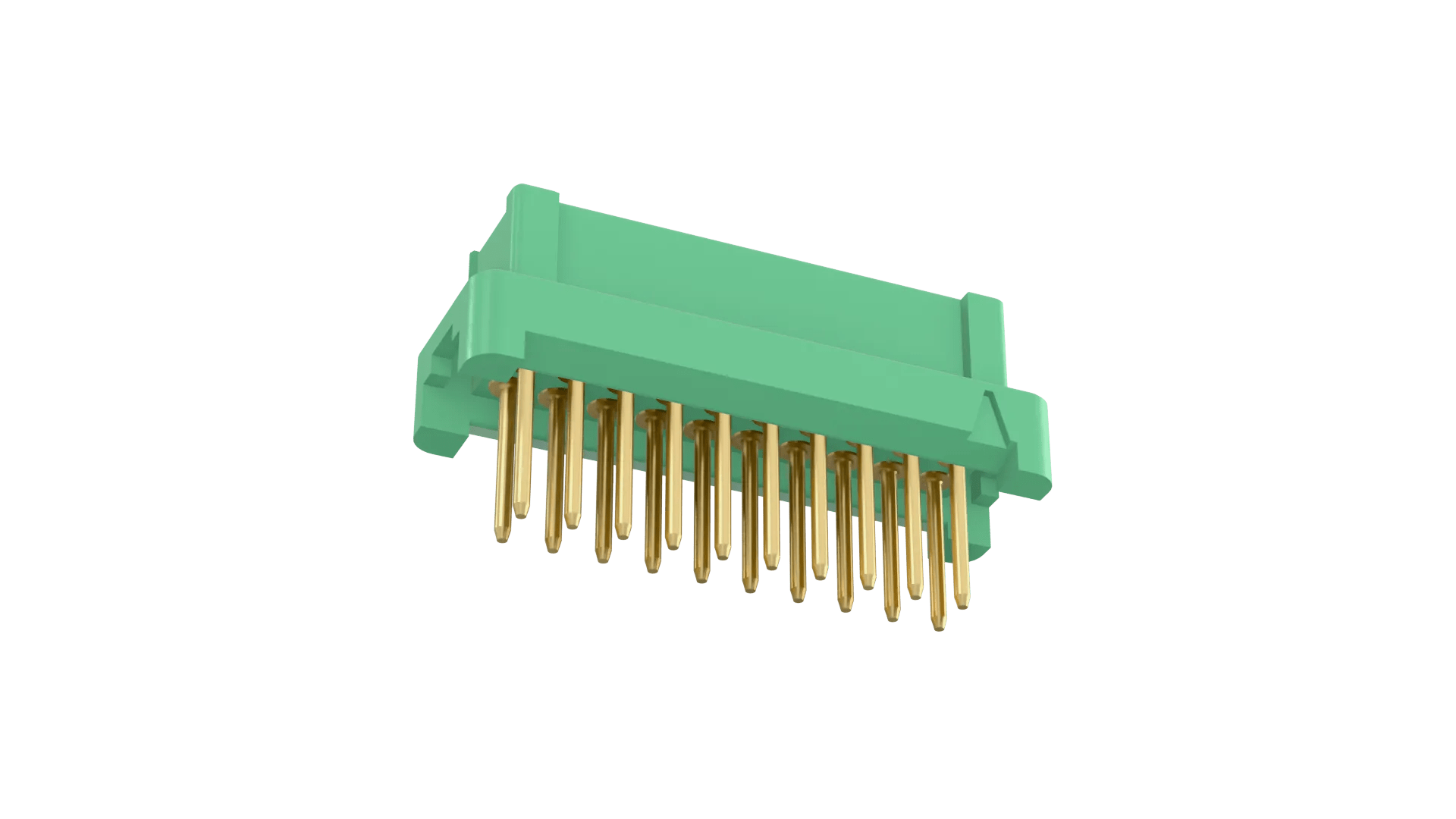

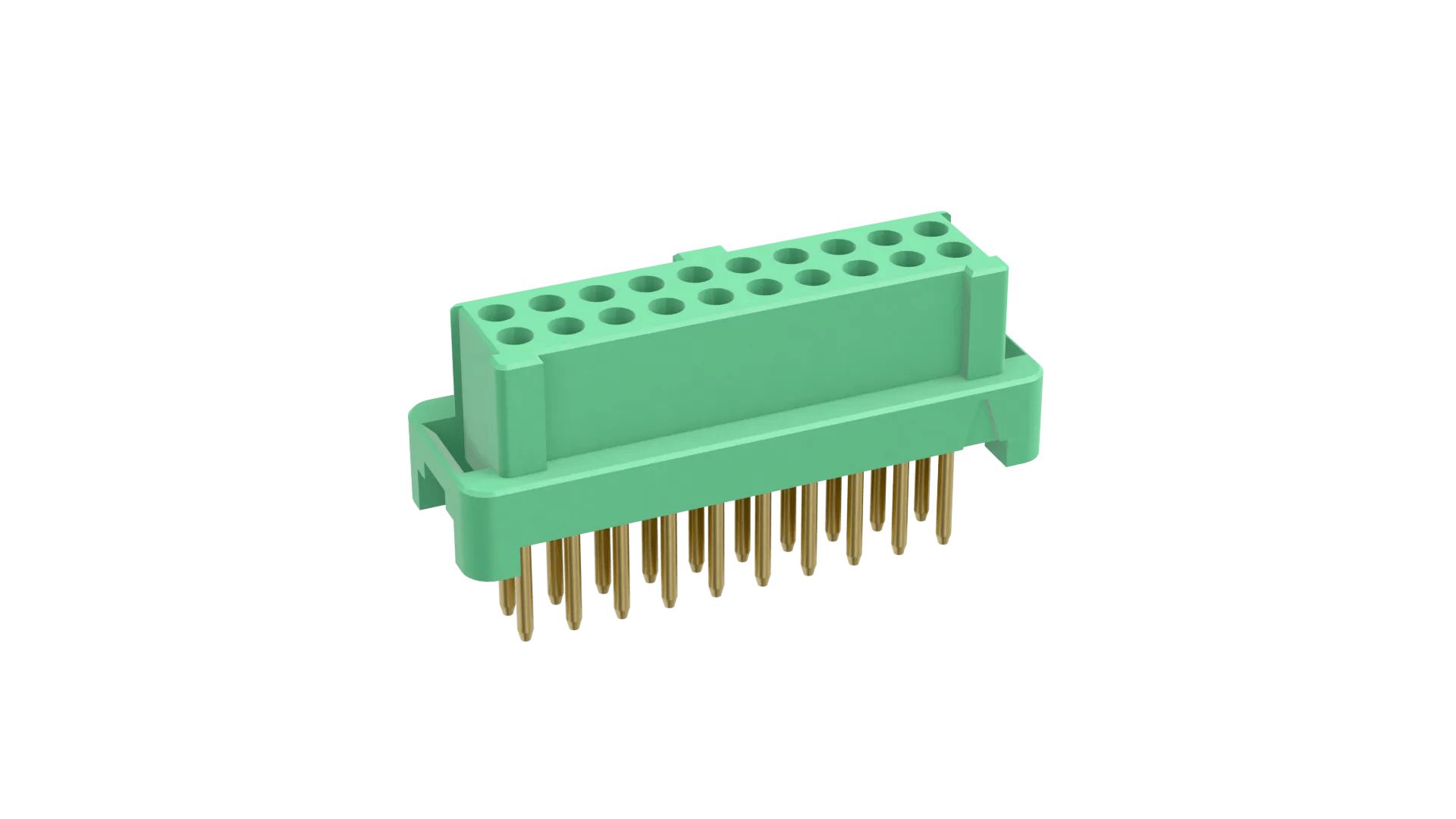

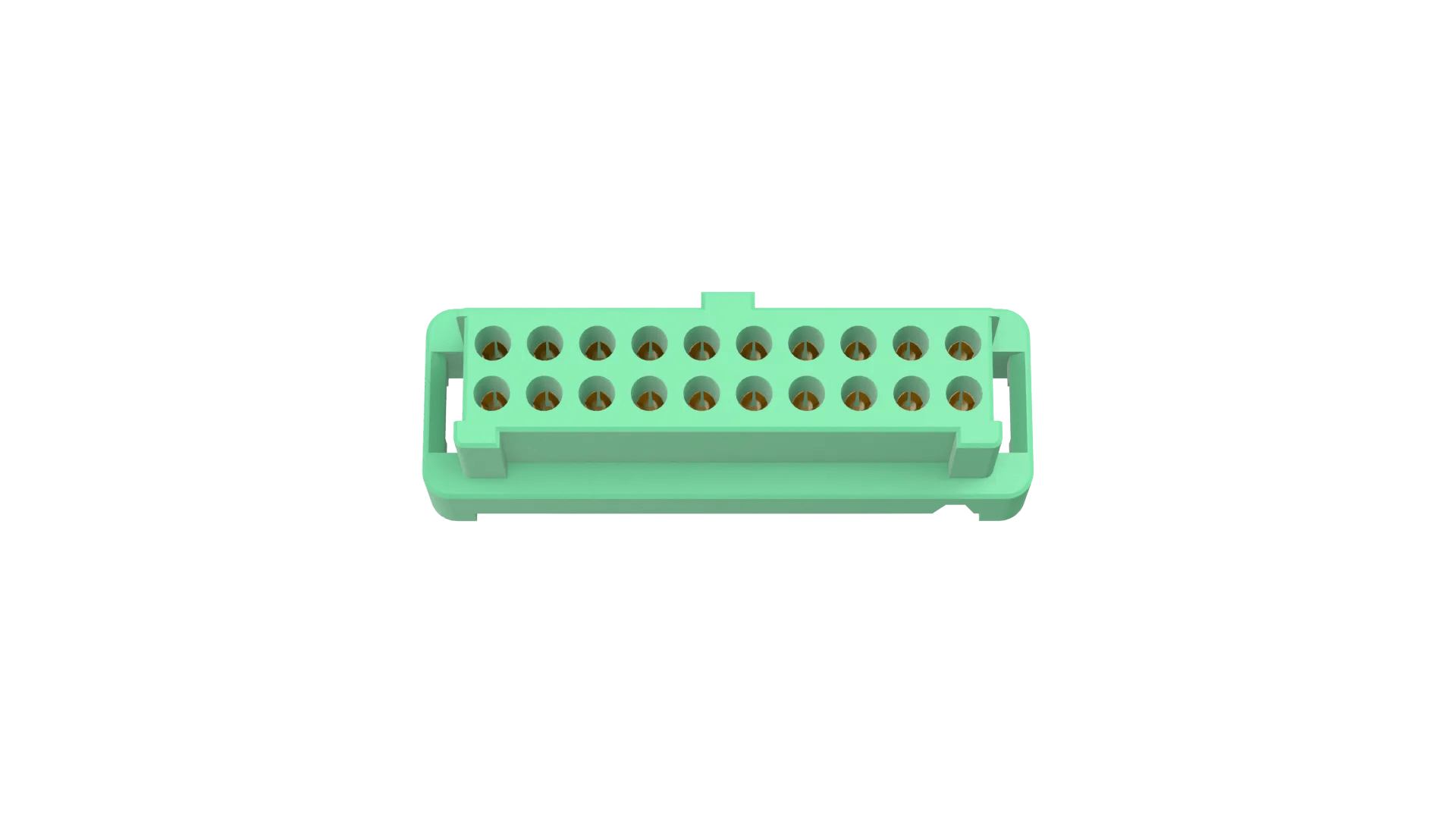

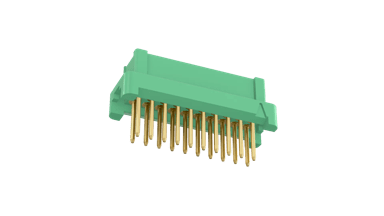

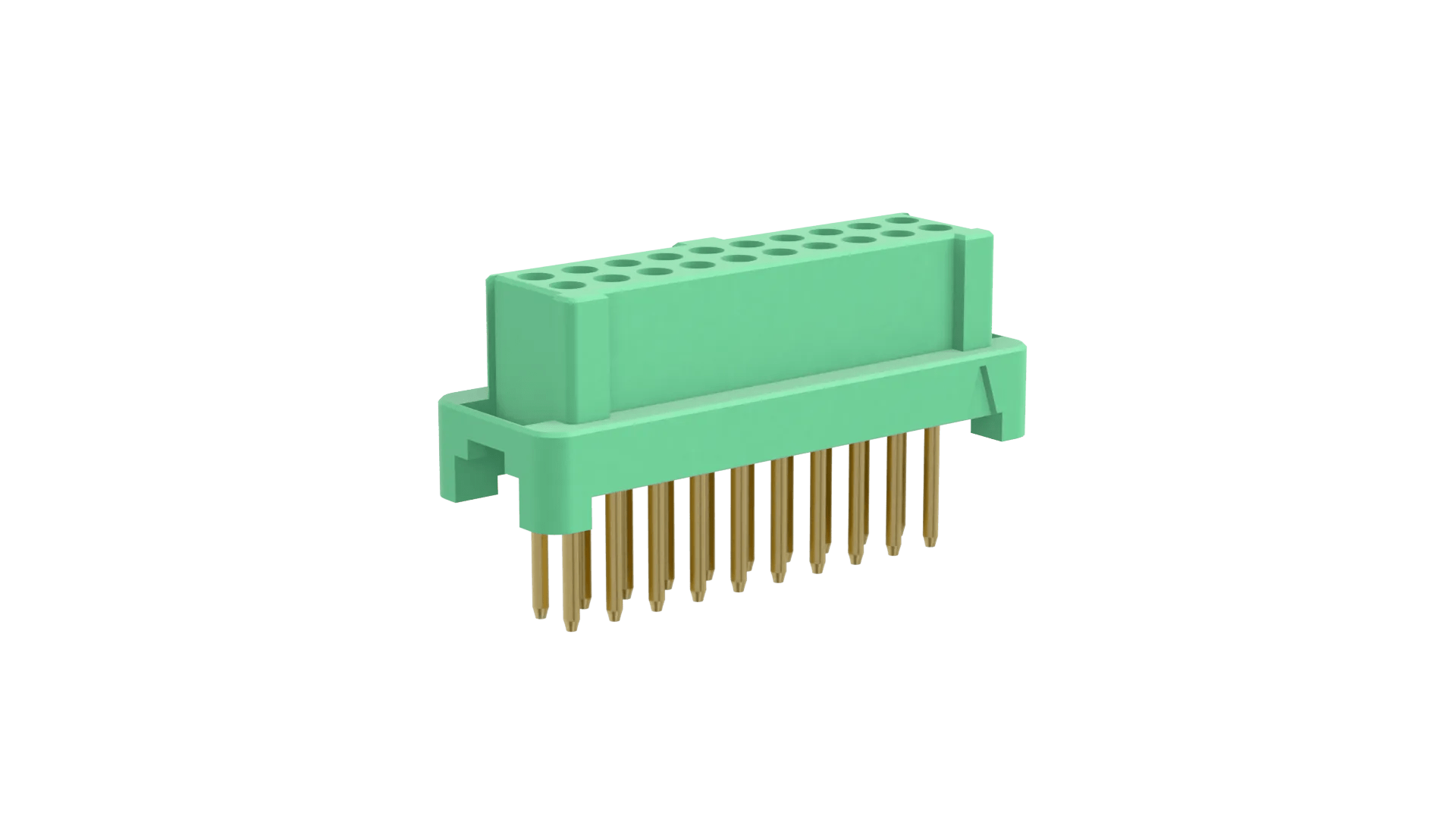

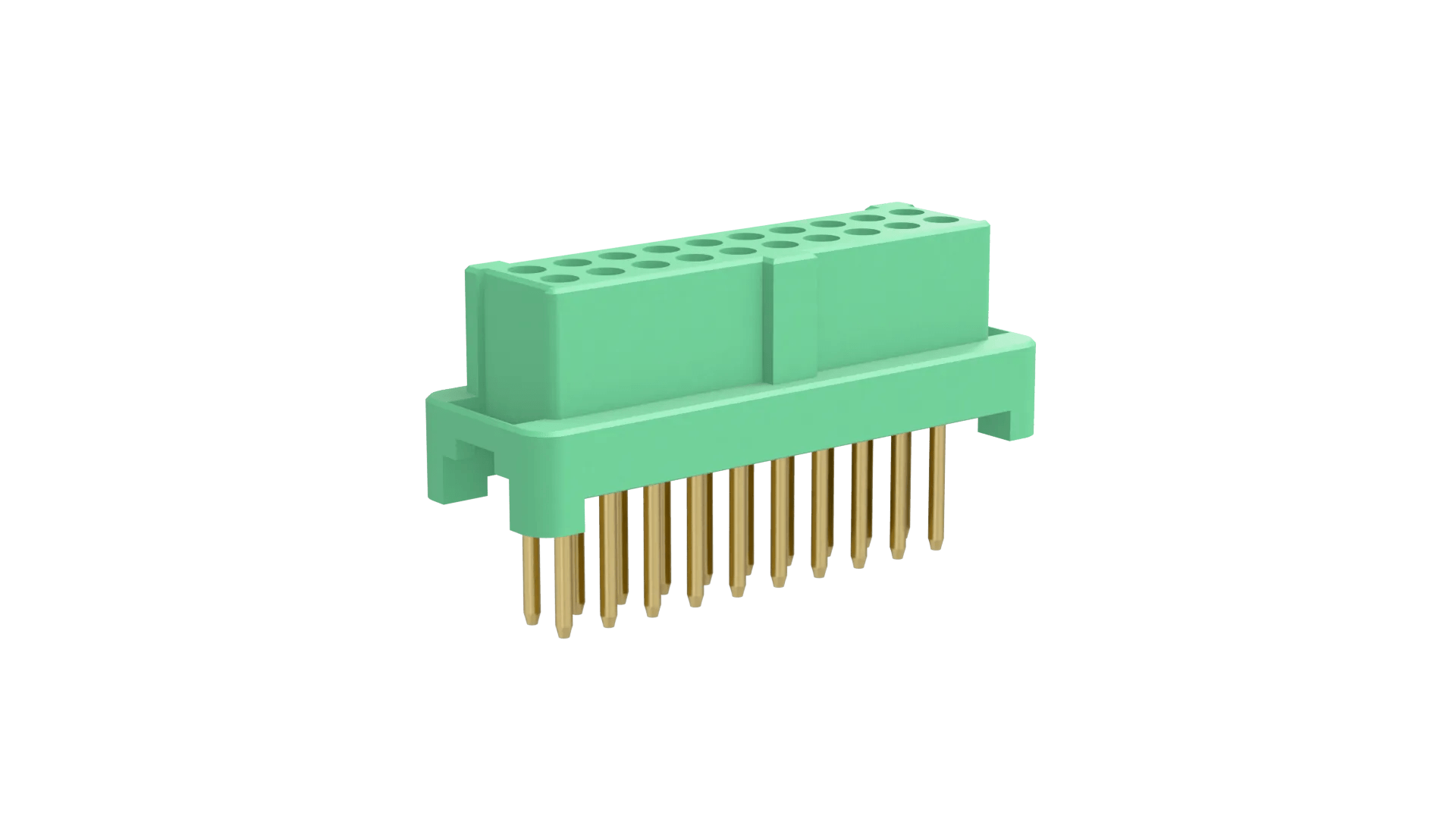

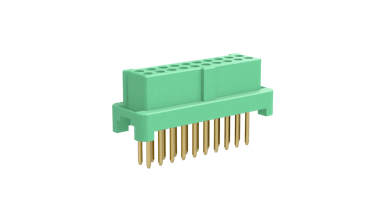

G125-FV12005L0R

10+10 Pos. Female DIL Vertical Throughboard Conn. for Latches (T+R)

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Add to Favorites

Loading…   Check availability

3 similar products View products

Traceparts account required

Product Description

  • Female Double Row Vertical 3mm PC Tail connector – 20 contacts (10+10). Compatible housing style for male connectors with latches.
  • Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.664g

Overall Dimensions (L x W x D) in mm:

15.05 x 4.90 x 8.25

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?

Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.

Was this answer useful?

The only mating connectors I can find are PCB board mount. Do you have crimp type connectors that would mate with this?

When you are looking at the “Mating” connectors (under Related Products, click on the “Mating” tab), there are arrows under the 4 items initially shown. You can scroll left and right through the list of items. If you scroll right once, you will see the cable housings. Scroll further, and you will also see ready-made cable assemblies. Alternatively, you can look through the Gecko with Latches section of the catalog – all the latching Gecko products mate together.

Was this answer useful?

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9262000 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
