Home > G125-FV108F3-03AB000P
Active Product

G125-FV108F3-03AB000P

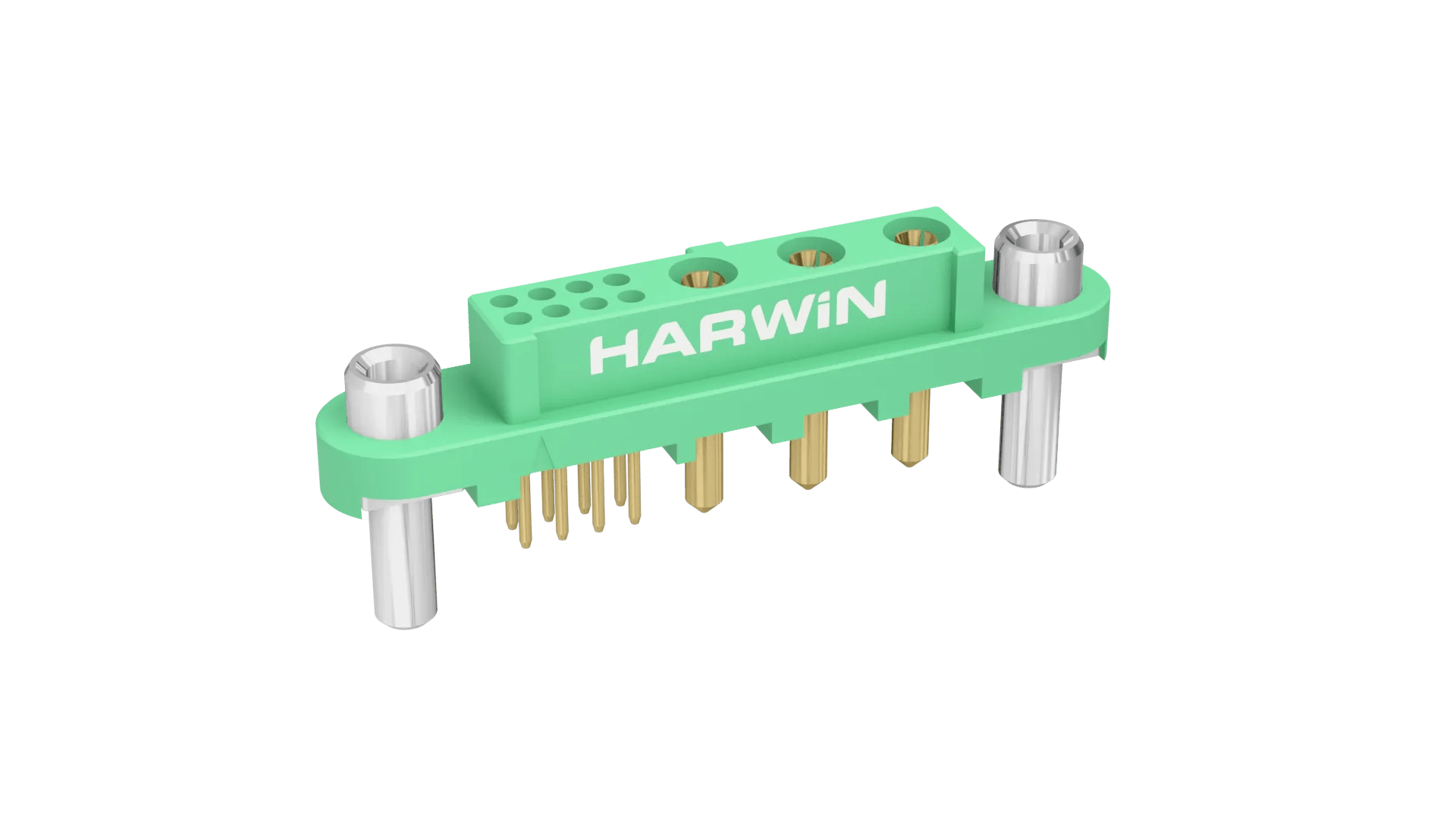

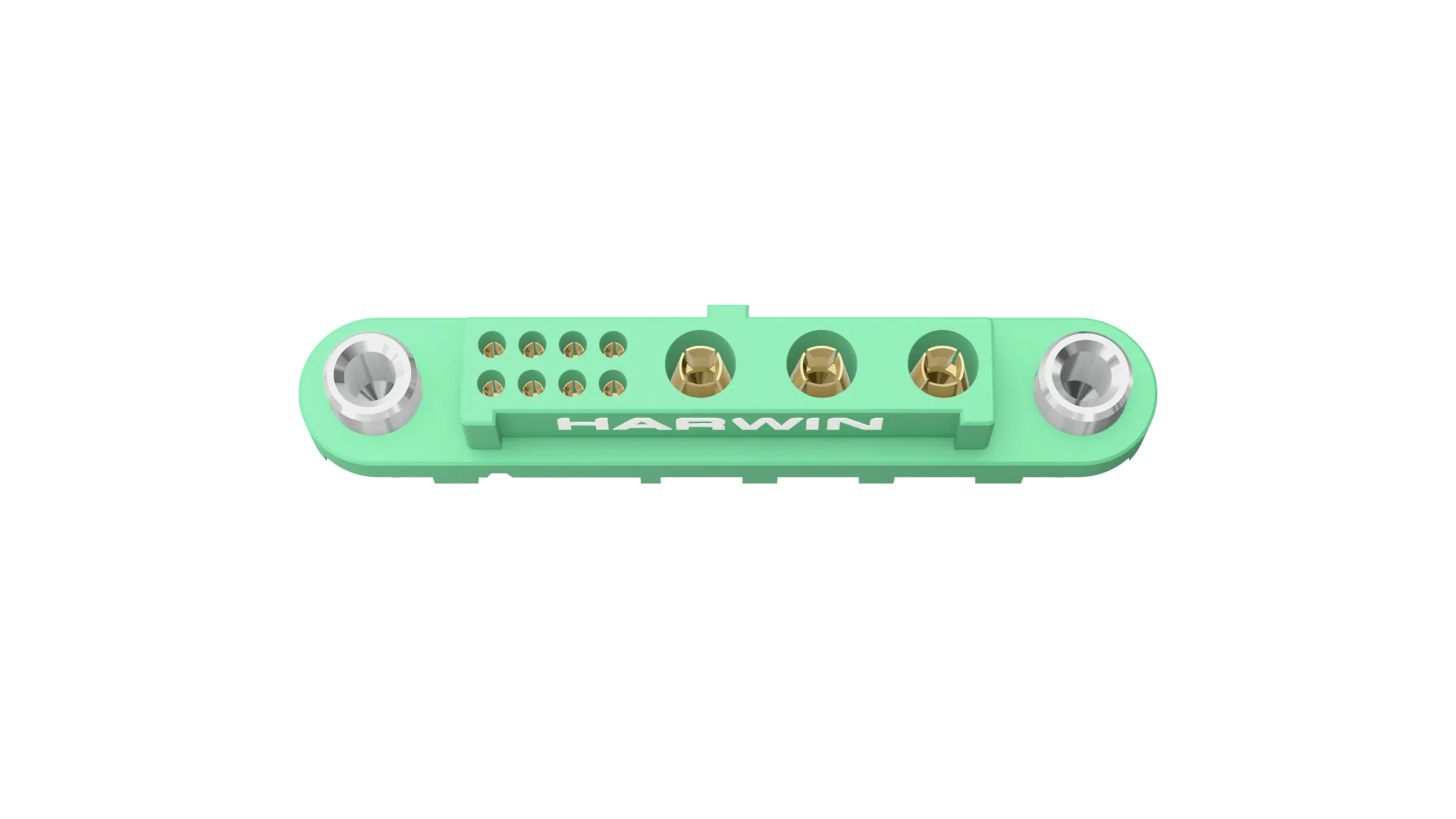

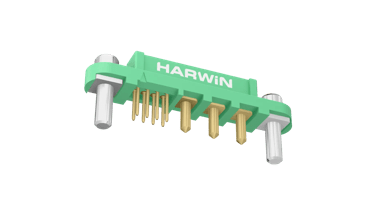

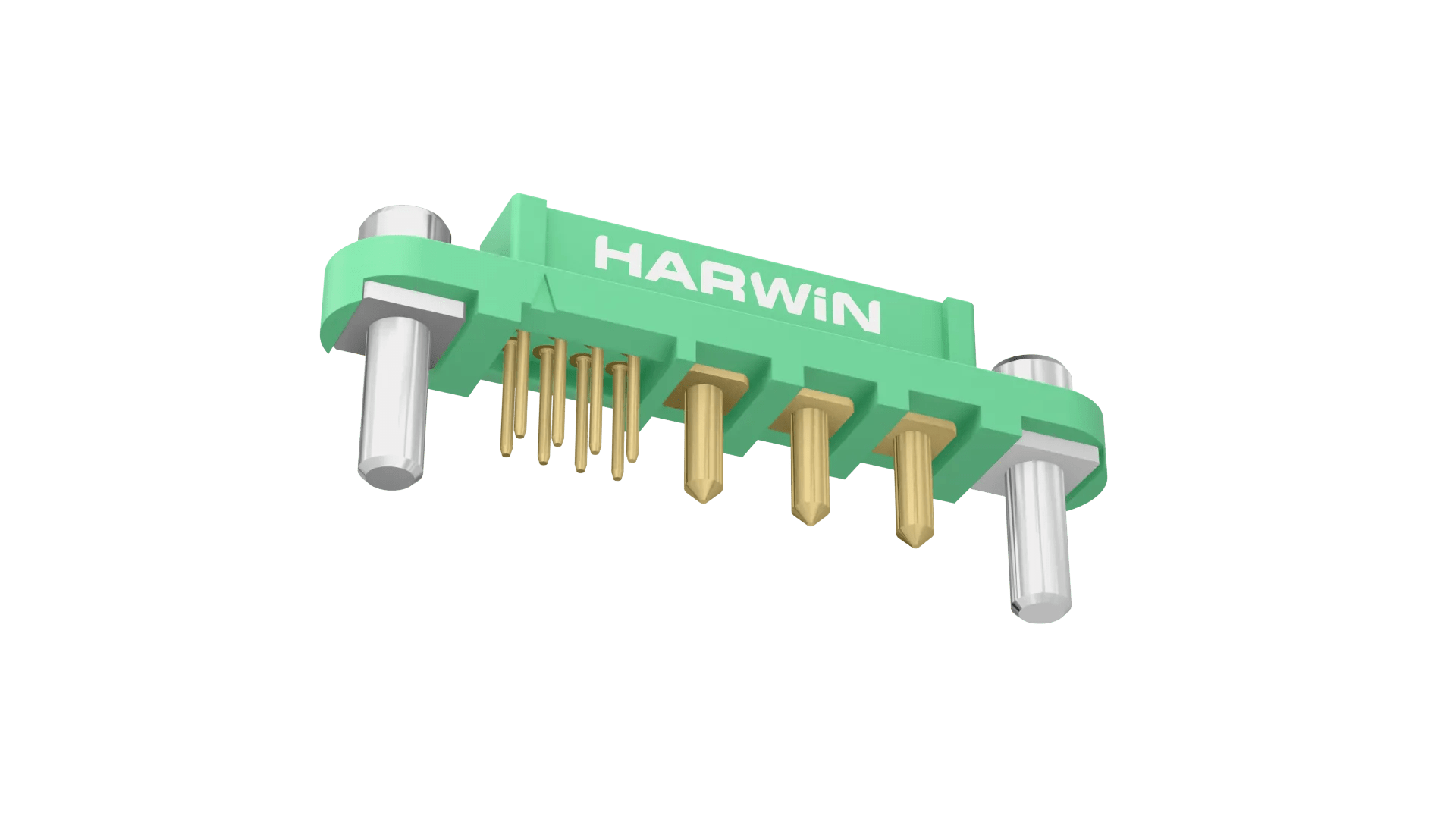

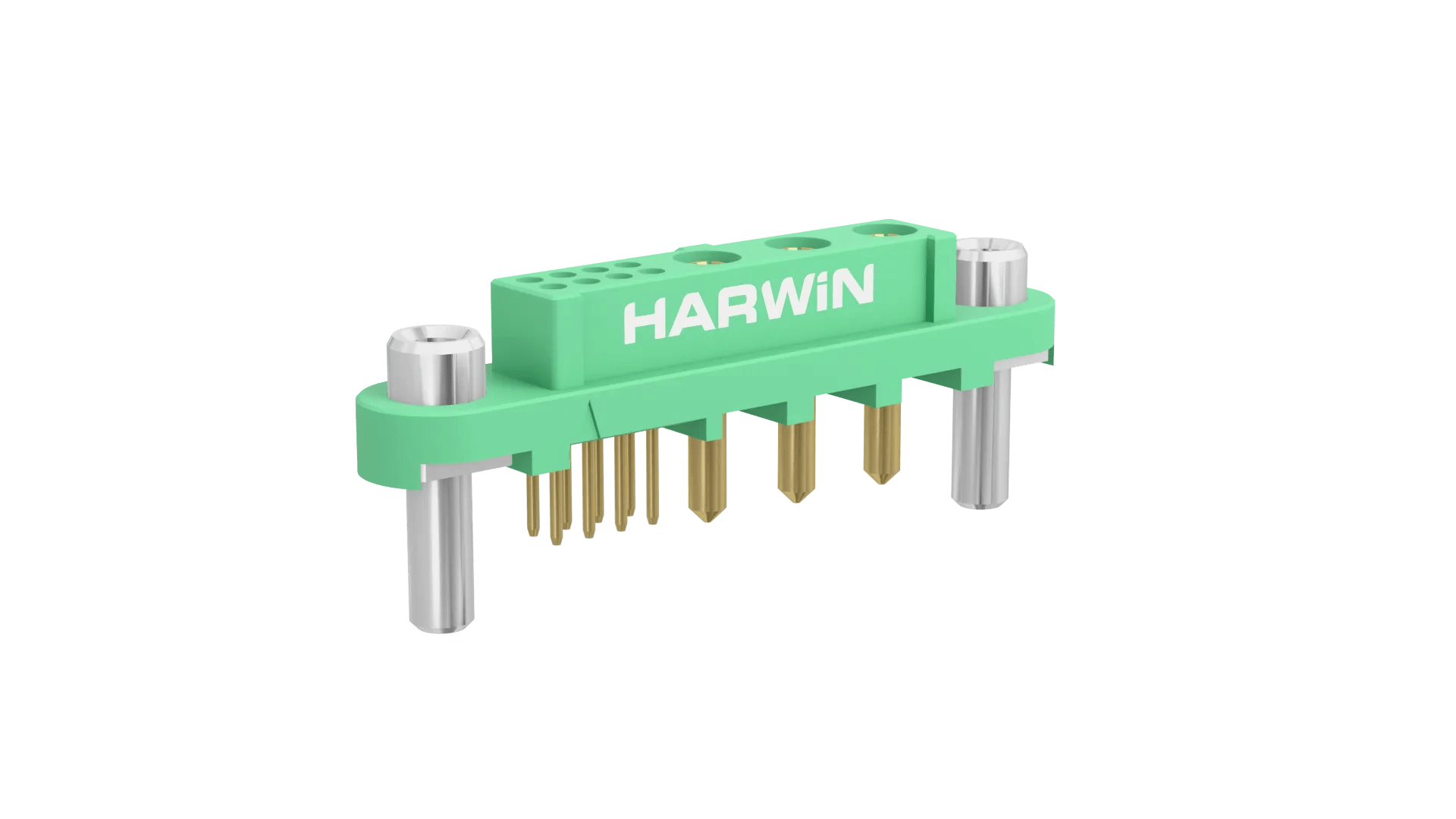

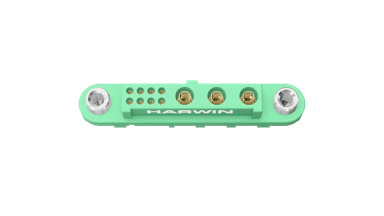

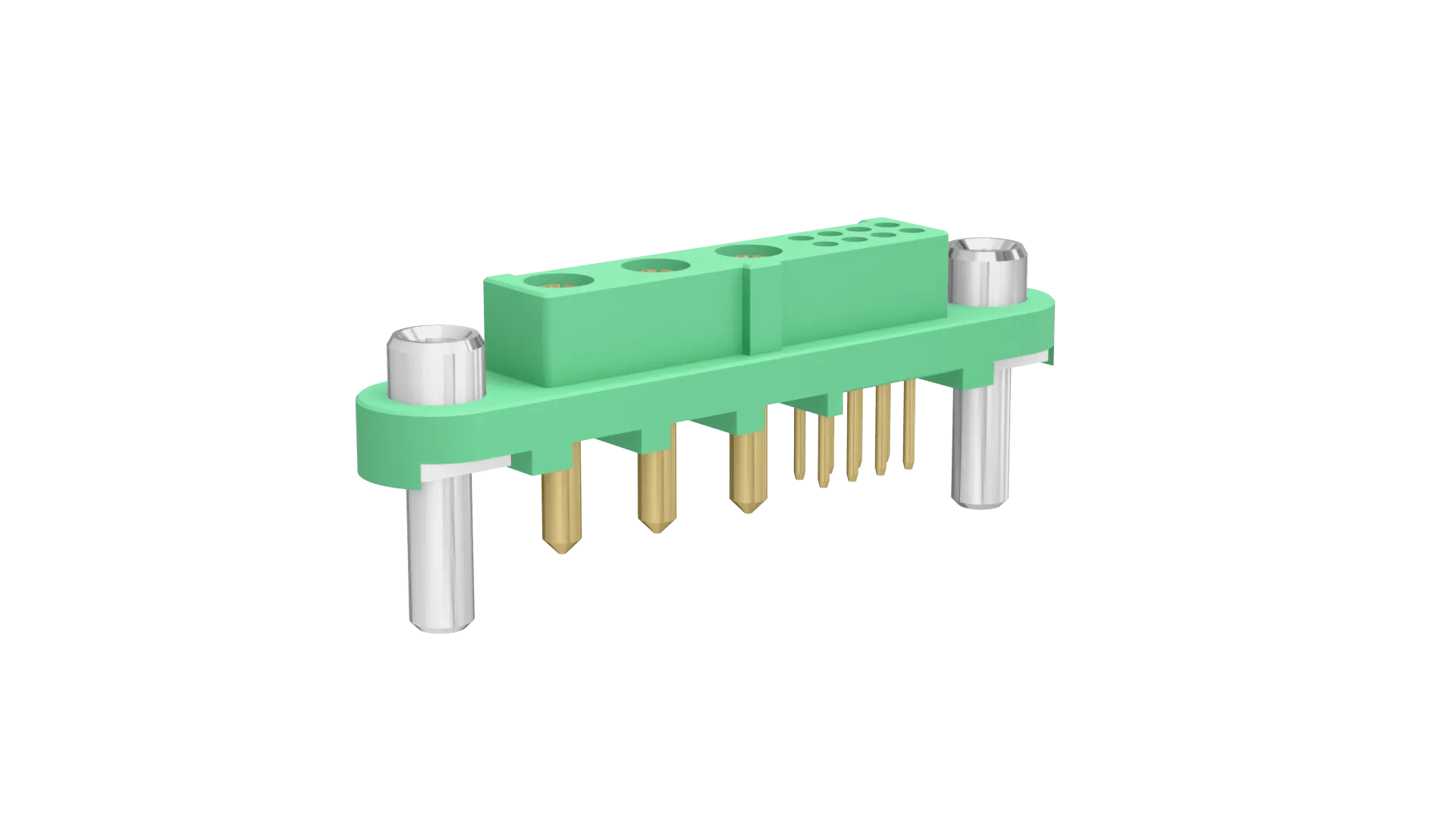

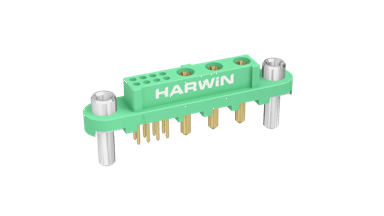

8+3 Pos. Female Vertical Throughboard Conn. Screw-Lok Reverse Fix

1.25mm Pitch High-Reliability Connector - Gecko-MT

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Female Vertical Throughboard connector – 3 power, 8 signal contact arrangement. Power contacts are 3.6mm termination length, signal are 3mm. Fitted with threaded Screw-Loks (for reverse fixing) with 5mm board mount studs. Use hex nut G125-4500000B or slotted nut G125-4510000B for PCB strain relief.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok with Board Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

3

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.515g

Overall Dimensions (L x W x D) in mm:

27.30 x 4.90 x 8.85

Male Stud Length:

5.00mm

Thread Size:

M2

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

3.00mm and 3.60mm

Frequently Asked Questions Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

Was this answer useful?

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
