Home > G125-FV108F1-06AB000P
Active Product

G125-FV108F1-06AB000P

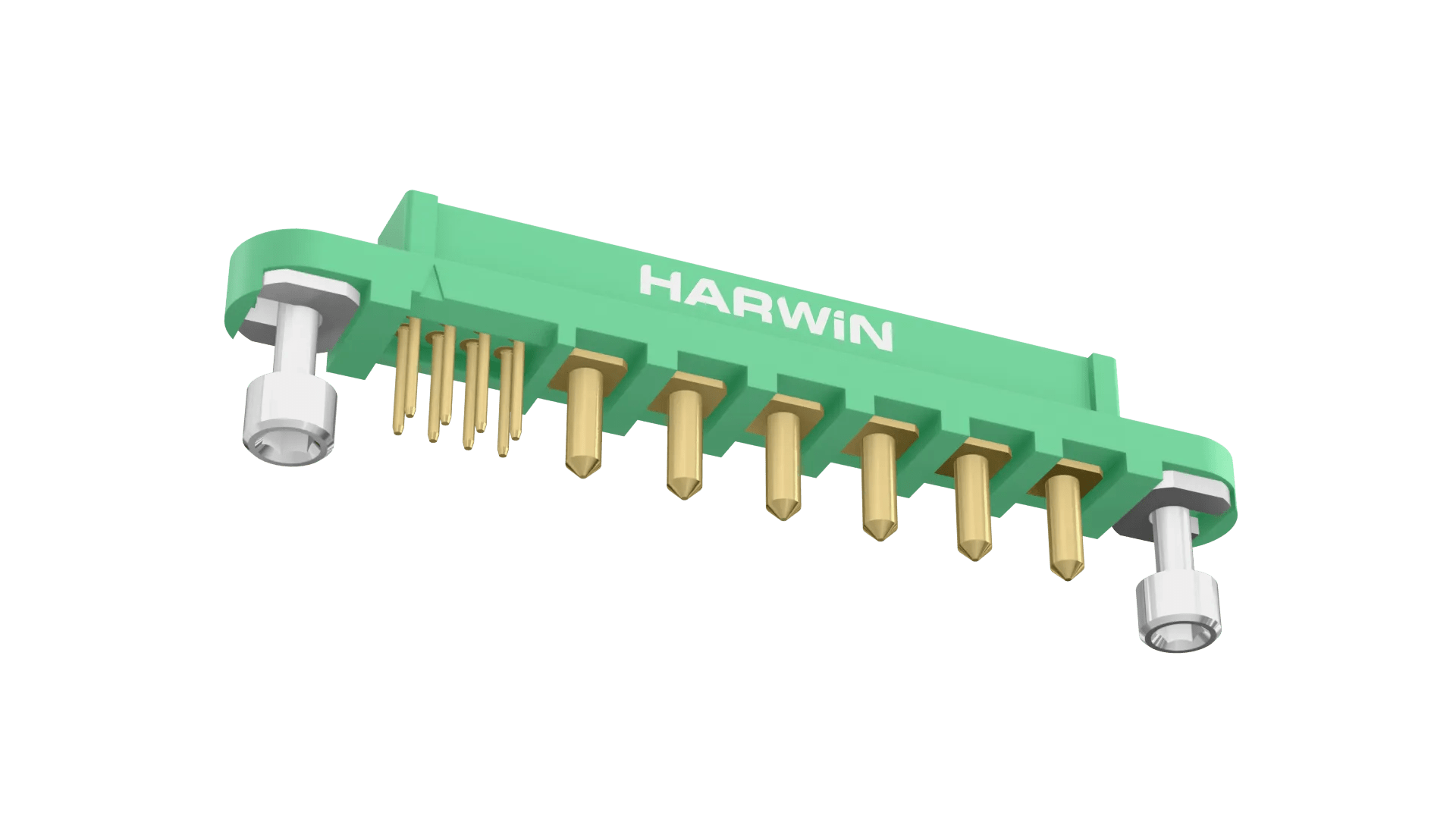

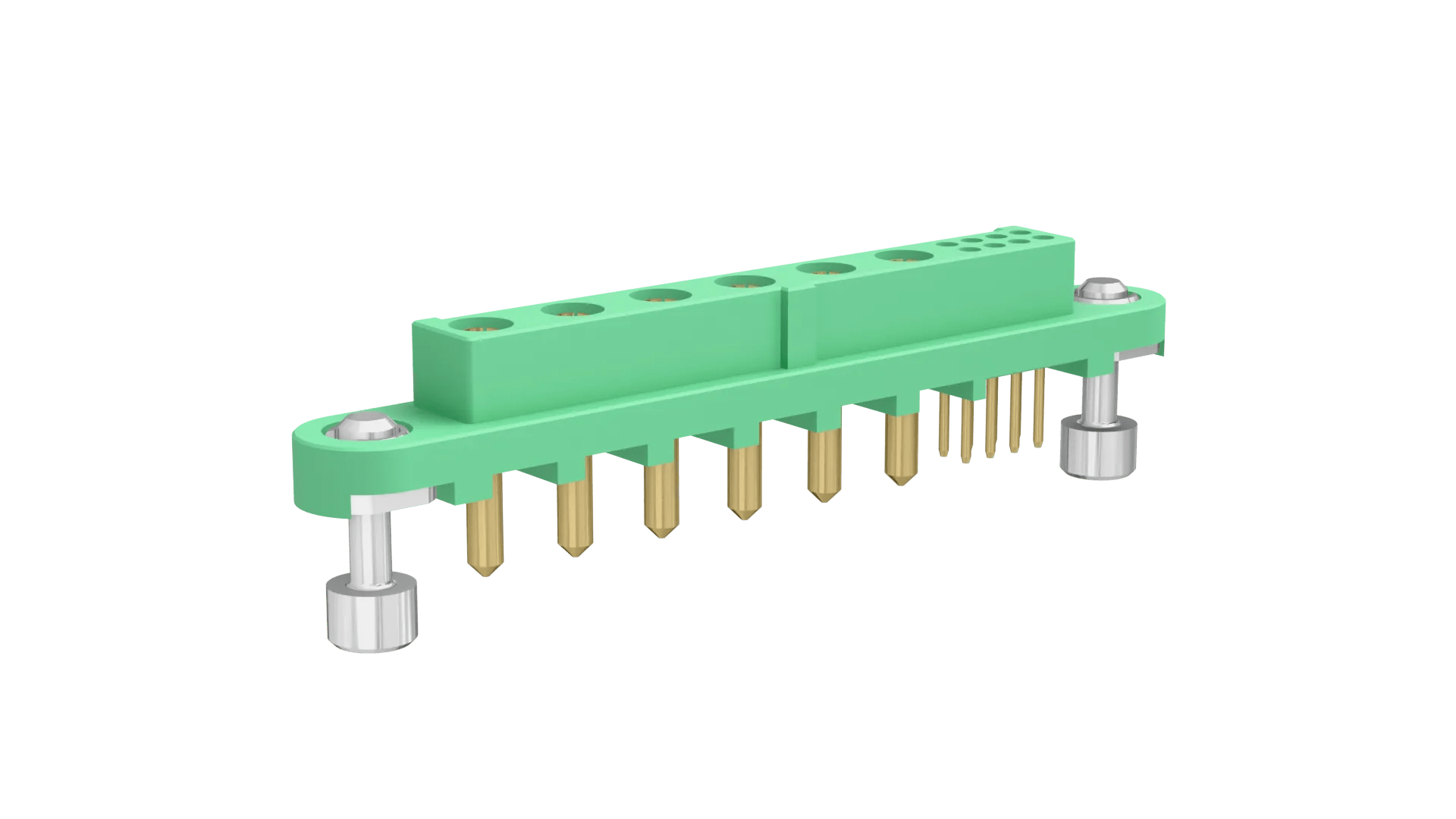

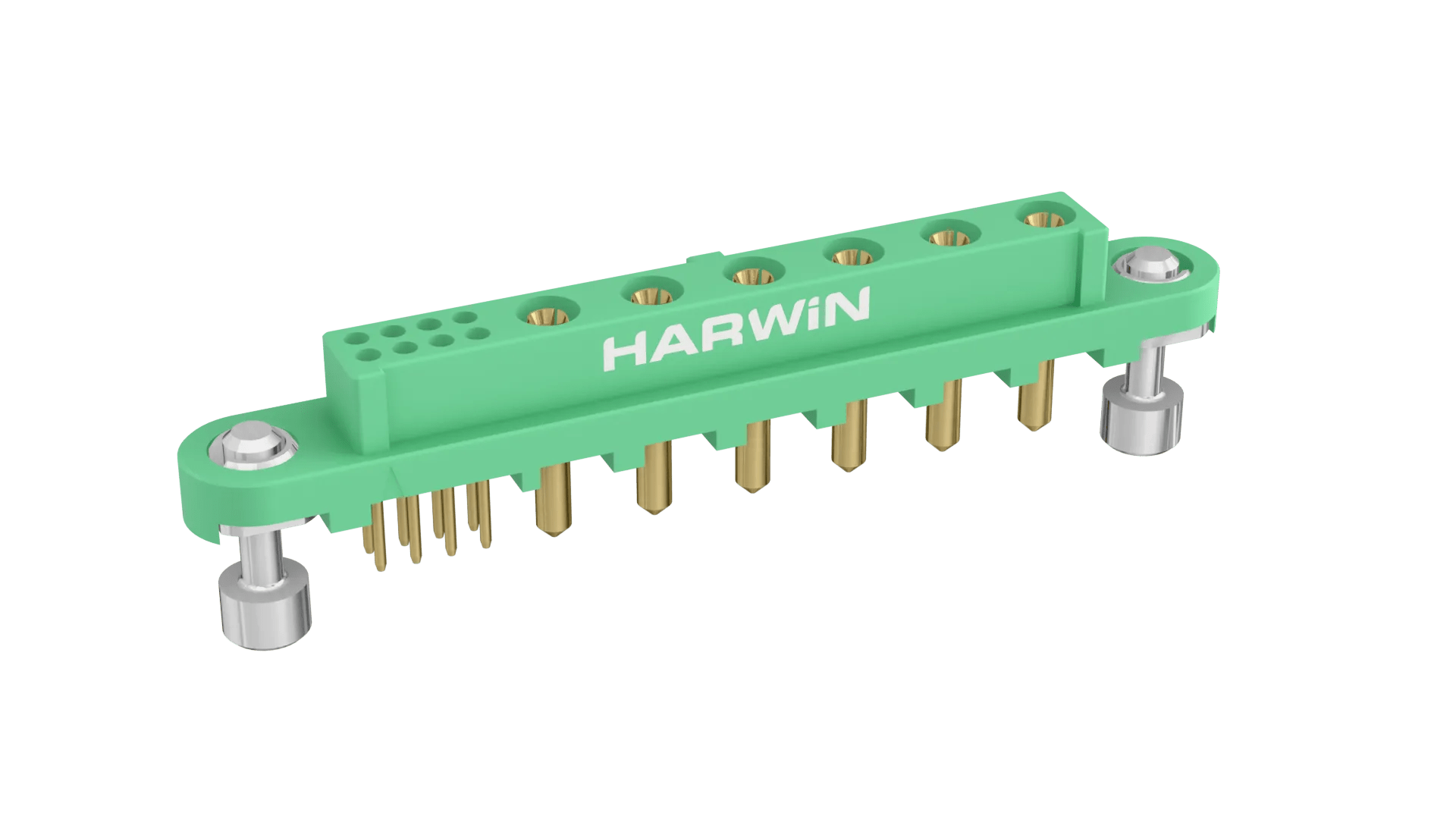

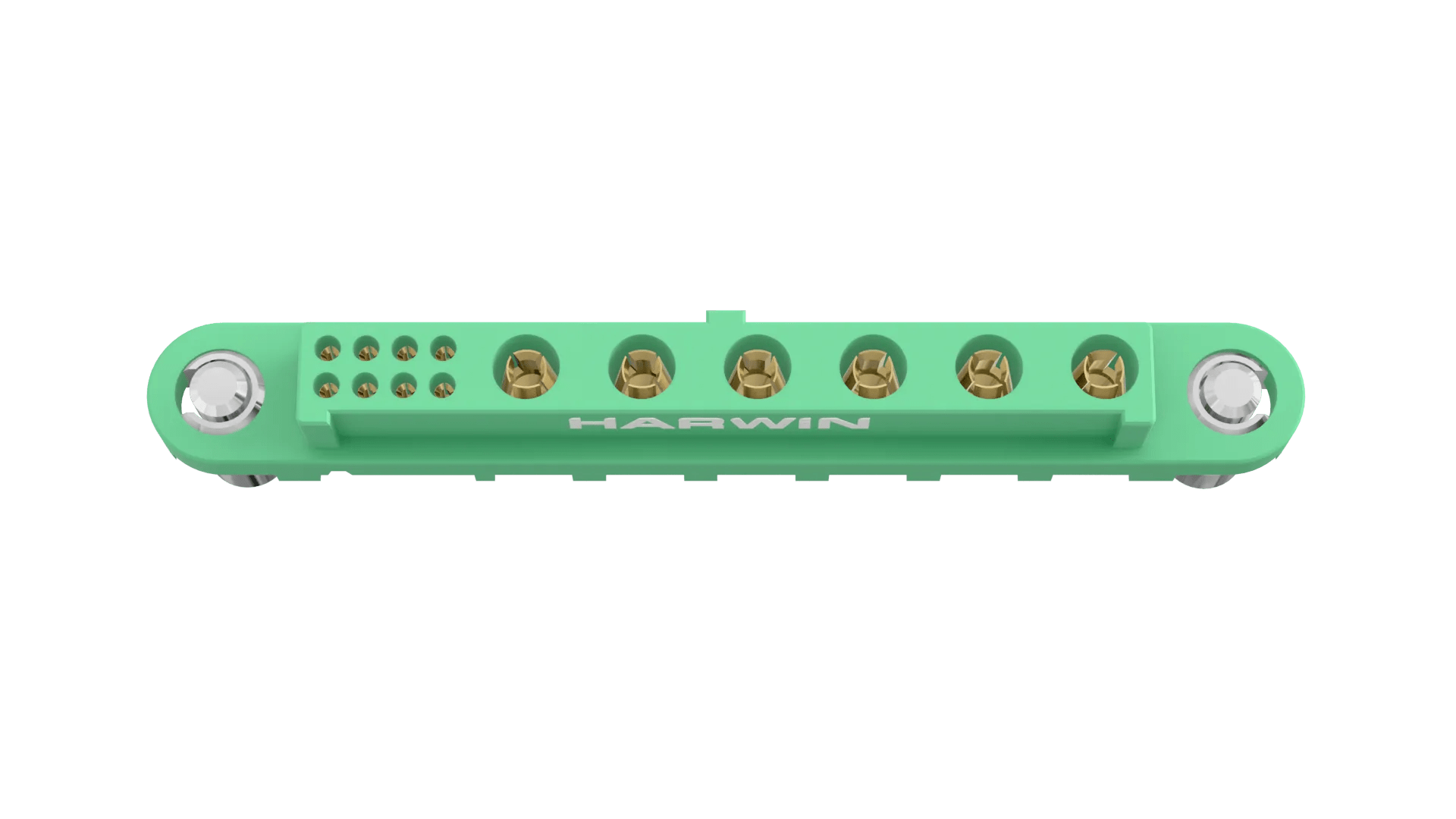

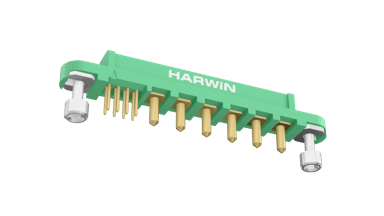

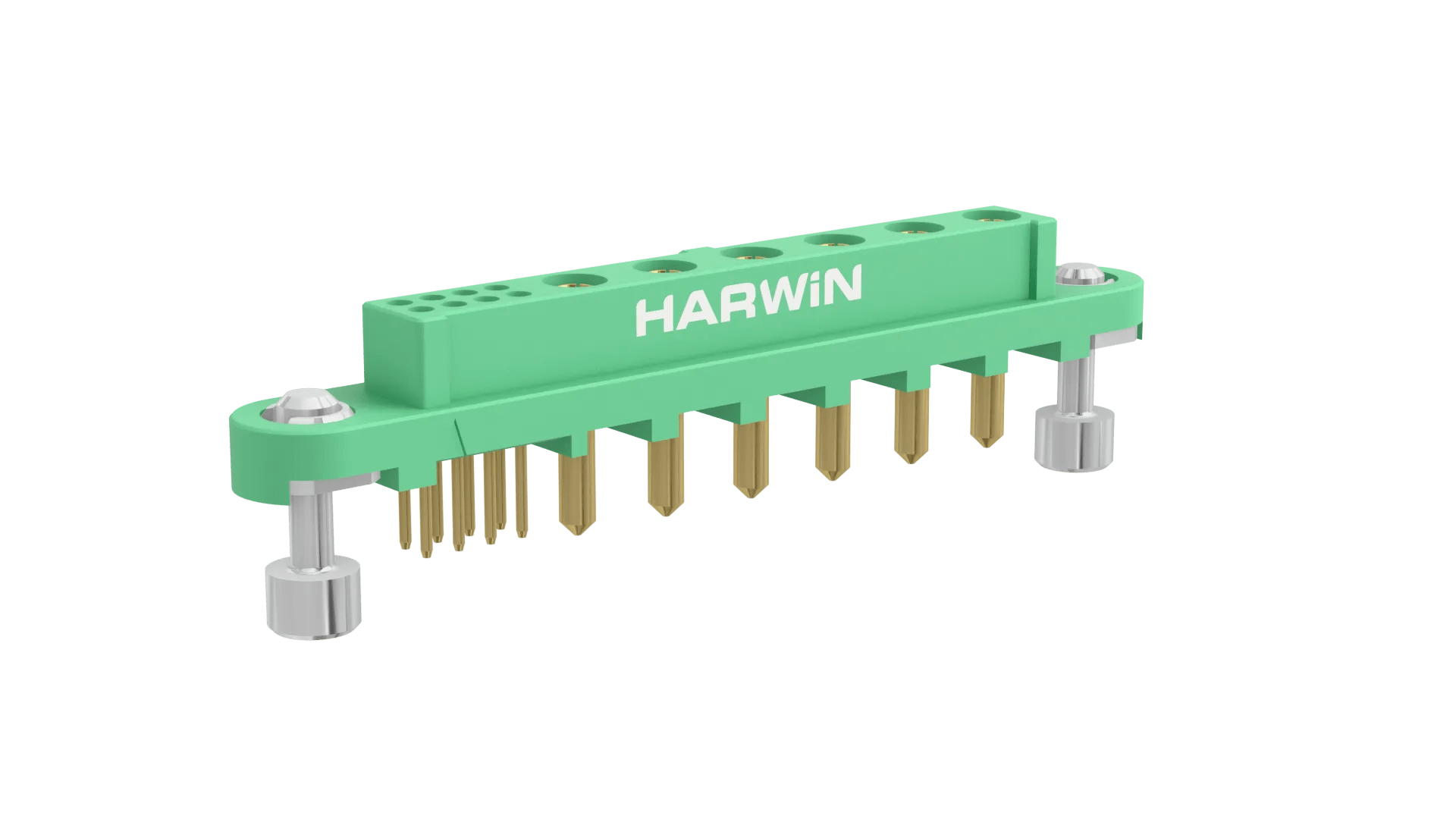

8+6 Pos. Female Vertical Throughboard Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko-MT

Add to Favorites

30 in stock   Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Female Vertical Throughboard connector – 6 power, 8 signal contact arrangement. Power contacts are 3.6mm termination length, signal are 3mm. Fitted with floating Screw-Lok fixings including a hexagonal socket head, Mate-before-Lock.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

2.007g

Overall Dimensions (L x W x D) in mm:

39.80 x 4.90 x 8.85

Thread Size:

M2

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

3.00mm and 3.60mm

Frequently Asked Questions Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
