8+4 Pos. Female Vertical Throughboard Conn. Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko-MT

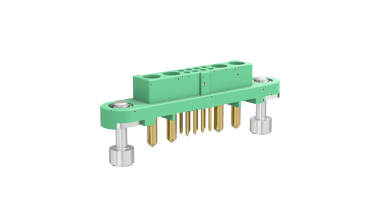

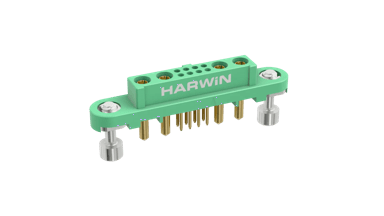

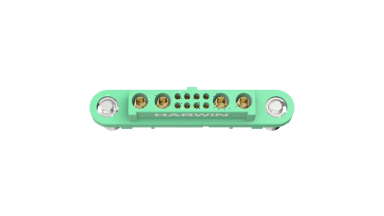

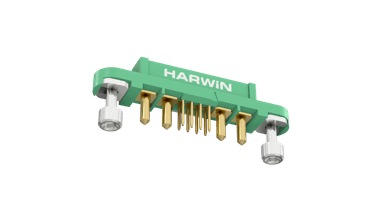

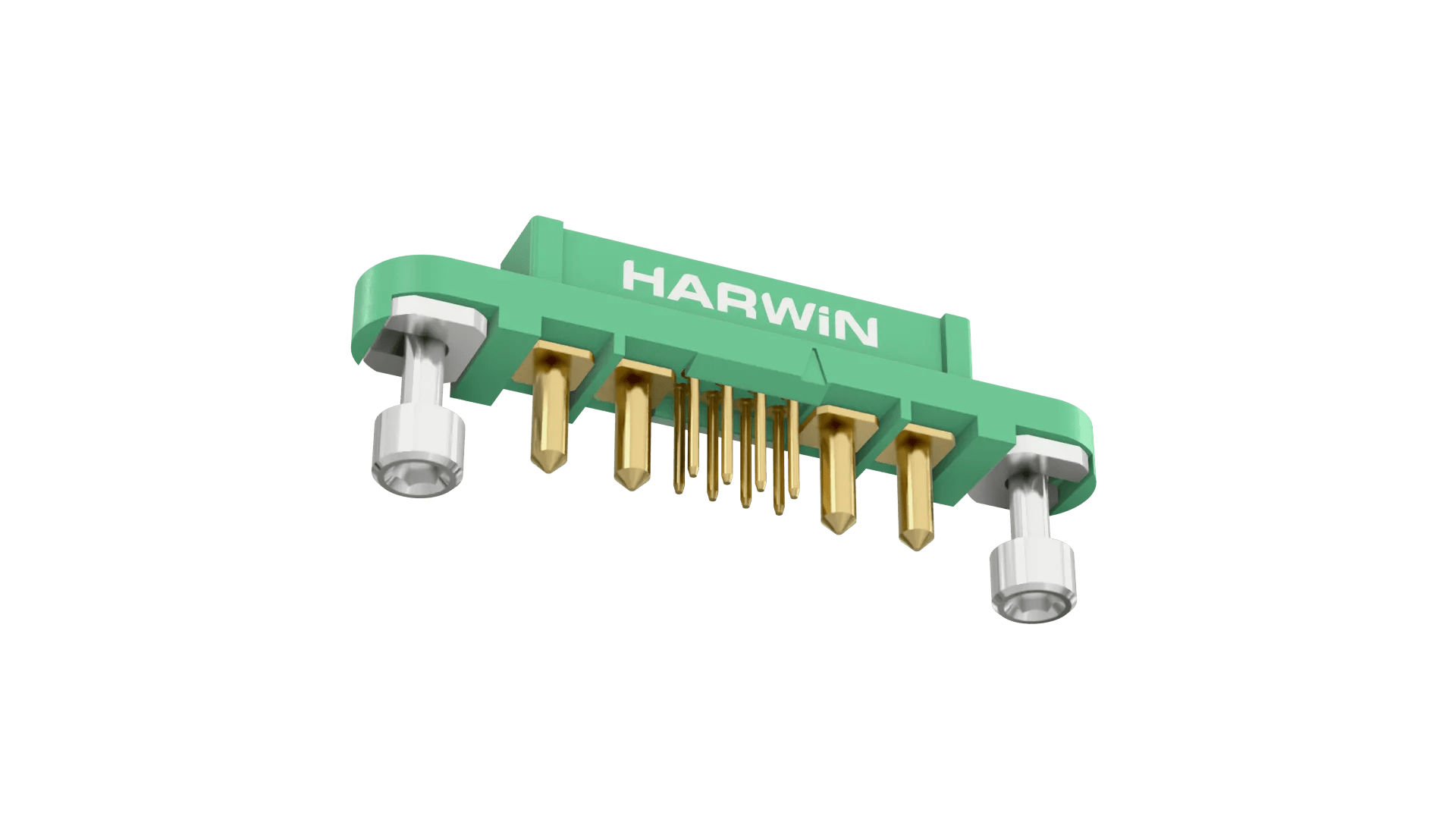

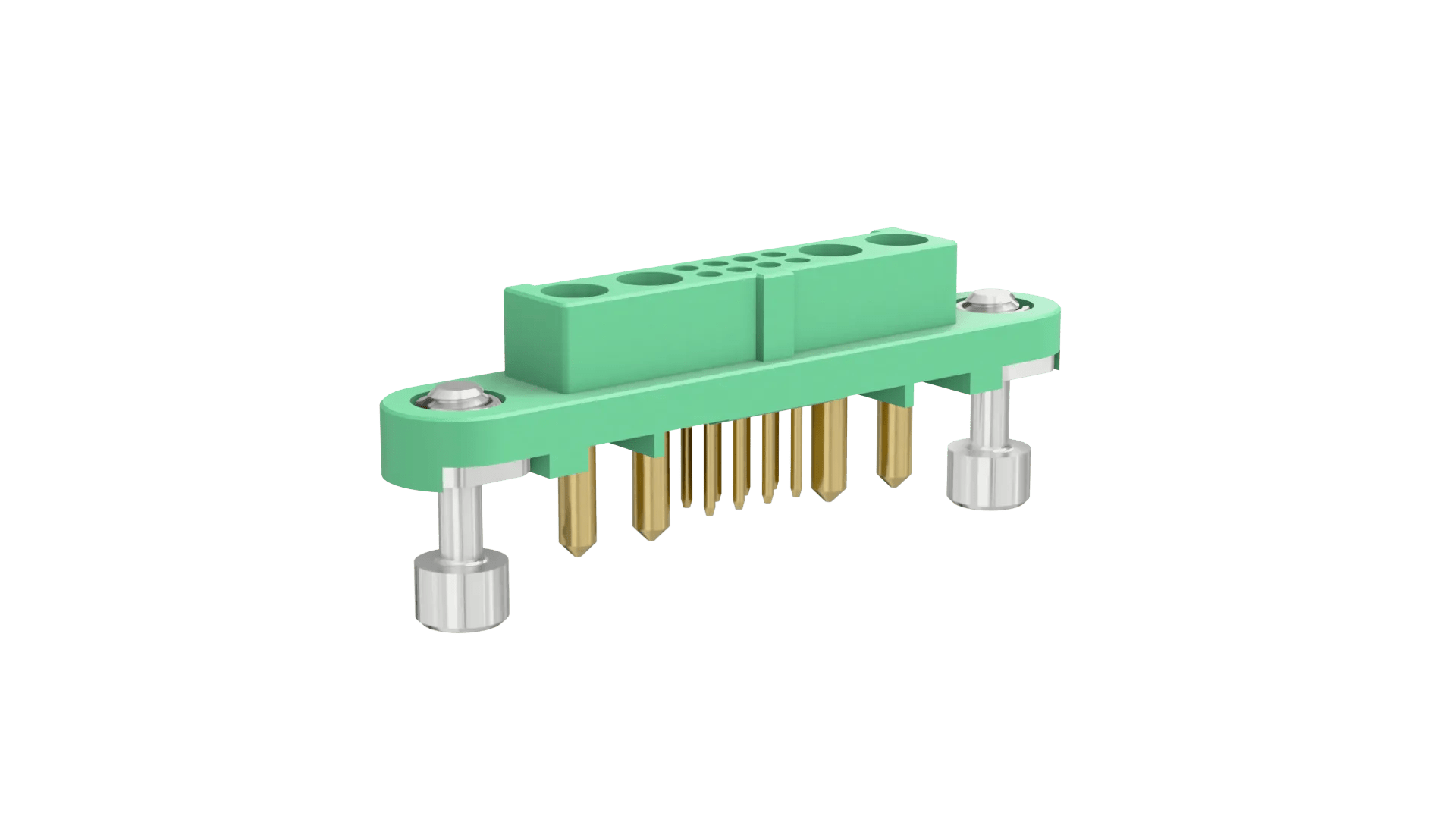

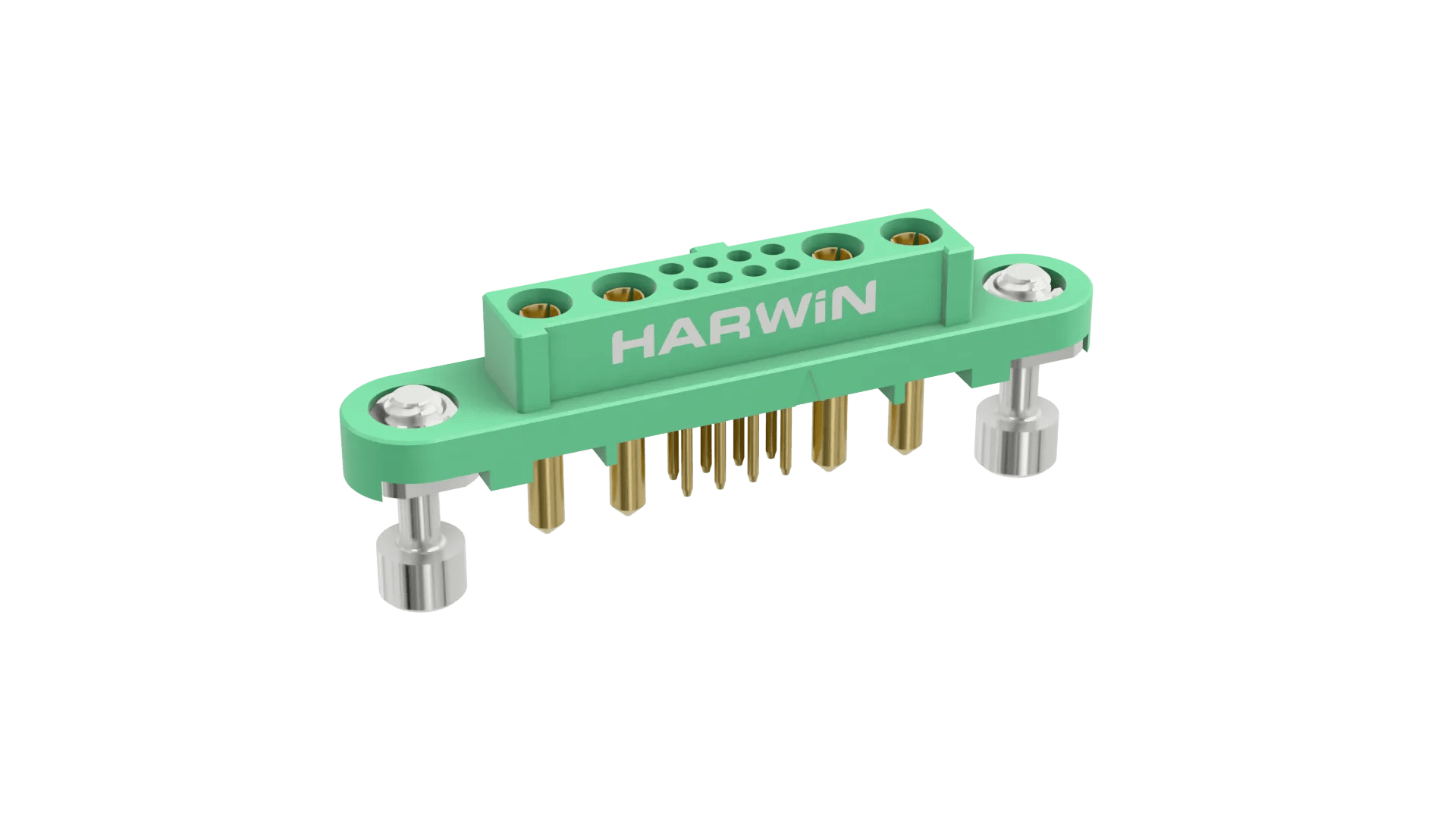

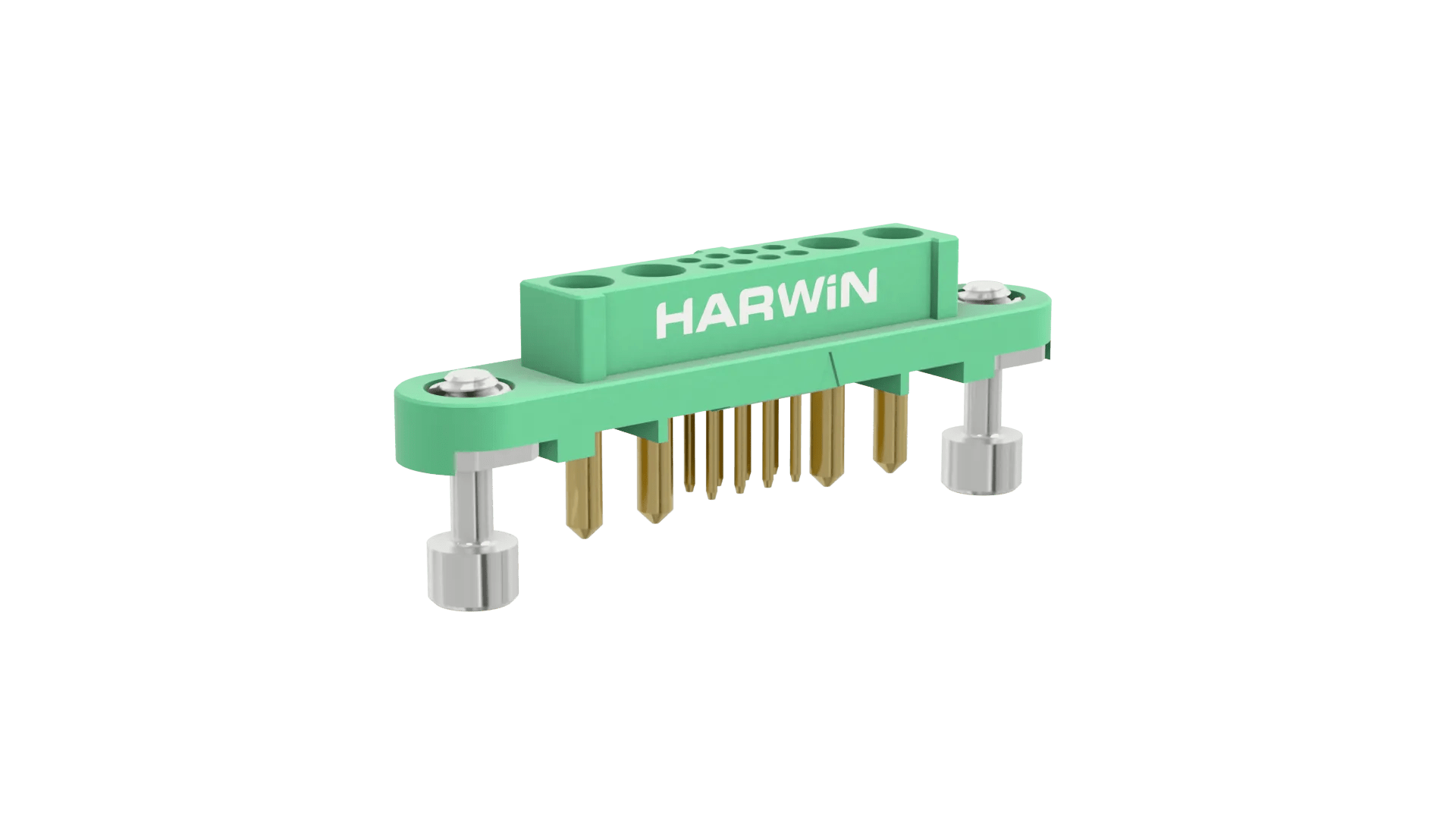

- Female Vertical 3mm Tail Throughboard connector – 2 power, 8 signal, 2 power contact arrangement. Fitted with floating Screw-Lok fixings, Hexagonal socket head.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
27.70 x 4.90 x 8.85
Height of Connector above PCB:
Length of Throughboard Tail:
101 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
G125-FV10805F1-2AB2ABP CAD Model (ZIP file containing STP and IGES)Download
