Active

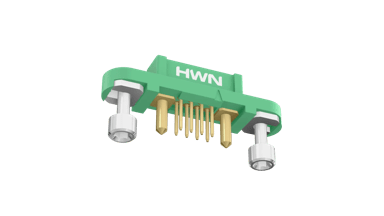

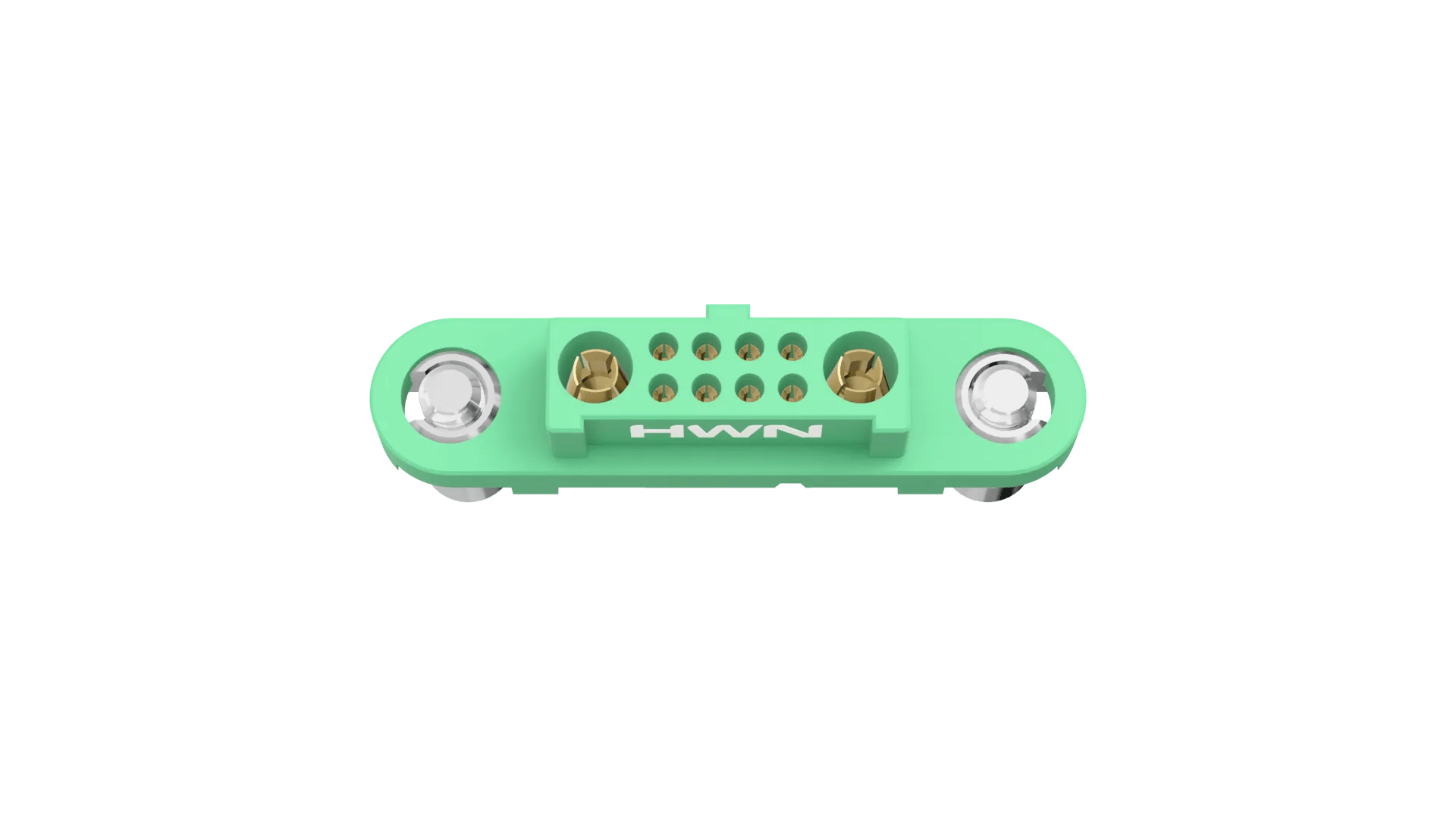

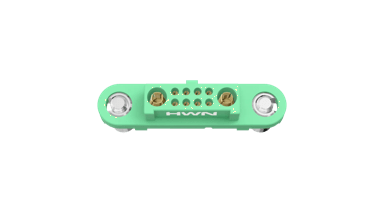

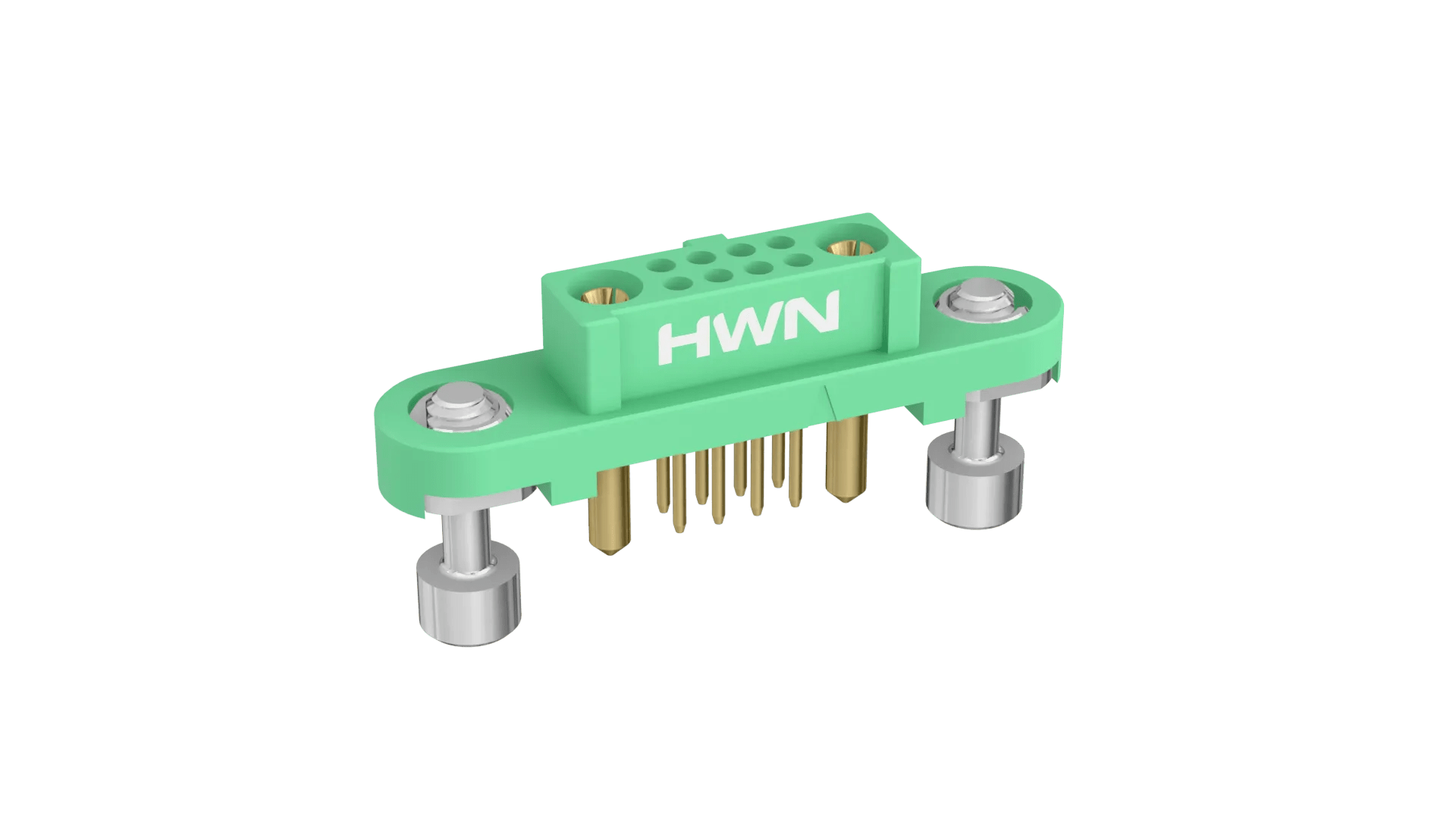

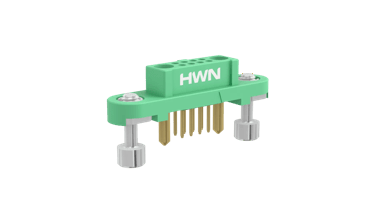

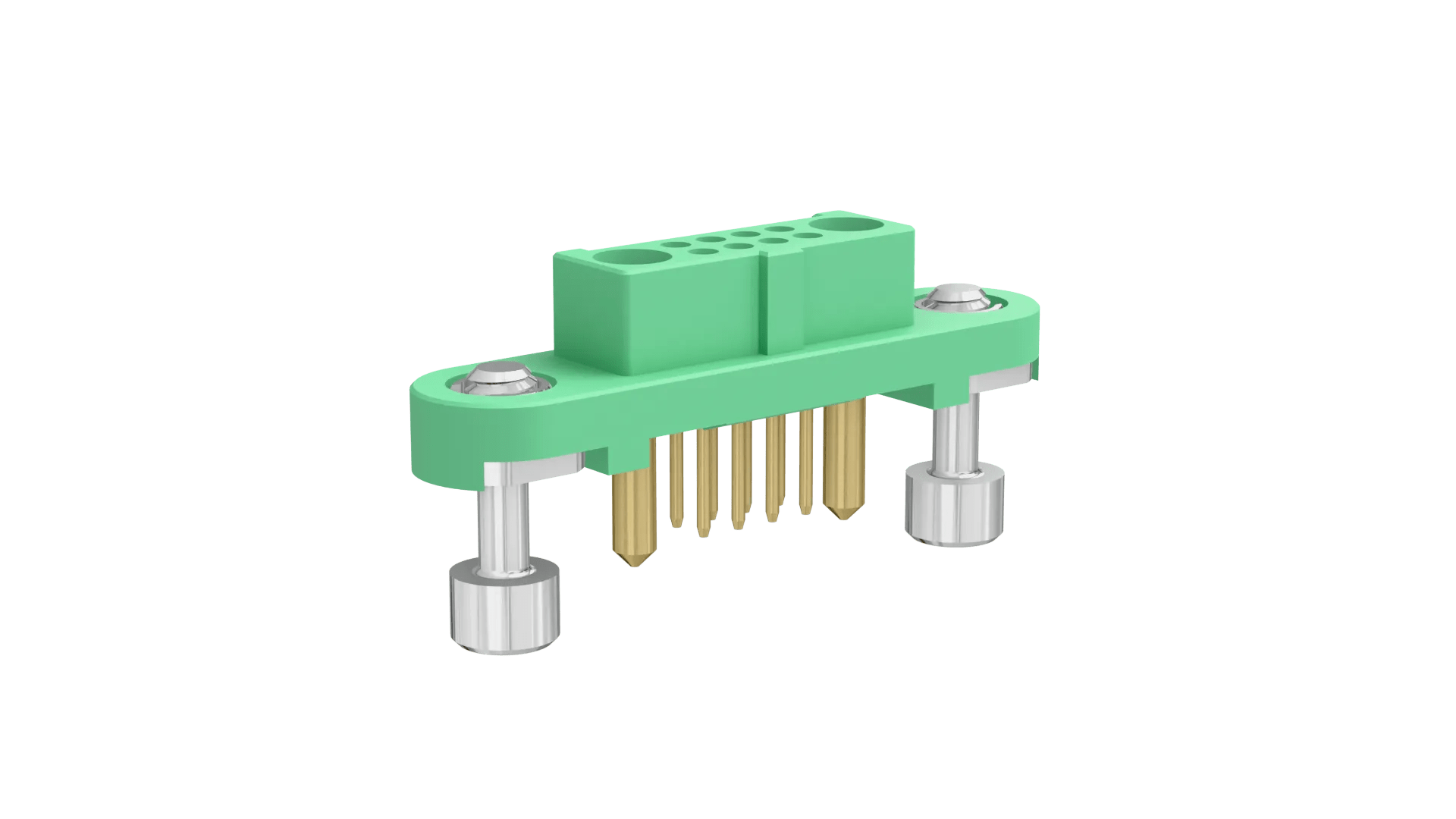

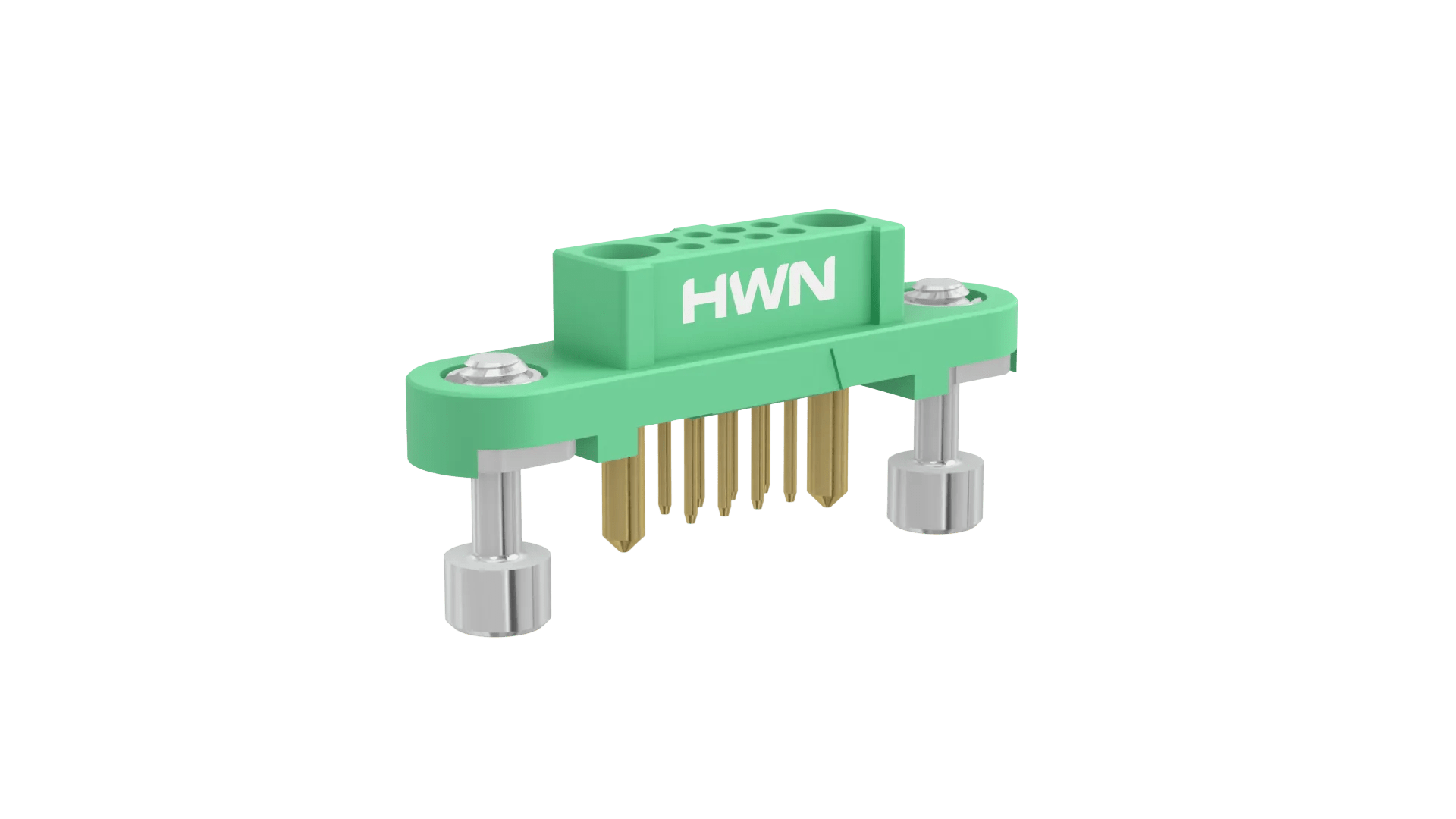

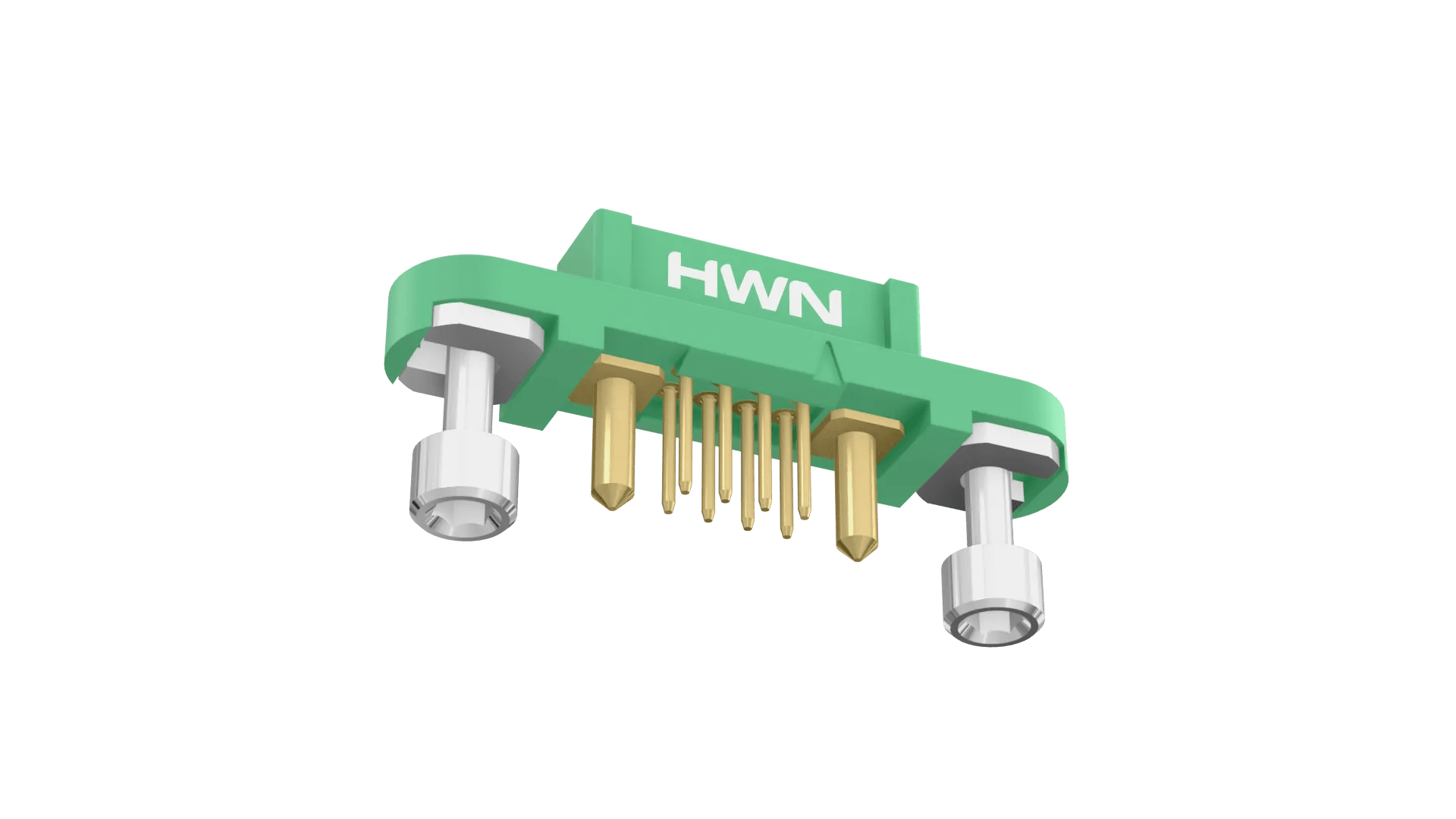

G125-FV10805F1-1AB1ABP

8+2 Pos. Female Vertical Throughboard Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Female Vertical 3mm Tail Throughboard connector – 1 power, 8 signal, 1 power contact arrangement.
  • Fitted with floating Screw-Lok fixings, Hexagonal socket head.
  • Supplied in tape strips with pick and place cap.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

2A (signal), 10A (power)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Hex Socket

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.203g

Overall Dimensions (L x W x D) in mm:

21.50 x 4.90 x 8.85

Thread Size:

M2

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

3.00mm, 3.60mm

Availability

Distributor Location Quantity
Digi-Key
Global
Status50
Harwin
Europe
Status170
Mouser Electronics Inc
Global
Status20

*Stock available: contact distributor to purchase
