G125-FS15005F1P

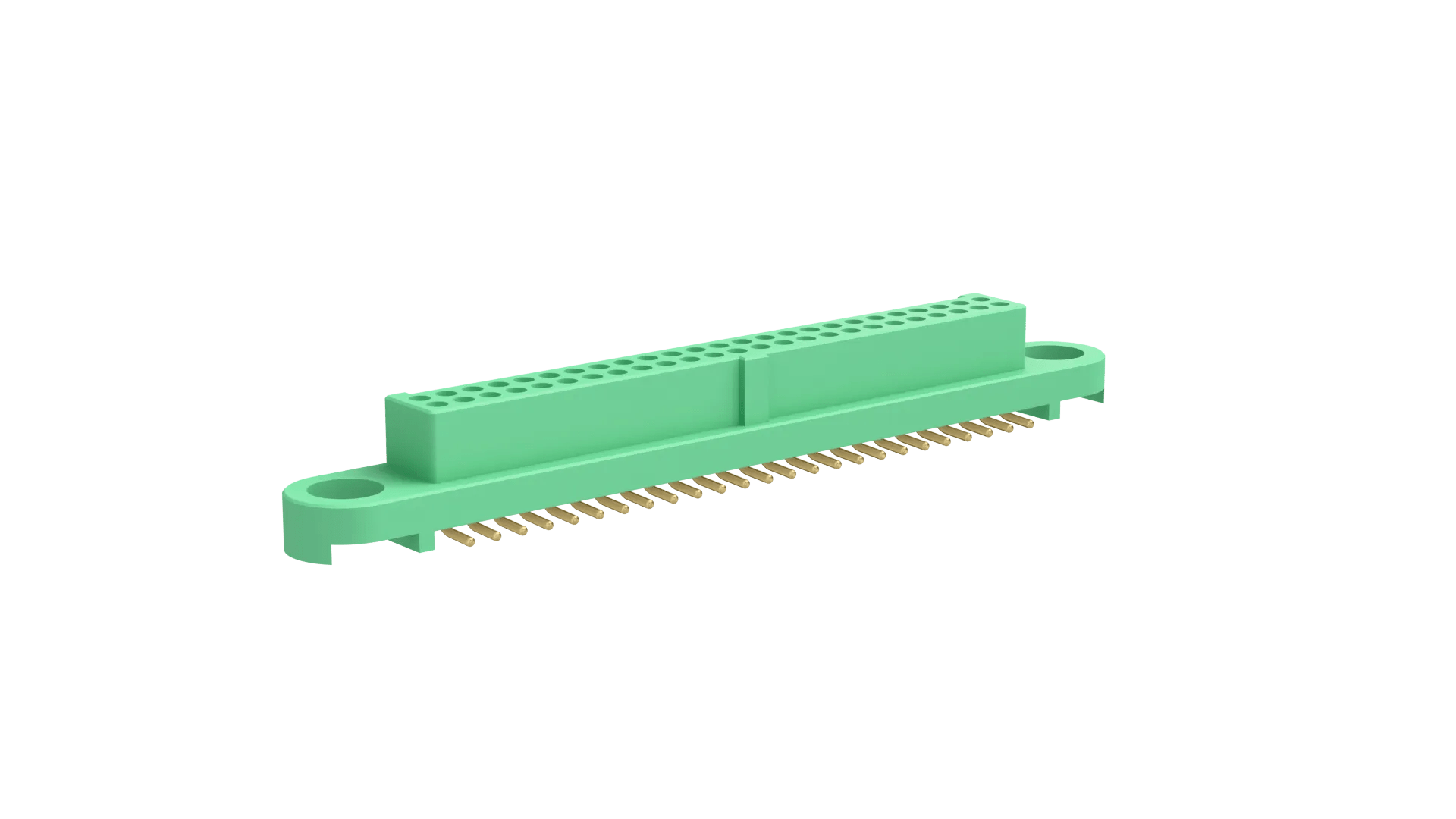

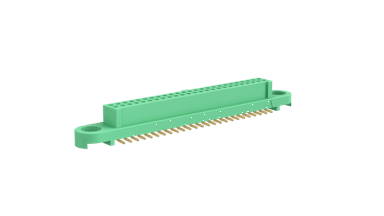

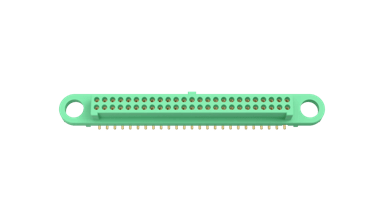

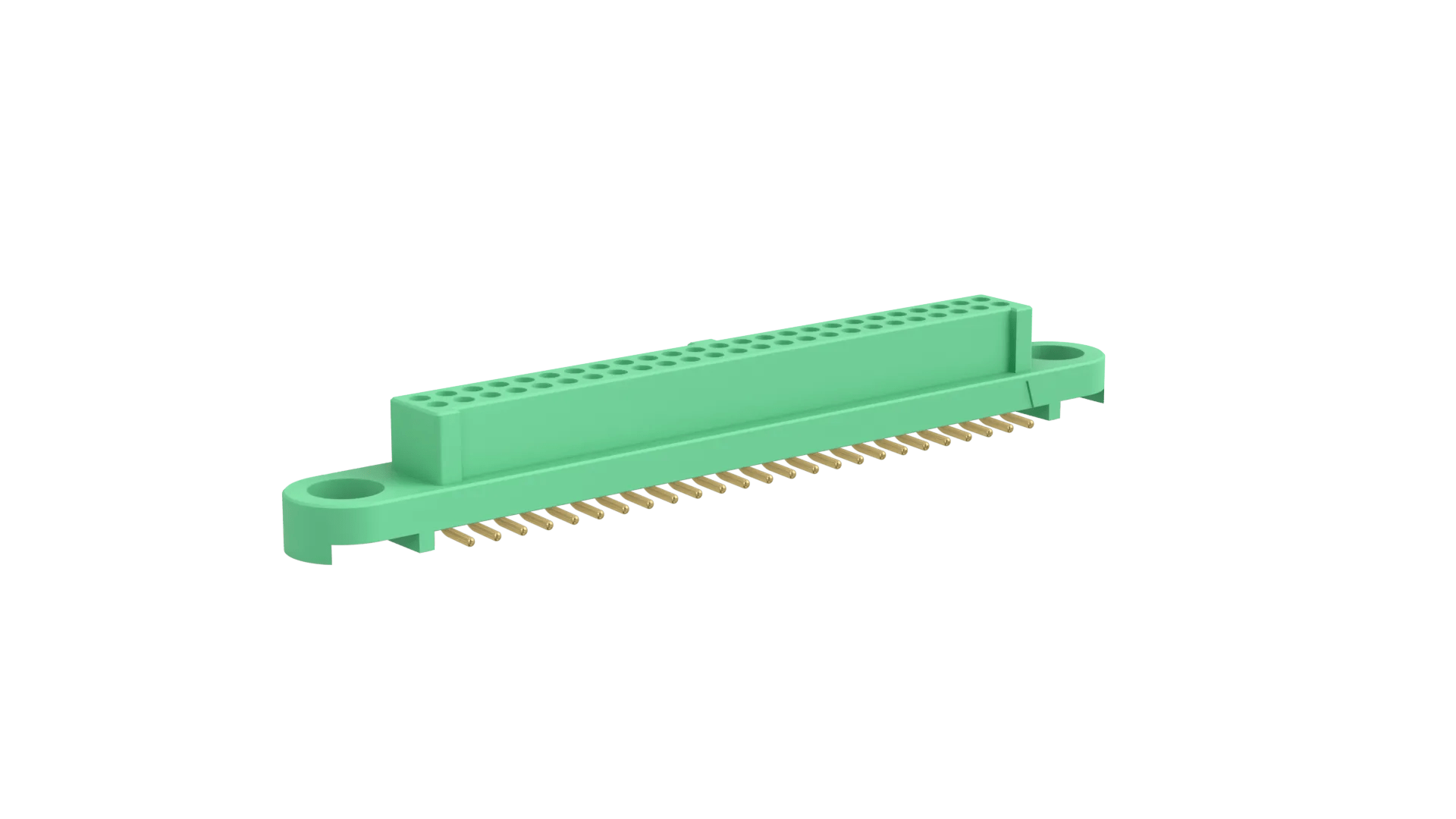

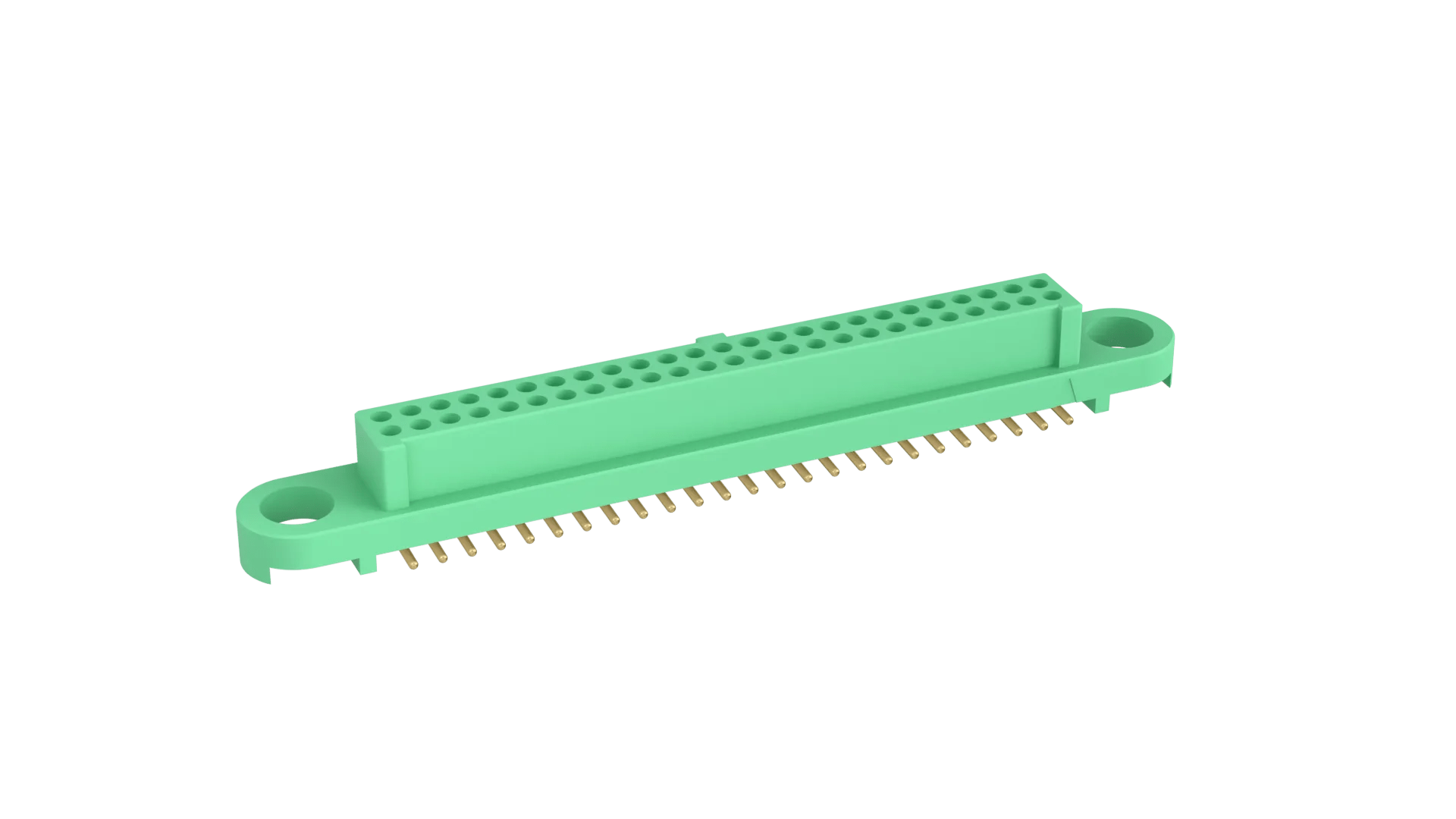

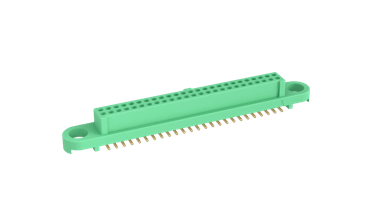

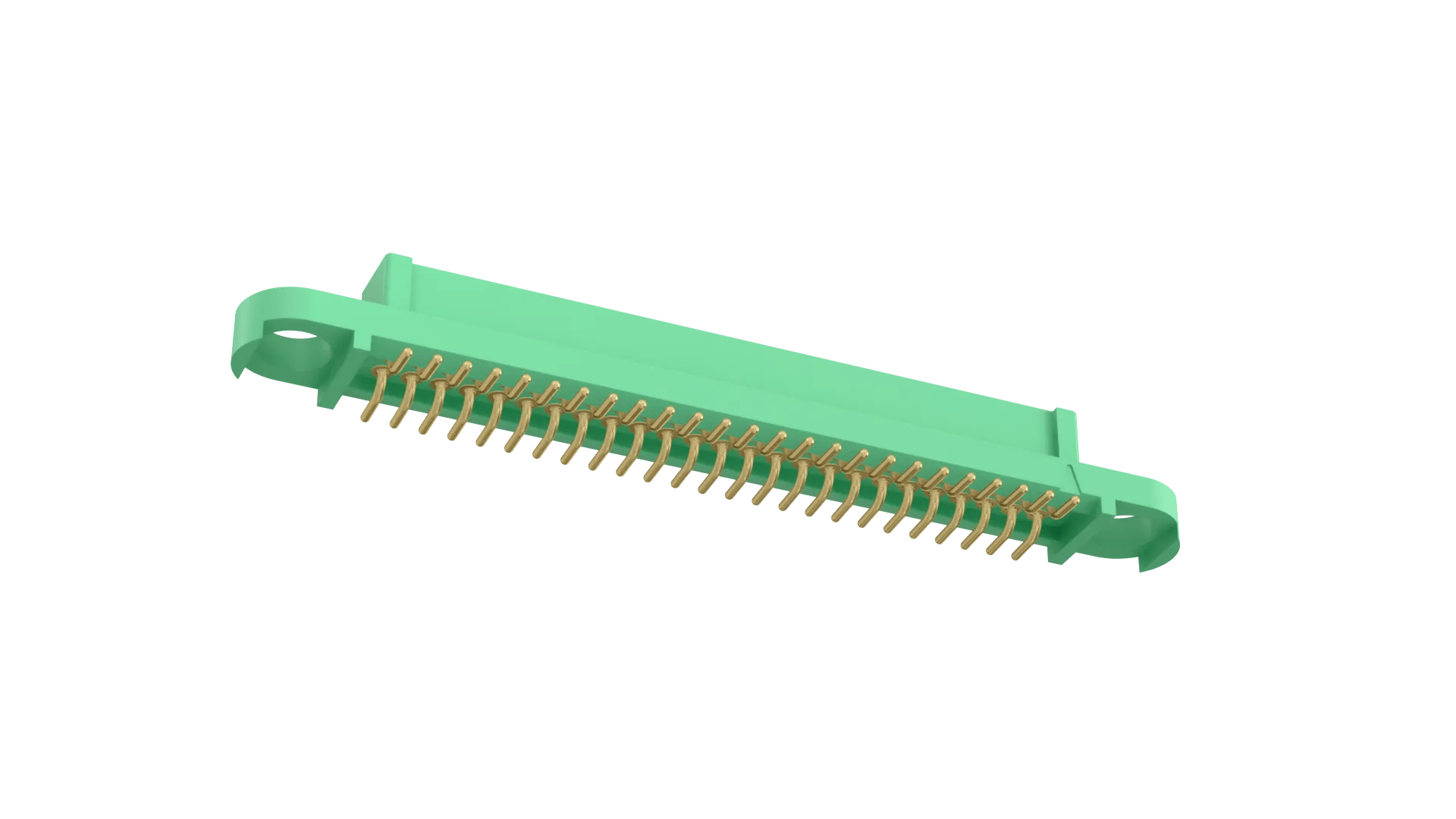

25+25 Pos. Female DIL Vertical SMT Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Female Double Row Vertical Surface Mount connector - 50 contacts (25+25).
  • Fitted with floating Screw-Lok fixings, Hexagonal socket head.
  • Supplied in tape strips with pick and place cap.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 30 Buy Now
Mouser Electronics Inc Global 24 Buy Now
TTI Inc USA 100 Website
Harwin Europe 487

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
Contact Pitch: 1.25mm
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.4mm
Current Rating: 2A
Operating Temperature: -65°C to +150°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Hex Socket

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper
Housing Material: Polyamide (Nylon) 4T
Housing Color: Green
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.872g
Packaging Style: Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 50
Body Length: 42.7mm
Height of Connector above PCB: 5.38mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Mating Profiles/Heights

Related Products

+
Product in Tape and Reel, or Reeled: G125-FS15005F1R
Screwdriver (for board mount units): Z9952-00
Z9950-00
Product Family: G125-FS1F1

Mating Products
