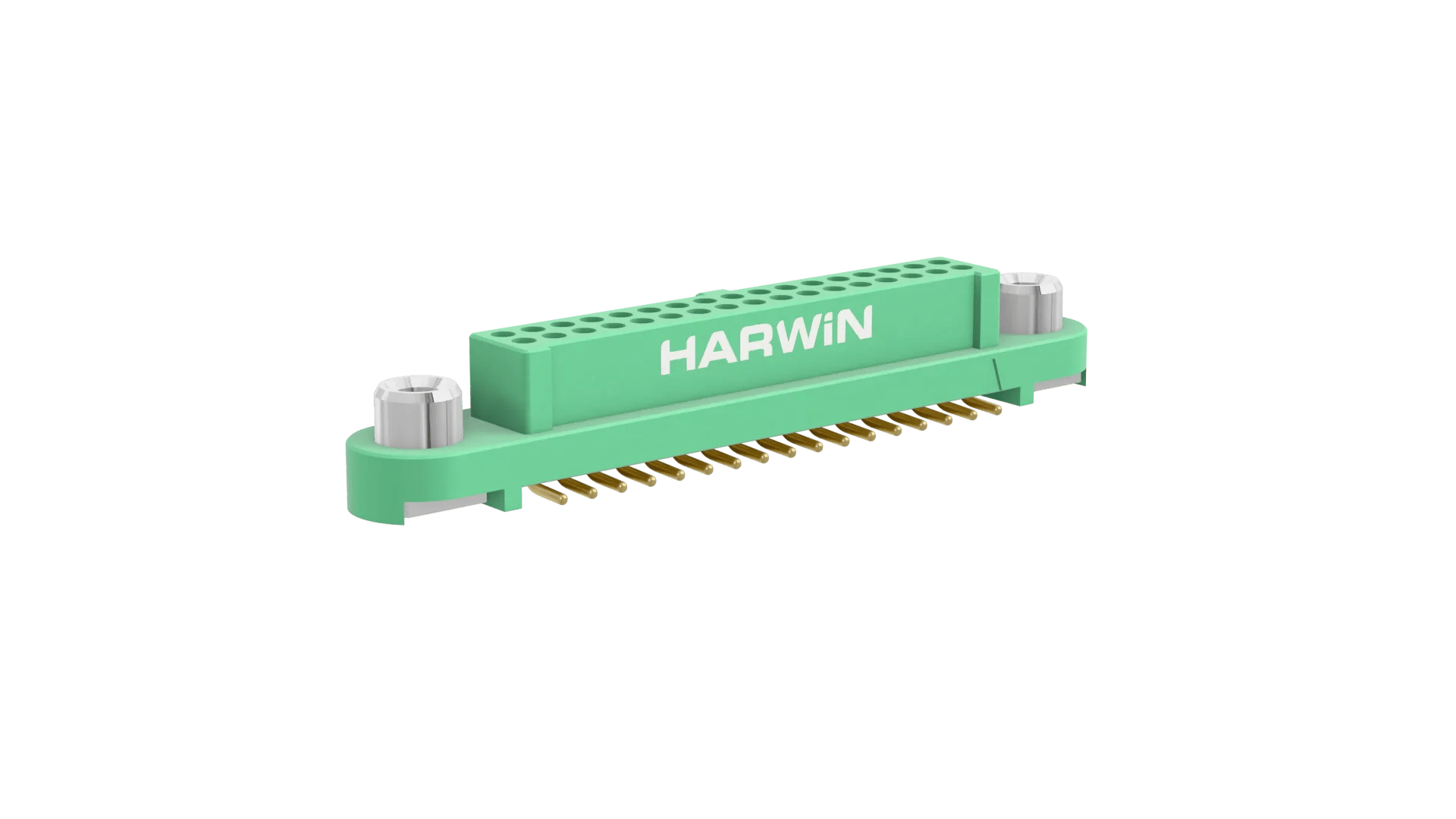

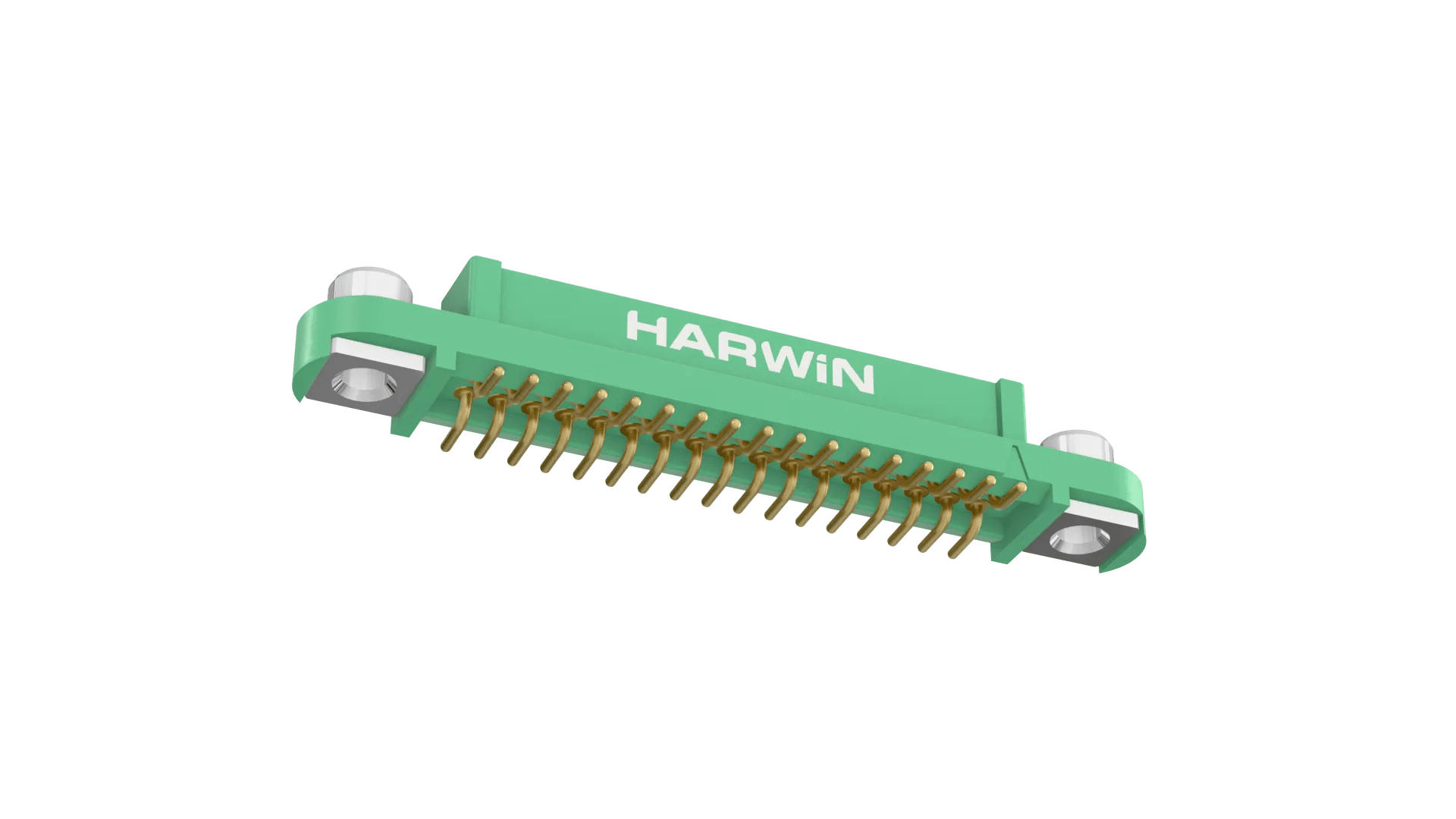

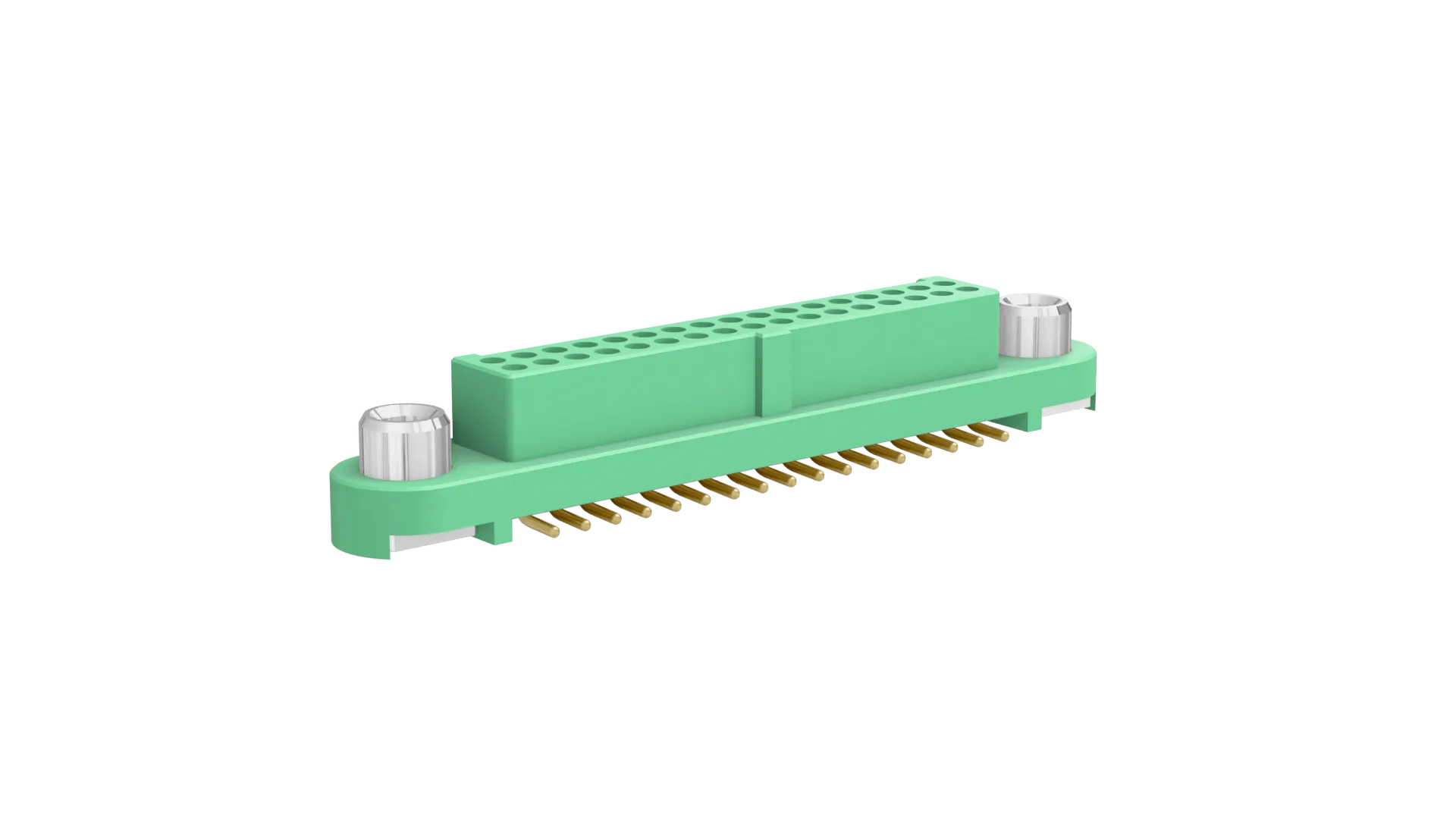

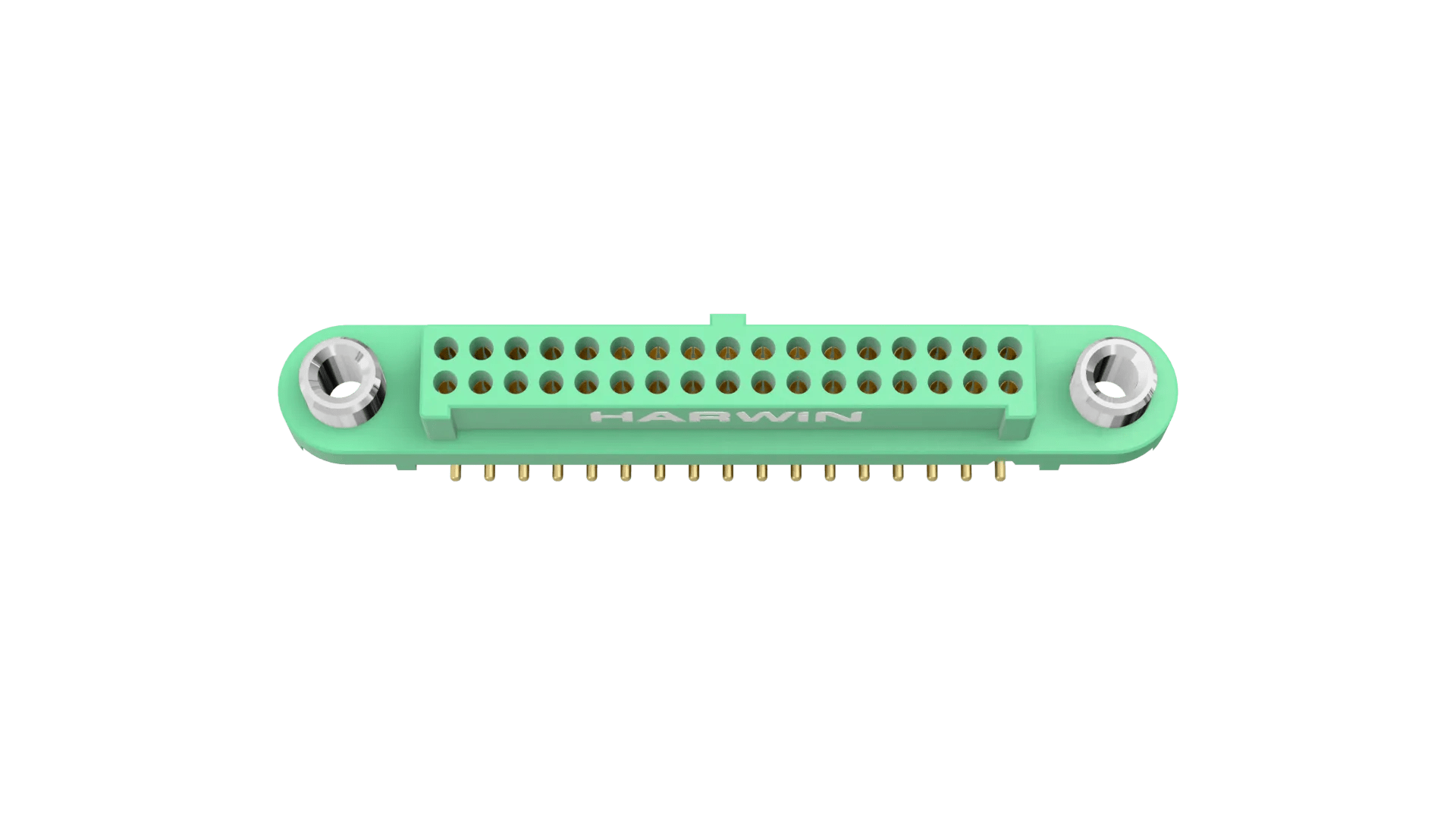

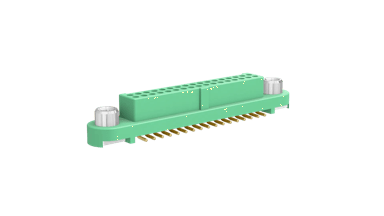

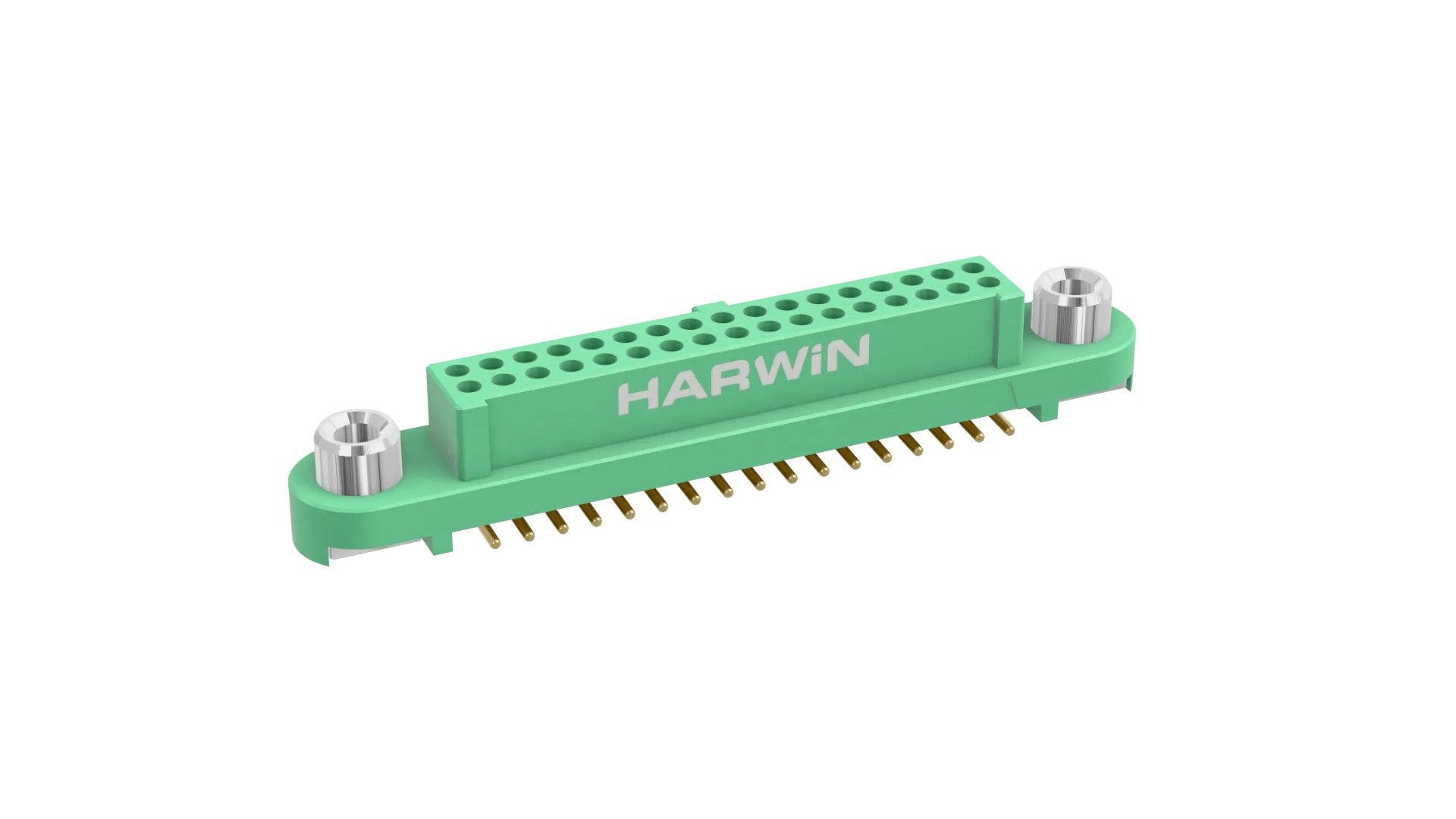

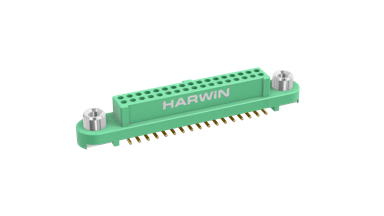

17+17 Pos. Female DIL Vertical SMT Conn. Screw-Lok Reverse Fix
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Female Double Row Vertical Surface Mount connector – 34 contacts (17+17). Fitted with internally threaded Screw-Lok fixings, for reverse fixing.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Screw-Lok (Reverse Fix)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.70 x 5.80 x 5.38
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
Was this answer useful?
Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?
Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
