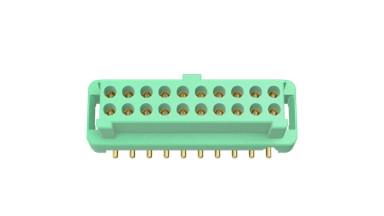

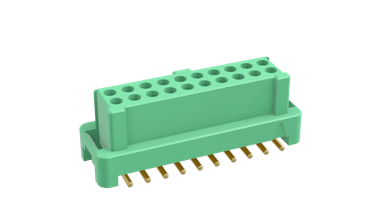

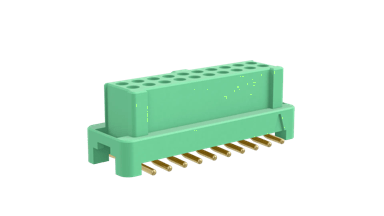

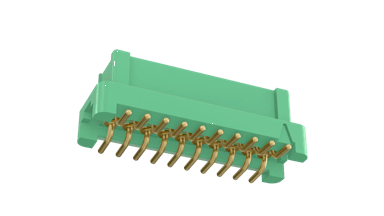

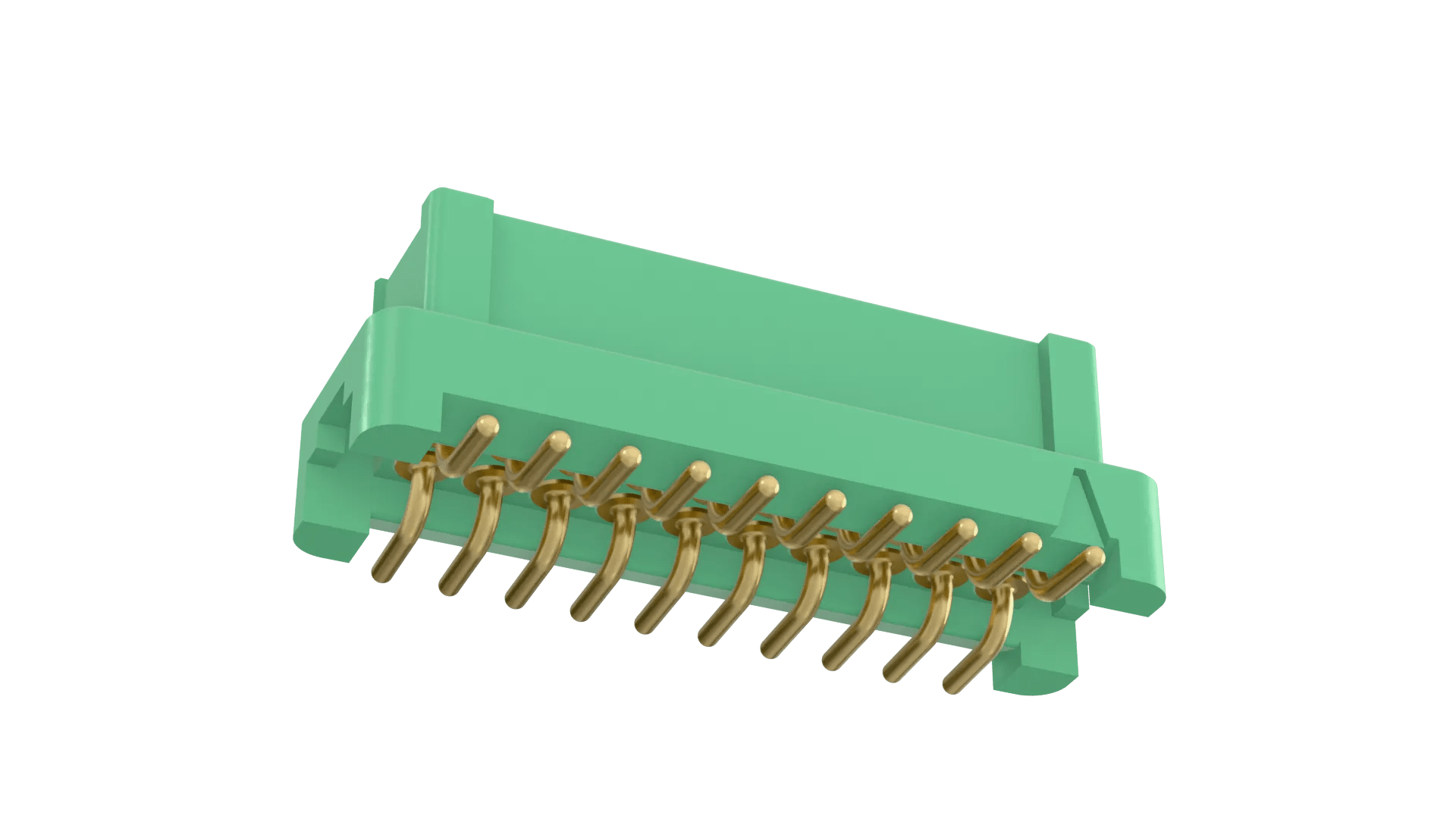

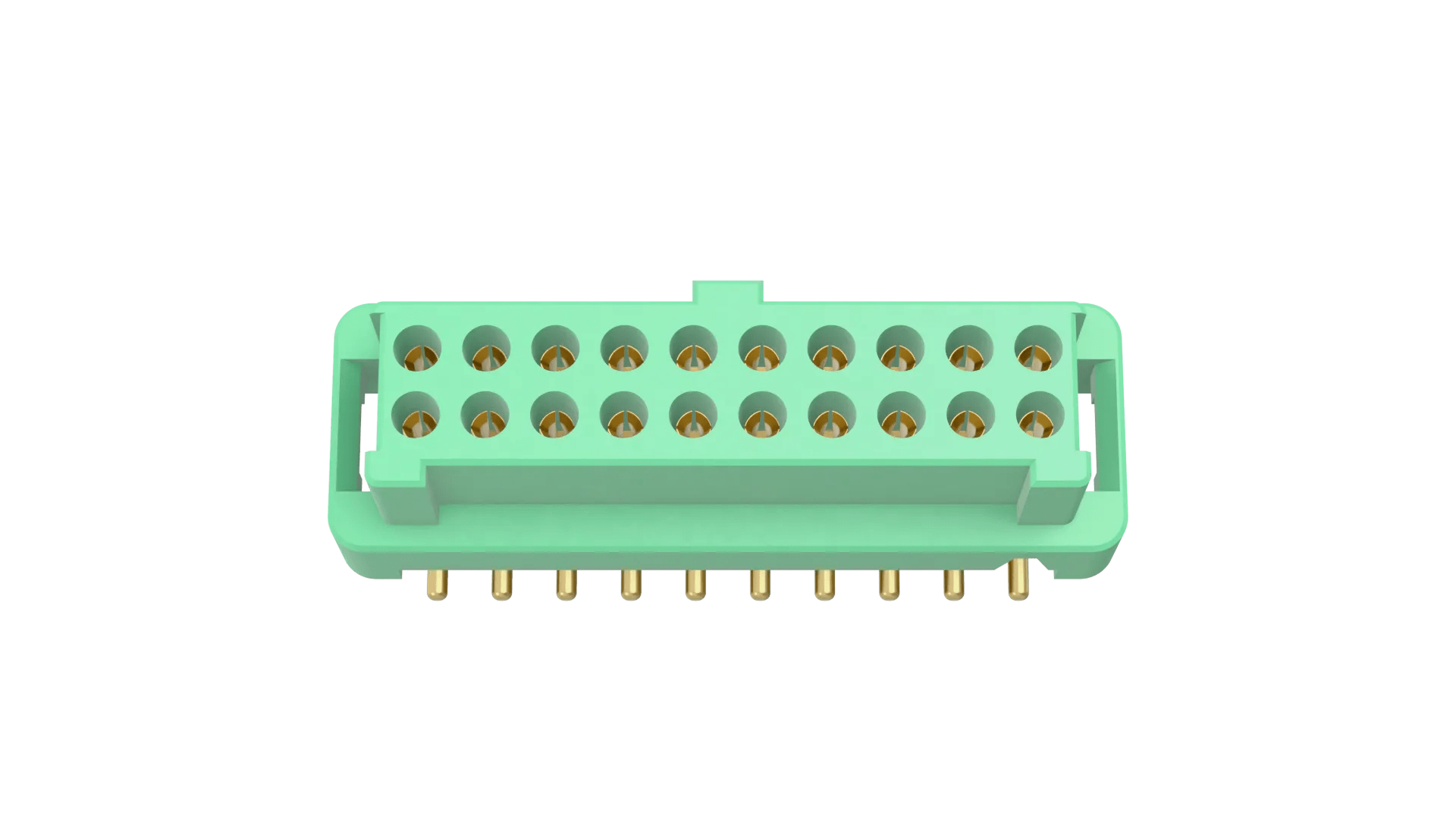

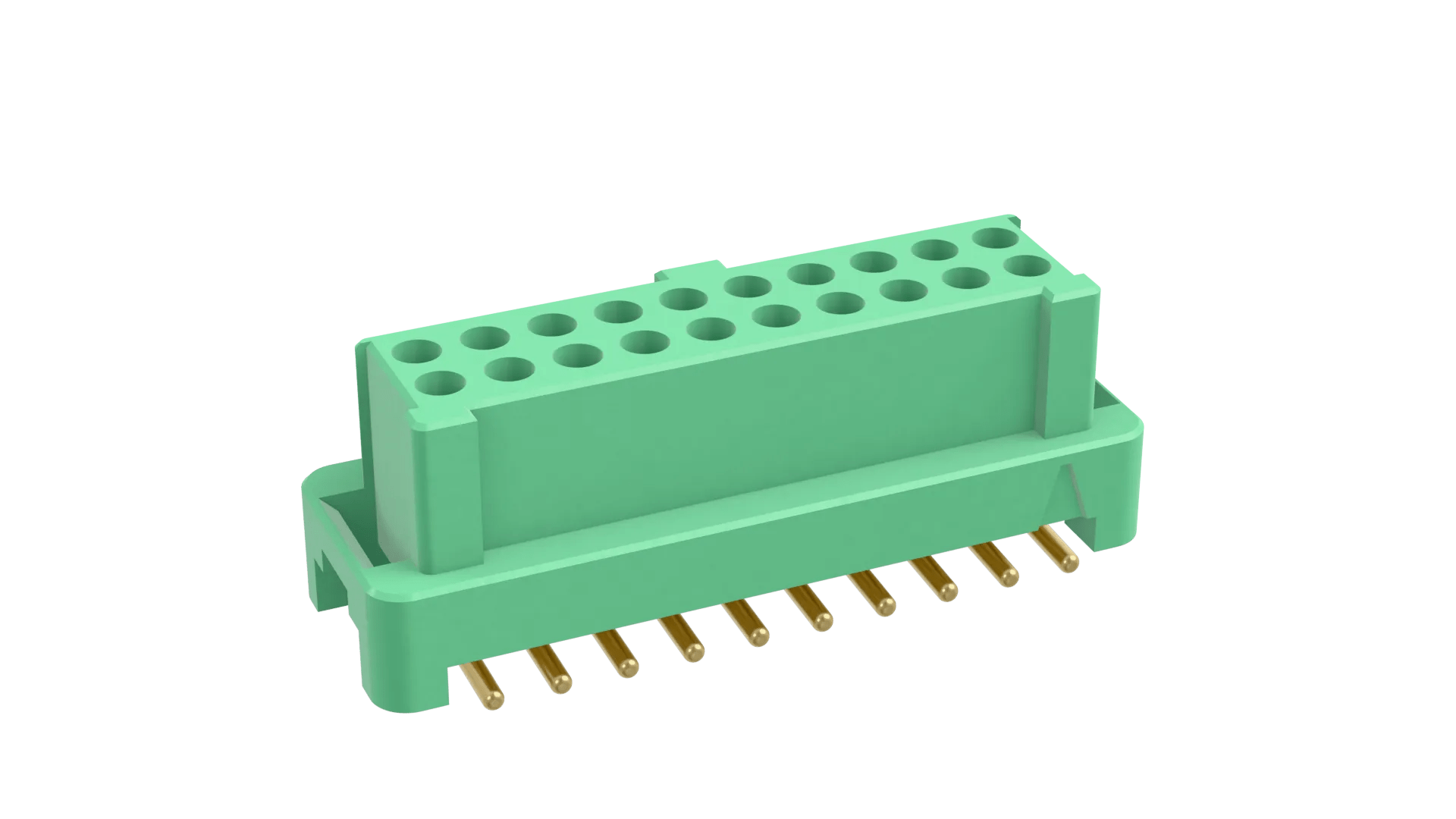

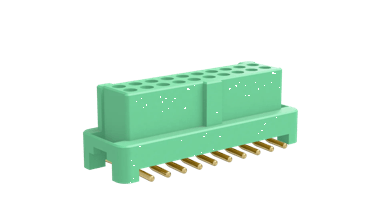

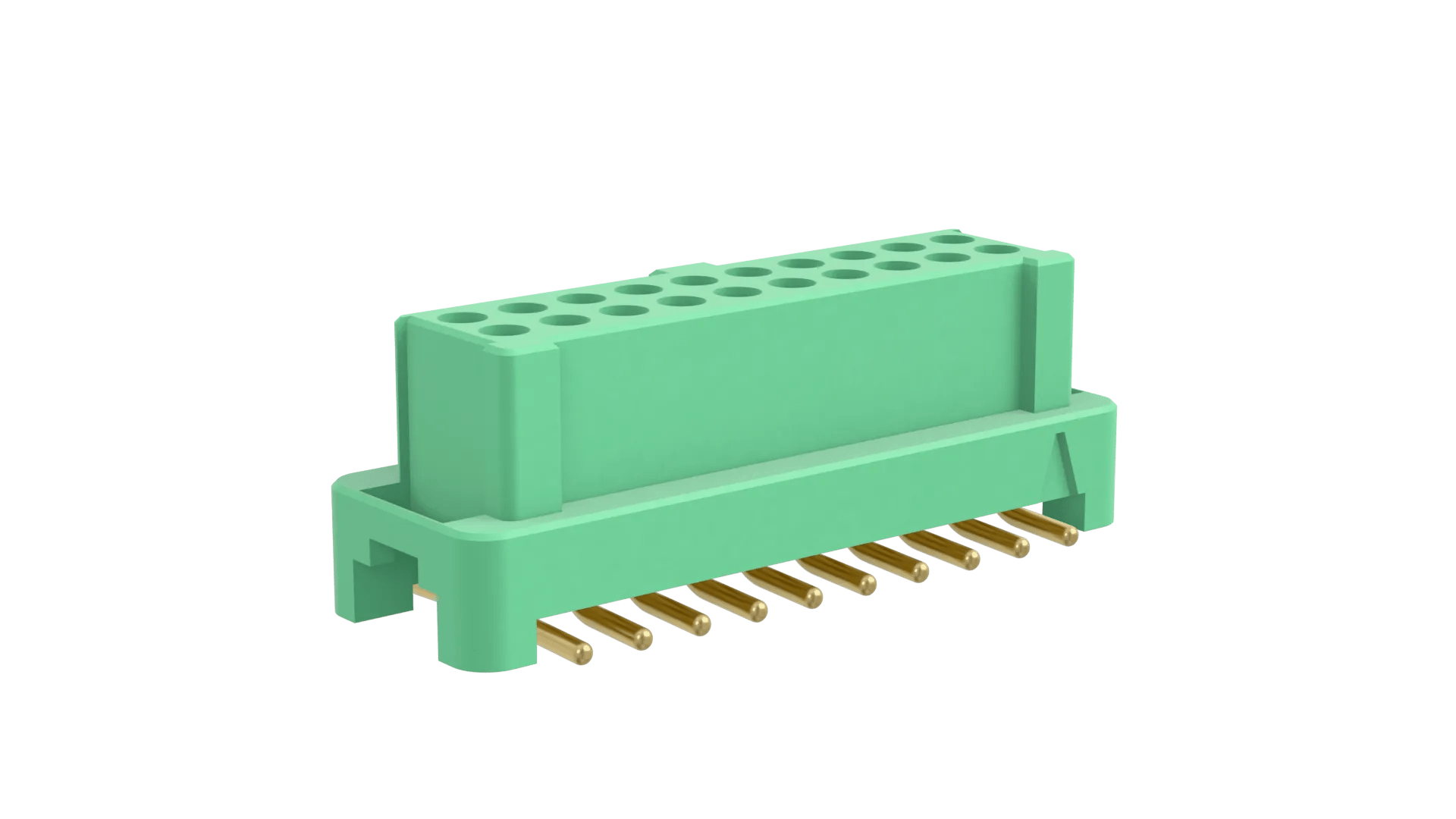

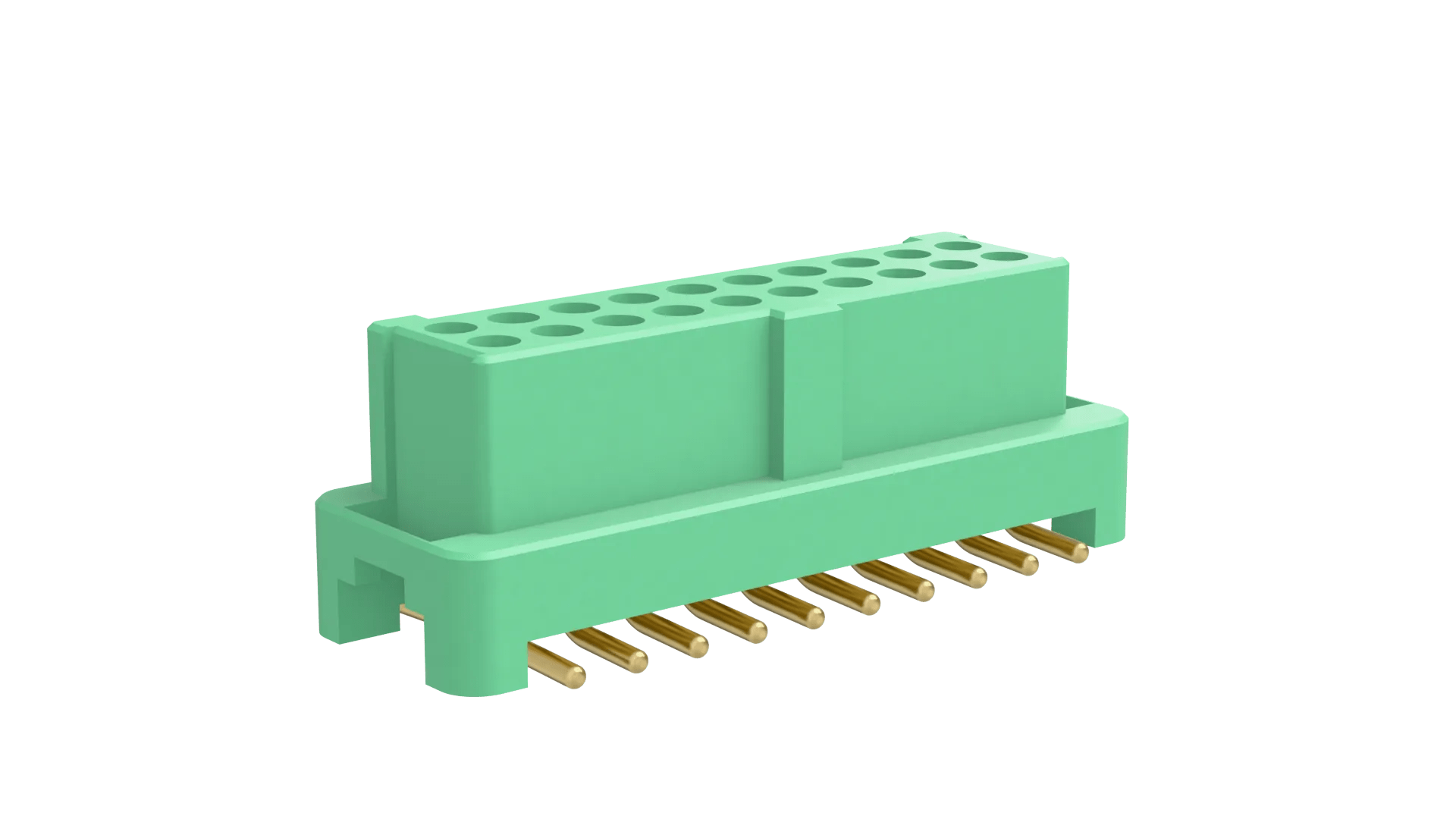

G125-FS12005L0P

10+10 Pos. Female DIL Vertical SMT Conn. for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row Vertical Surface Mount connector - 20 contacts (10+10).
  • Supplied in tape strips with pick and place cap.
  • Compatible housing style for male connectors with latches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 10 Website
Digi-Key Global 727 Buy Now
Farnell Europe 22 Buy Now
Mouser Electronics Inc Global 126 Buy Now
Newark USA 22 Buy Now
Harwin Europe 26

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.25mm Pitch High-Reliability Connector - Gecko with Latches
Contact Pitch: 1.25mm
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.4mm
Current Rating: 2A
Operating Temperature: -65°C to +150°C
Style of Latches: Compatible with latches
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper
Housing Material: Polyamide (Nylon) 4T
Housing Color: Green
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.636g
Packaging Style: Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Body Length: 15.05mm
Height of Connector above PCB: 5.3mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Mating Profiles/Heights

Related Products

+
Product in Tape and Reel, or Reeled: G125-FS12005L0R
Product Family: G125-FS1

Mating Products

Previous Next

Alternative products

G125-FS12005L0R - 10+10 Pos. Female DIL Vertical SMT Conn. for Latches (T+R)

Closest alternative:

G125-FS12005L0R

10+10 Pos. Female DIL Vertical SMT Conn. for Latches (T+R)
