G125-FS11005F1P
5+5 Pos. Female DIL Vertical SMT Conn. Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
225 in stock Check availability
5 similiar products View products
Samacsys account required
No login is required
Product Description

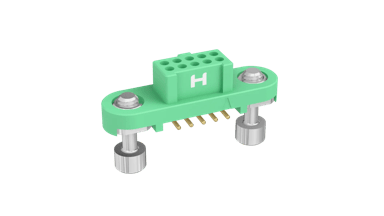

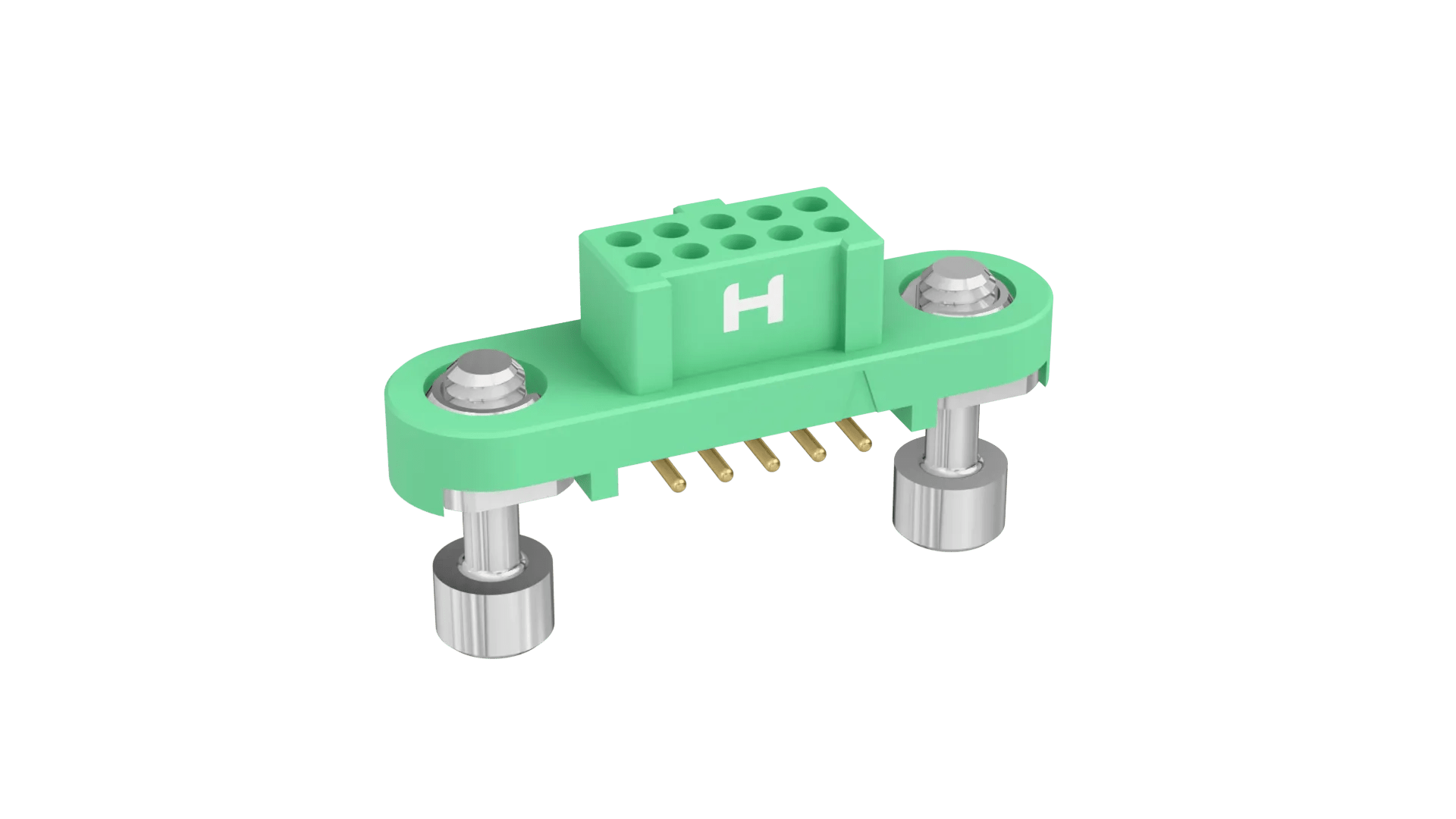

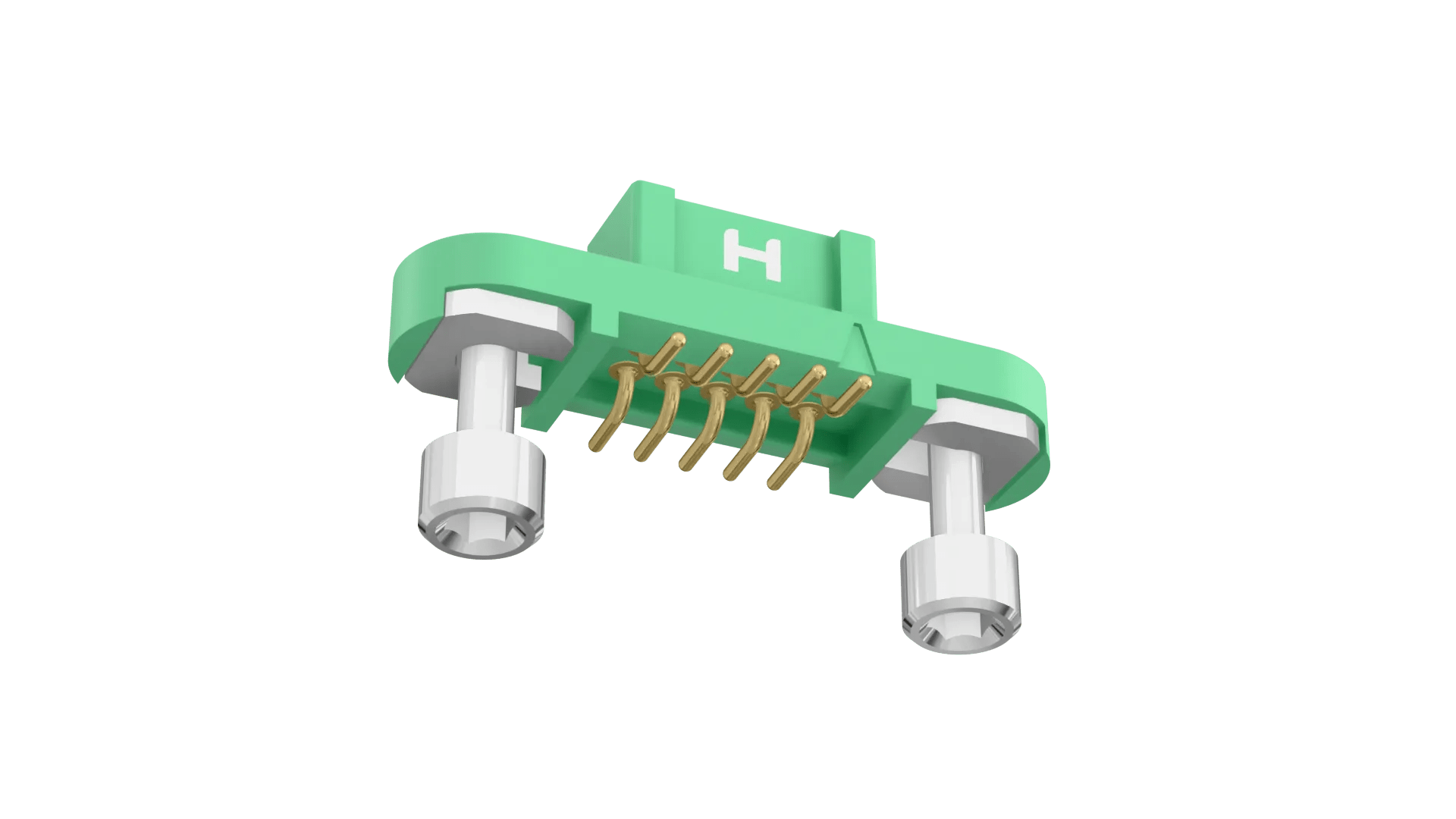

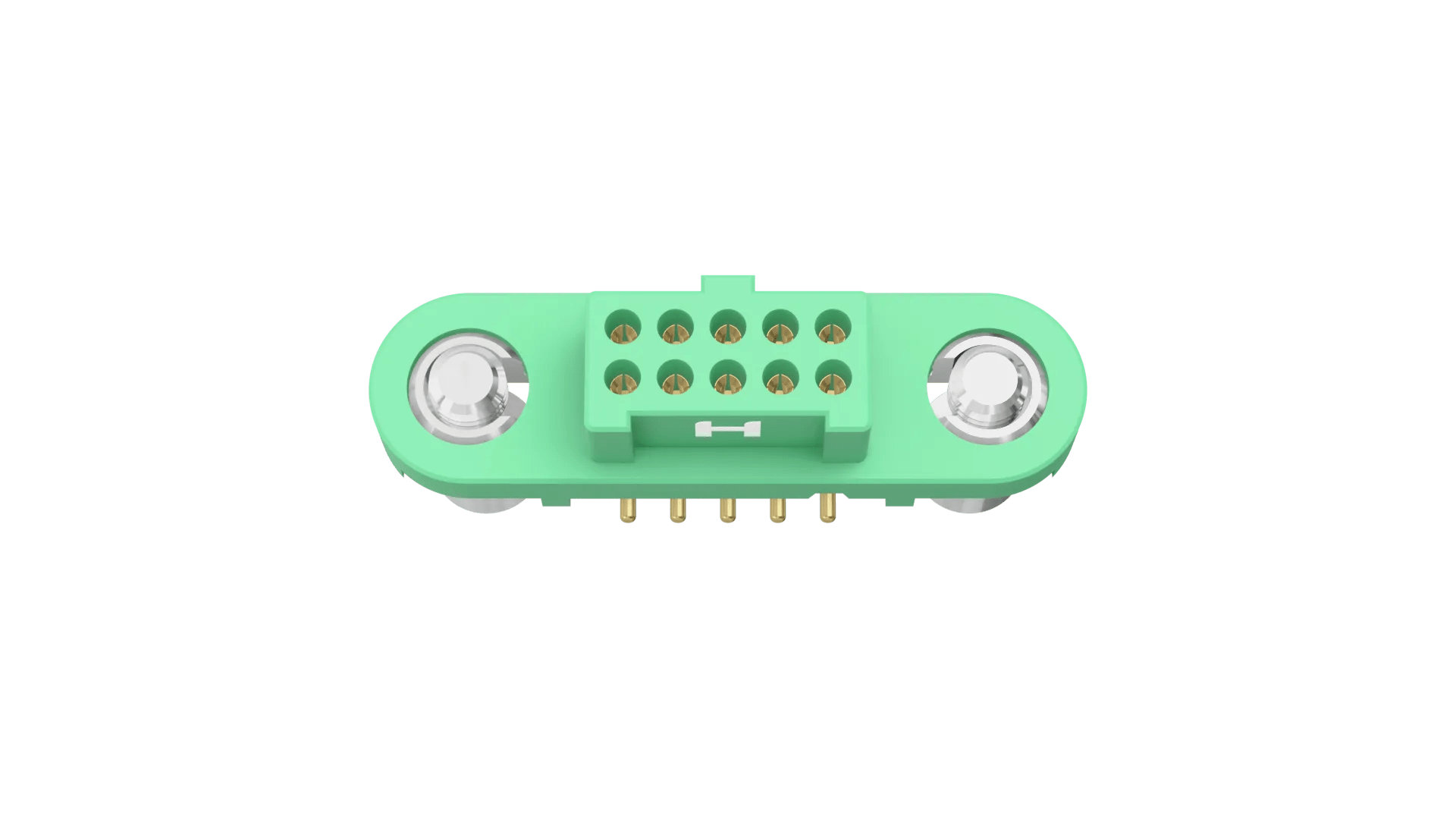

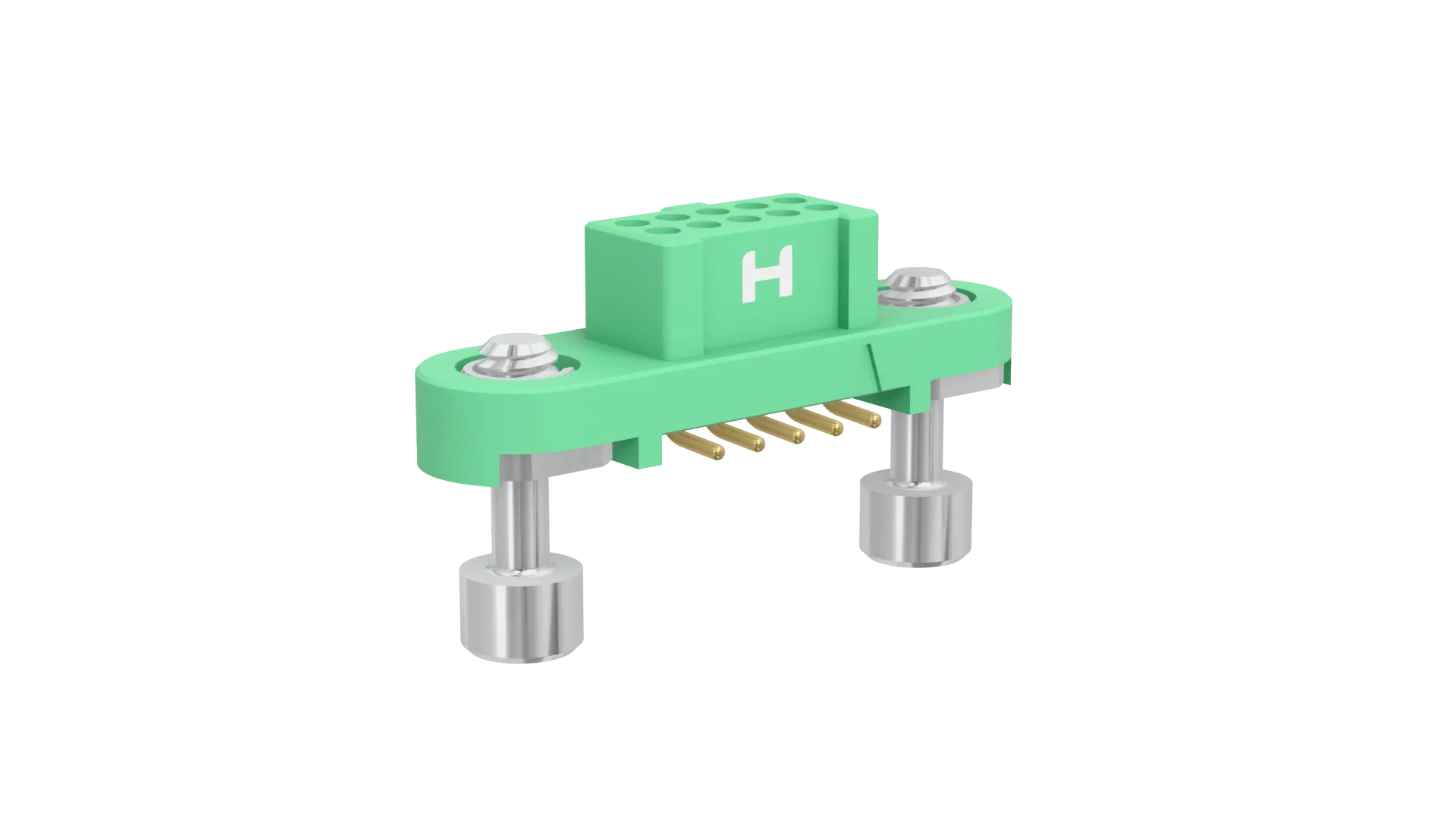

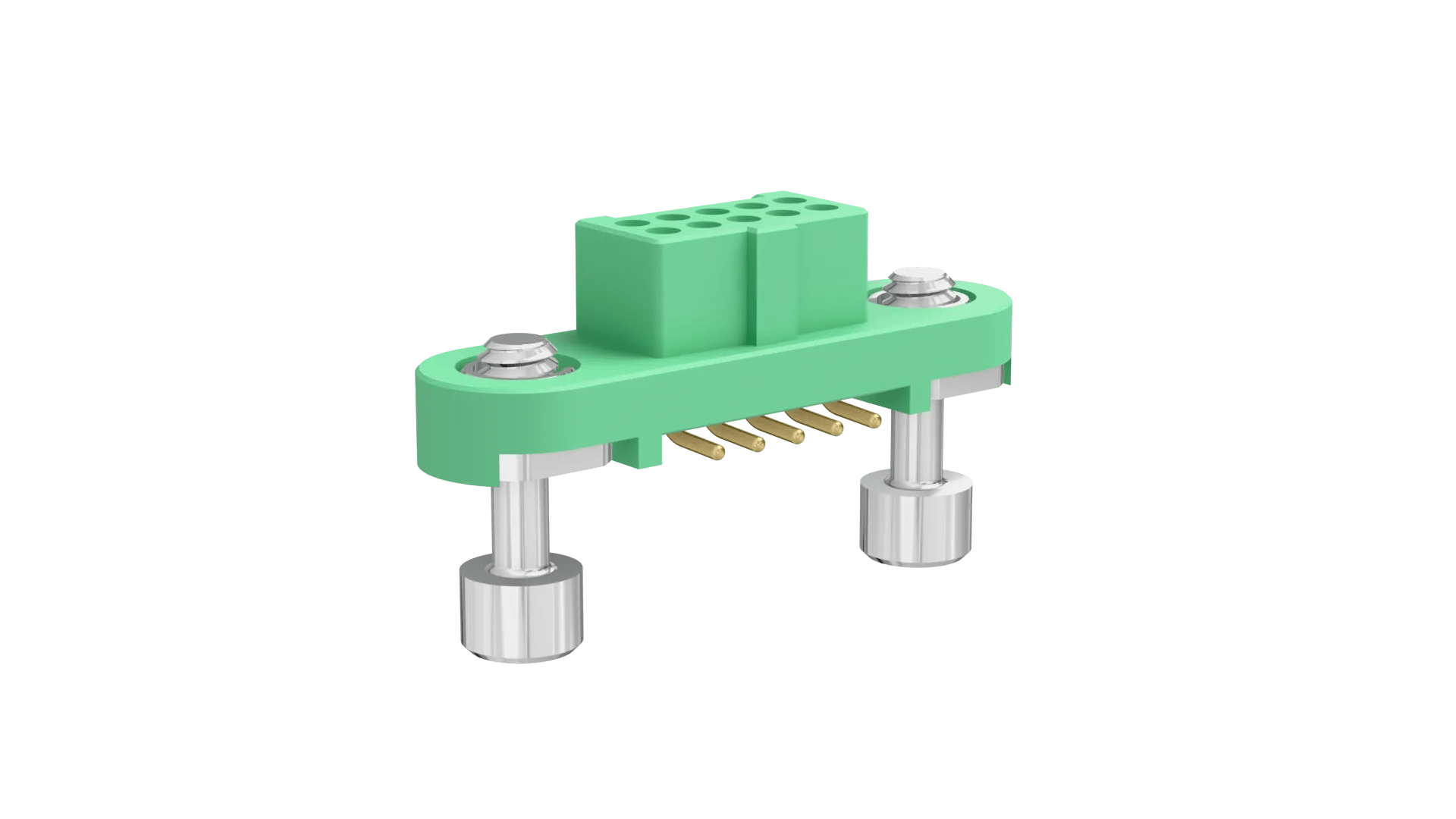

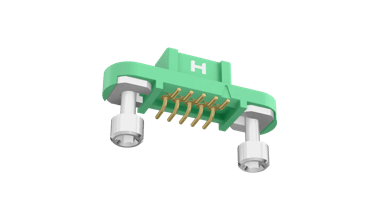

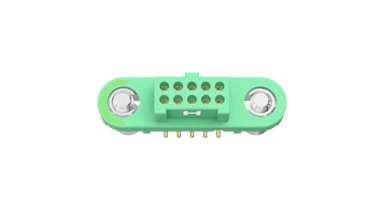

- Female Double Row Vertical Surface Mount connector – 10 contacts (5+5). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Floating Screw-Lok with Hex Socket Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
10
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Dimensions
Individual Part Weight:
0.937g
Overall Dimensions (L x W x D) in mm:
17.70 x 5.80 x 7.25
Thread Size:
M2
Height of Connector above PCB:
5.38mm
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
Was this answer useful?
Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?
Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.
