Home > G125-FS10605F3P
Active Product

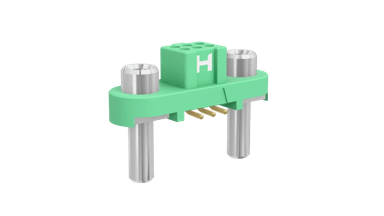

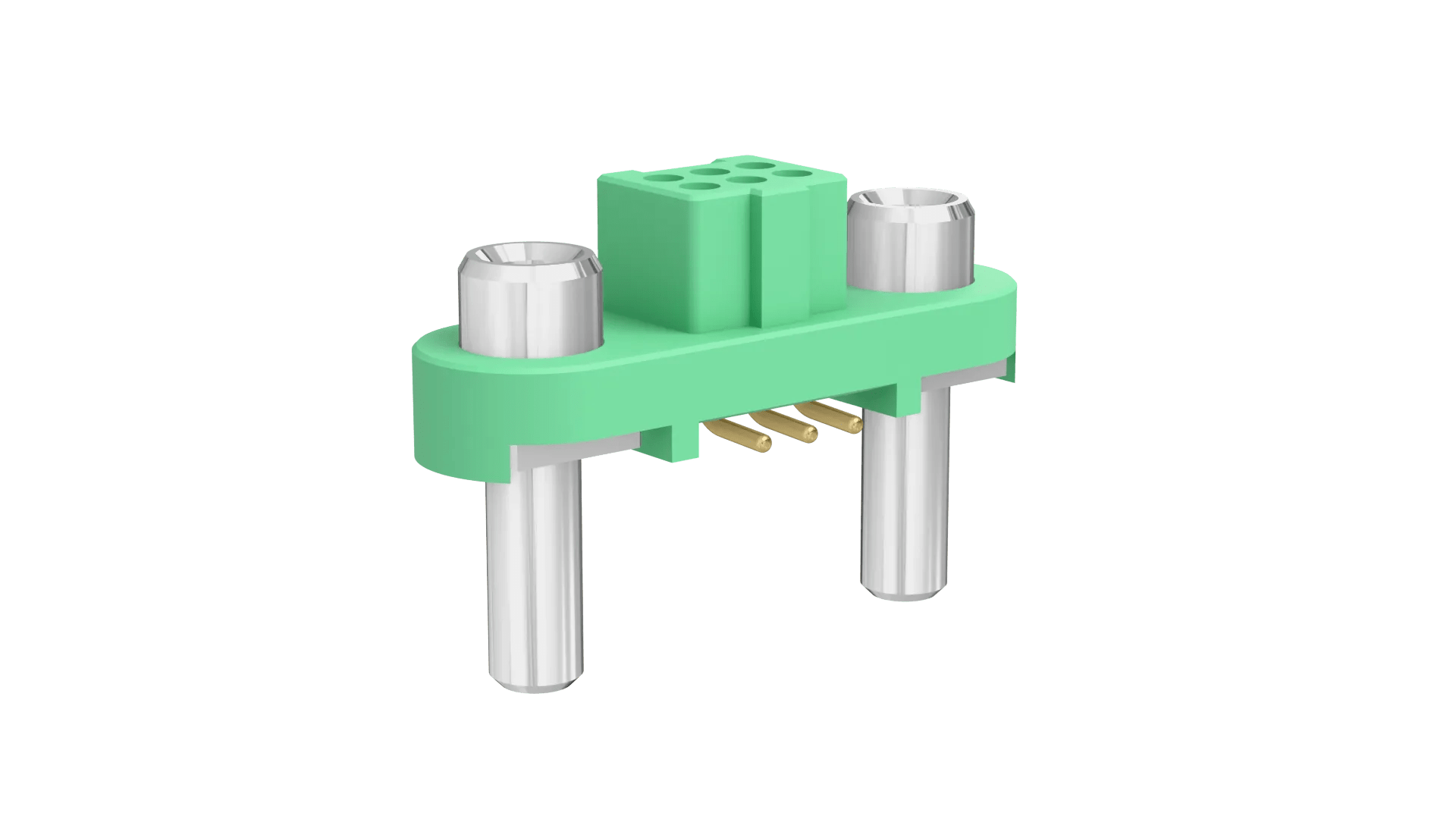

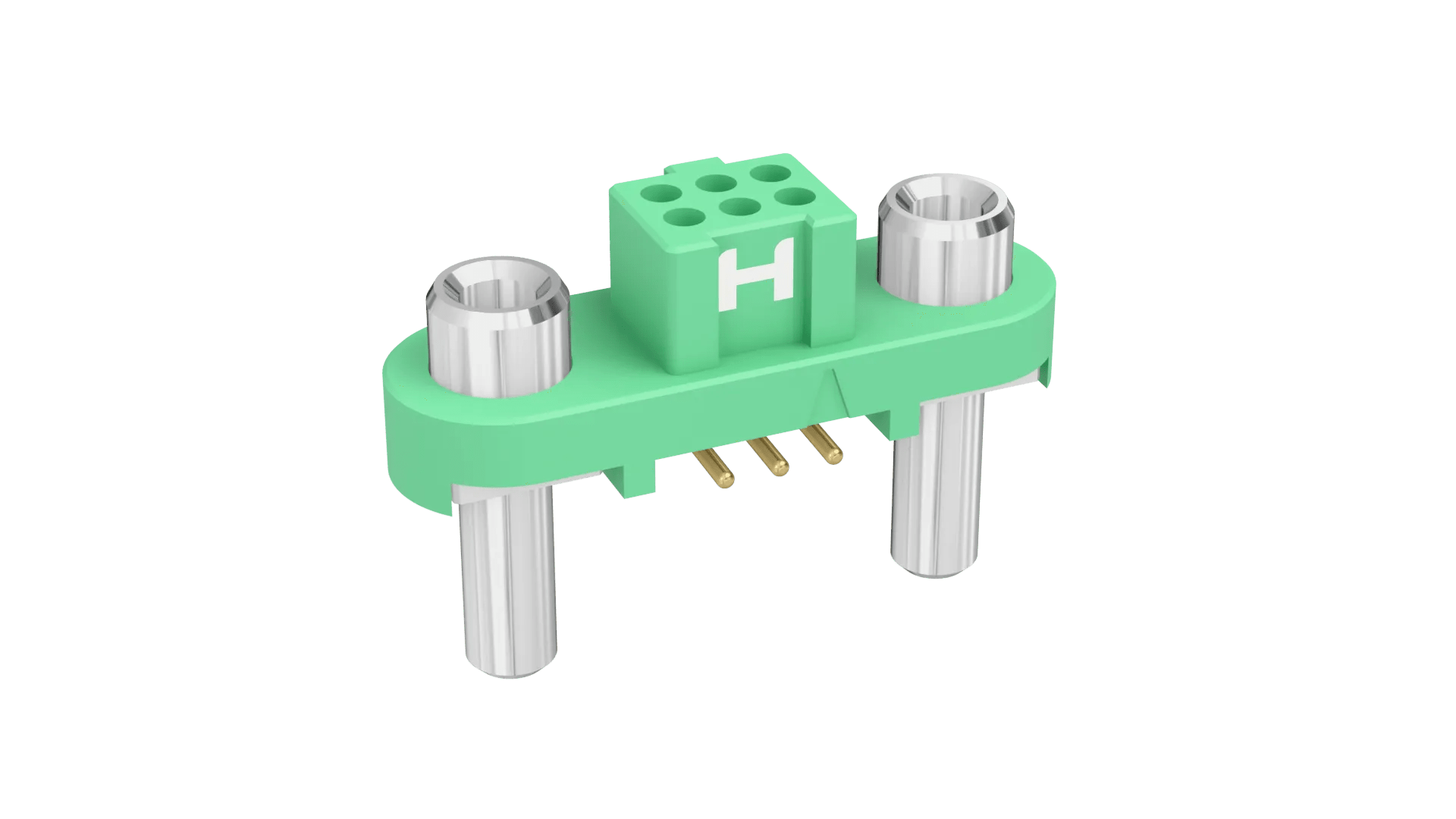

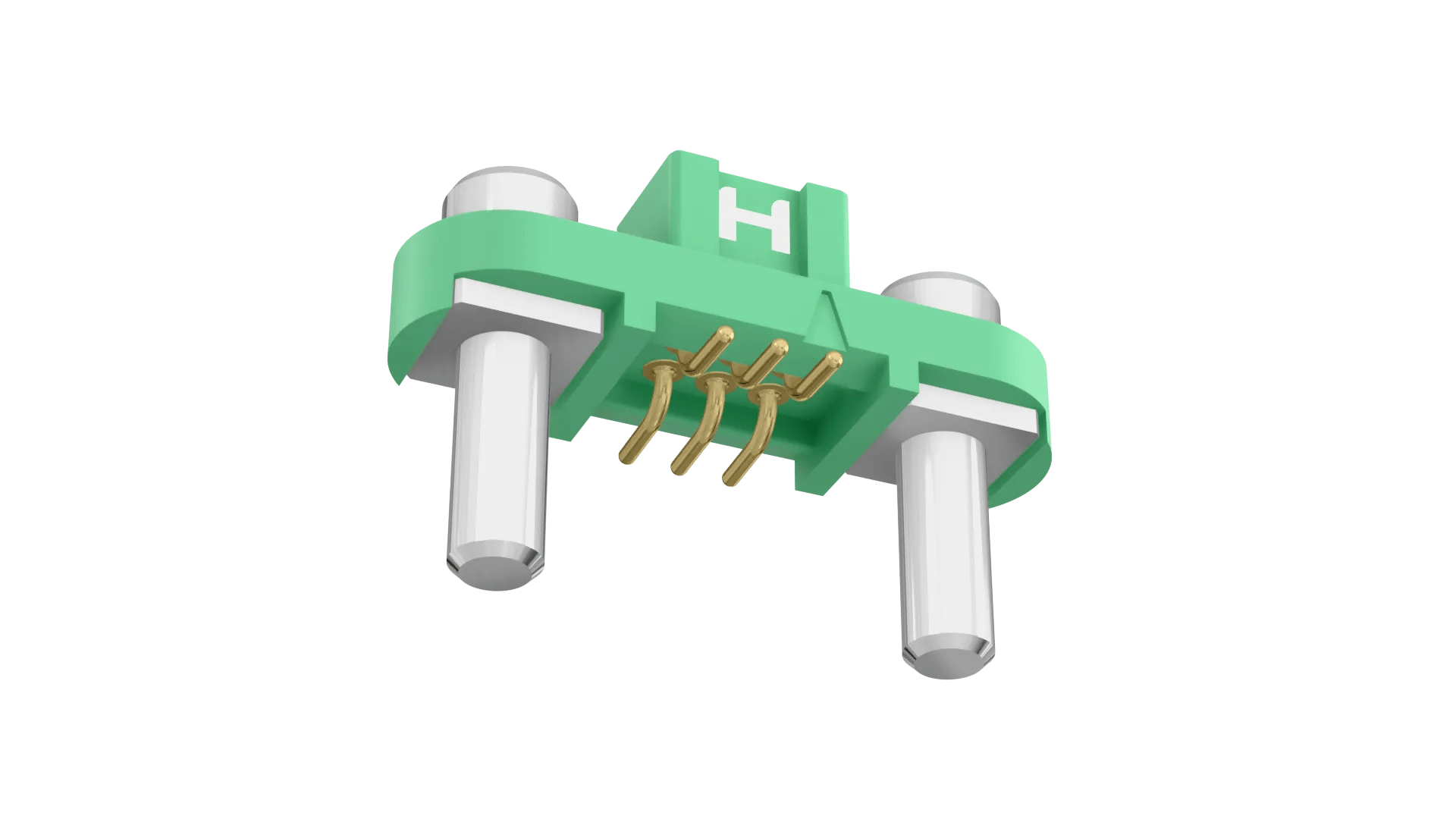

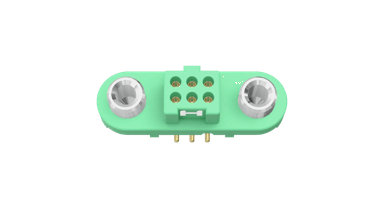

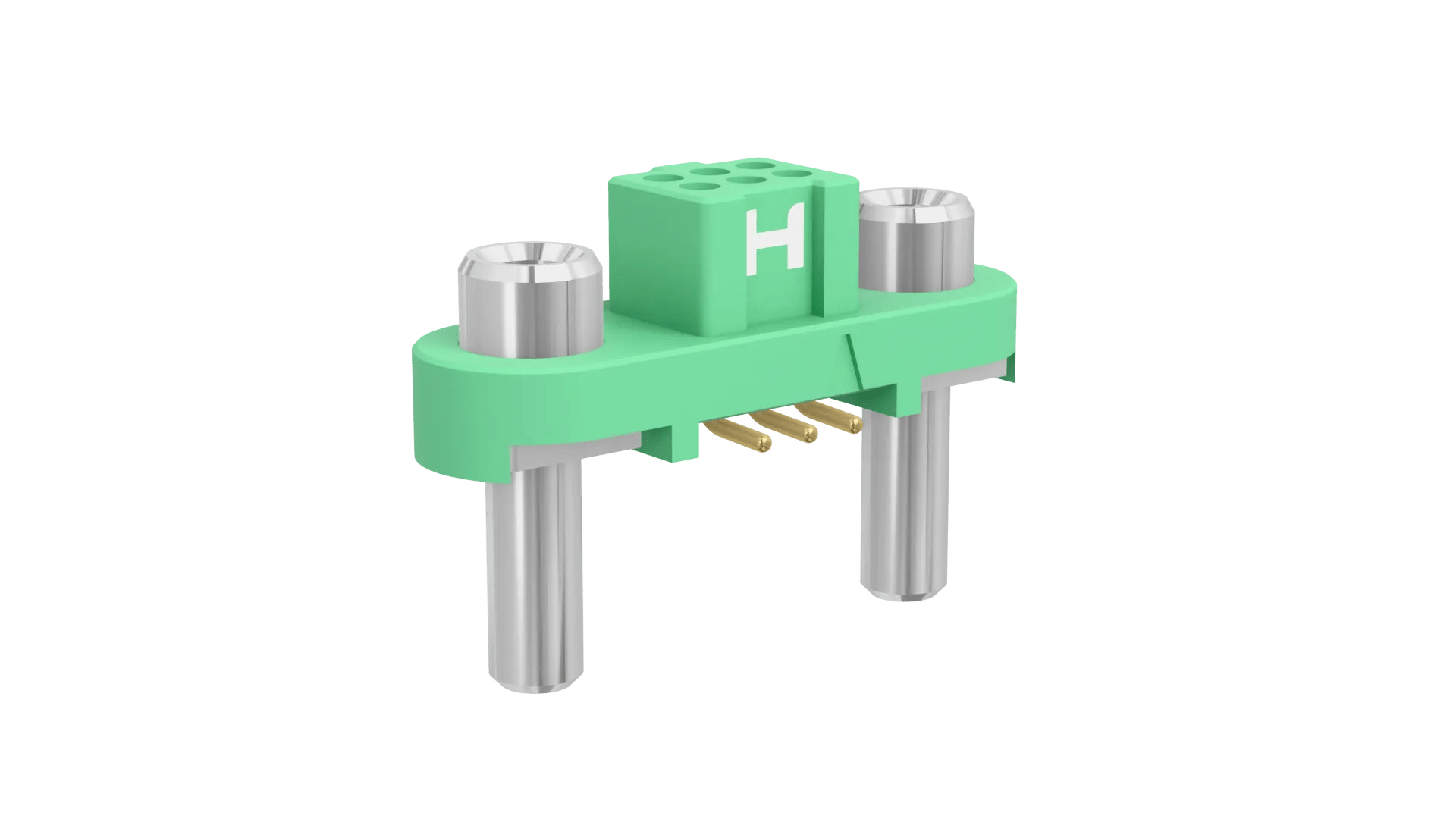

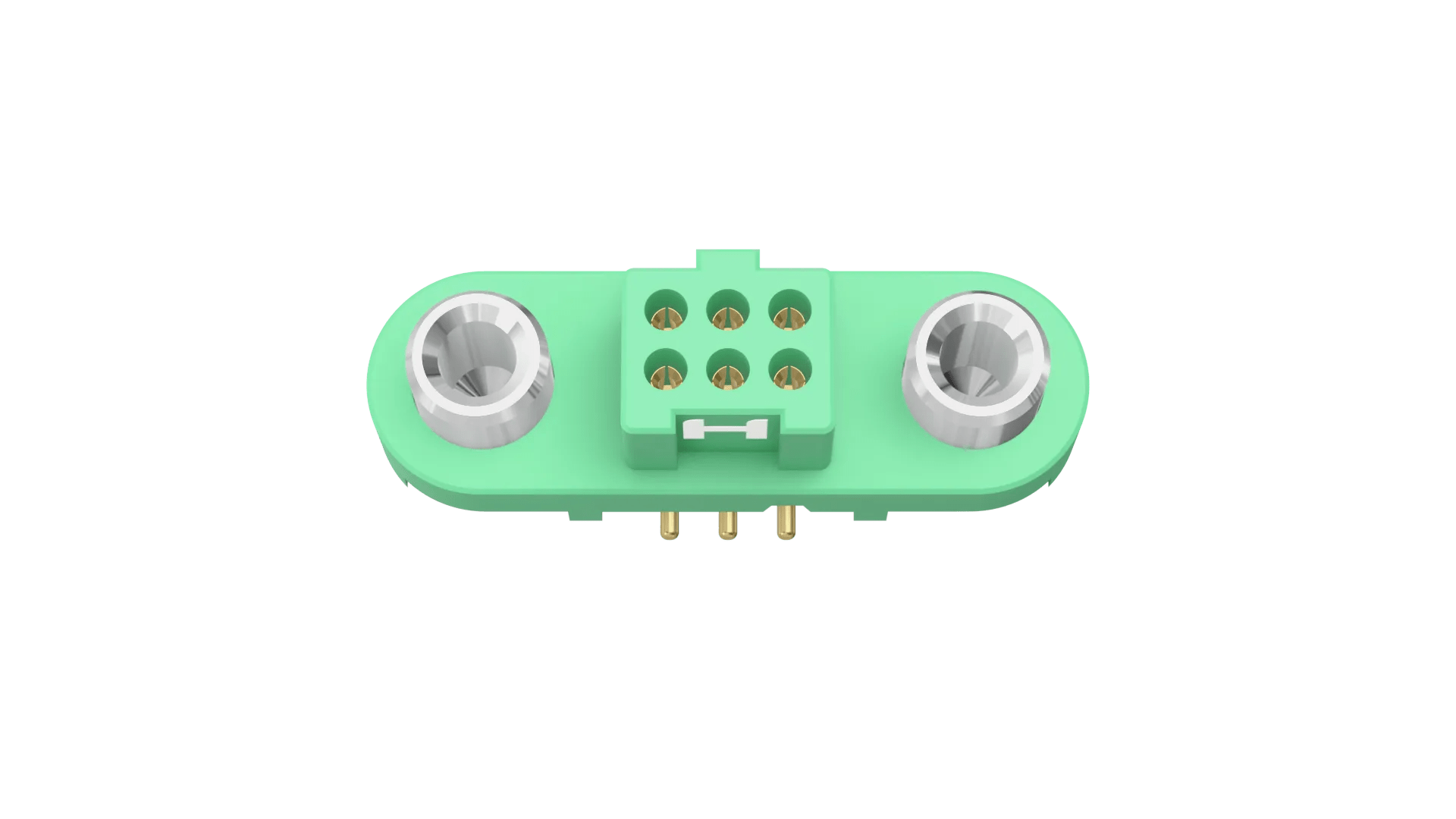

G125-FS10605F3P

3+3 Pos. Female DIL Vertical SMT Conn. Screw-Lok Reverse Fix Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • Female Double Row Vertical Surface Mount connector – 6 contacts (3+3). Fitted with threaded Screw-Lok fixings (for reverse fixing) with 5mm board mount studs. Use hex nut G125-4500000B or slotted nut G125-4510000B for PCB strain relief.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok with Board Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.905g

Overall Dimensions (L x W x D) in mm:

15.20 x 5.80 x 10.25

Male Stud Length:

5.00mm

Thread Size:

M2

Height of Connector above PCB:

5.38mm

Frequently Asked Questions Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

Was this answer useful?

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).

Was this answer useful?

Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?

Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
