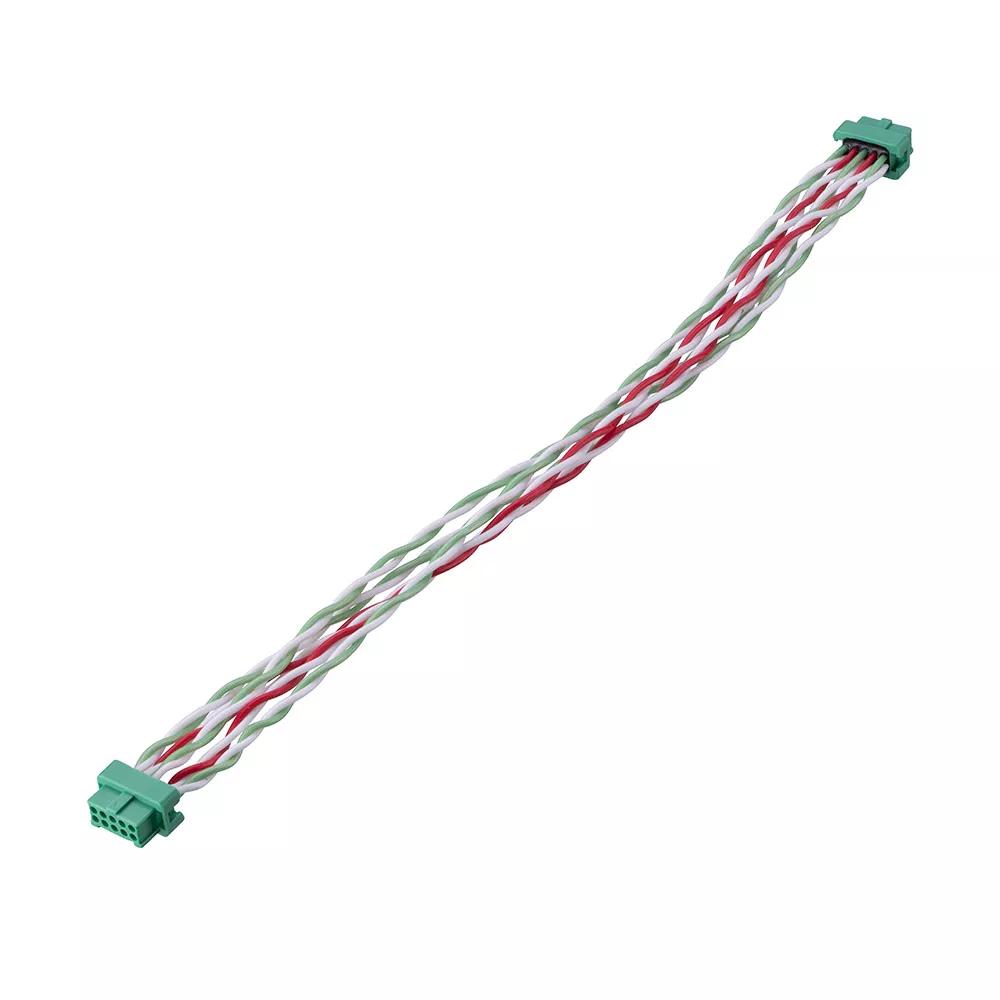

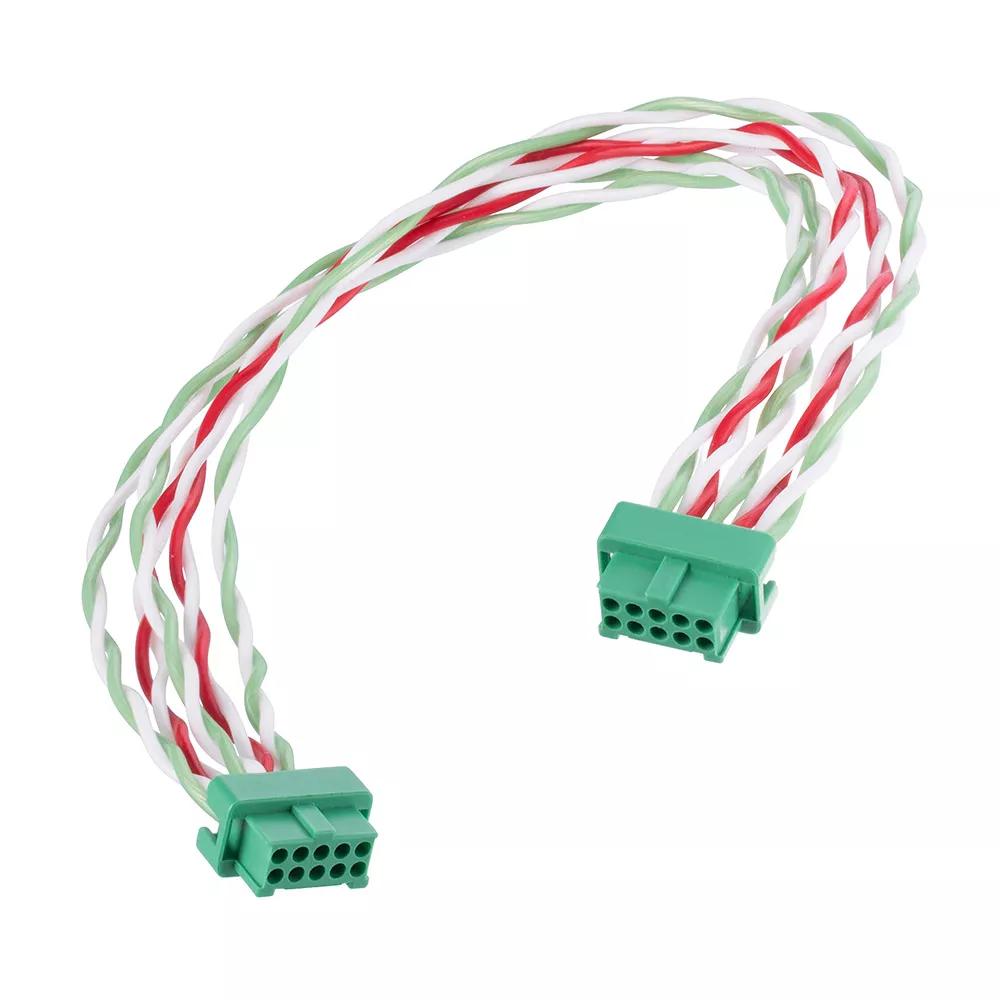

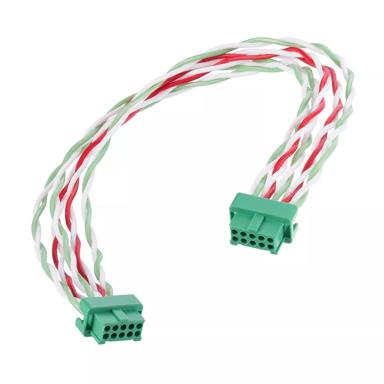

G125-FD10605L0-0600F

3+3 Pos. Female DIL 26AWG Cable Assembly, 600mm, twisted pair double-end, for Latches


1.25mm Pitch High-Reliability Connector - Gecko with Latches

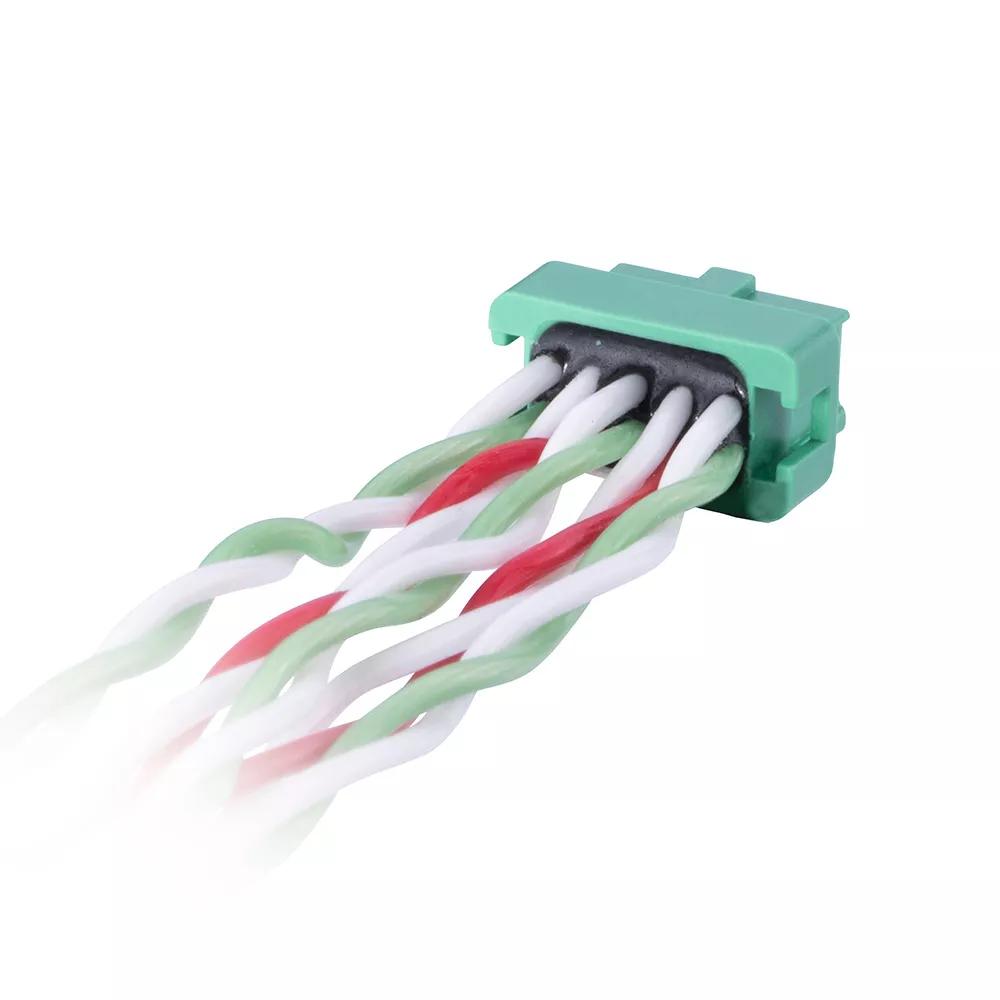

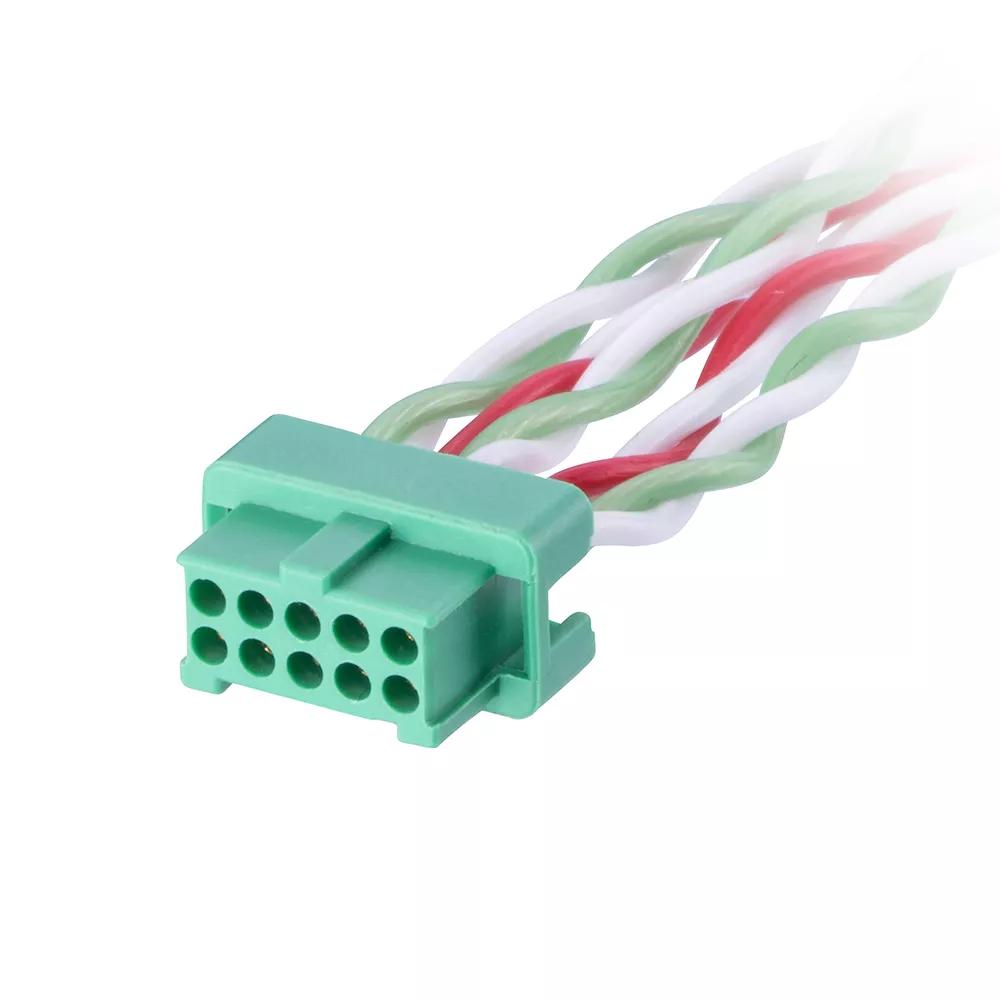

  • Female-to-Female with 26 AWG cable, 600mm (24") long - 6 contacts (3+3). Compatible housing style for male connectors with latches. Cable assembled in twisted pairs, alternating 2 and 3 twists per inch along the connector.

  • Manufactured with G125-0010005 crimp contacts and G125-2040696L0 female cable housings. Gold finish on contact area.

  • For complete pin numbering or pin out information, see Component Specification C125XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable Assembly

  • Wire Size:

    26 AWG

  • Mating Pin Size:

    Ø0.4mm

  • Latching Style:

    Compatible with latches

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    6

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable Assembly

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Weight:

    7.451g

  • Dimensions:

    600.00 x 6.30 x 4.90

  • Operating Temperature:

    -65°C to +150°C
