G125-FC25005F1-0150L

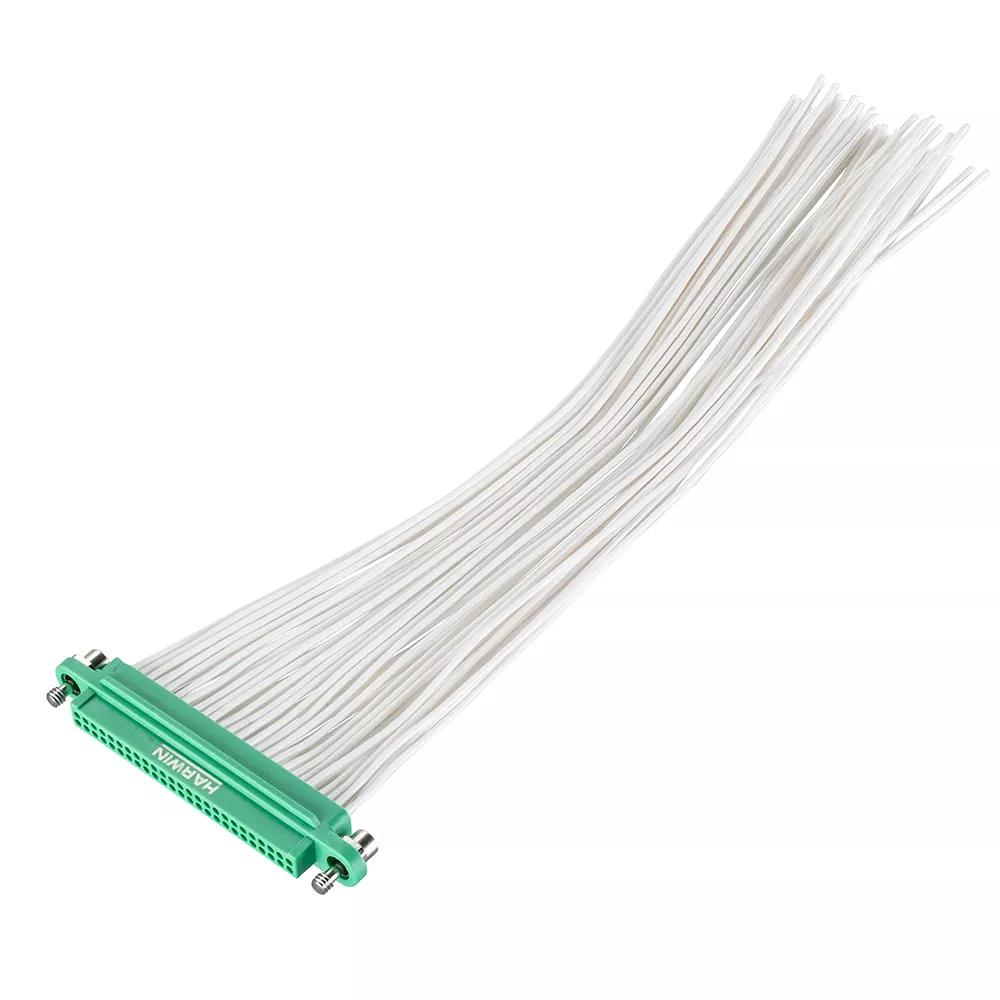

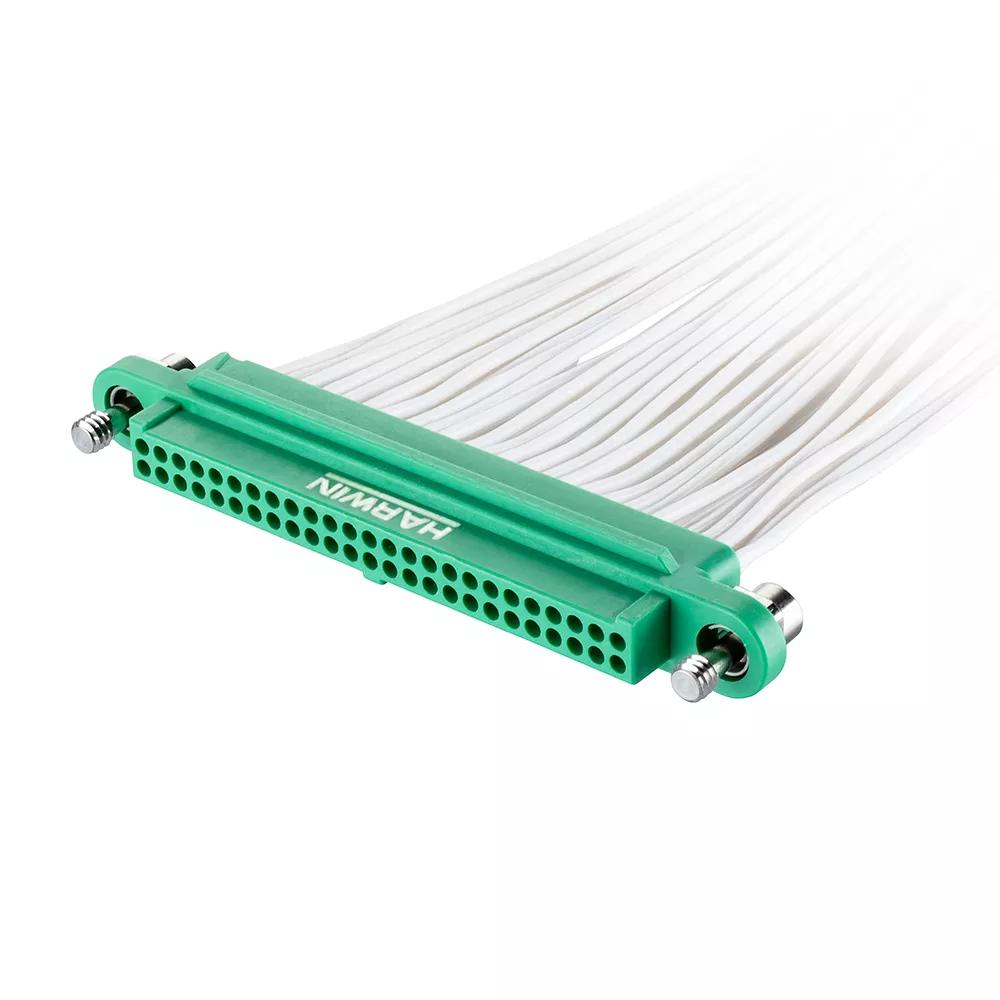

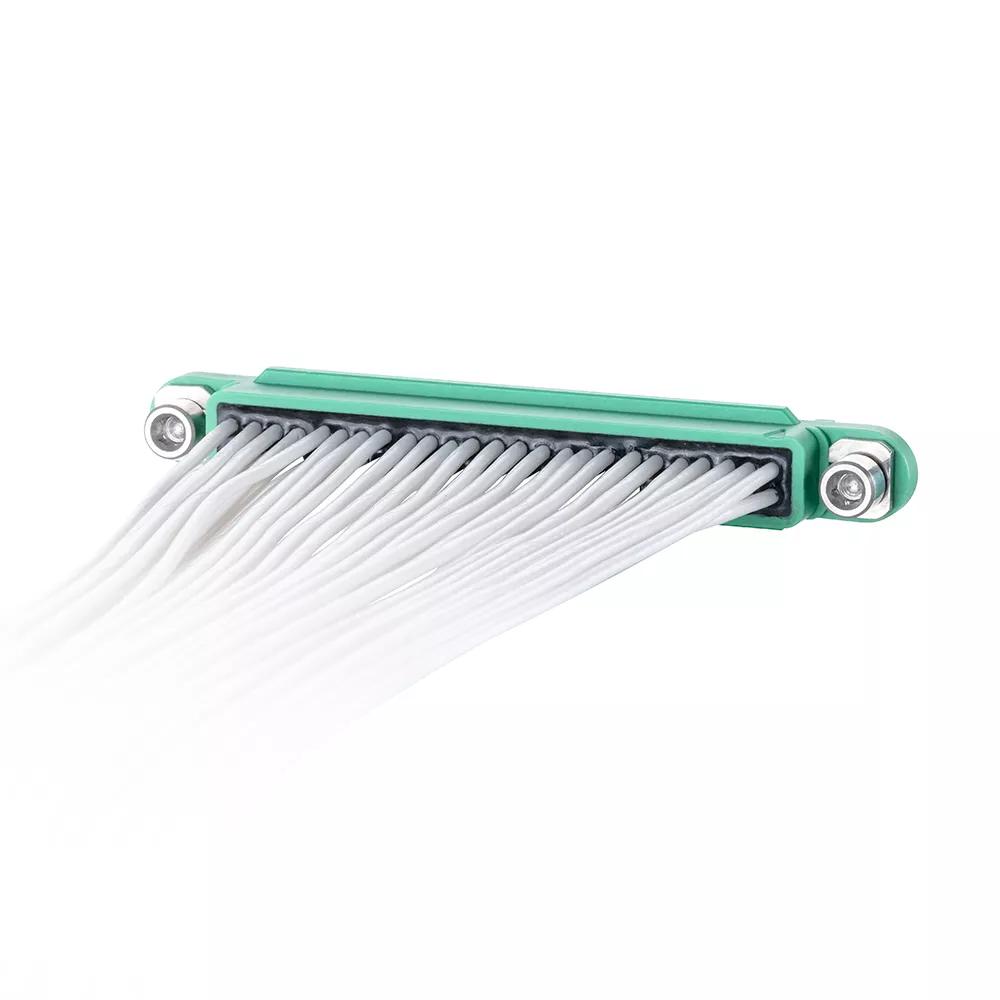

Gecko-SL Cable Assembly, Female Single-Ended, with floating hex socket head fixings, white 28 AWG cable, 150mm long, 25+25 contacts


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Female Single-Ended with white 28 AWG cable, 150mm (6") long - 50 contacts (25+25). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.

  • Manufactured with G125-0020005 crimp contacts, G125-2245096F1 Double Row crimp housings. Gold finish on contact area.

  • For complete pin numbering or pin out information, see Component Specification C125XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable Assembly

  • Wire Size:

    28 AWG

  • Mating Pin Size:

    Ø0.4mm

  • Style of Jackscrews:

    Floating Screw-Lok with Hex Socket Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    50

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable Assembly

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Weight:

    13.687g

  • Dimensions:

    150.00 x 42.70 x 6.50

  • Operating Temperature:

    -65°C to +150°C

  • Country of Origin:

    GB/US

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Green

  • Thread Size:
