Image may be representative. Refer to the product title for more information.

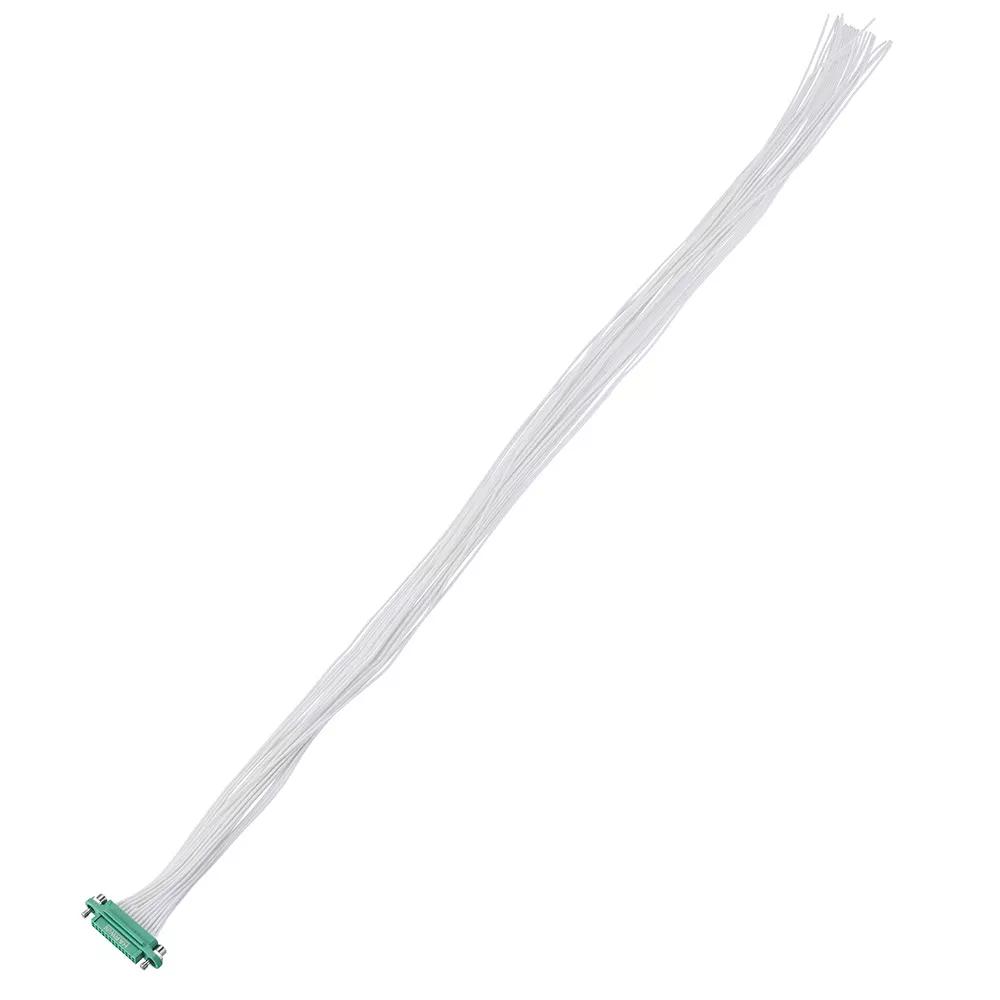

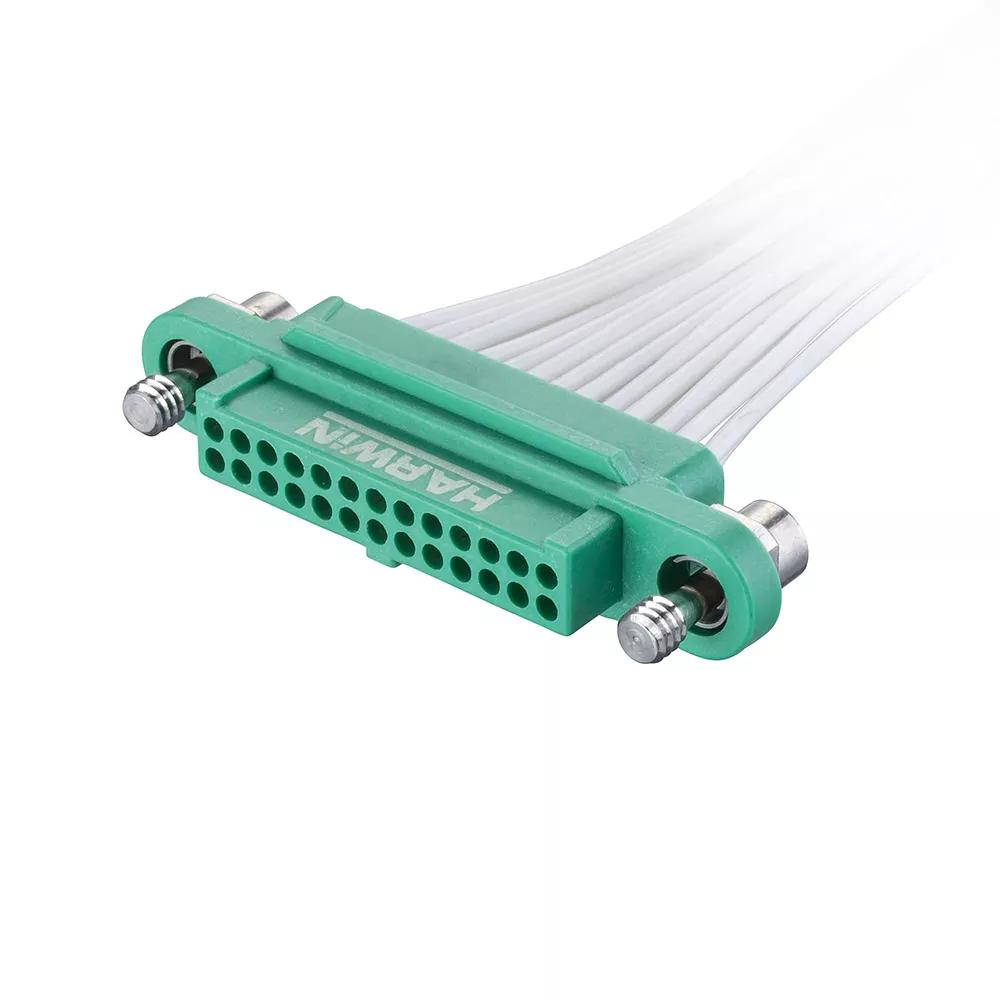

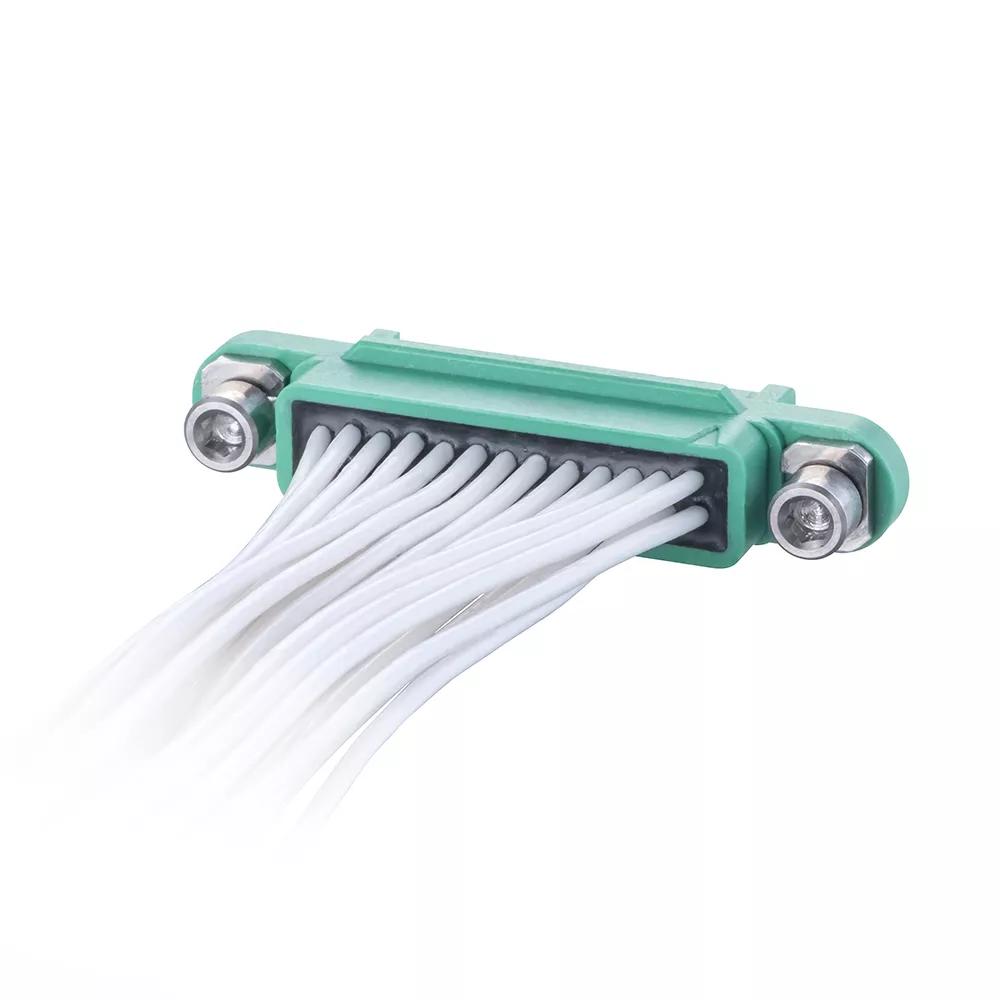

Female Single-Ended with white 28 AWG cable, 450mm (18") long - 26 contacts (13+13). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
Manufactured with G125-0020005 crimp contacts, G125-2242696F1 Double Row crimp housing. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
US
Side Stackable
No
Number of Signal Contacts
26
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
19.666g
Dimensions
450.00 x 27.70 x 6.50
Thread Size
M2
Wire Size
28 AWG
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-XXXXXXXXX-XXXXLXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-FC2XX05F1-YYYYL series
RoHS Declaration - G125-FC22605F1-0450L
