G125-FC13405F1-0150F1

17+17 Pos. Female DIL 26AWG Cable Assembly, 150mm, double-end, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Order Sample

Add to Favorites

In stock Check availability

5 similar products View products

Traceparts account required

Product Description

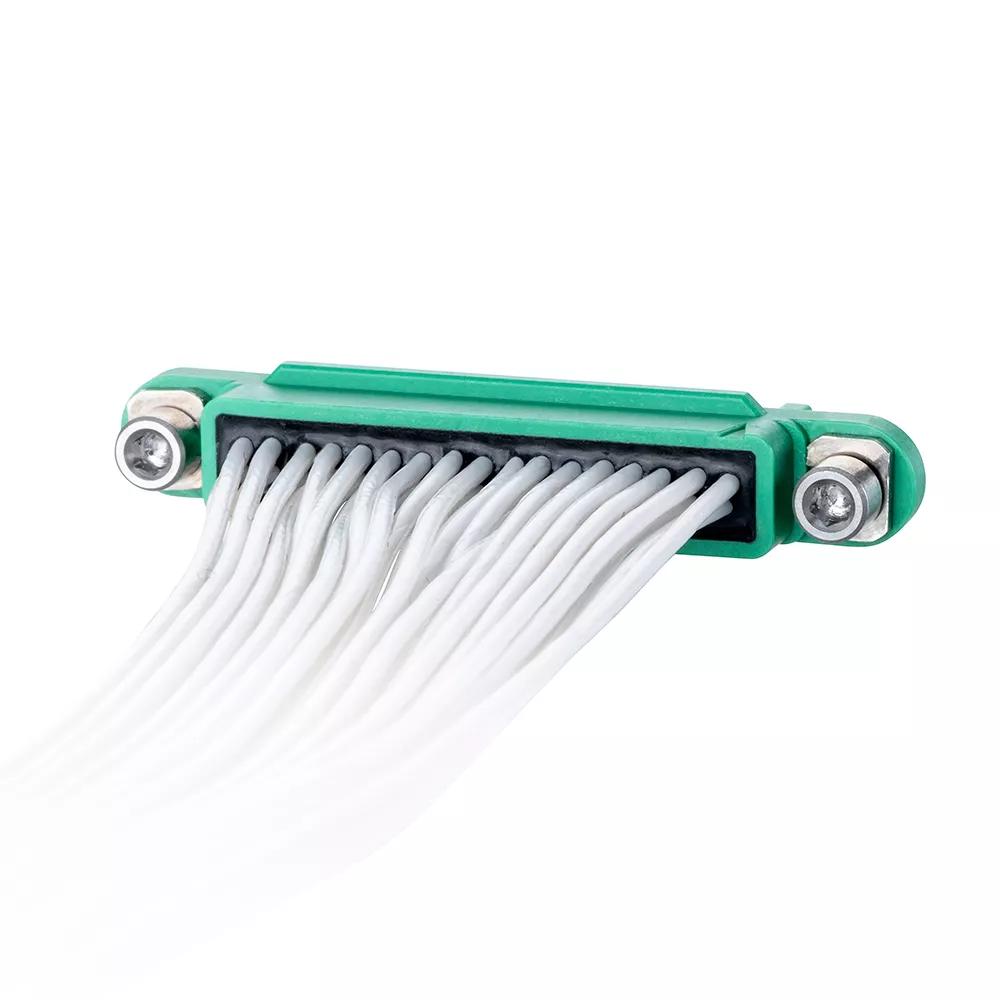

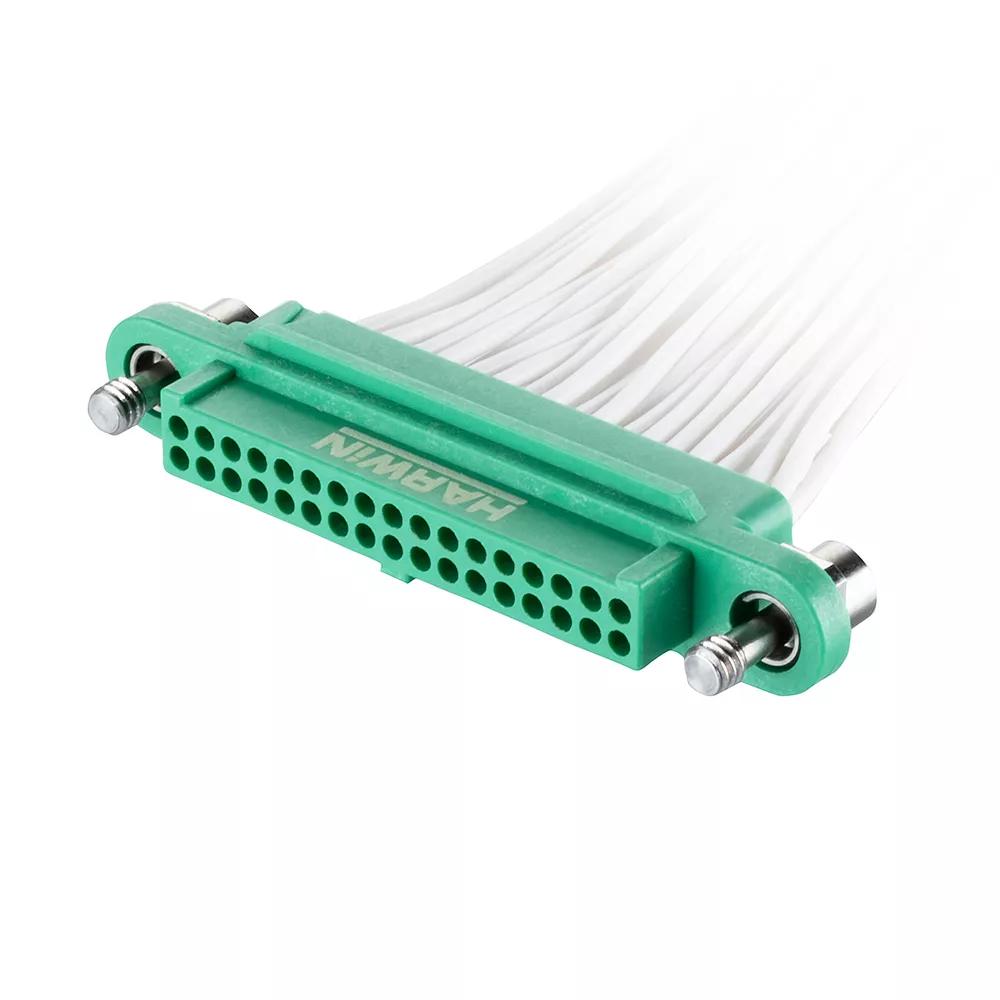

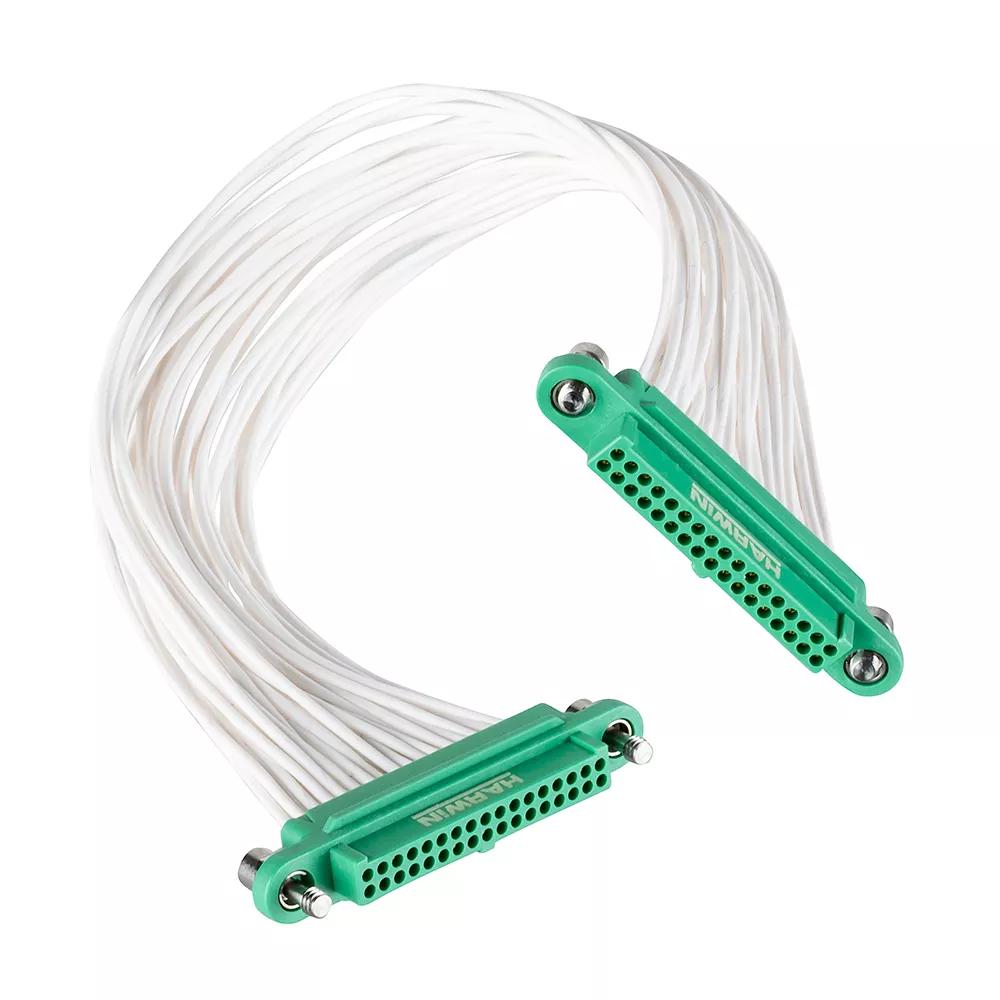

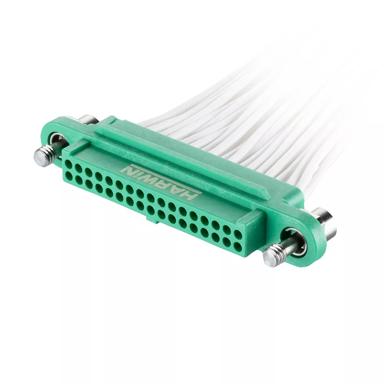

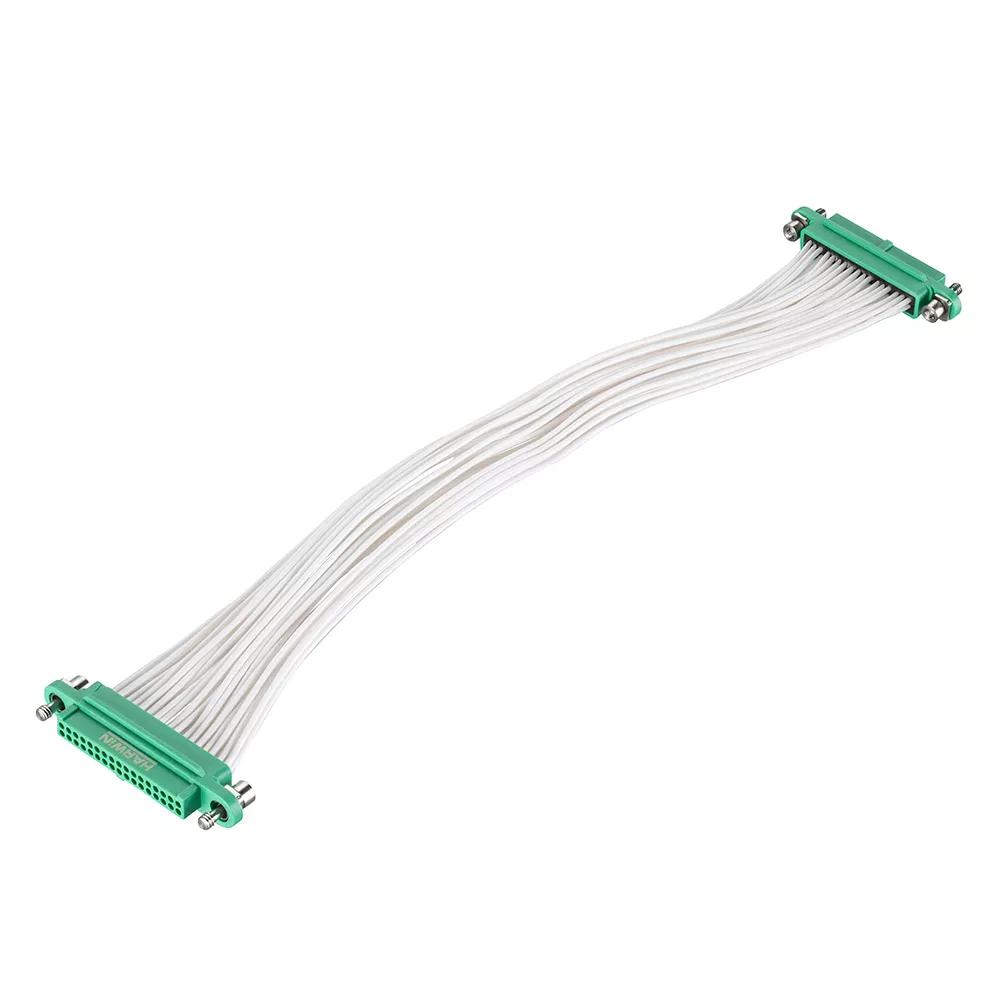

Female-to-Female with white 26 AWG cable, 150mm long – 34 contacts (17+17). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
Manufactured with G125-0010005 crimp contacts, G125-2243496F1 Double Row crimp housings. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.

G125-FC13405F1-0150F1 - 17+17 Pos. Female DIL 26AWG Cable Assembly, 150mm, double-end, Screw-Lok

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

13.019g

Overall Dimensions (L x W x D) in mm:

150.00 x 32.70 x 6.50

Thread Size:

Mating Profiles:

Catalog page - Gecko-SL Mating Profiles
