G125-FC12605L0-0300F

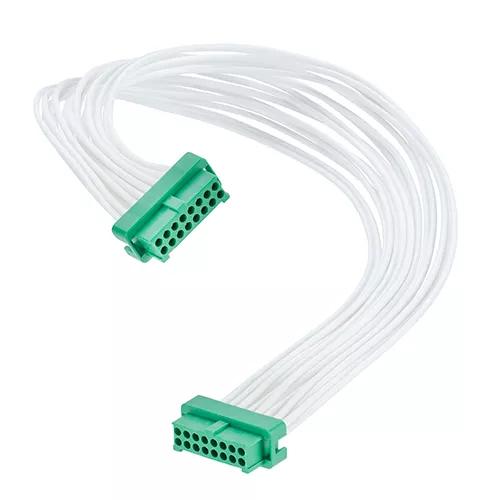

13+13 Pos. Female DIL 26AWG Cable Assembly, 300mm, double-end, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female-to-Female with white 26 AWG cable, 300mm long – 26 contacts (13+13).
  • Manufactured with G125-0010005 crimp contacts, G125-2042696L0 Double Row crimp housings.
  • Compatible housing style for male connectors with latches.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

16.59g

Overall Dimensions (L x W x D) in mm:

300.00 x 18.80 x 4.90

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status12
Harwin
Global
Status80
Mouser Electronics Inc
Global
Status19

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer helpful?

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9262600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.

Was this answer helpful?

53% found this helpful

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-FCXXX05L0-XXXXF.pdf

ZIP

G125-FC12605L0-0300F CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for G125-FC1XX05L0-YYYYF series

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Gecko with Latches Female Cable Assemblies

PDF

Catalog page - Gecko with Latches Specifications, Pin Numbering

PDF

Catalog page - Gecko with Latches Mating Profiles

PDF

Catalog page - Gecko Introduction
