1.25mm Pitch High-Reliability Connector - Gecko-SL

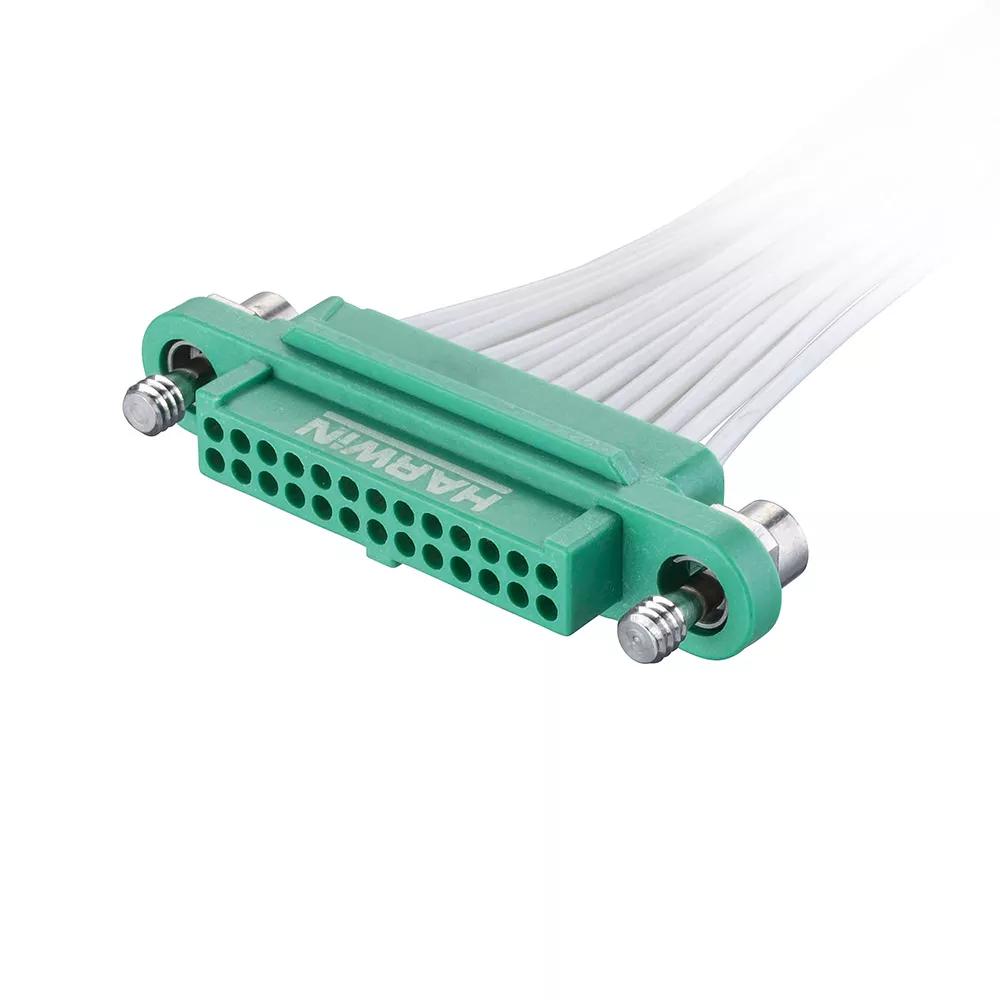

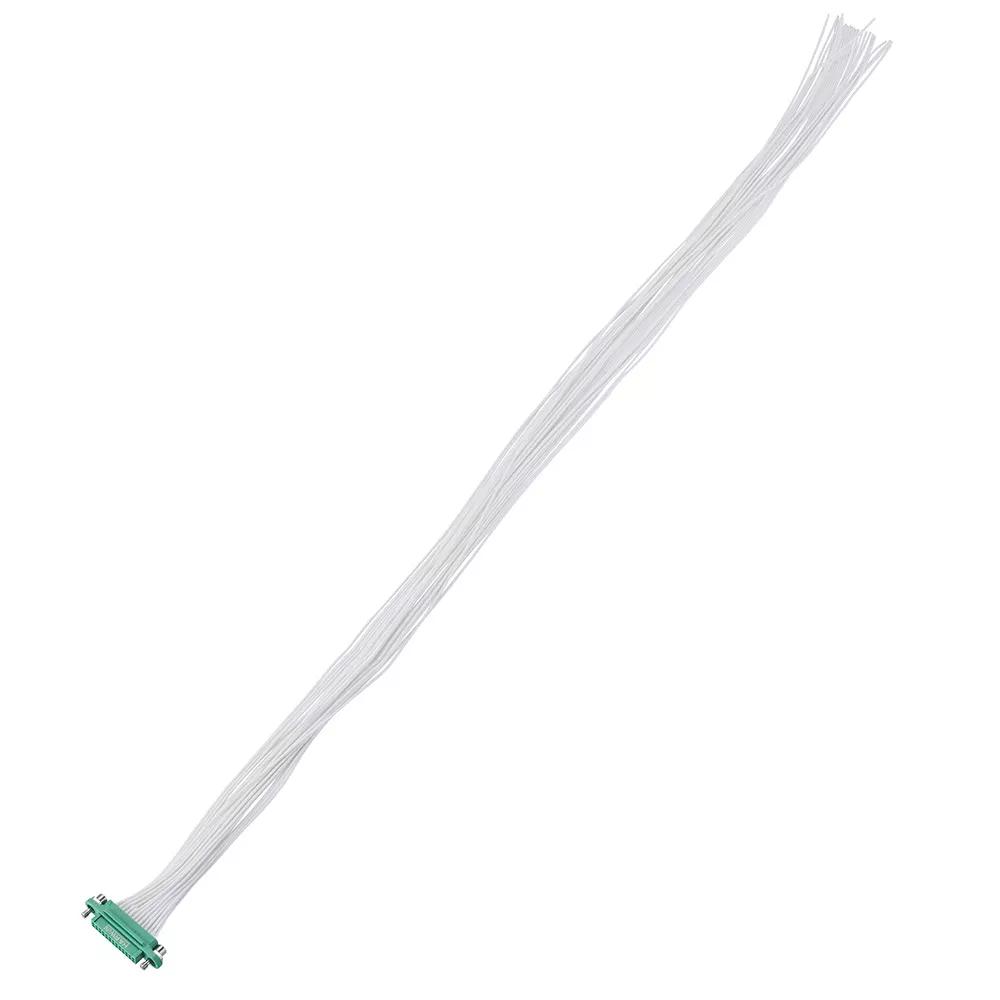

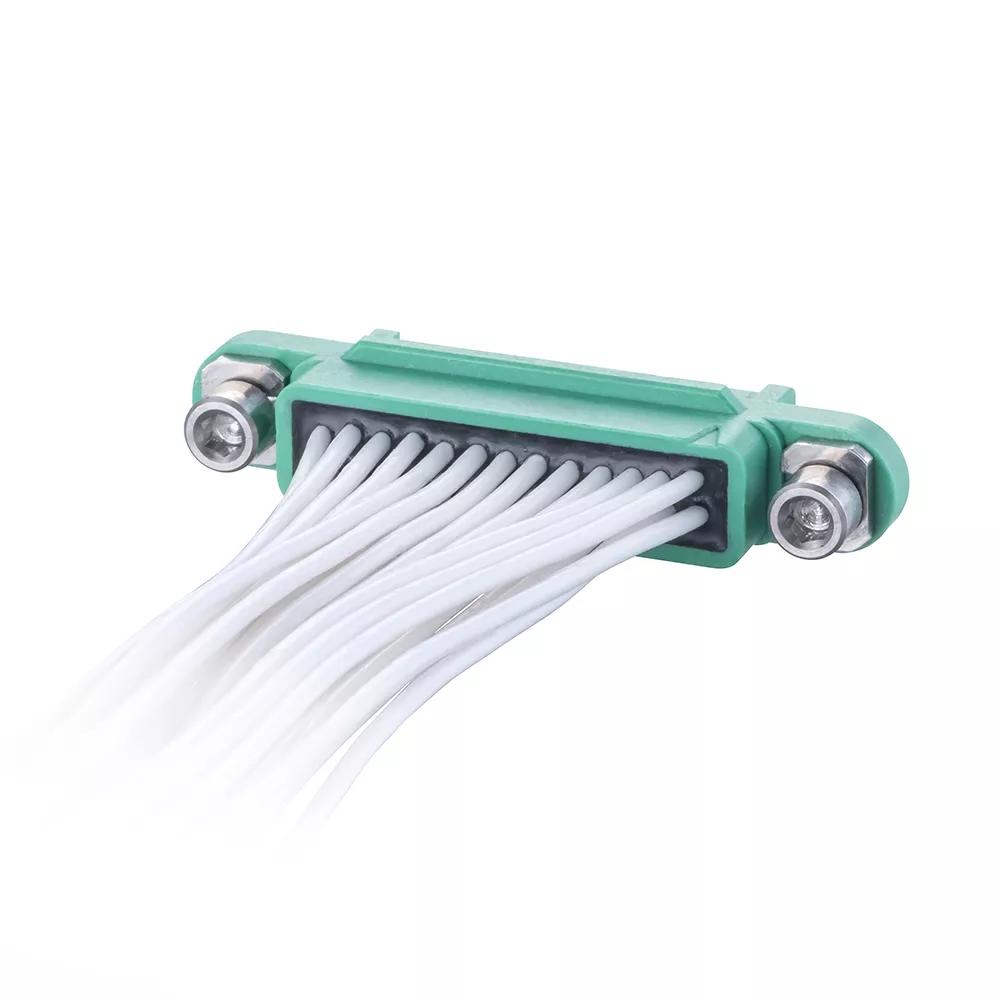

Female Single-Ended with white 26 AWG cable, 1000mm long - 26 contacts (13+13). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
Manufactured with G125-0010005 crimp contacts, G125-2242696F1 Double Row crimp housing. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
52.745g
Dimensions:
1000.00 x 27.70 x 6.50
Thread Size:
M2
Wire Size:
26 AWG
Downloads
Technical Drawing / Datasheet - G125-XXXXXXXXX-XXXXL.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for G125-FC1XX05F1-YYYYL series
RoHS - G125-FC12605F1-1000L
