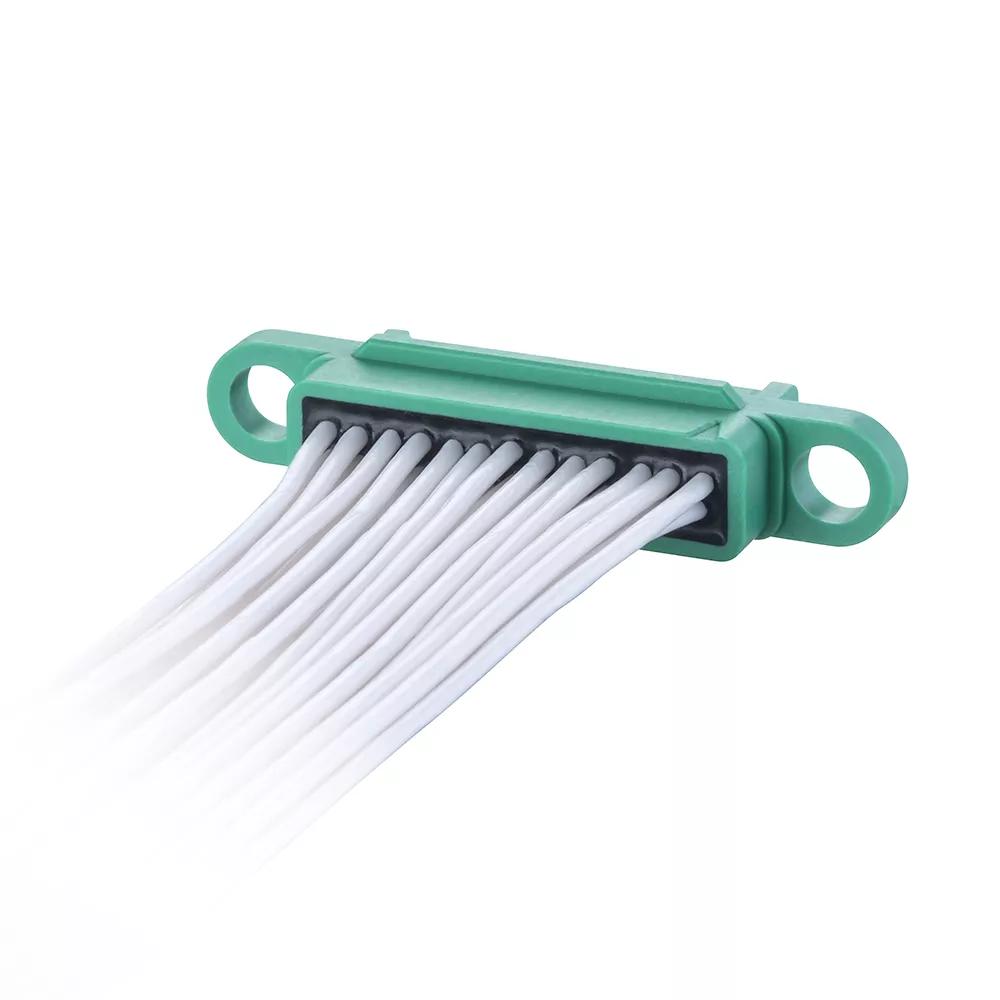

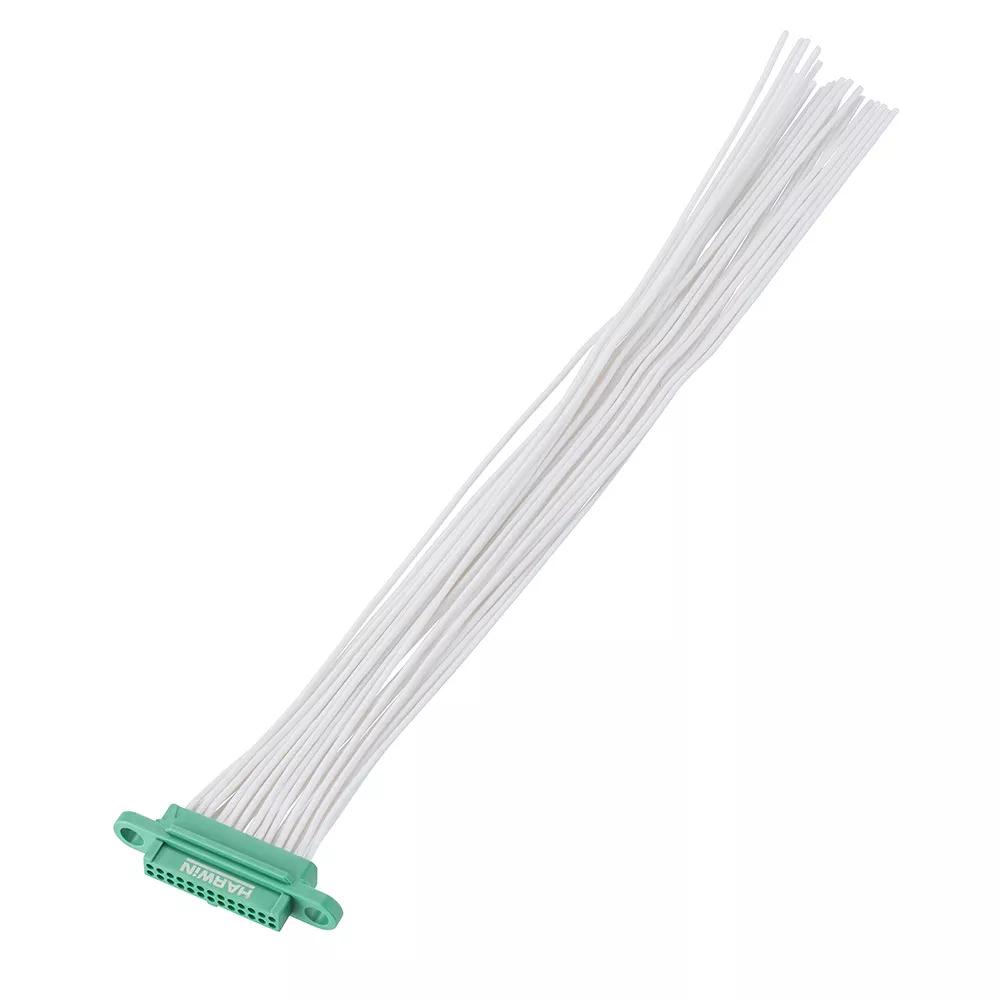

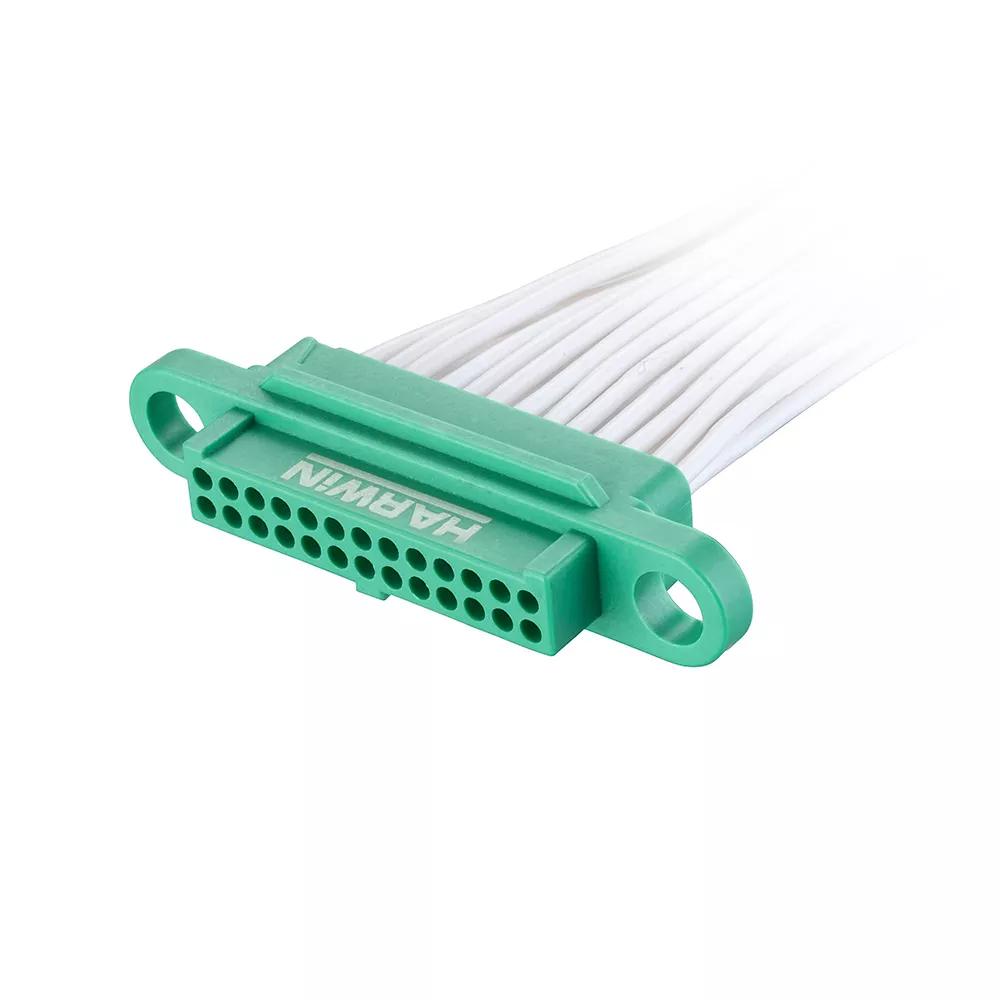

13+13 Pos. Female DIL 26AWG Cable Assembly, 450mm, single-end, no Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Female Single-Ended with white 26 AWG cable, 450mm long – 26 contacts (13+13). Screw-Lok compatible housing style, no screw-loks fitted.
- Manufactured with G125-0010005 crimp contacts, G125-224269600 Double Row crimp housings. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
450.00 x 27.70 x 6.50
60 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
