G125-FC12005F1-0450L
10+10 Pos. Female DIL 26AWG Cable Assembly, 450mm, single-end, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

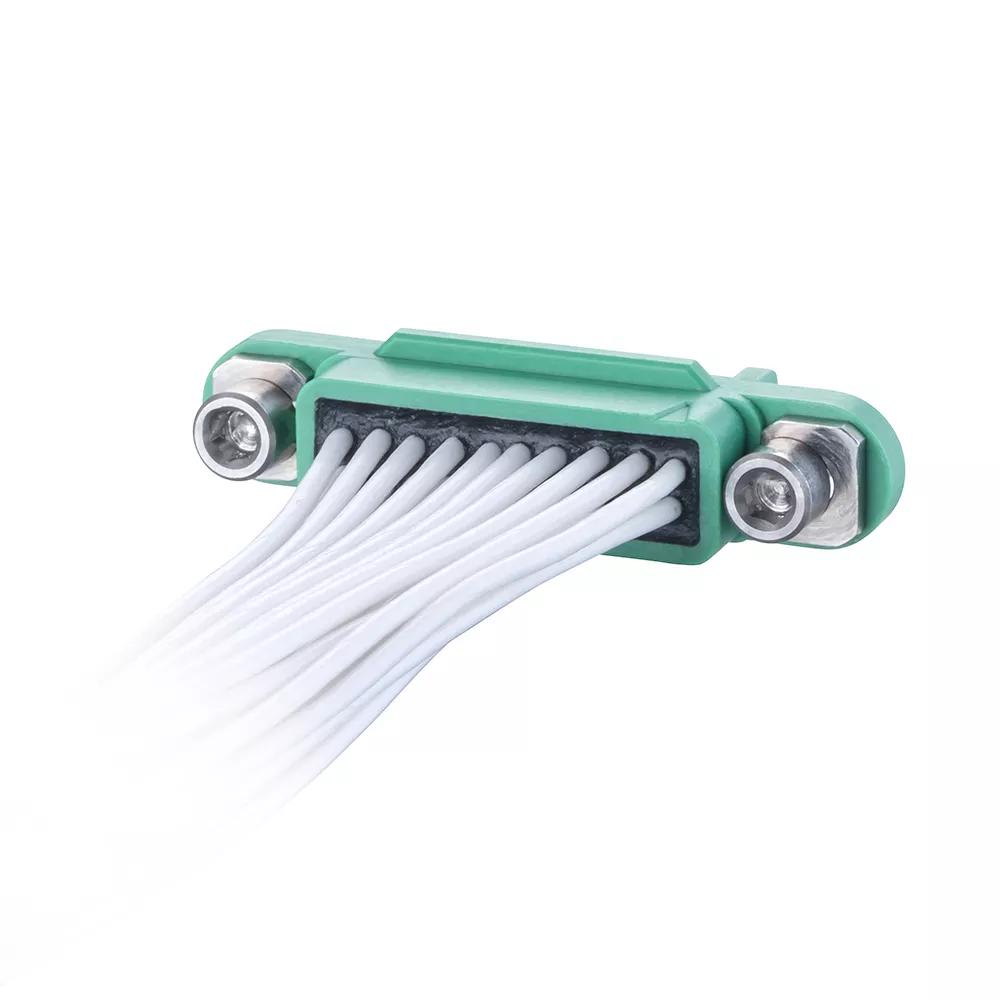

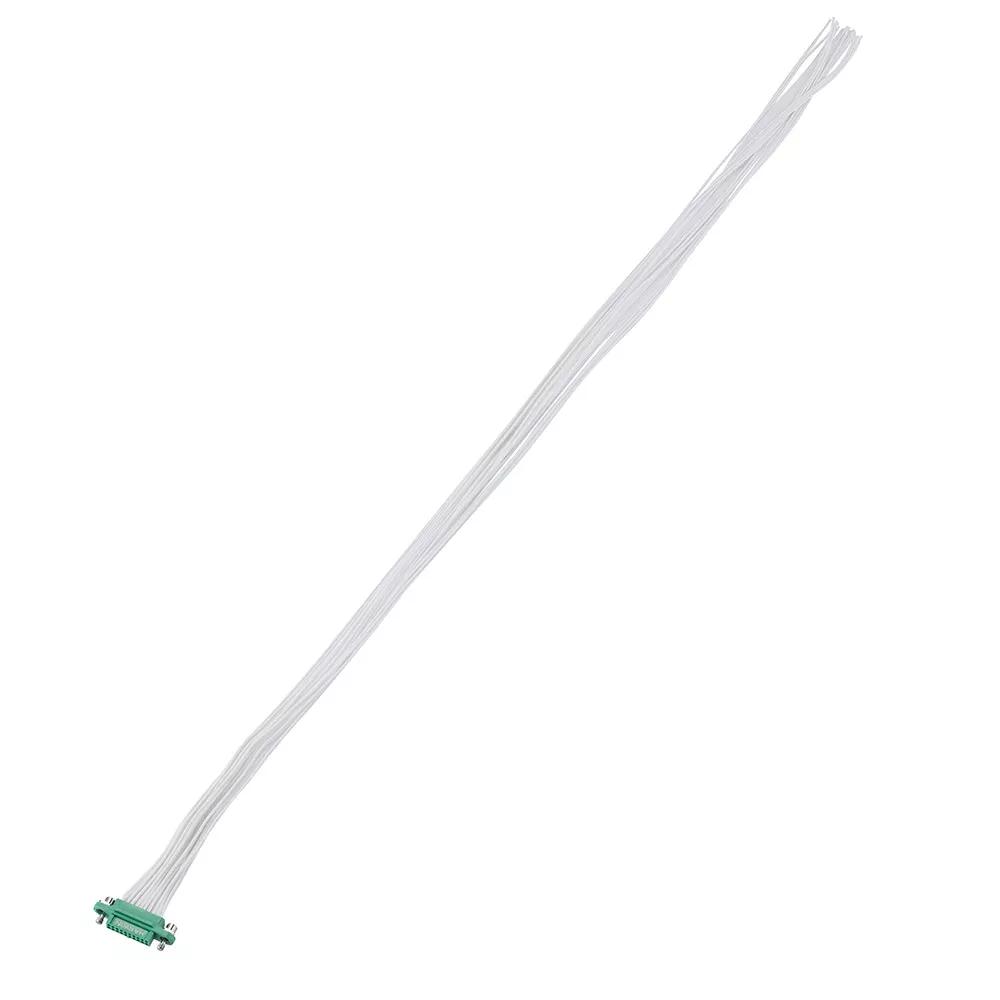

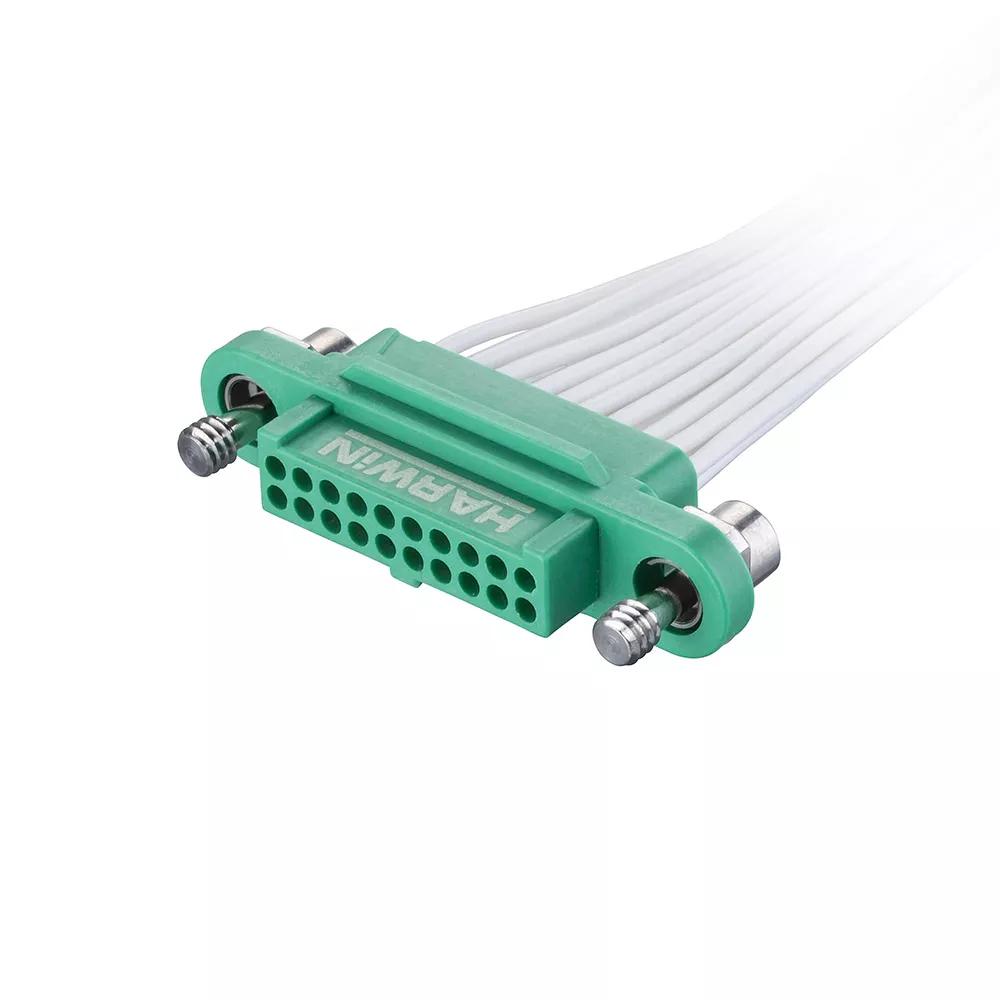

- Female Single-Ended with white 26 AWG cable, 450mm long – 20 contacts (10+10). Fitted with floating Screw-Lok fixings, Hexagonal socket head.
- Manufactured with G125-0010005 crimp contacts, G125-2242096F1 Double Row crimp housings. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
26AWG
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Style of Jackscrews:
Hex Socket
Polarising Features:
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
18.939g
Overall Dimensions (L x W x D) in mm:
450.00 x 23.95 x 6.50
Thread Size:
M2
Mating Profiles:
Availability
238 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
