G125-FC11605F1-0300F1

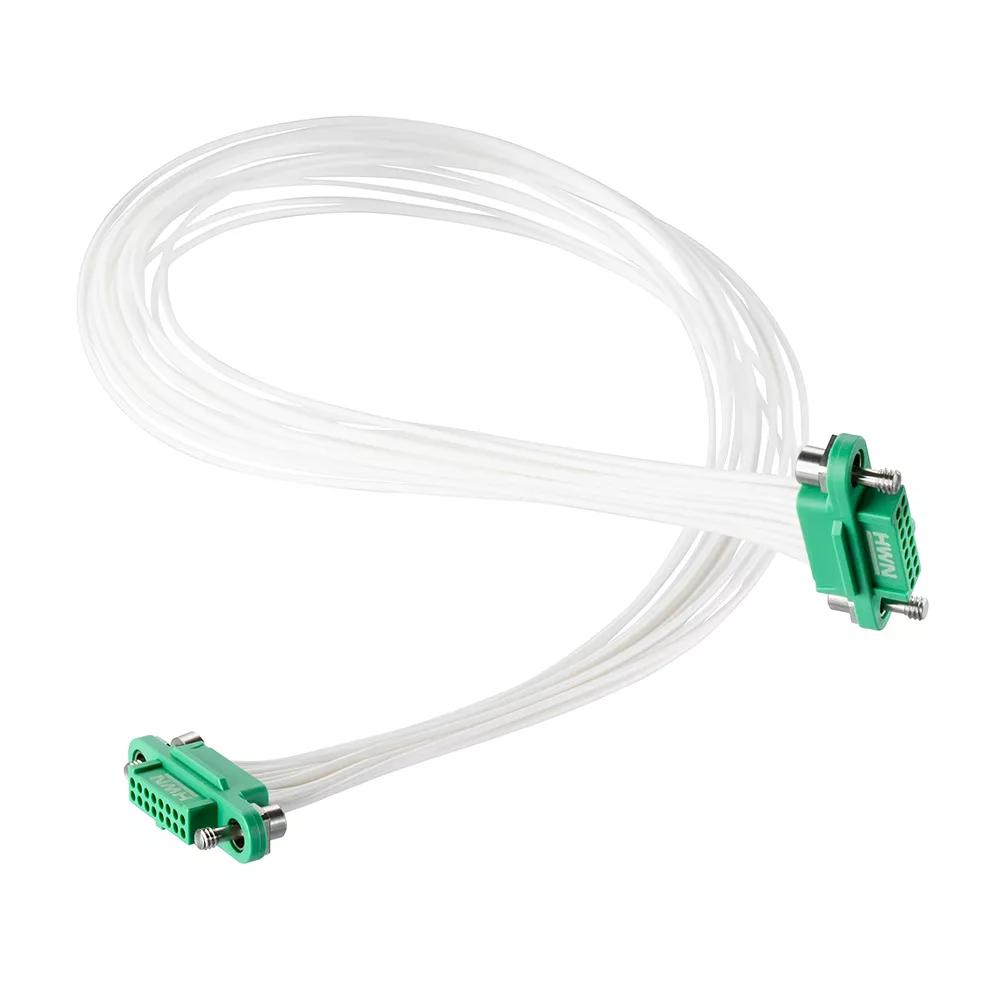

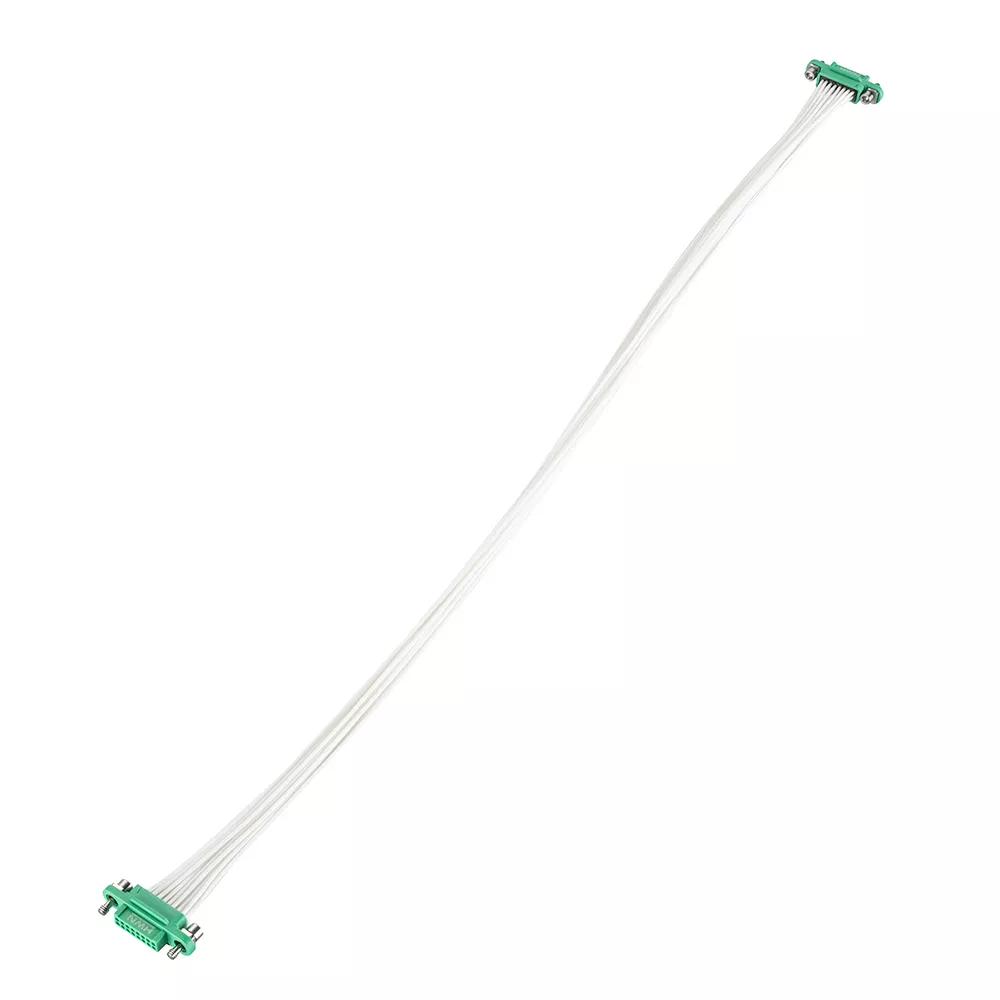

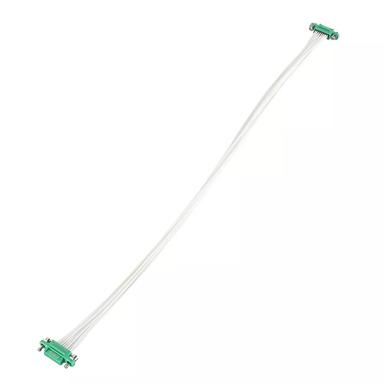

Gecko-SL Cable Assembly, Female-to-Female, with floating hex socket head fixings, white 26 AWG cable, 300mm long, 8+8 contacts


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

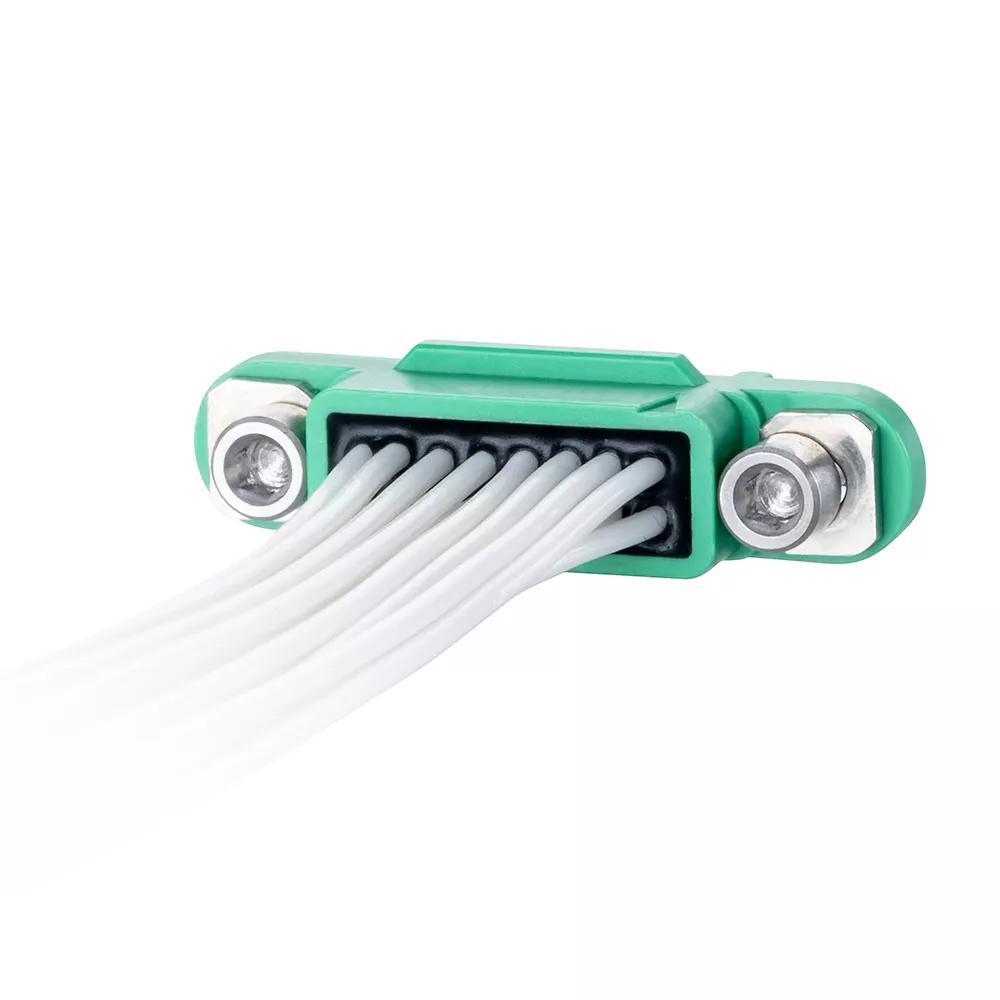

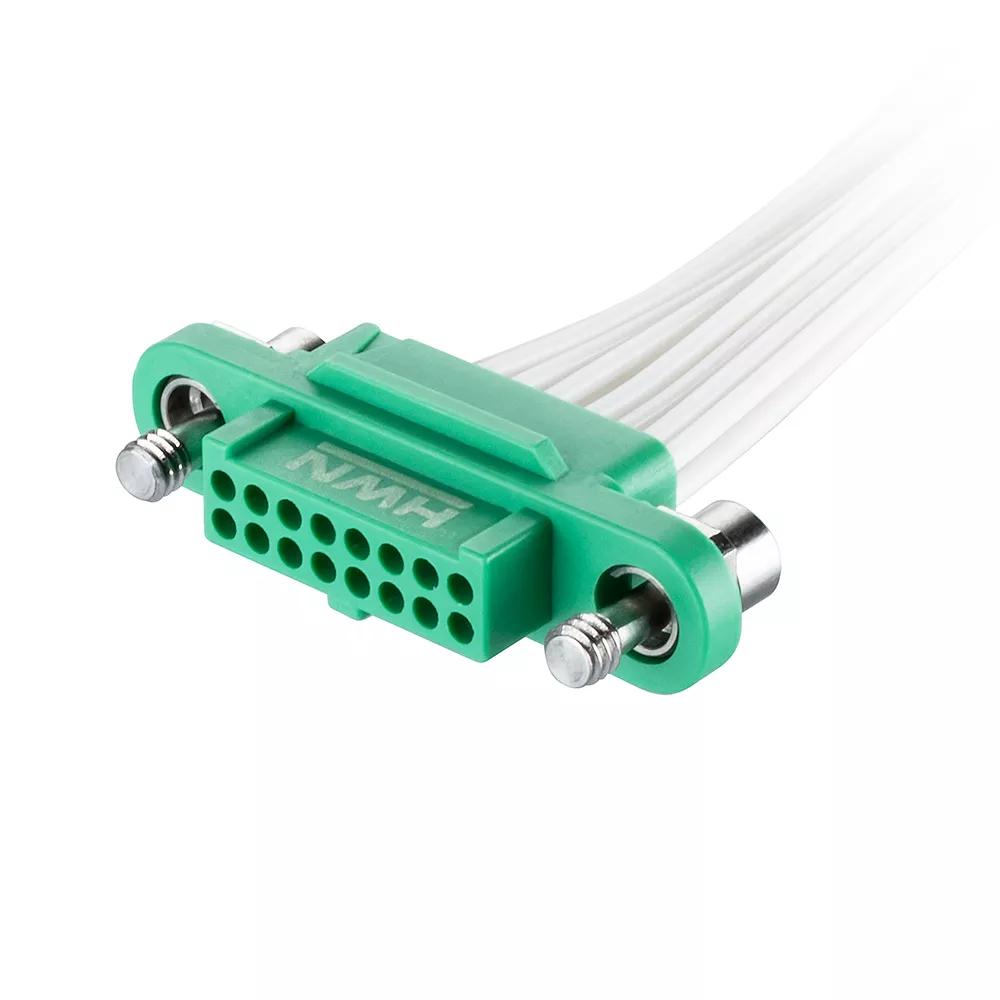

  • Female-to-Female with white 26 AWG cable, 300mm (12") long - 16 contacts (8+8). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.

  • Manufactured with G125-0010005 crimp contacts, G125-2241696F1 Double Row crimp housings. Gold finish on contact area.

  • For complete pin numbering or pin out information, see Component Specification C125XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable Assembly

  • Wire Size:

    26 AWG

  • Mating Pin Size:

    Ø0.4mm

  • Style of Jackscrews:

    Floating Screw-Lok with Hex Socket Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    16

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable Assembly

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Weight:

    11.547g

  • Dimensions:

    300.00 x 21.45 x 6.50

  • Operating Temperature:

    -65°C to +150°C

Downloads

    Environmental Compliance

  • G125-FC11605F1-0300F1

  • Material composition for G125-FC1XX05F1-YYYYF1 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-XXXXXXXXX-XXXXXX.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental

  • Product Information

  • Catalog page - Gecko-SL Mating Profiles

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Training Module - Panel Mount with Gecko-SL

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin
