G125-FC11005L0-0150F

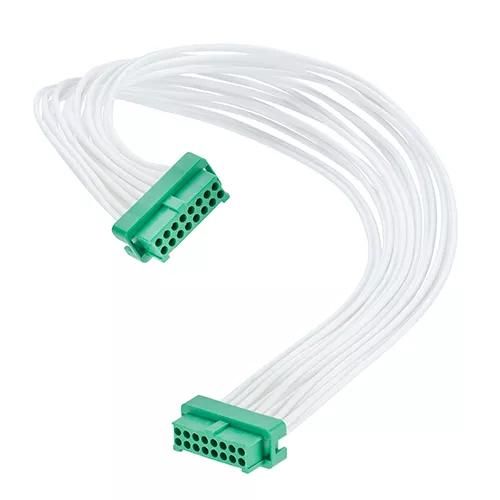

5+5 Pos. Female DIL 26AWG Cable Assembly, 150mm, double-end, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female-to-Female with white 26 AWG cable, 150mm long – 10 contacts (5+5). Compatible housing style for male connectors with latches.
  • Manufactured with G125-0010005 crimp contacts, G125-2041096L0 Double Row crimp housings. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.457g

Overall Dimensions (L x W x D) in mm:

150.00 x 8.80 x 4.90

Availability

146 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 96
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 20
Distributor Anglia
Location Europe
Quantity (Updated Daily) 10
Distributor Powell Electronics
Location USA
Quantity (Updated Daily) 10
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?

Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on. This is specified on the Technical Drawing, available under Downloads.

What is the minimum bend radius of the 26 AWG wires to be used with G125-FC11005L0-0150F at the connector end?

Typically the signal wires used on our cable assemblies are rated between 6 and 10 times the cable diameter (it can vary between specific cable manufacturers). The diameter of the 26AWG wire is typicfally around 0.8mm, so you should allow for 8mm bend radius. It might be possible to bend tighter, but you might want to consider your own long-term testing if this is critical to your design.

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9261000 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
