5+5 Pos. Female DIL 26AWG Cable Assembly, 300mm, double-end, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

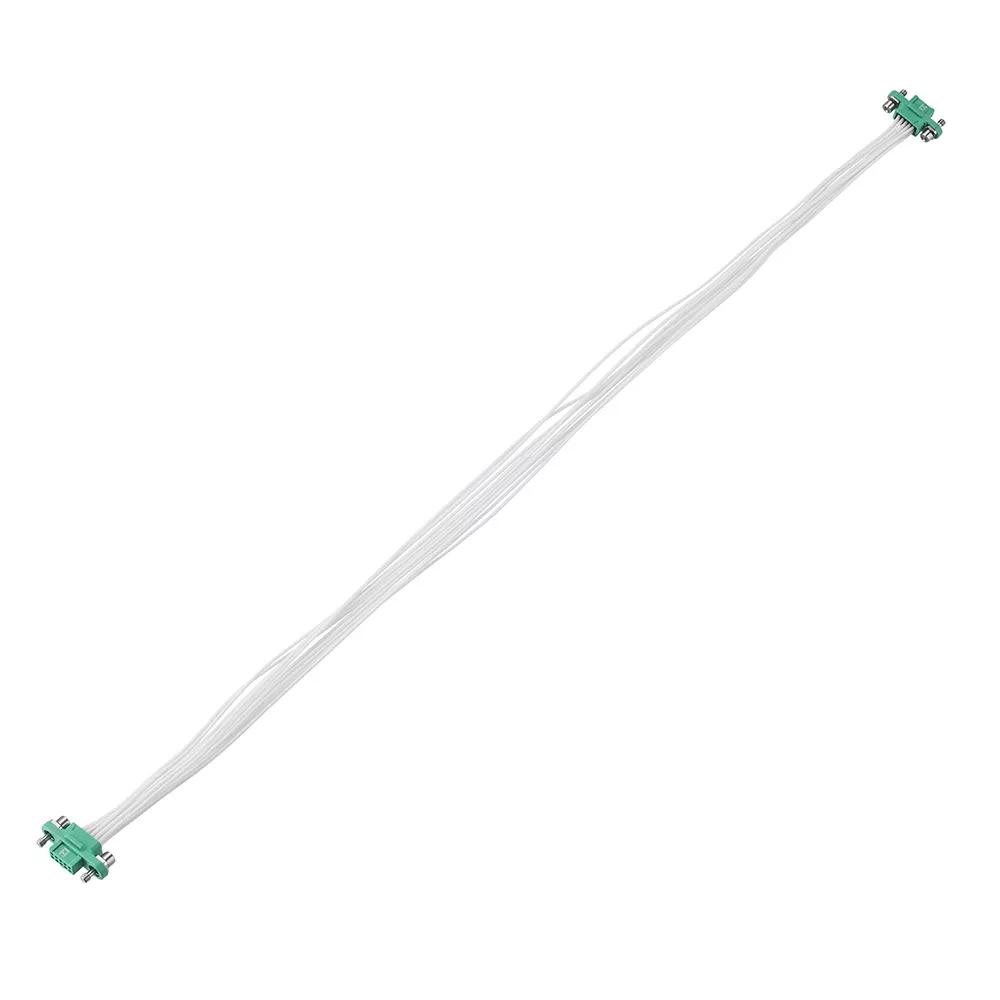

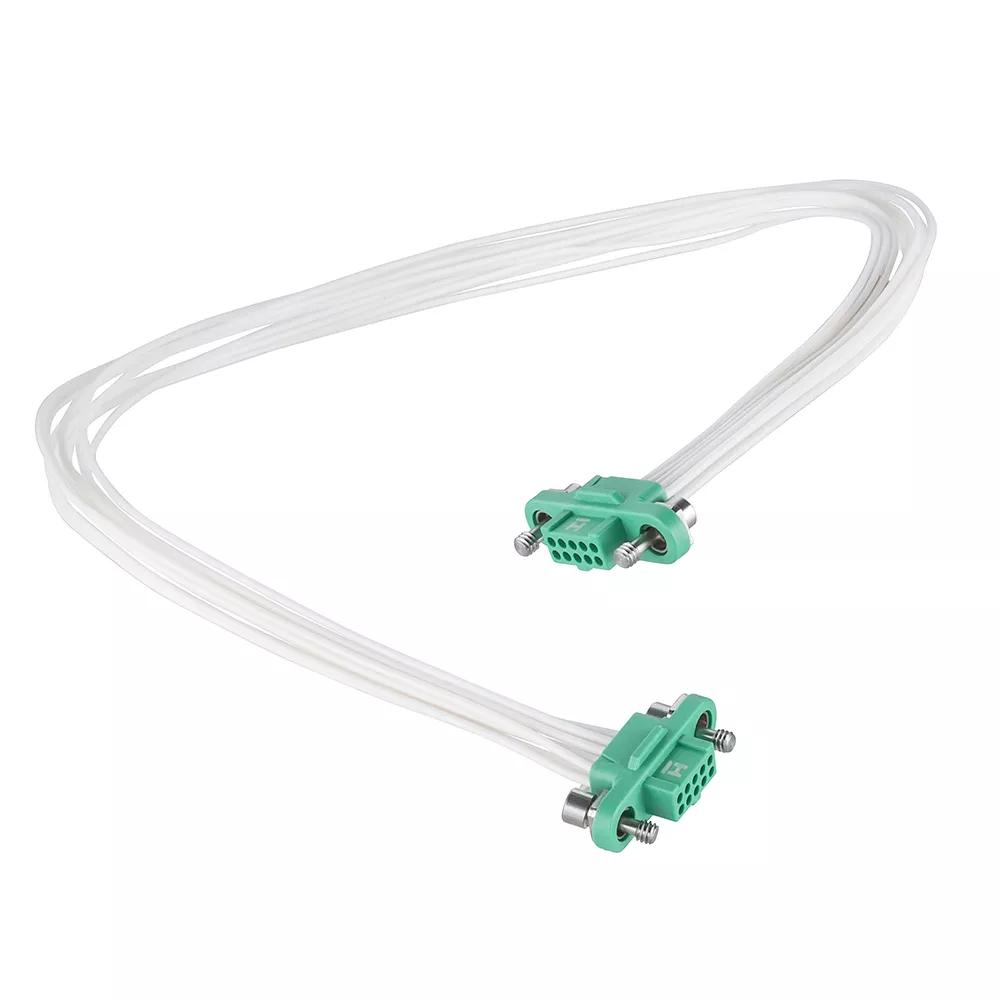

- Female-to-Female with white 26 AWG cable, 300mm long – 10 contacts (5+5). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
- Manufactured with G125-0010005 crimp contacts, G125-2241096F1 Double Row crimp housings. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:

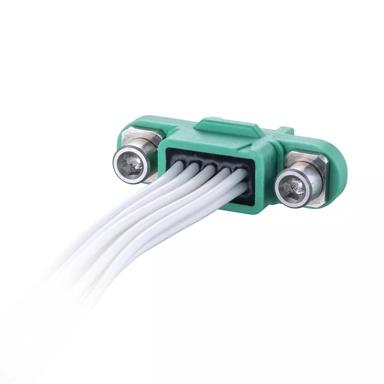

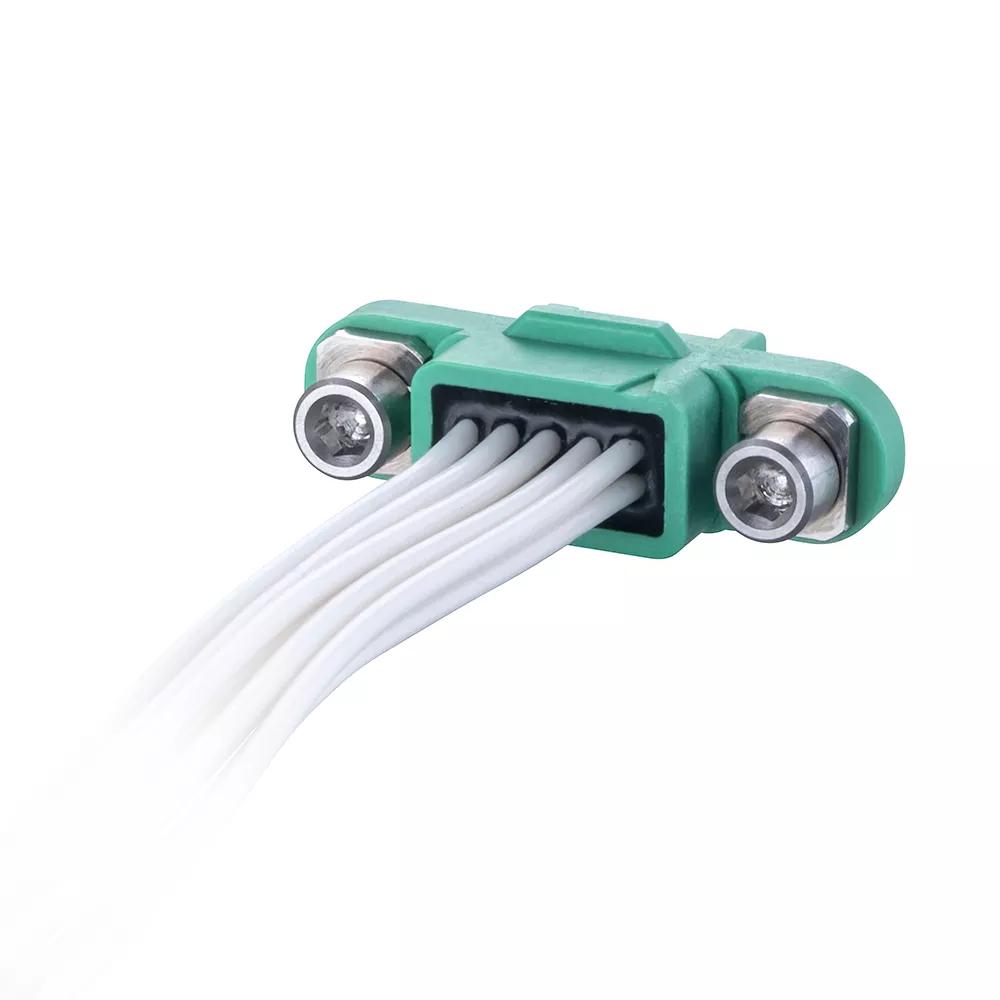

Floating Screw-Lok with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
300.00 x 17.70 x 6.50
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
