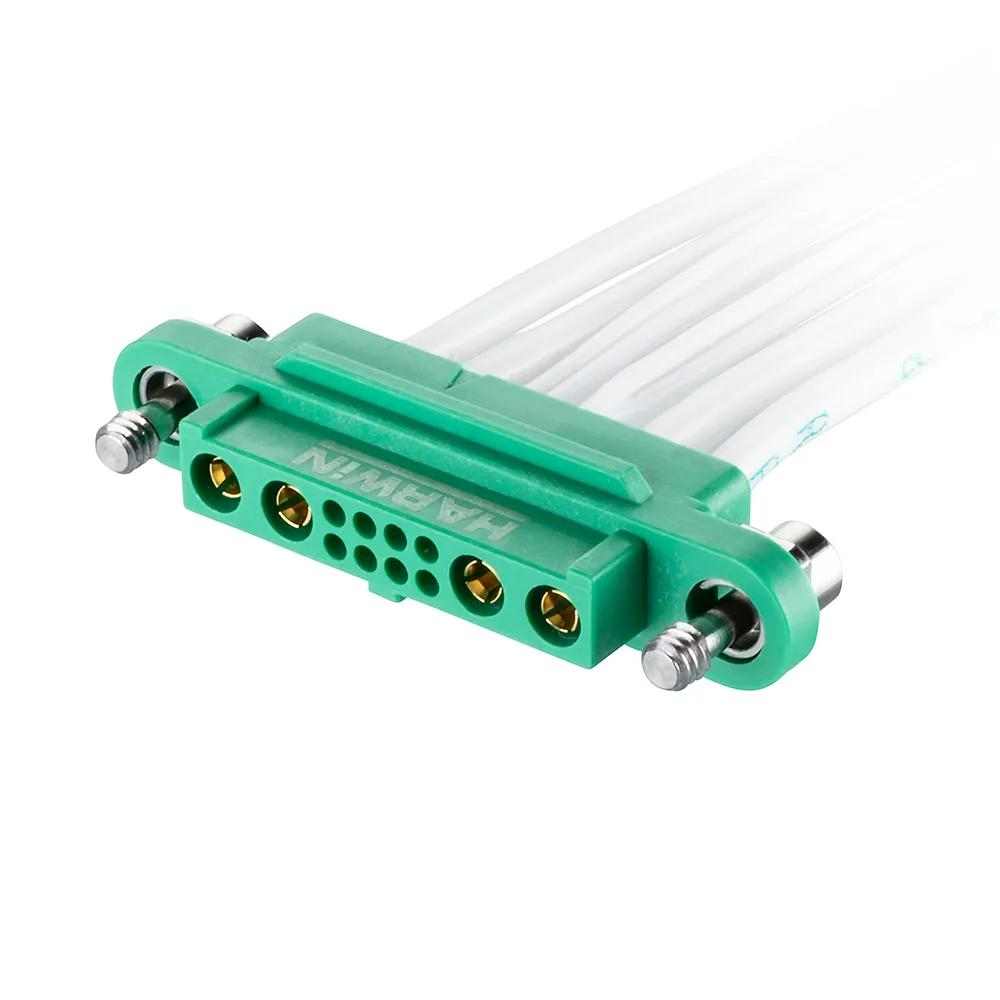

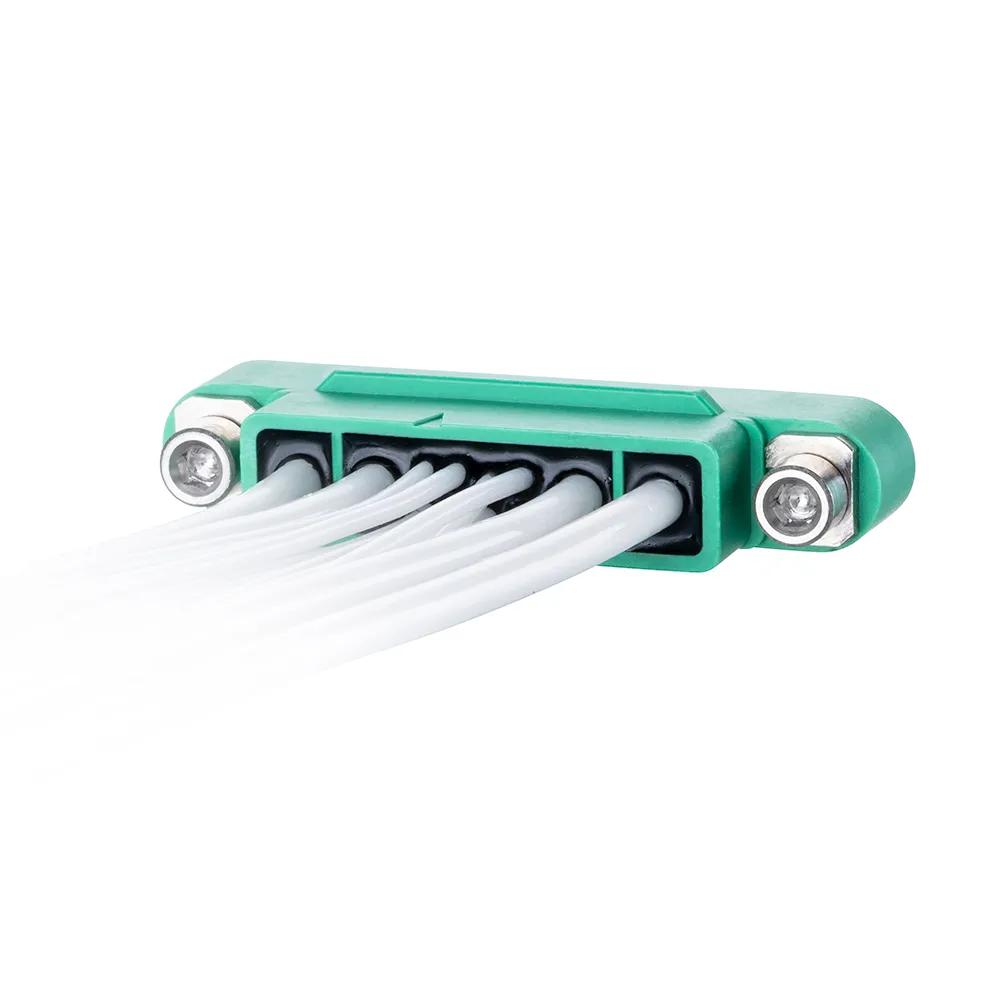

Female-to-Female, 200mm long - 8 signal contacts (4+4) with white 26 AWG cable and 4 power contacts with white 18 AWG cable. Fitted with floating Screw-Lok fixings including a hexagonal socket head, Mate-before-Lock.
Manufactured with G125-0010005 signal crimp contacts, G125-0500005 power crimp contacts and G125-22496F1-02-08-02 cable housings. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details
In Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.4mm, Ø1mm
Number of Rows:
Mixed
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Power/Coax Contacts:
4
Number of Signal Contacts:
8
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
10.893g
Dimensions:
200.00 x 27.70 x 6.50
Thread Size:
M2
Wire Size:
26 AWG,18 AWG
Downloads
Product Change Notifications
Obsolescence 25-Feb-2025 - Gecko-MT symmetrical Cable Assemblies part number change
Technical Documentation
Technical Drawing Datasheet - G125-XXX08XXXX-XXXX-XXXXXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko-MT Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko-MT range (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature
Test Report HT072 - Gecko-MT General (Electrical + Mechanical and Environmental)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - G125-FC10805F1-2B2B-0200F1
Cable Assembly
