G125-FC10605F1-0300F1

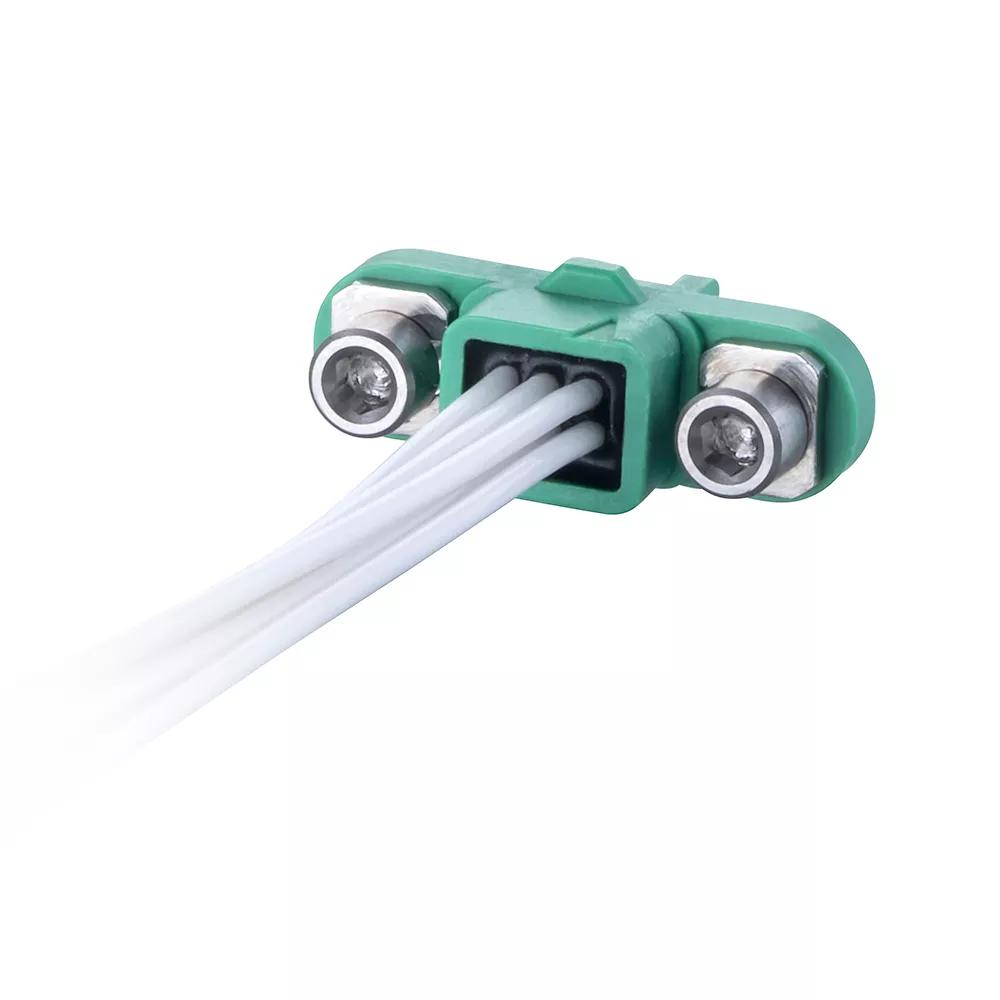

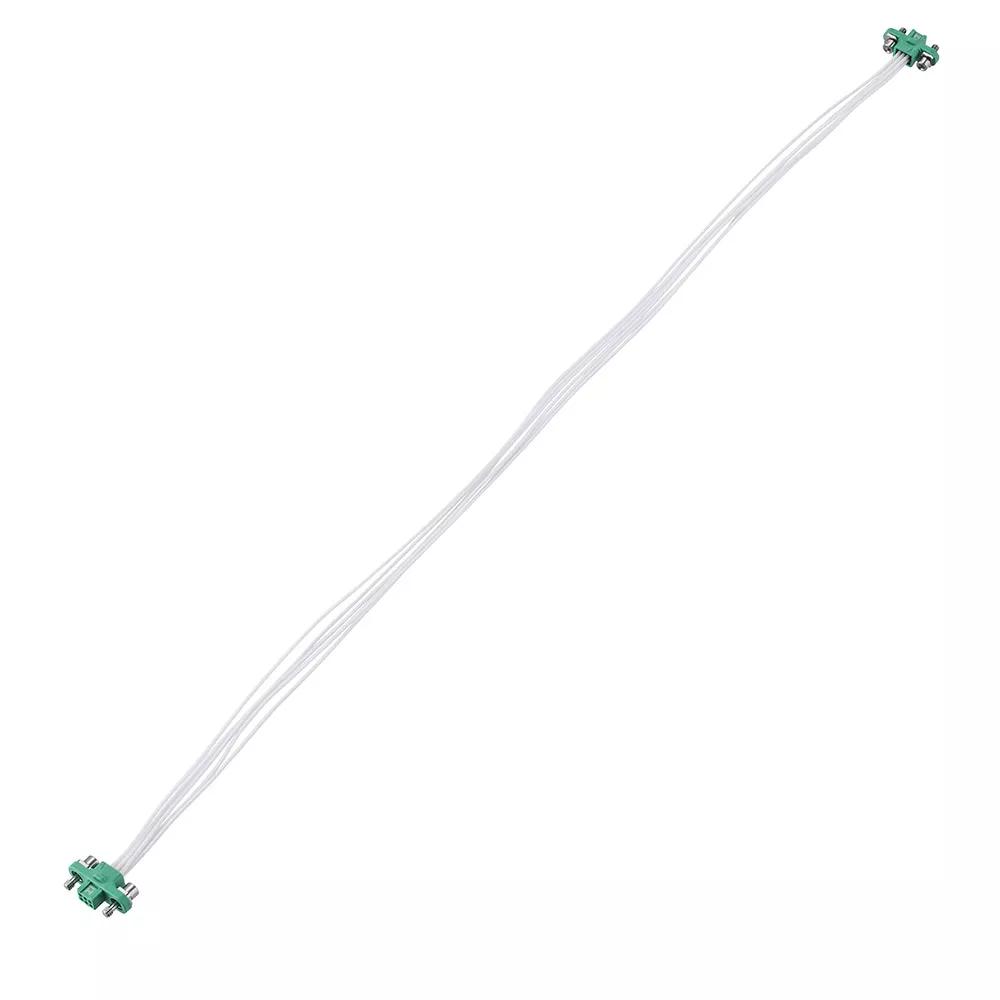

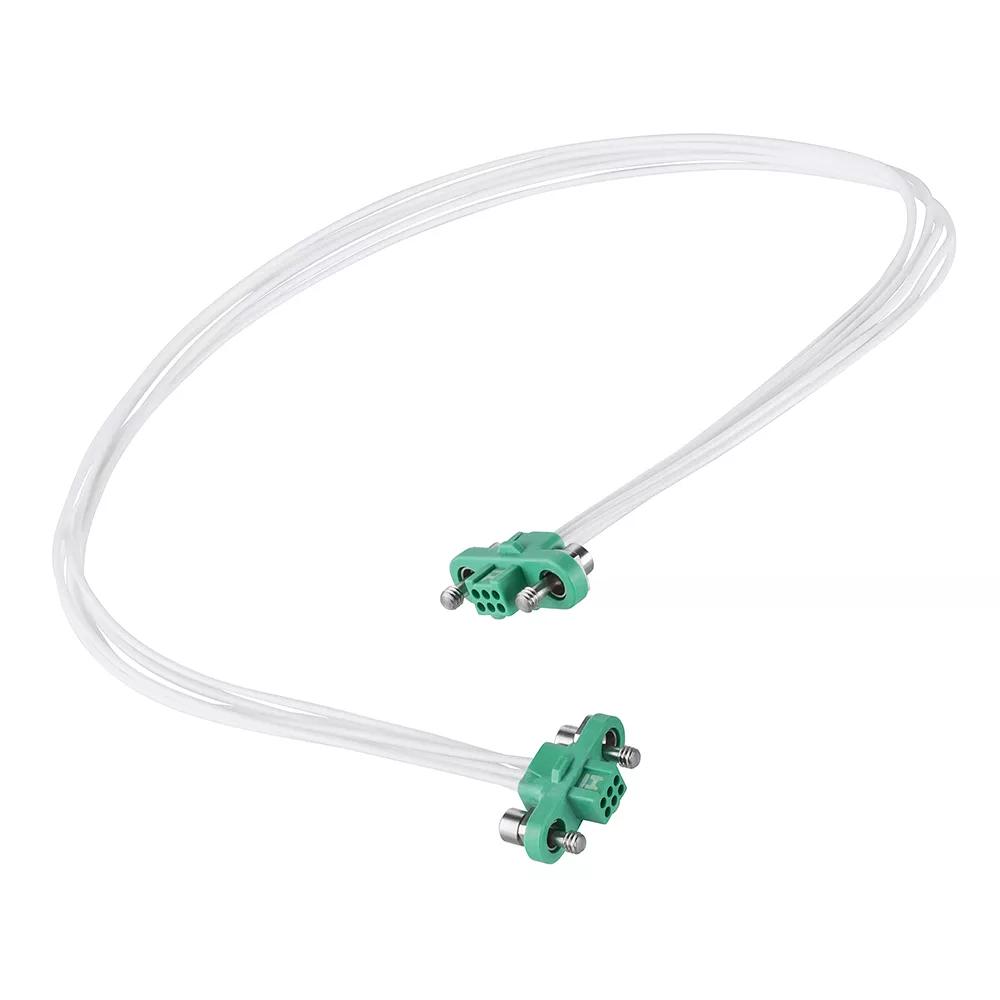

3+3 Pos. Female DIL 26AWG Cable Assembly, 300mm, double-end, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Female-to-Female with white 26 AWG cable, 300mm long – 6 contacts (3+3).
  • Manufactured with G125-0010005 crimp contacts, G125-2240696F1 Double Row crimp housings.
  • Fitted with floating Screw-Lok fixings, Hexagonal socket head.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Hex Socket

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.119g

Overall Dimensions (L x W x D) in mm:

300.00 x 15.20 x 6.50

Thread Size:

M2

Availability

Distributor Location Quantity
Harwin
Europe
Status280

*Stock available: contact distributor to purchase
