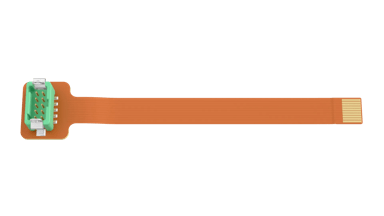

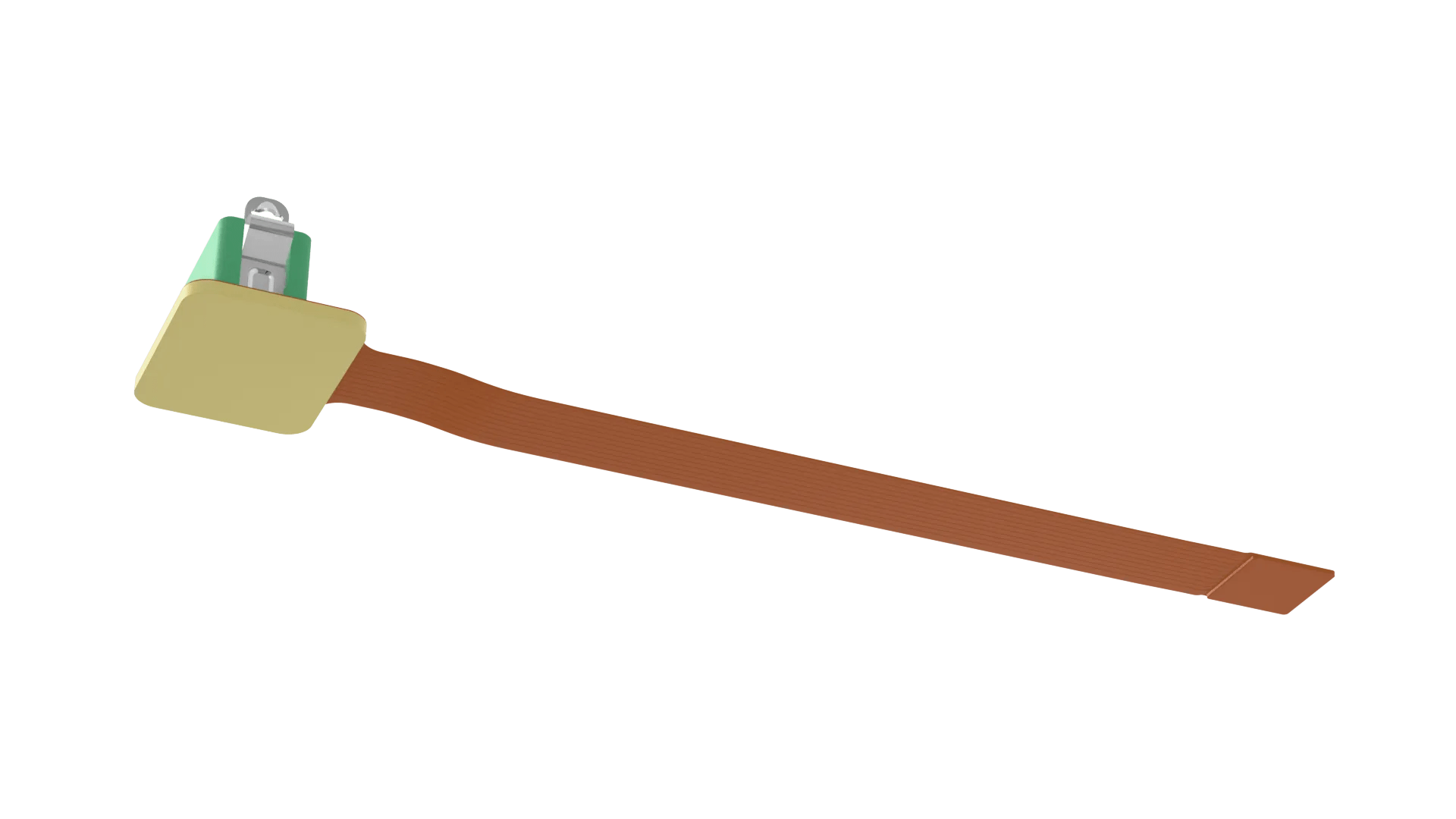

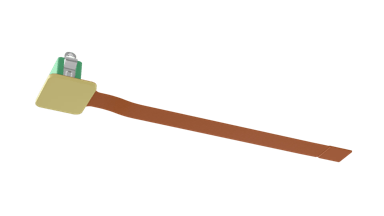

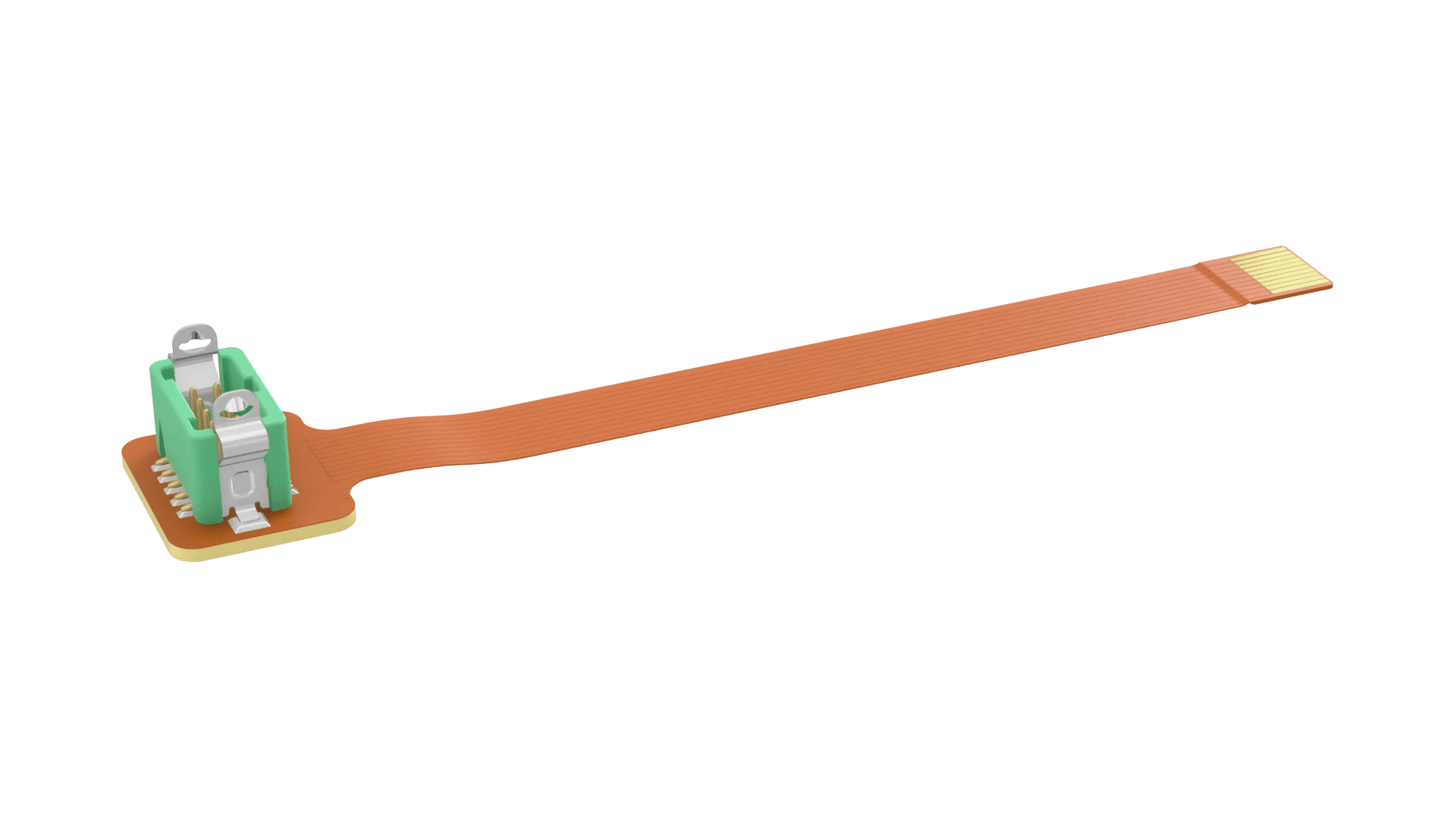

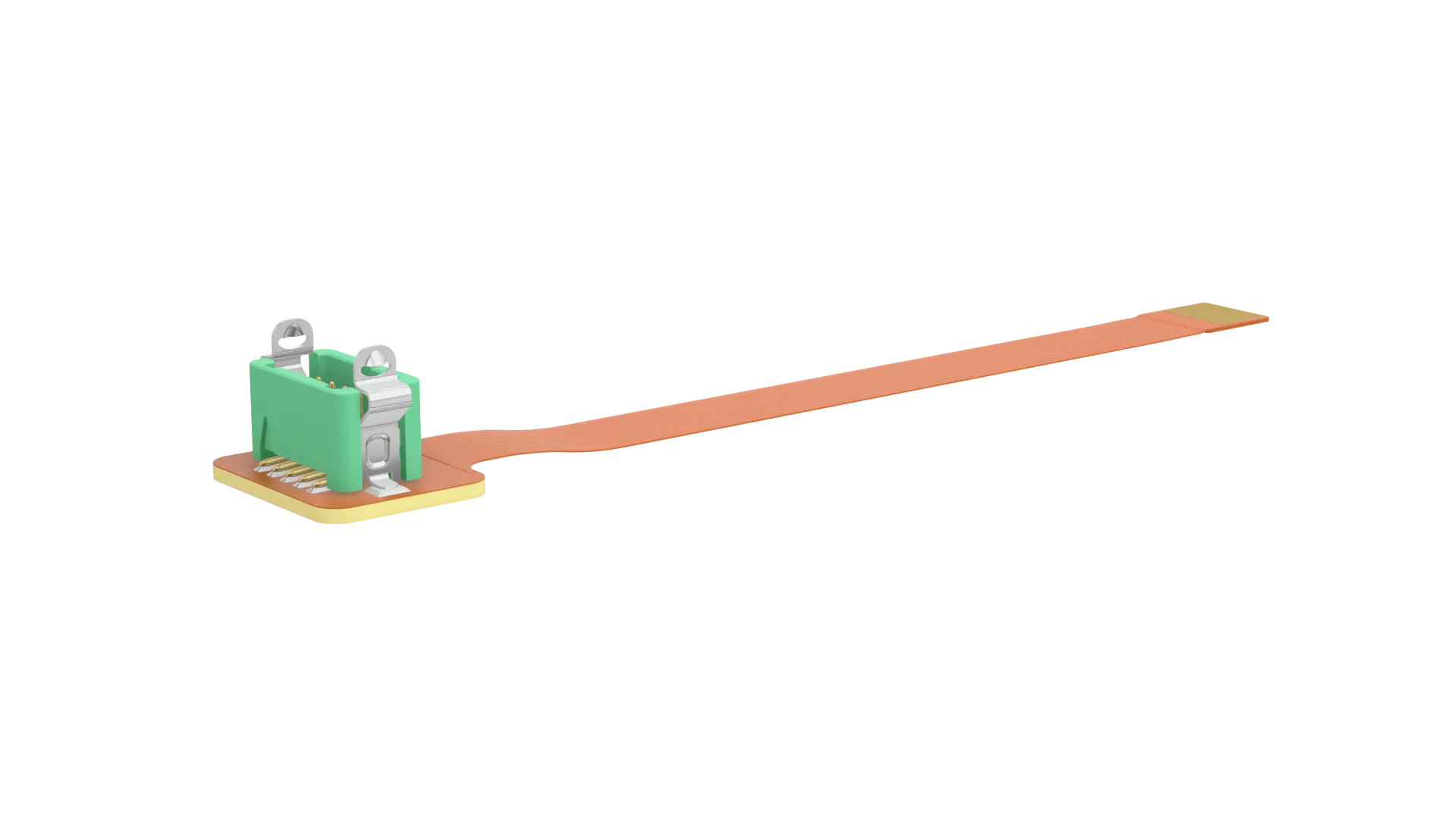

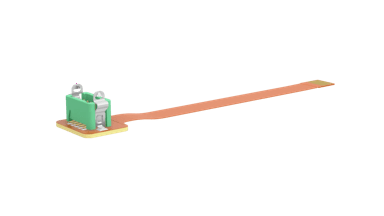

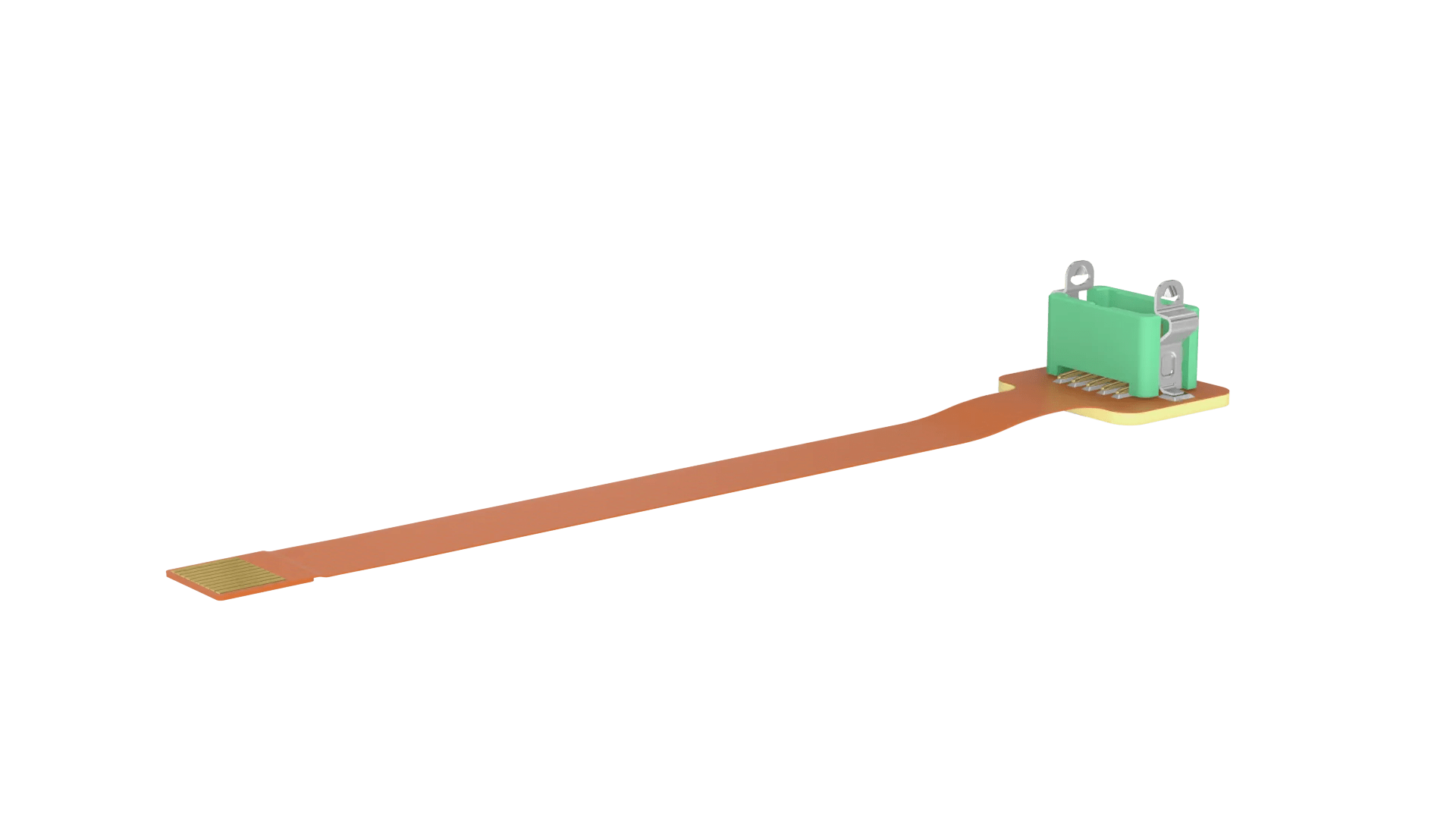

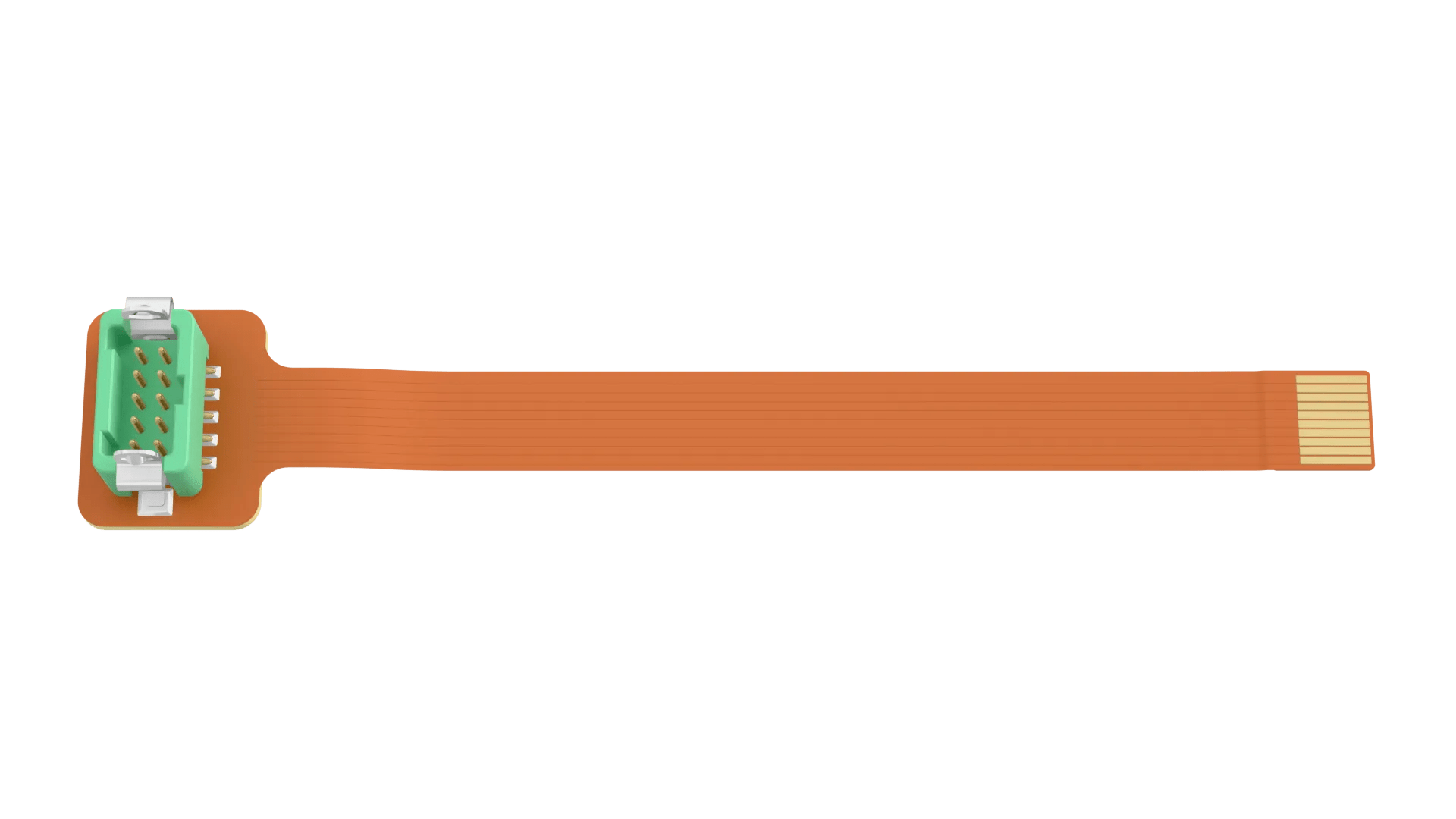

G125-F1MS110-075-L

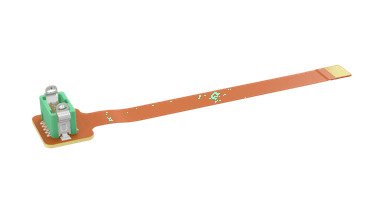

5+5 Pos. Male DIL Flex Circuit Assembly, 75mm, single-end, Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Male Single-Ended flexible circuit assembly, 75mm long – 10 contacts (5+5). Free end compatible with industry standard FPC/FFC connectors, 0.5mm pitch.
  • Manufactured with G125-MS11005L3P male SMT connector, fitted with copper alloy latches. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connection Type:

Flex Circuit Assembly

Mating Pin Size:

Ø0.4mm

Current Rating:

0.4A max per contact (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.71g

Overall Dimensions (L x W x D) in mm:

75.00 x 12.00 x 7.90 max
