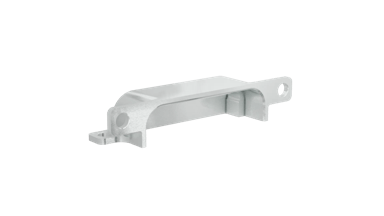

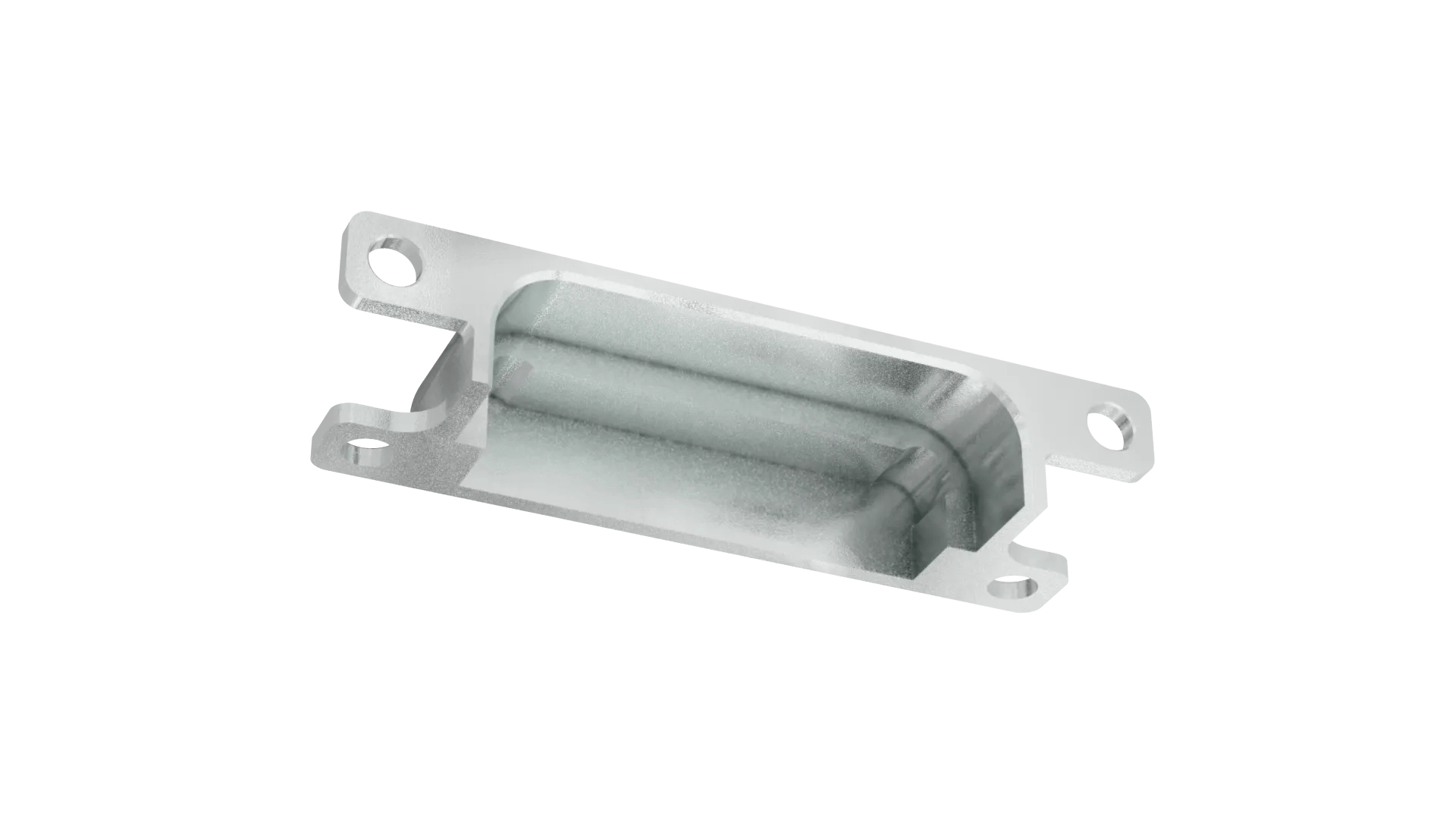

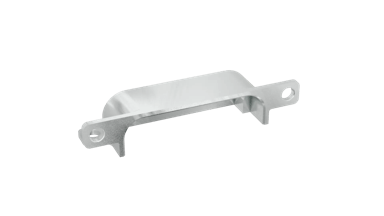

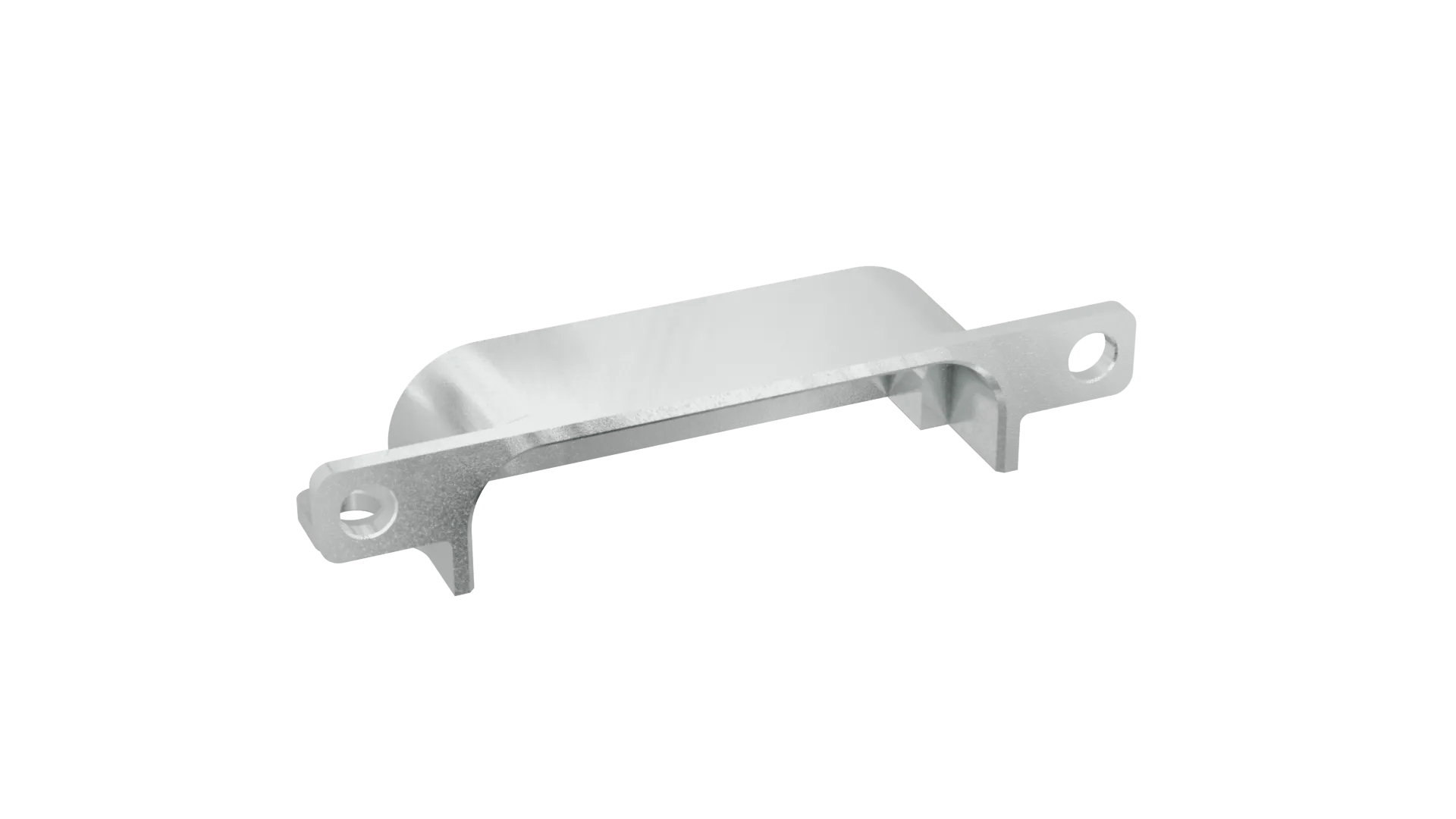

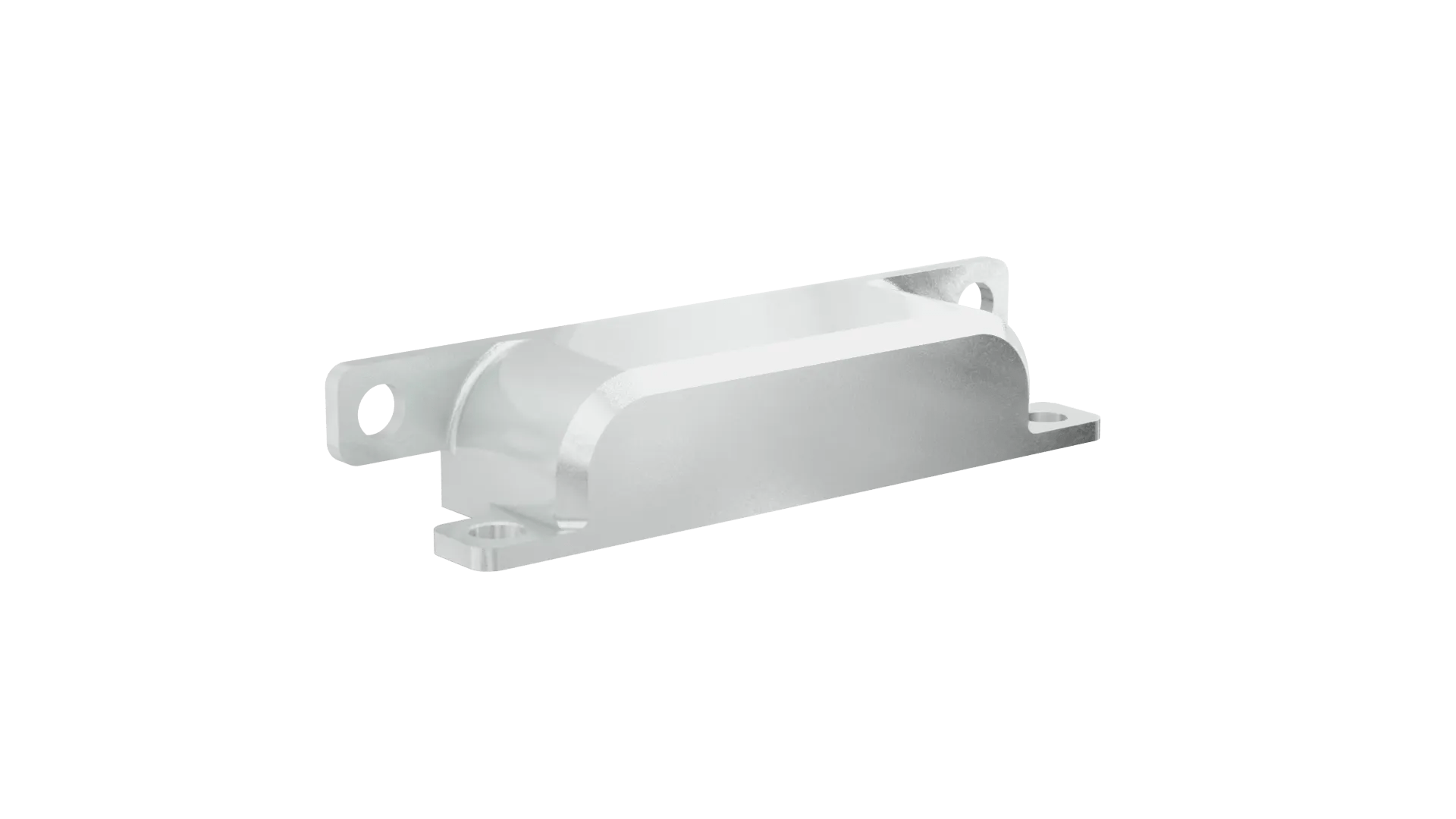

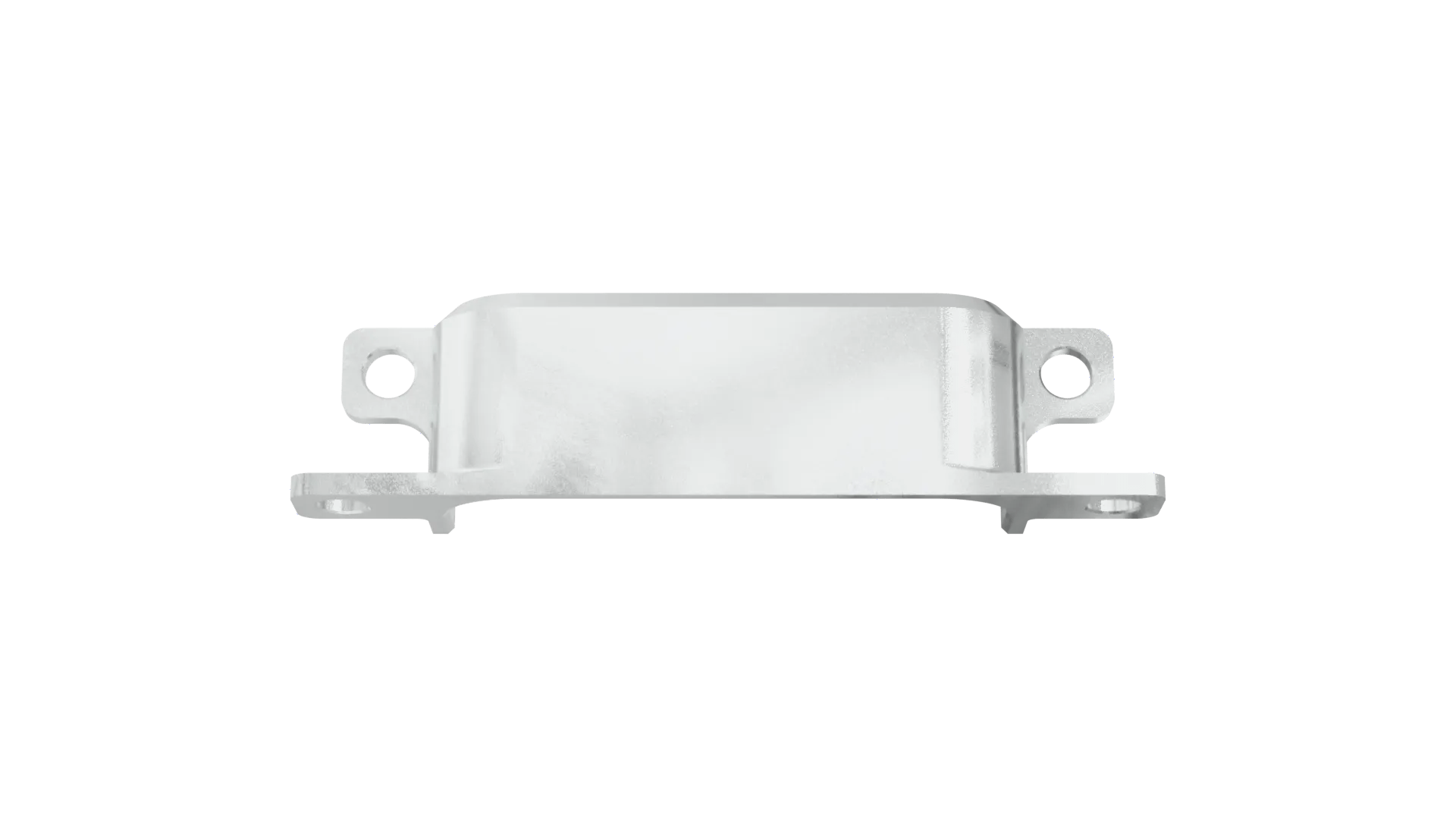

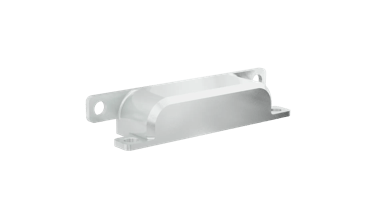

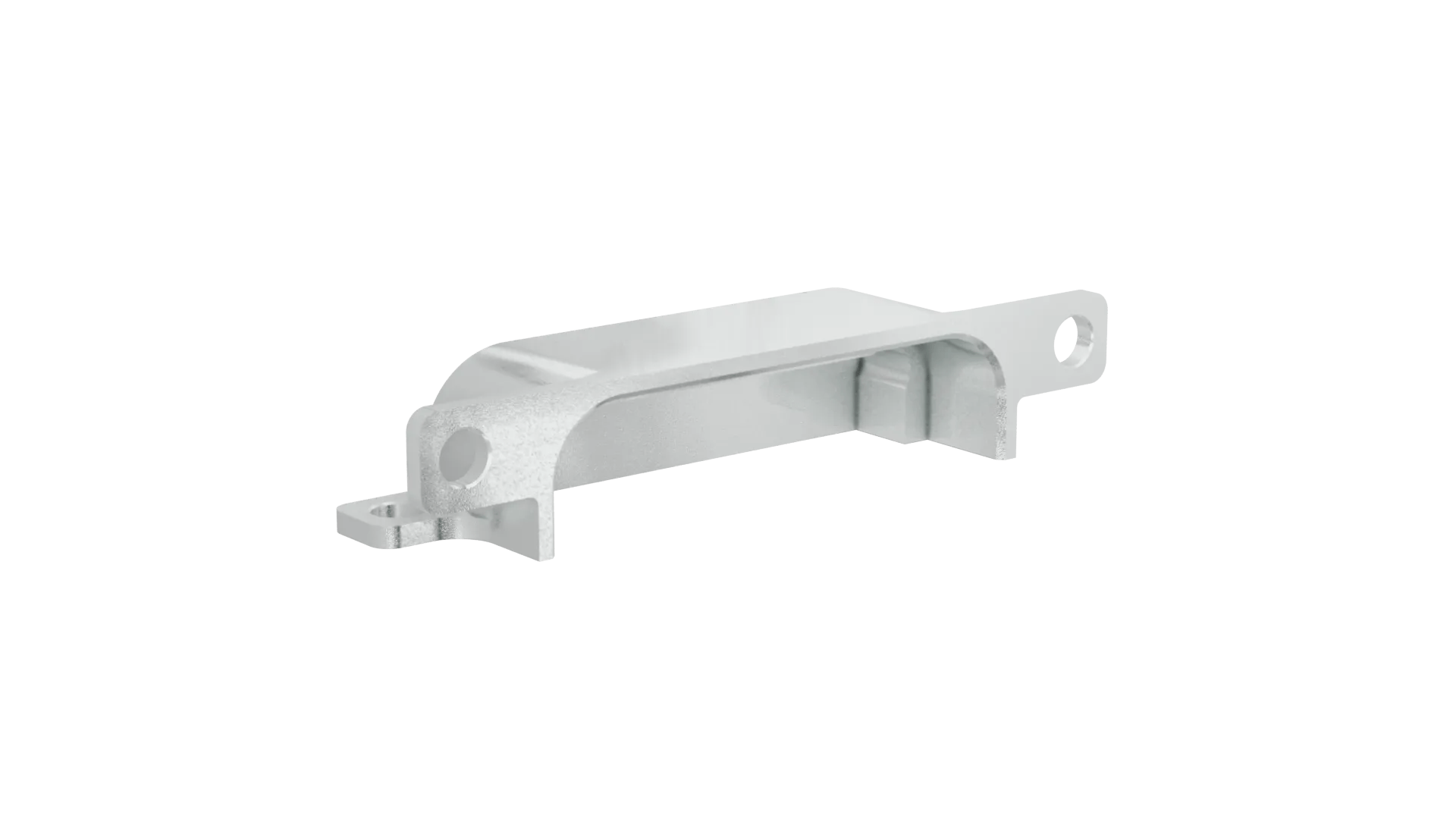

10+10 Pos. Male Horizontal Metal Backshell for Gecko-SL, Panel Mount
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Additional lugs for rear panel mounting at mating face. Accessory only – connectors to be purchased separately.
- Use with the following 20-contact connector: male horizontal PCB connector G125-MH12005M4P.
- Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs or panels up to 2mm thickness.
EU RoHS Status:
Board Mount and Panel Mount
-65°C to +150°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
40.35 x 10.00 x 7.54
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
