G125-9711602
8+8 Pos. Male Horizontal Metal Backshell for Gecko-SL, Panel Mount
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
54 in stock Check availability
4 similiar products View products
Samacsys account required
No login is required
Product Description

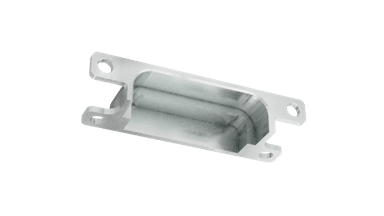

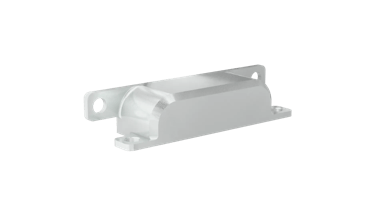

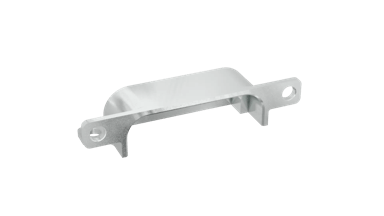

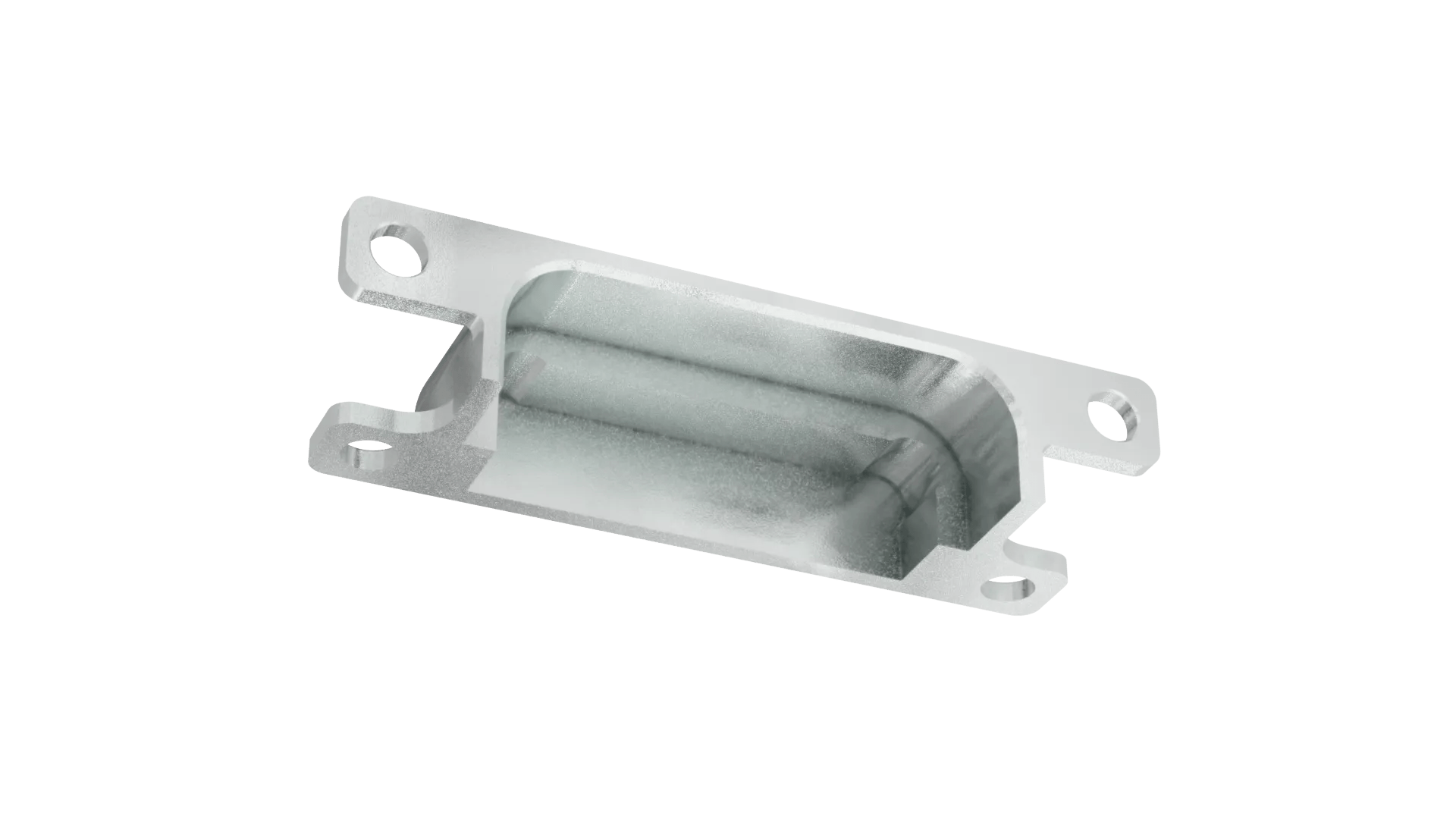

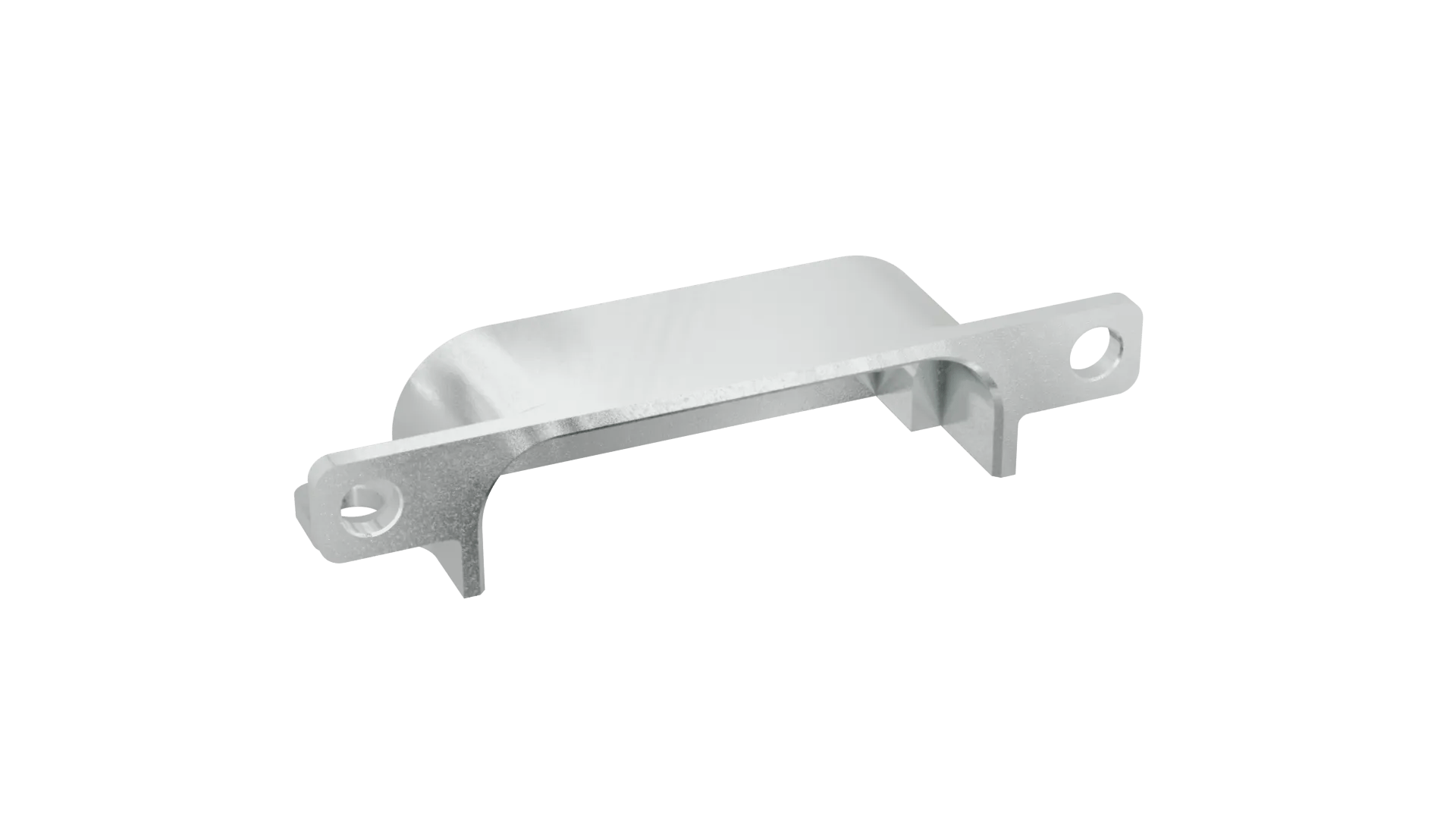

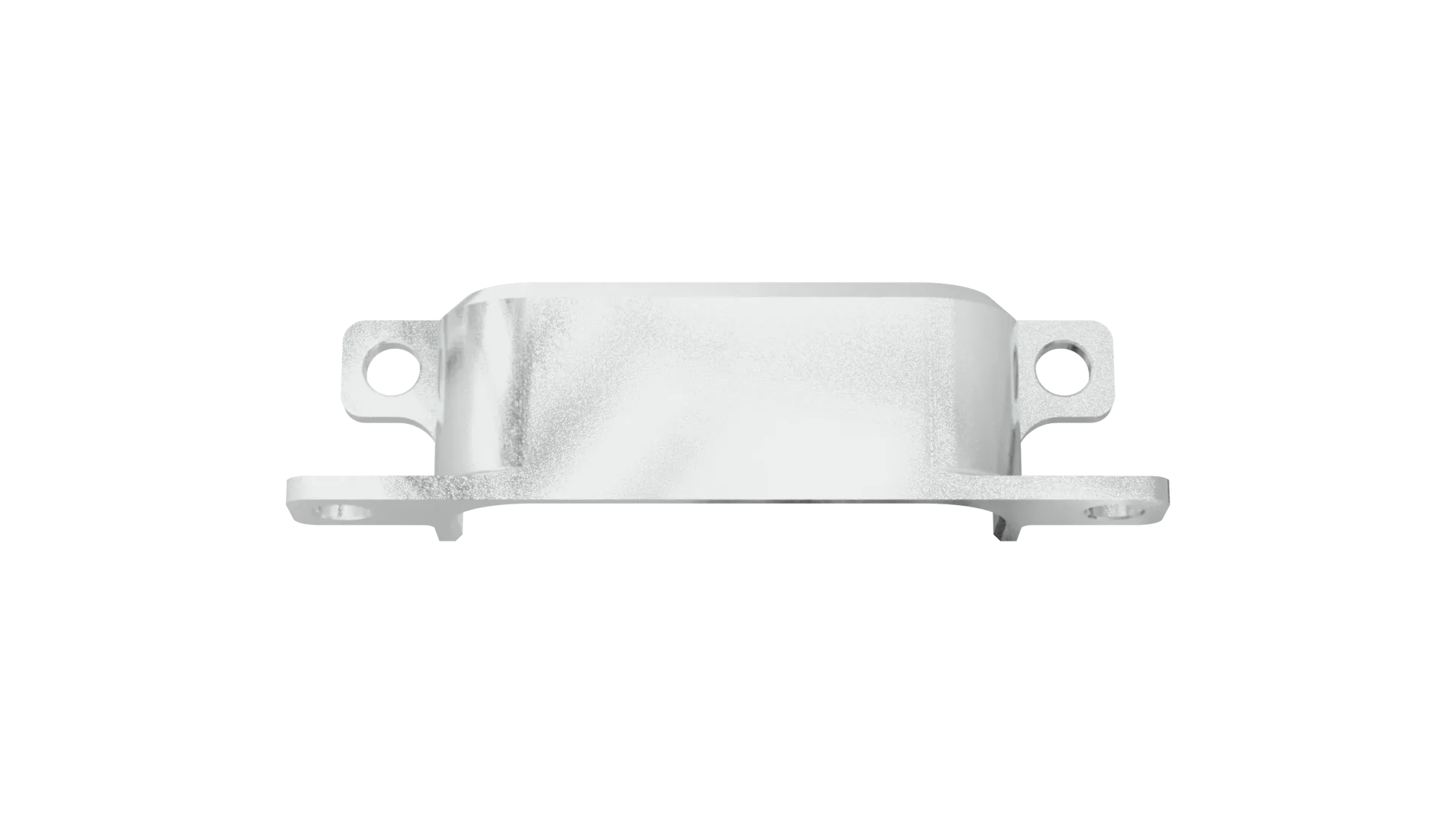

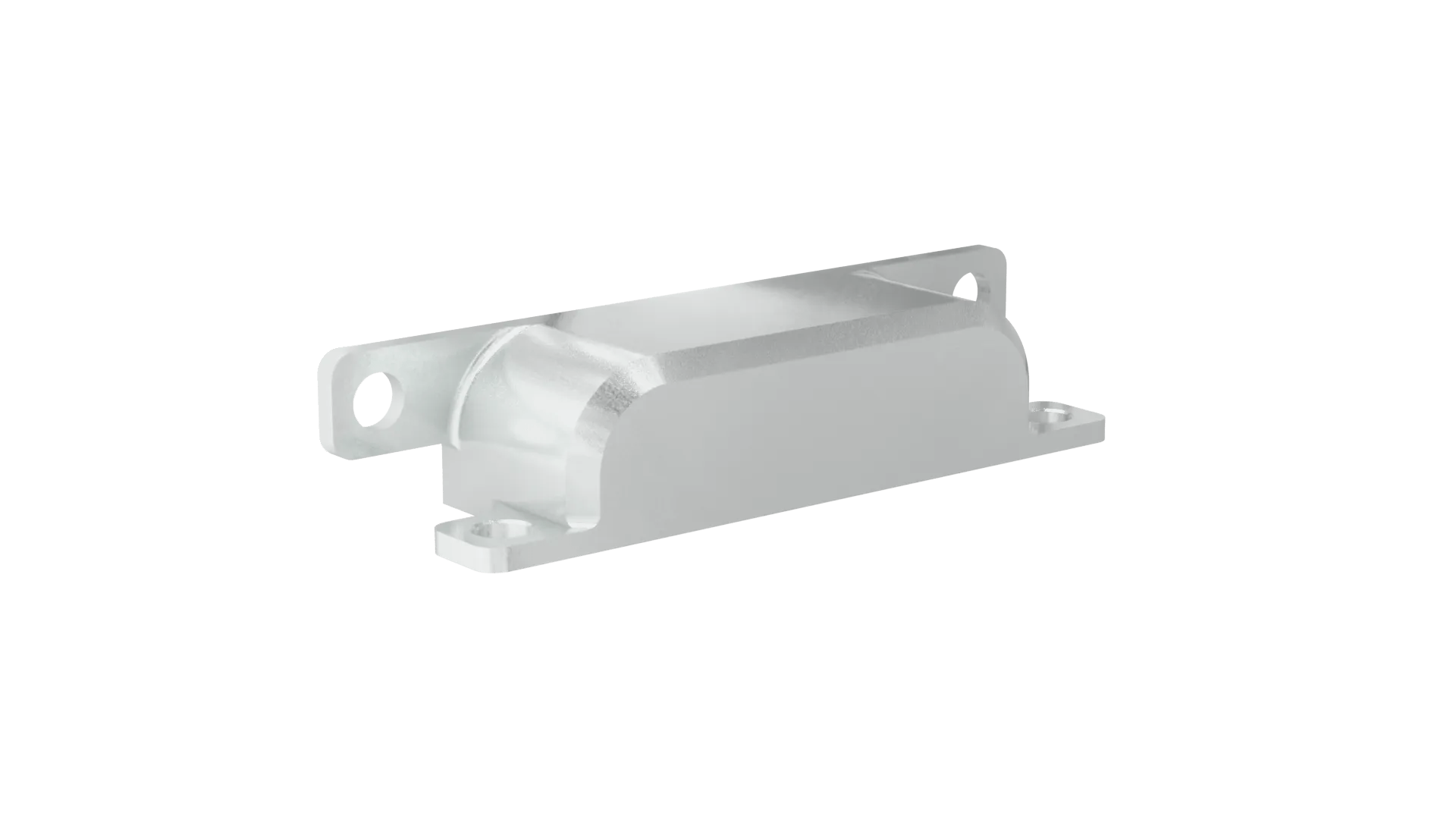

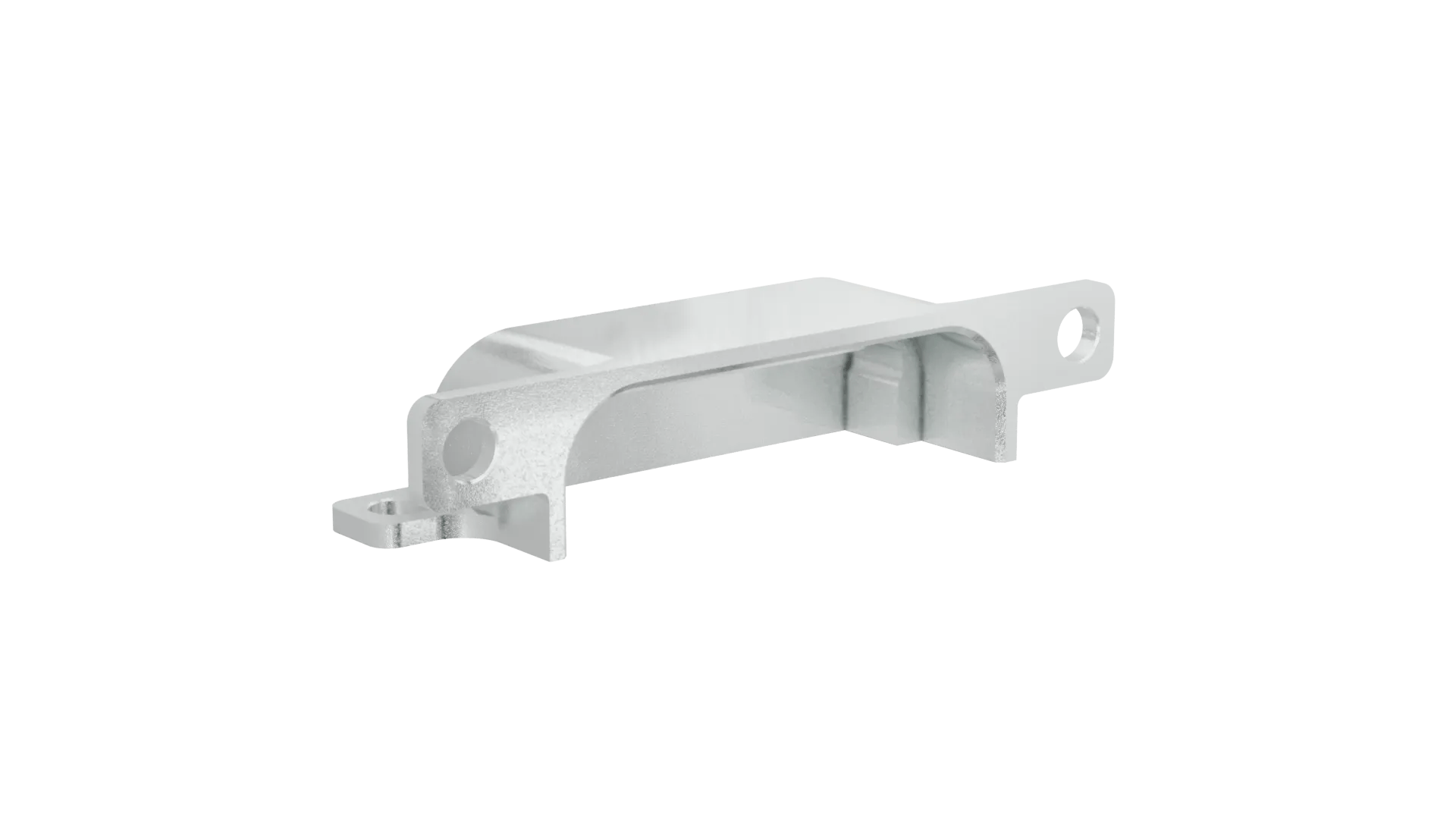

- Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Additional lugs for rear panel mounting at mating face. Accessory only – connectors to be purchased separately.
- Use with the following 16-contact connector: male horizontal PCB connector G125-MH11605M4P. Also compatible with the Gecko-MT male horizontal PCB connector G125-MH10805M4-1AD1ADP.
- Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs or panels up to 2mm thickness.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Connector Orientation:
Horizontal
Connection Type:
Board Mount and Panel Mount
Operating Temperature:
-65°C to +150°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
16
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
2.315g
Overall Dimensions (L x W x D) in mm:
37.85 x 10.00 x 7.54
Height of Connector above PCB:
7.54mm
