G125-9702602

13+13 Pos. Male Horizontal Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

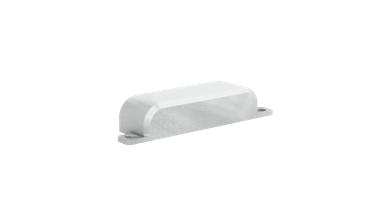

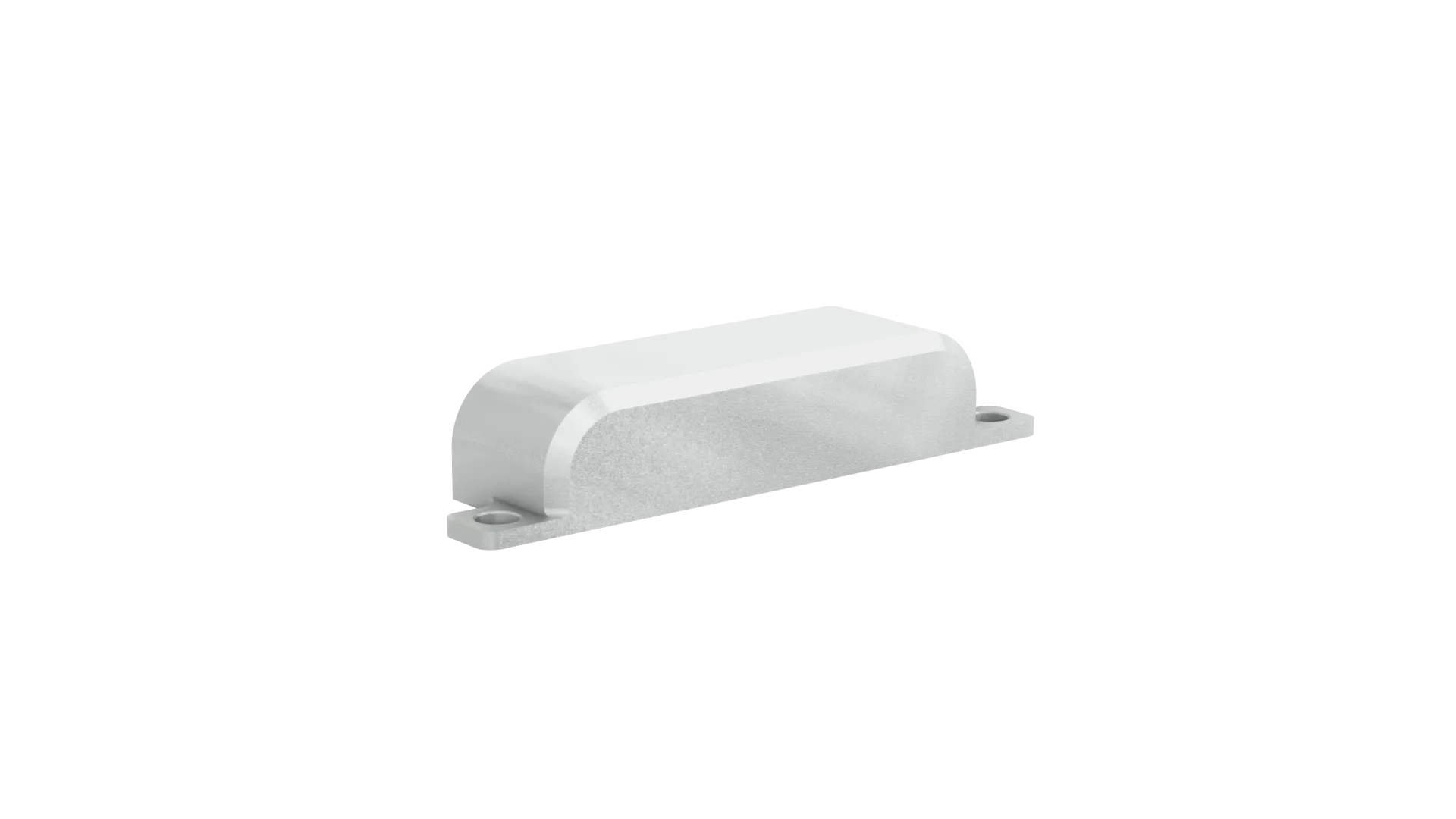

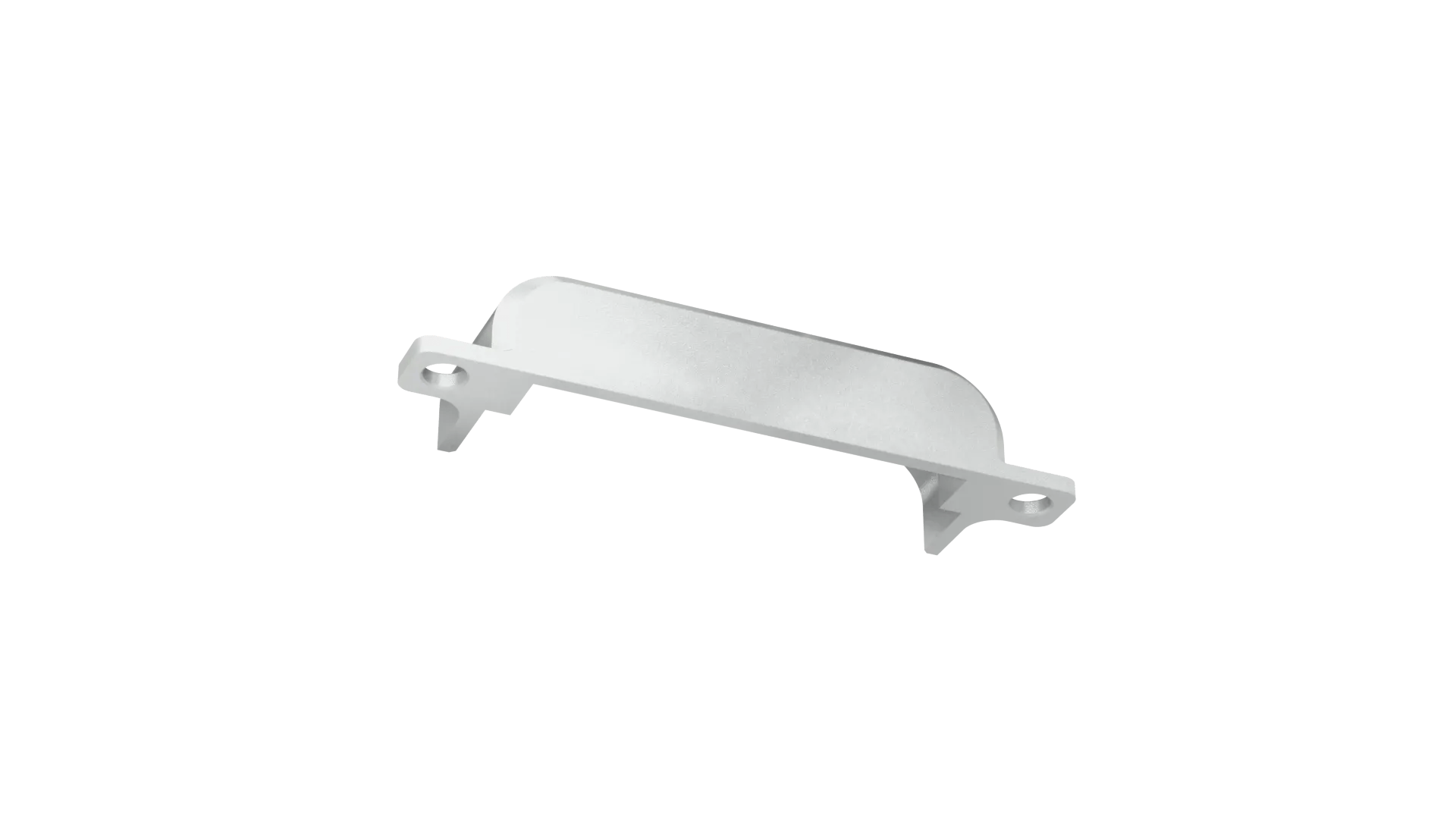

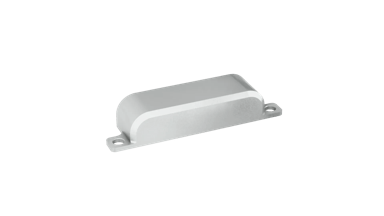

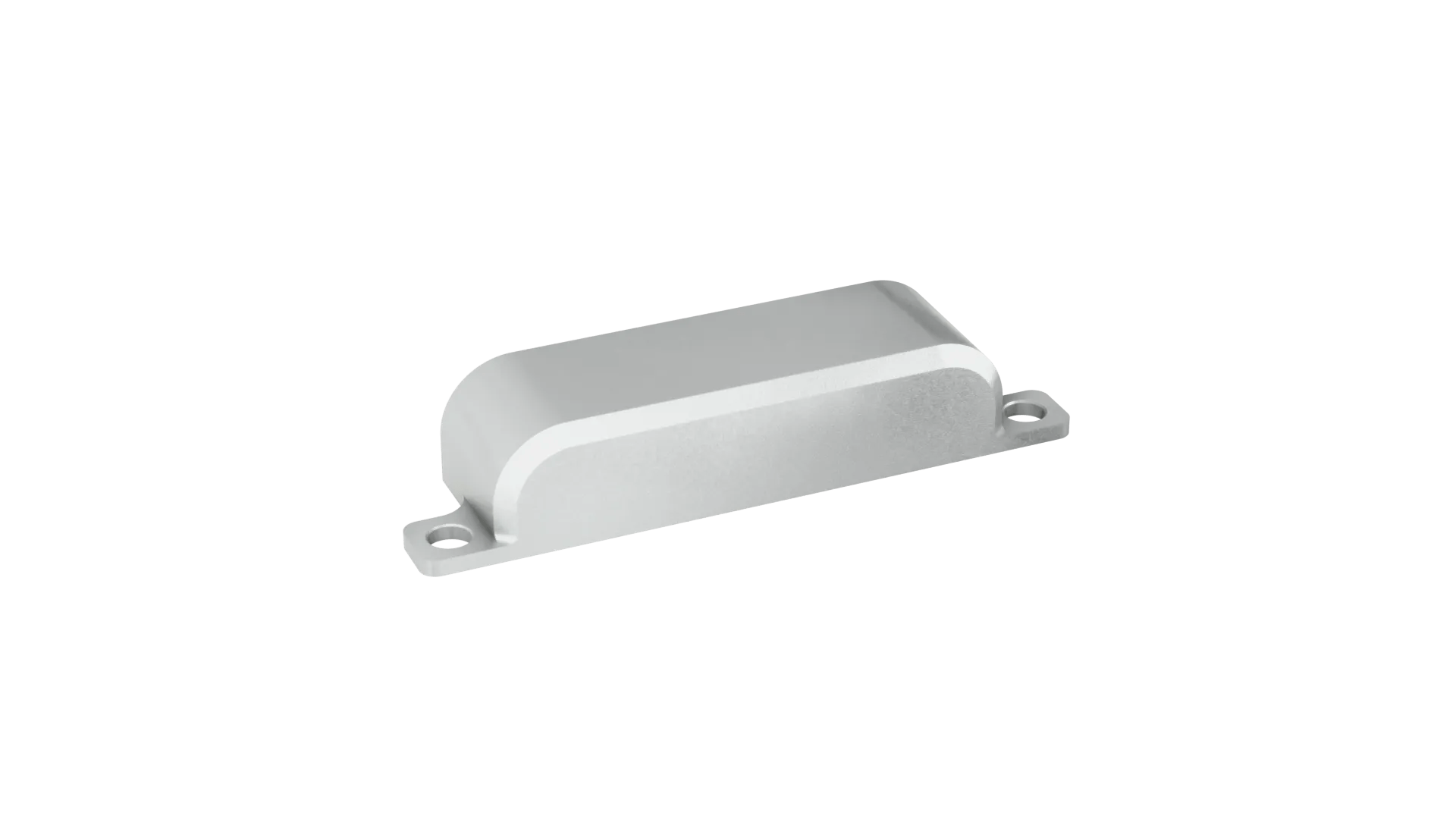

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Accessory only – connectors to be purchased separately.
Use with the following 26-contact connector: male horizontal PCB connector G125-MH12605M4P. Also compatible with the Gecko-MT male horizontal PCB connector G125-MH10805M4-2AD2ADP.
Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs up to 2mm thickness.

G125-9702602 - 13+13 Pos. Male Horizontal Metal Backshell for Gecko-SL

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Horizontal

Connection Type:

Board Mount

Operating Temperature:

-65°C to +150°C

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Individual Part Weight:

2.56g

Overall Dimensions (L x W x D) in mm:

41.10 x 10.00 x 7.54

Height of Connector above PCB:

7.54mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
