1.25mm Pitch High-Reliability Connector - Gecko-SL

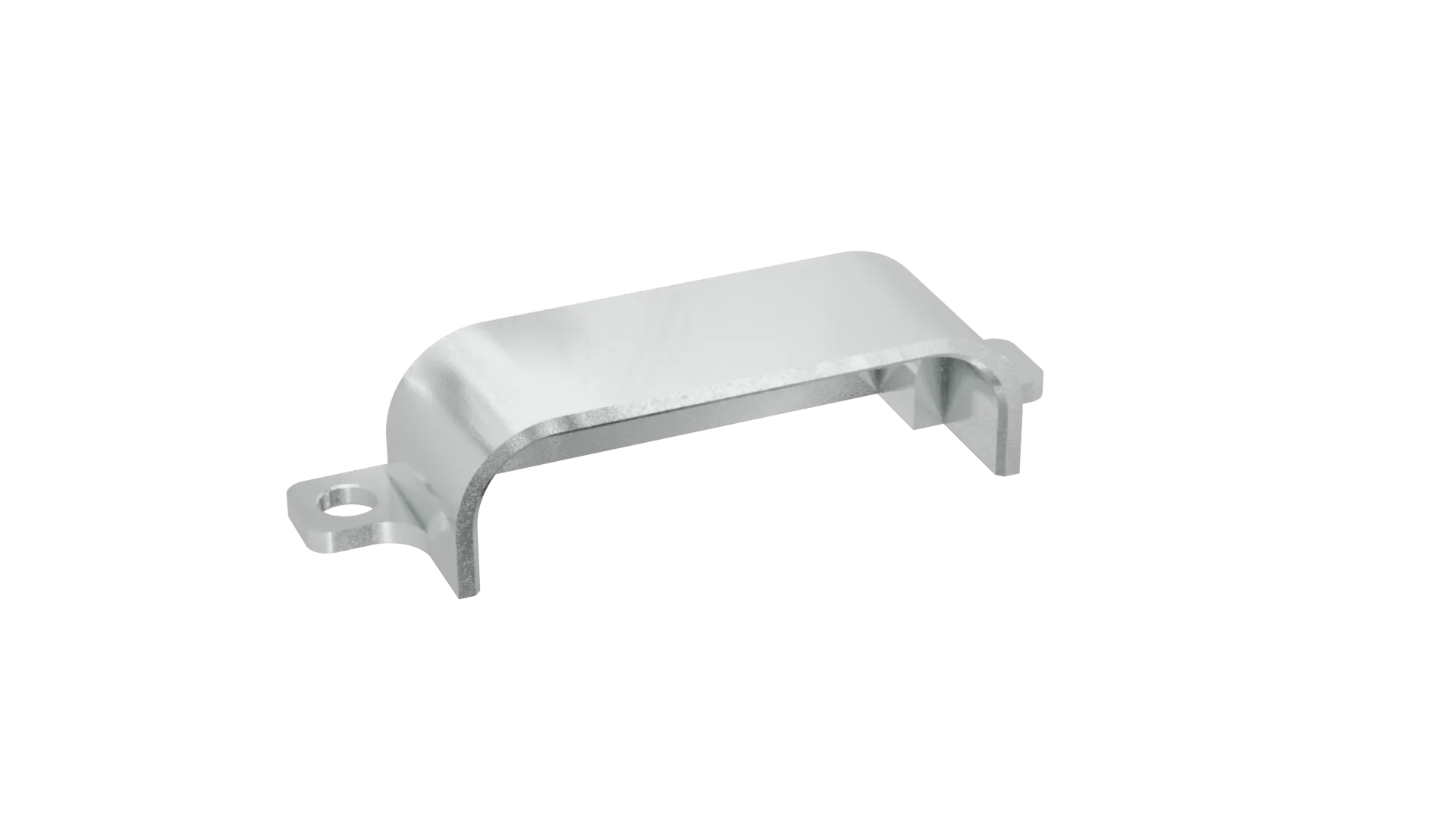

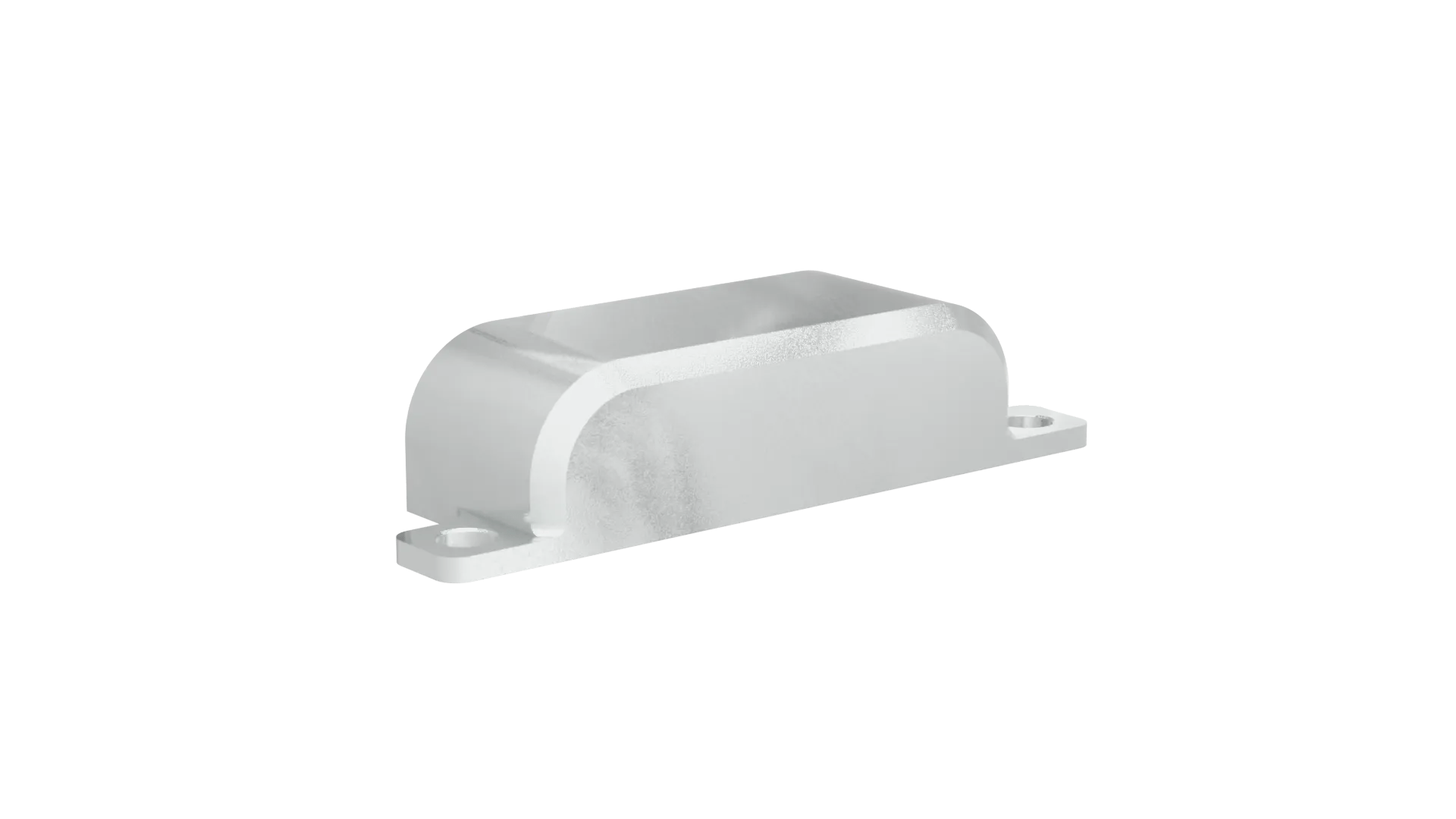

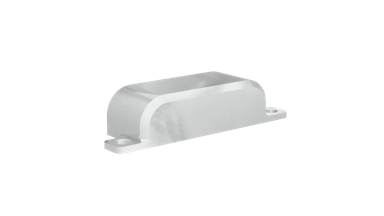

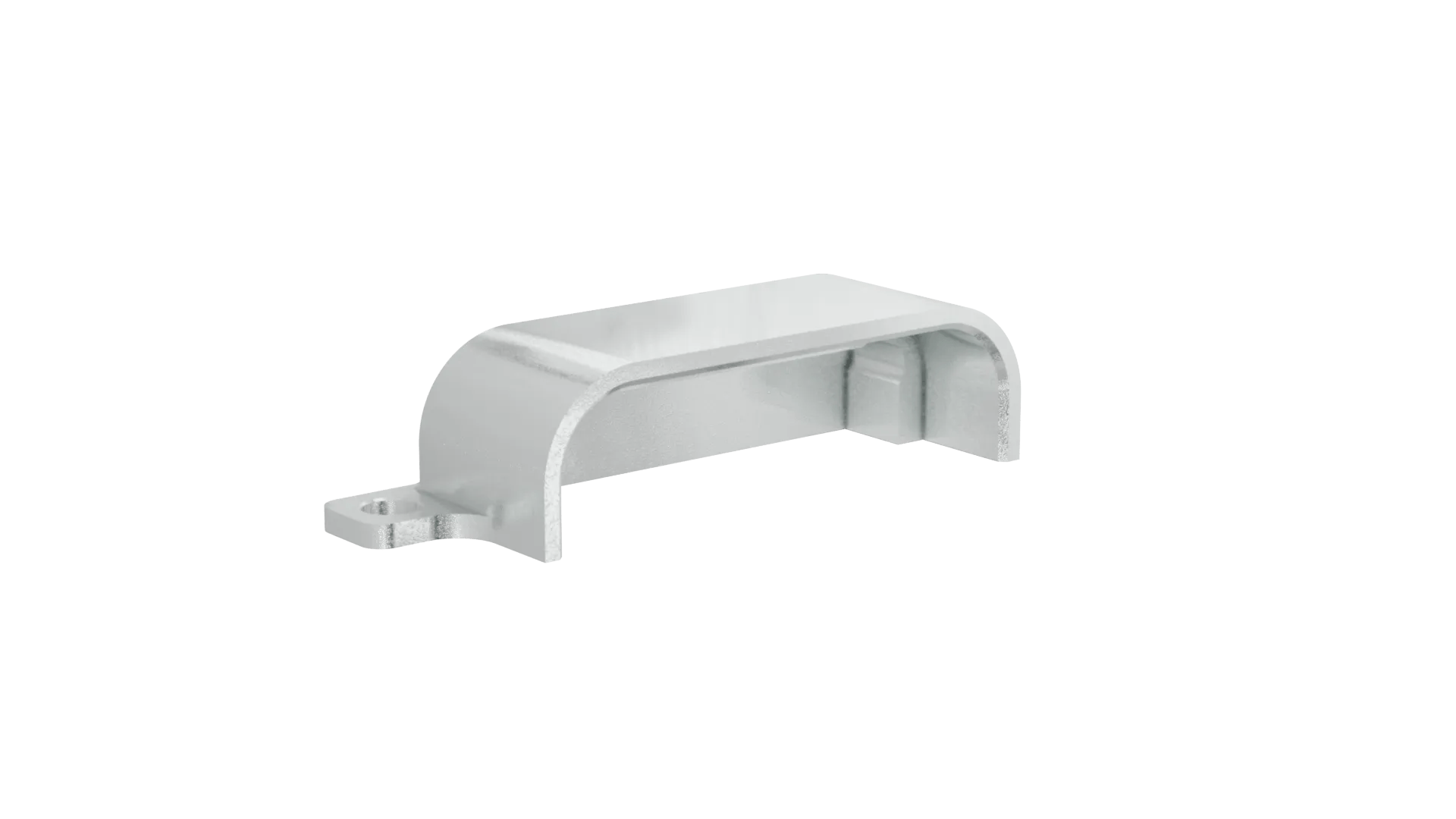

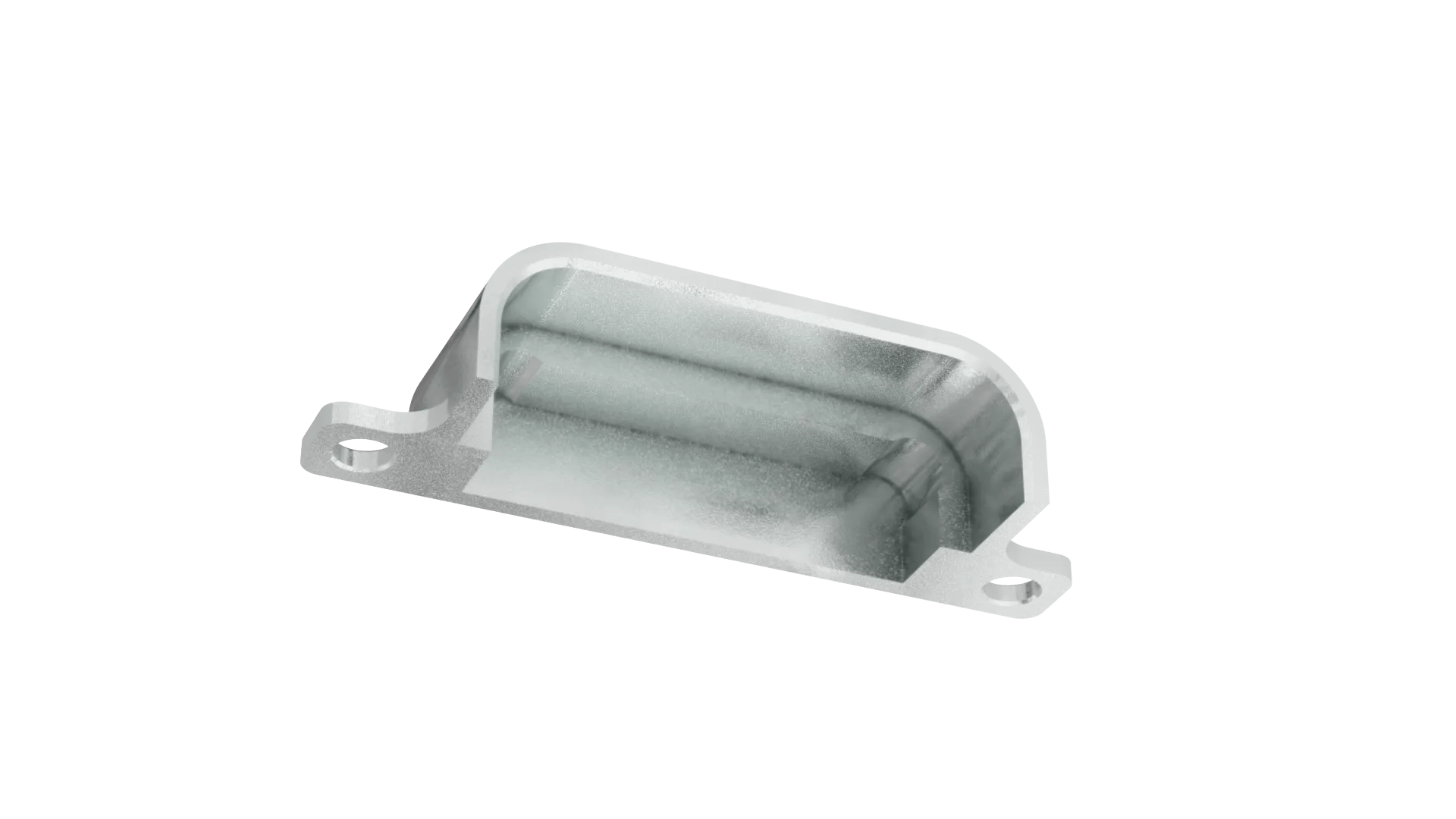

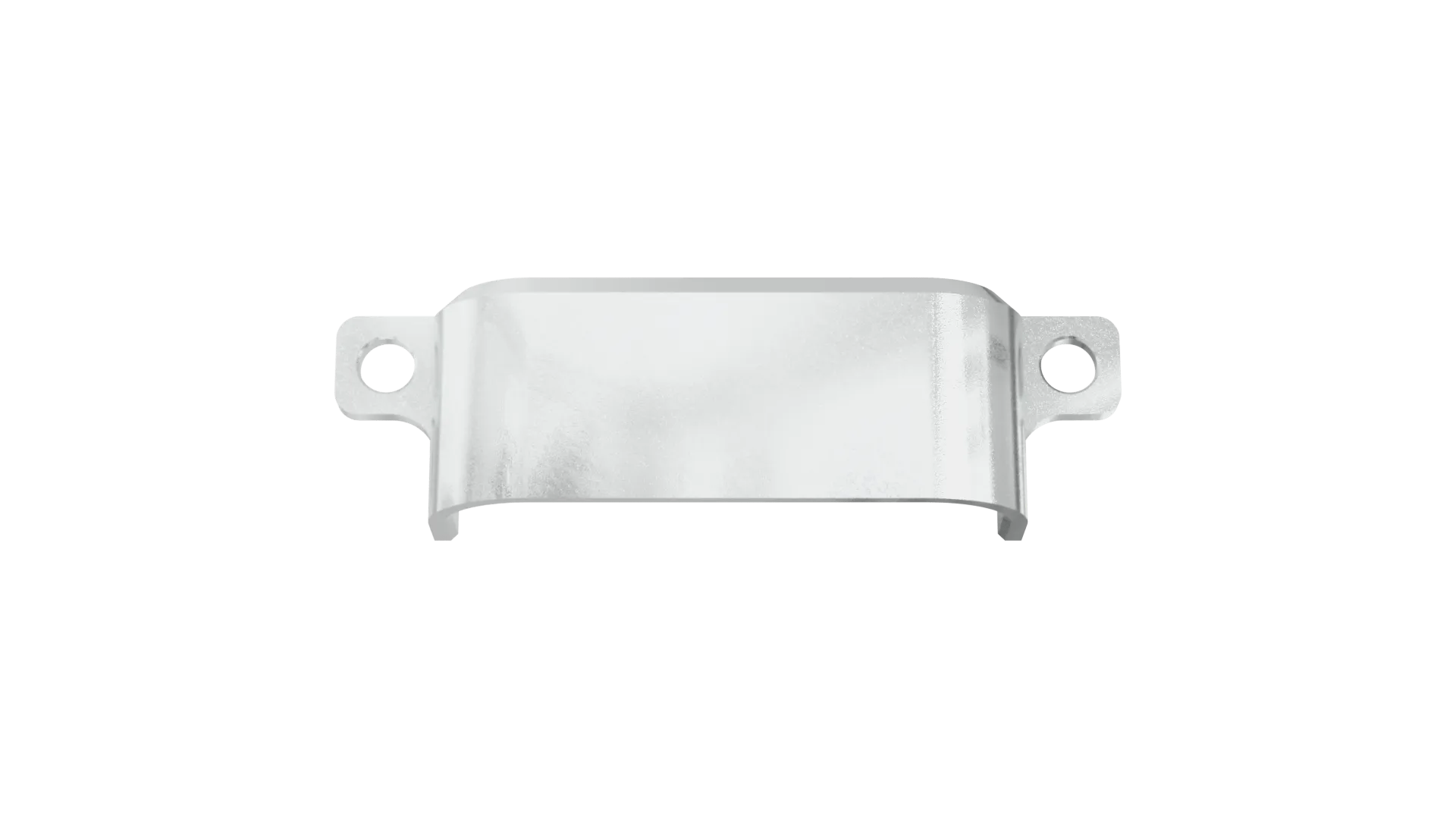

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Accessory only - connectors to be purchased separately.
Use with the following 16-contact connector: male horizontal PCB connector G125-MH11605M4P. Also compatible with the Gecko-MT male horizontal PCB connector G125-MH10805M4-1AD1ADP.
Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs up to 2mm thickness.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Compatible with Board Mount
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
16
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
2.137g
Dimensions:
34.85 x 10.00 x 7.54
Height of Connector above PCB:
7.54mm
Downloads
Technical Drawing / Datasheet - G125-970.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Product Datasheet - Gecko-MT range (HRi)
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for G125-970 series
