G125-9700602

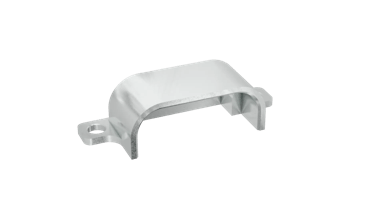

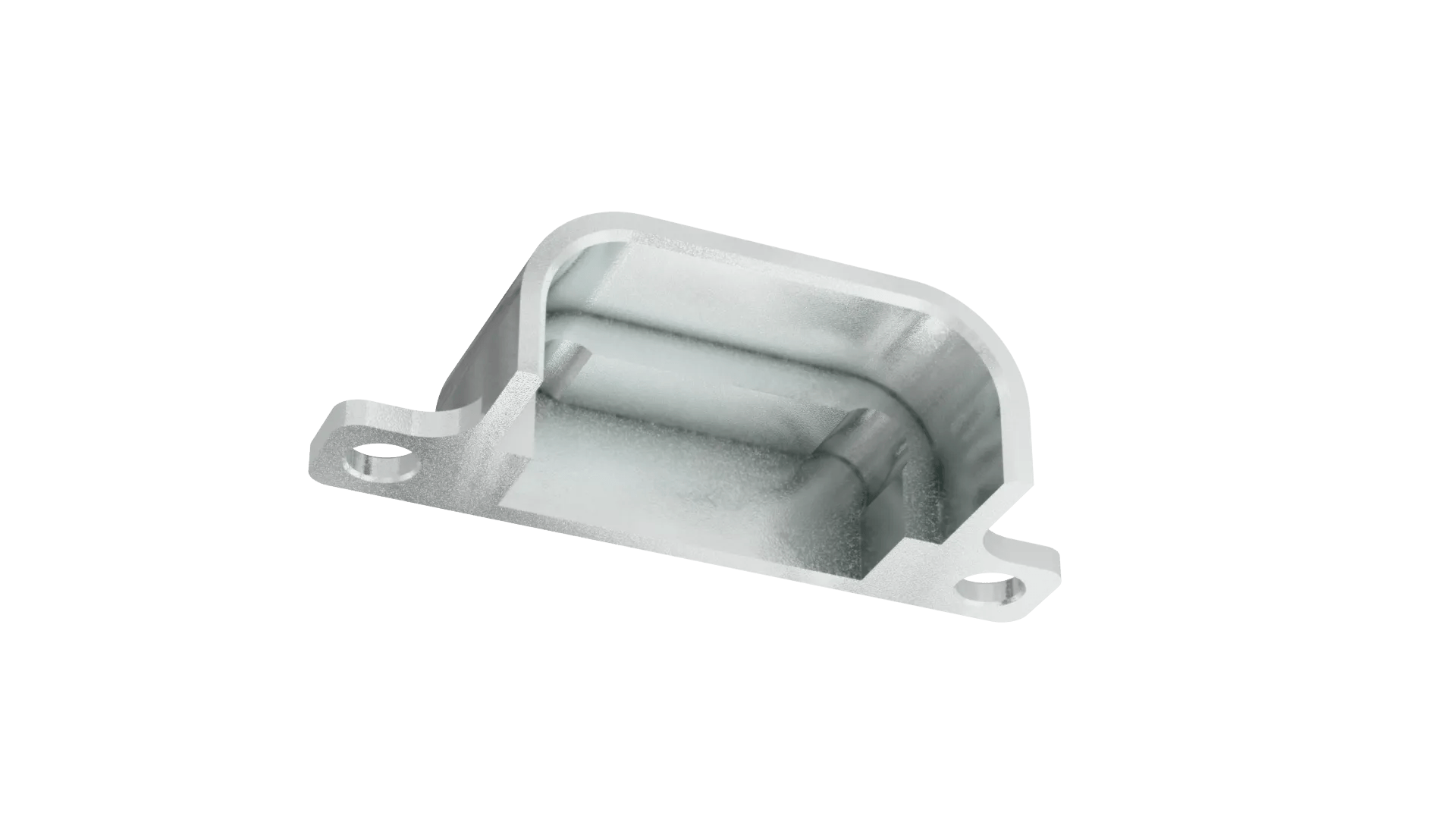

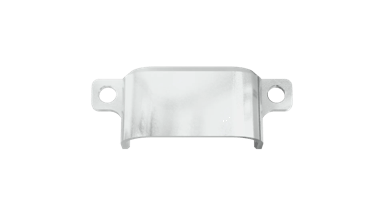

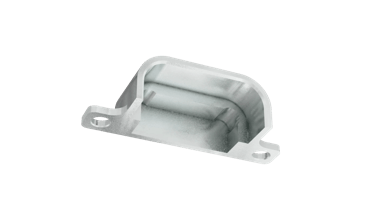

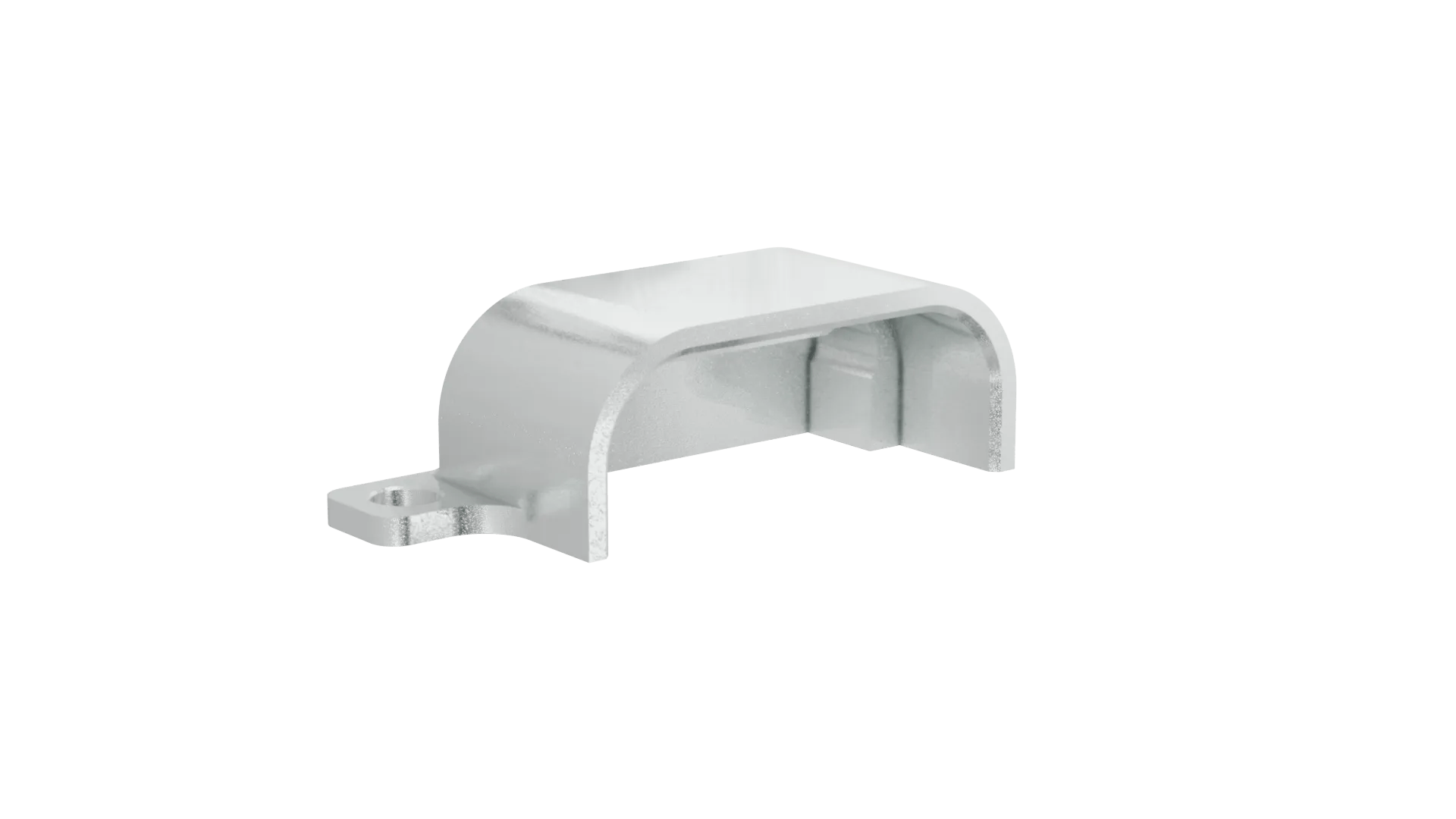

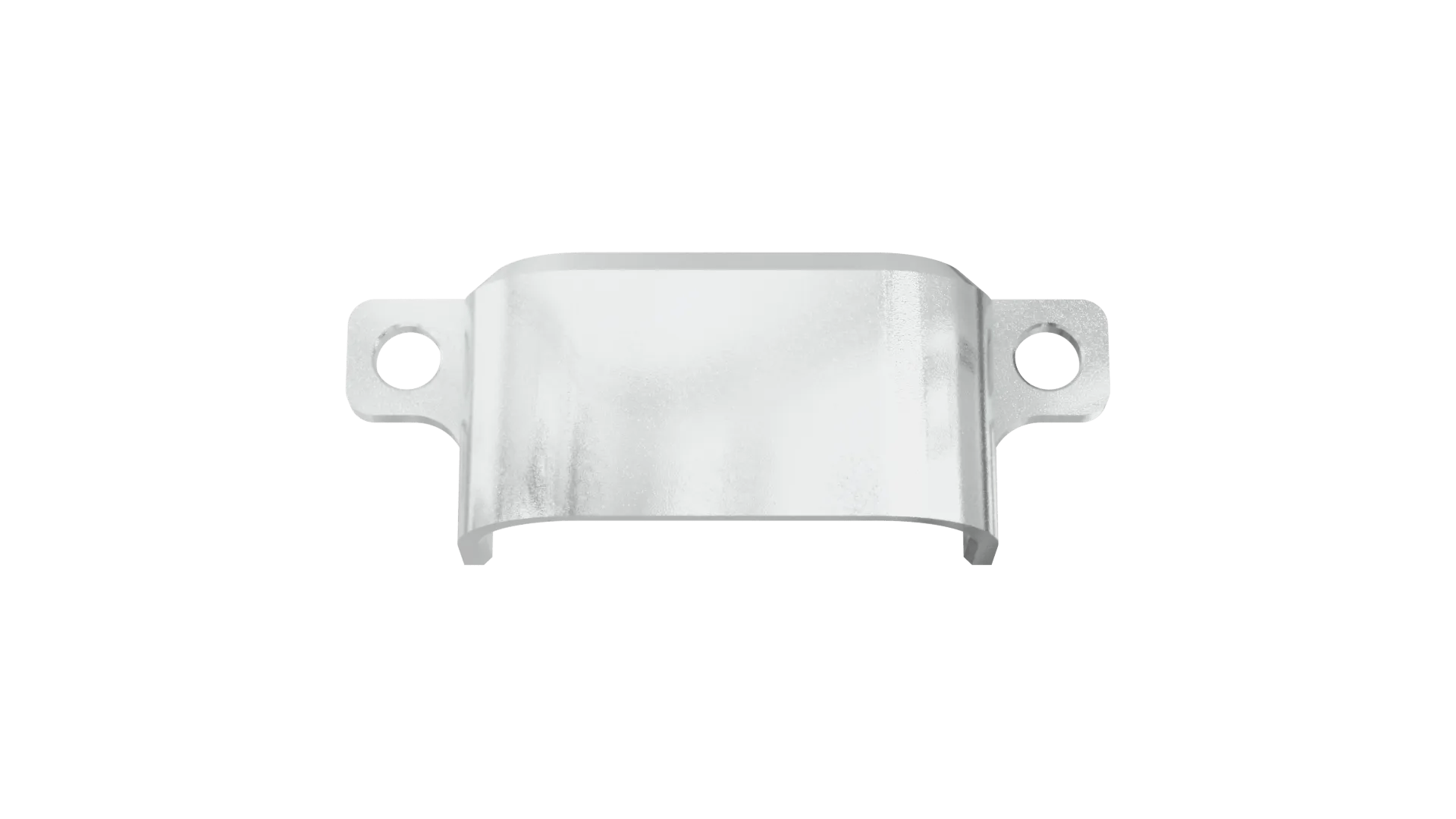

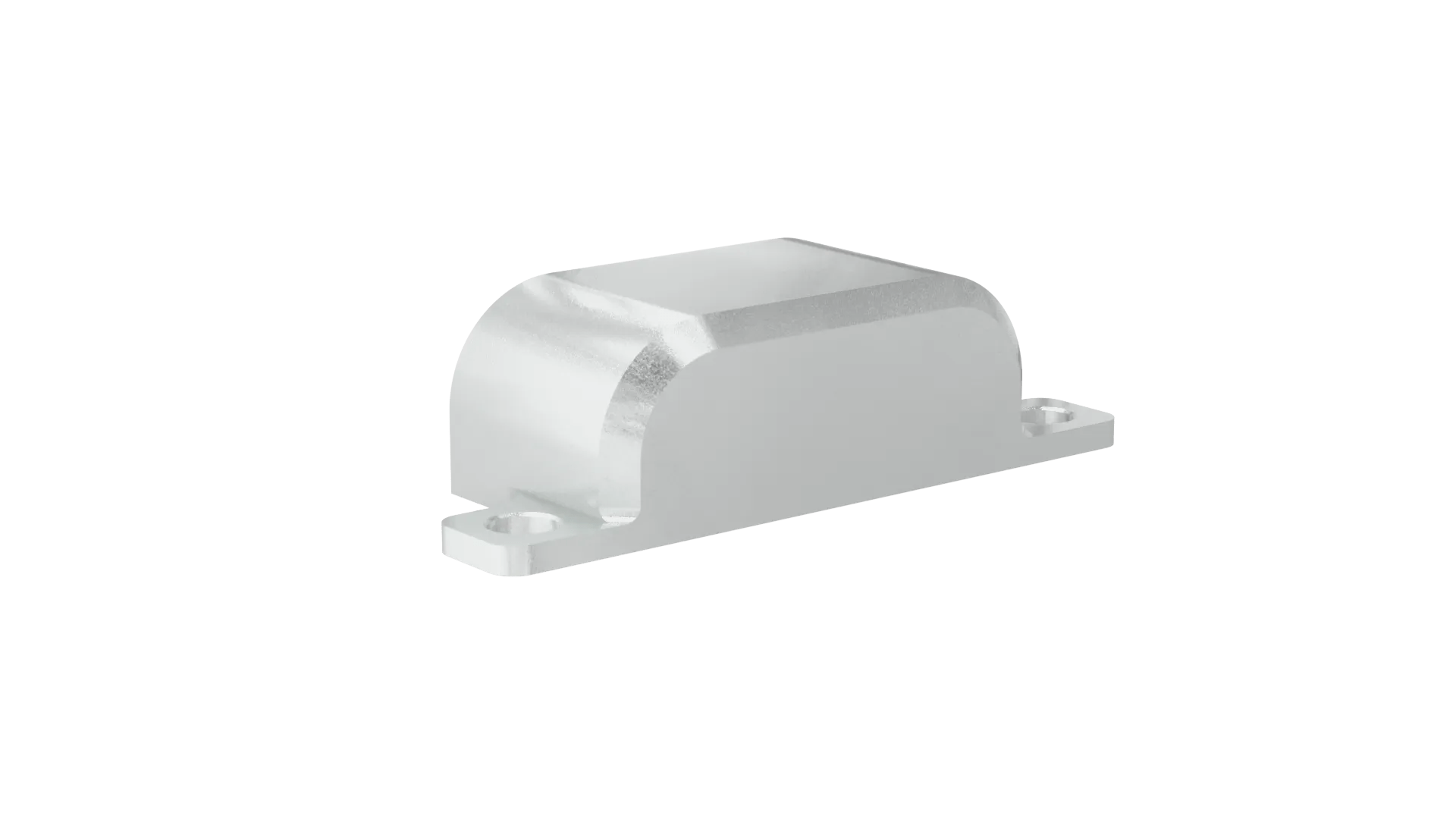

3+3 Pos. Male Horizontal Metal Backshell for Gecko-SL
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
In stock Check availability
4 similar products View products
Traceparts account required
Product Description
- Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Accessory only – connectors to be purchased separately.
- Use with the following 6-contact connector: male horizontal PCB connector G125-MH10605M4P.
- Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs up to 2mm thickness.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Connector Orientation:
Horizontal
Connection Type:
Board Mount
Operating Temperature:
-65°C to +150°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
6
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.713g
Overall Dimensions (L x W x D) in mm:
28.60 x 10.00 x 7.54
Height of Connector above PCB:
7.54mm
