G125-9645000

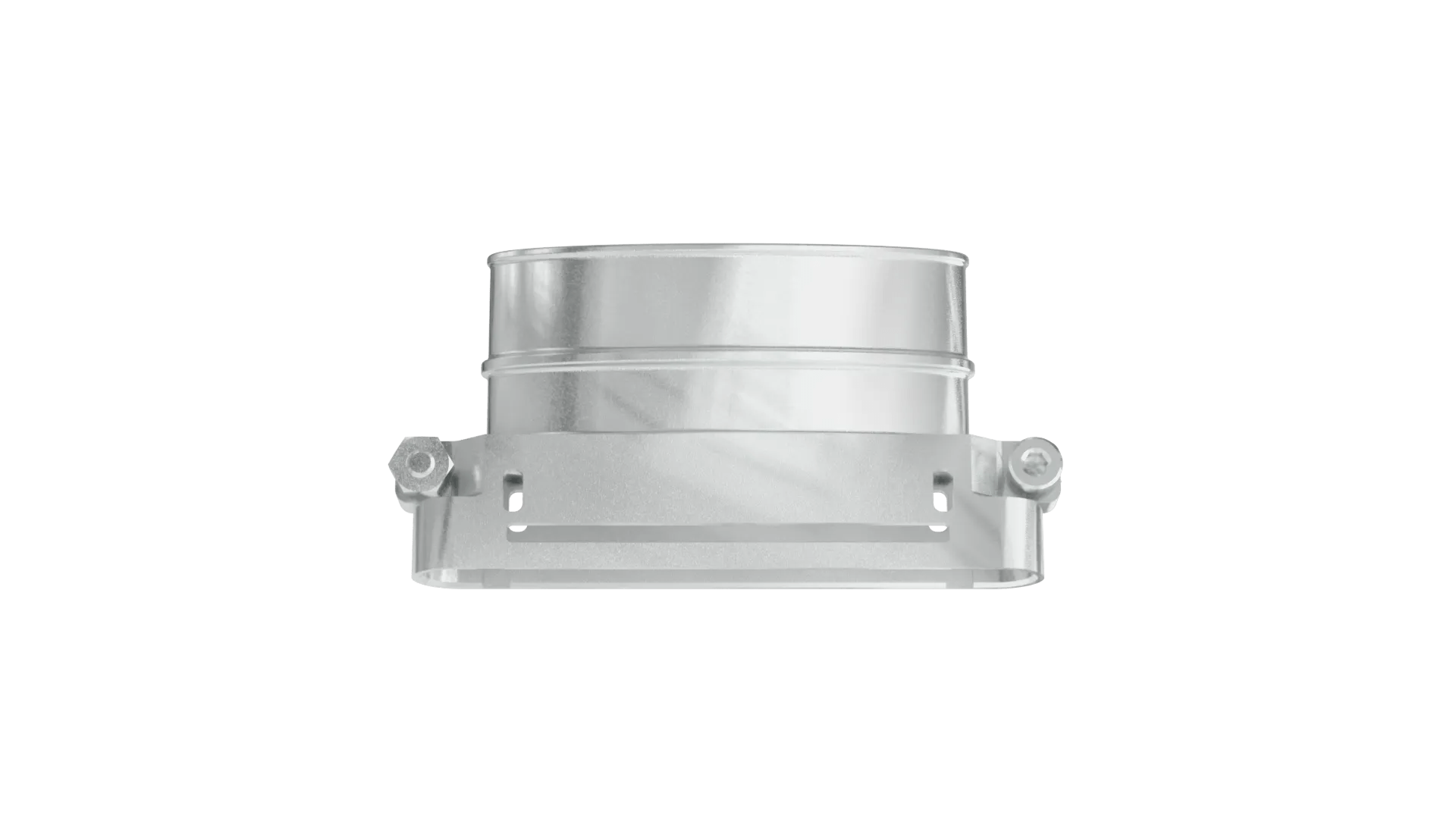

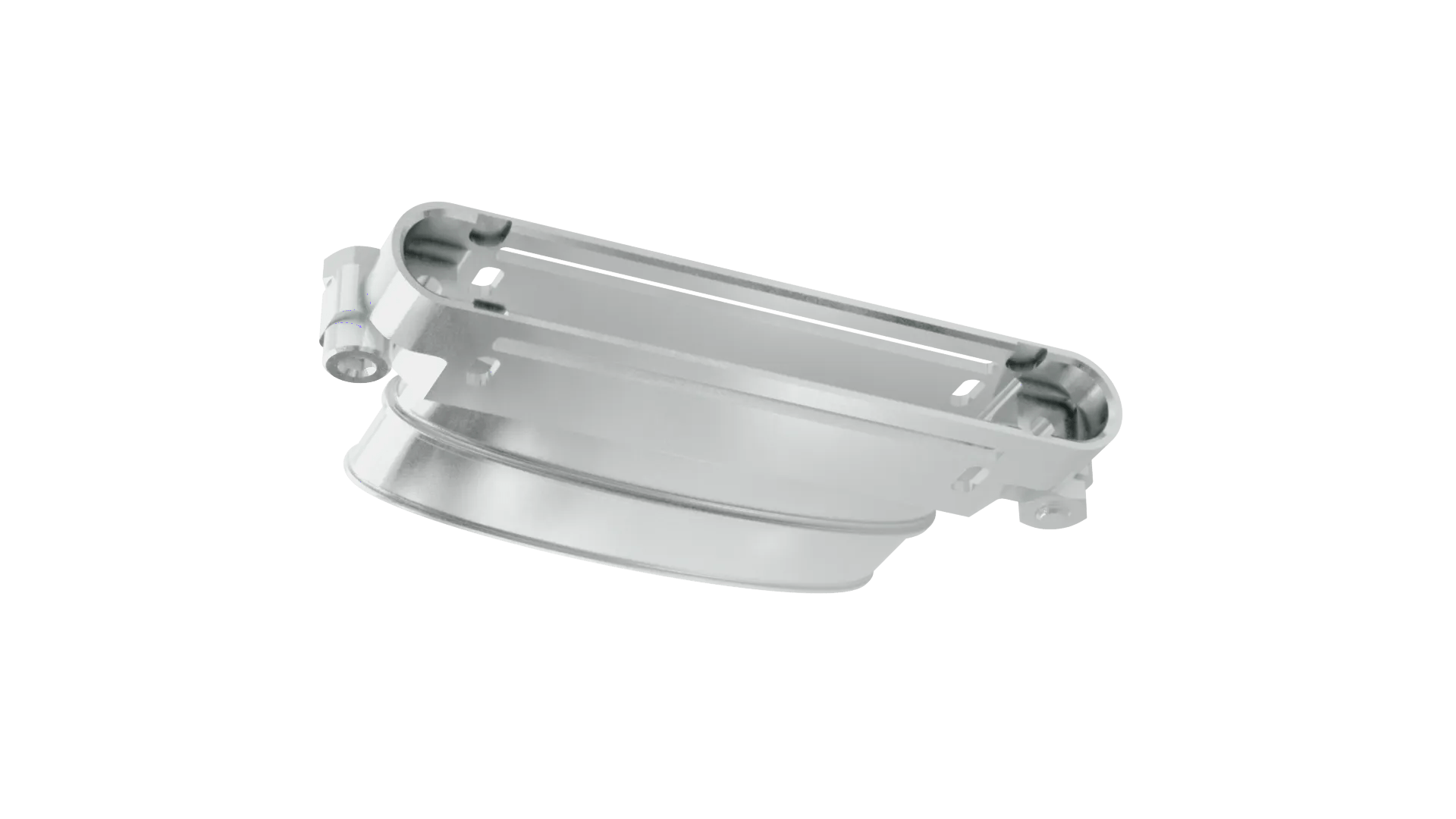

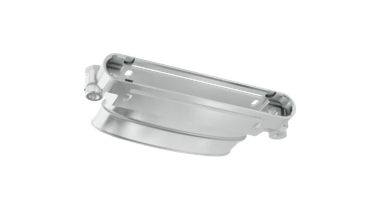

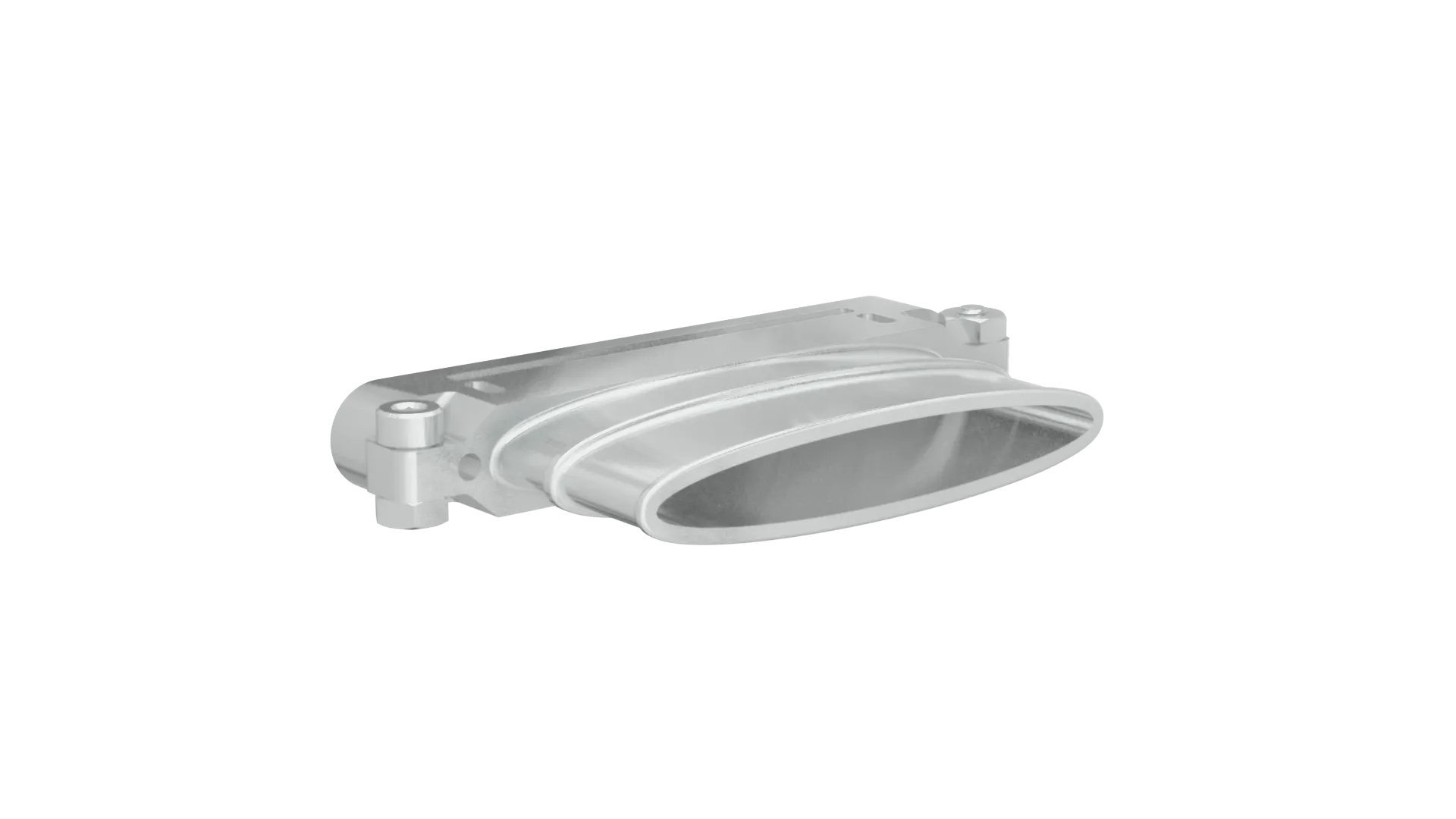

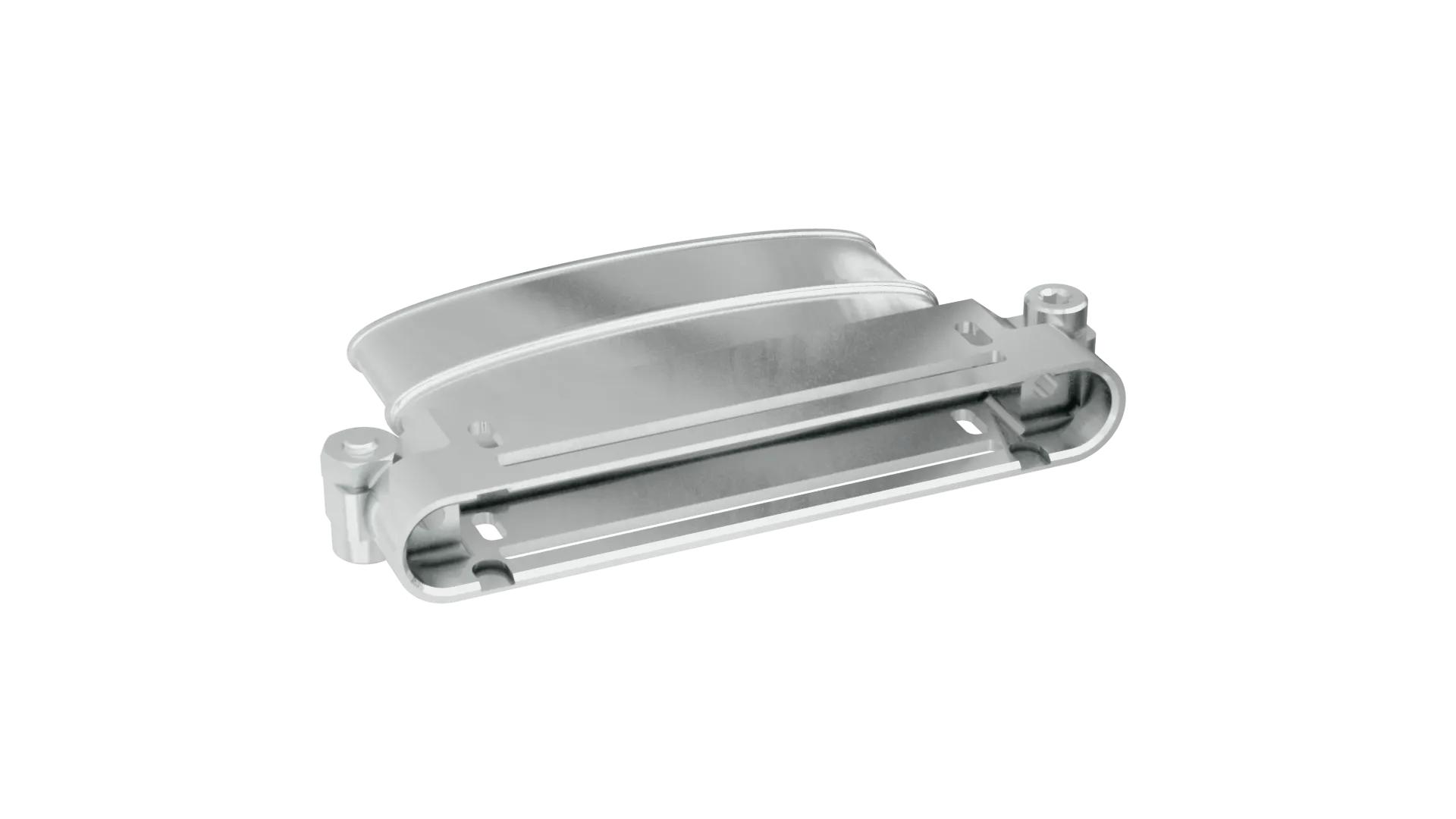

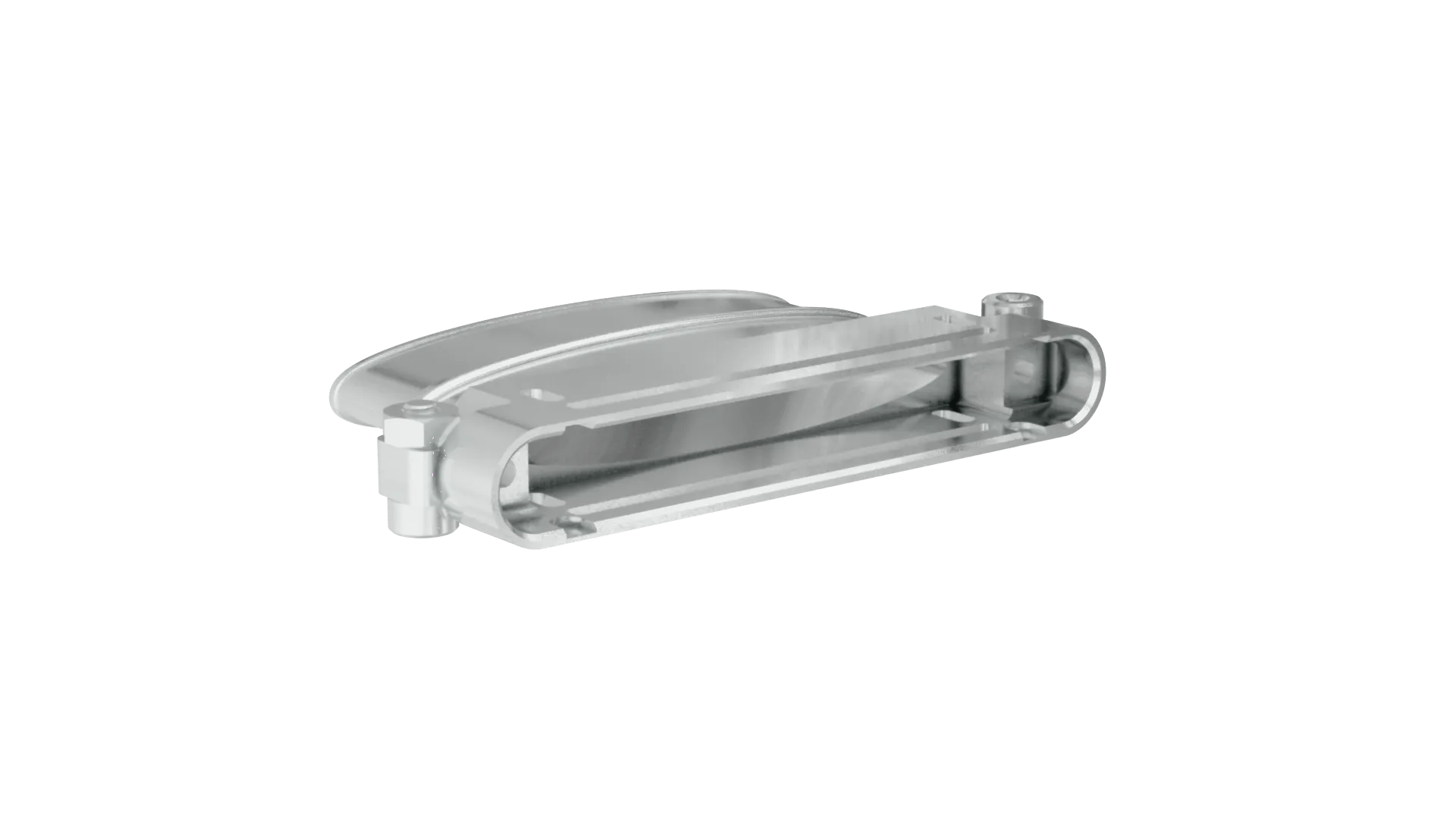

25+25 Pos. Cable Metal Backshell for Gecko-SL


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for cable connectors - includes 2 metal hood halves and short screws & nuts for joining the halves.

  • Use with male crimp housing G125-3245096M1 (50 contact).

  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Product Change Notifications

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    50

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Crimp)

  • Weight:

    7.399g

  • Dimensions:

    46.80 x 5.70 x 23.80

  • Operating Temperature:

    -65°C to +150°C

  • Country of Origin:

    GB

  • Cuttable:

    No

  • Housing Colour:

    Nickel

Downloads

    Environmental Compliance

  • RoHS - G125-9645000

  • Material composition for G125-964XX00 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-964XX00.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Change Notifications

  • Product Change Notification 30-Jul-2020 - Gecko-SL Cable Backshells

  • Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties

  • Test Reports

  • Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
