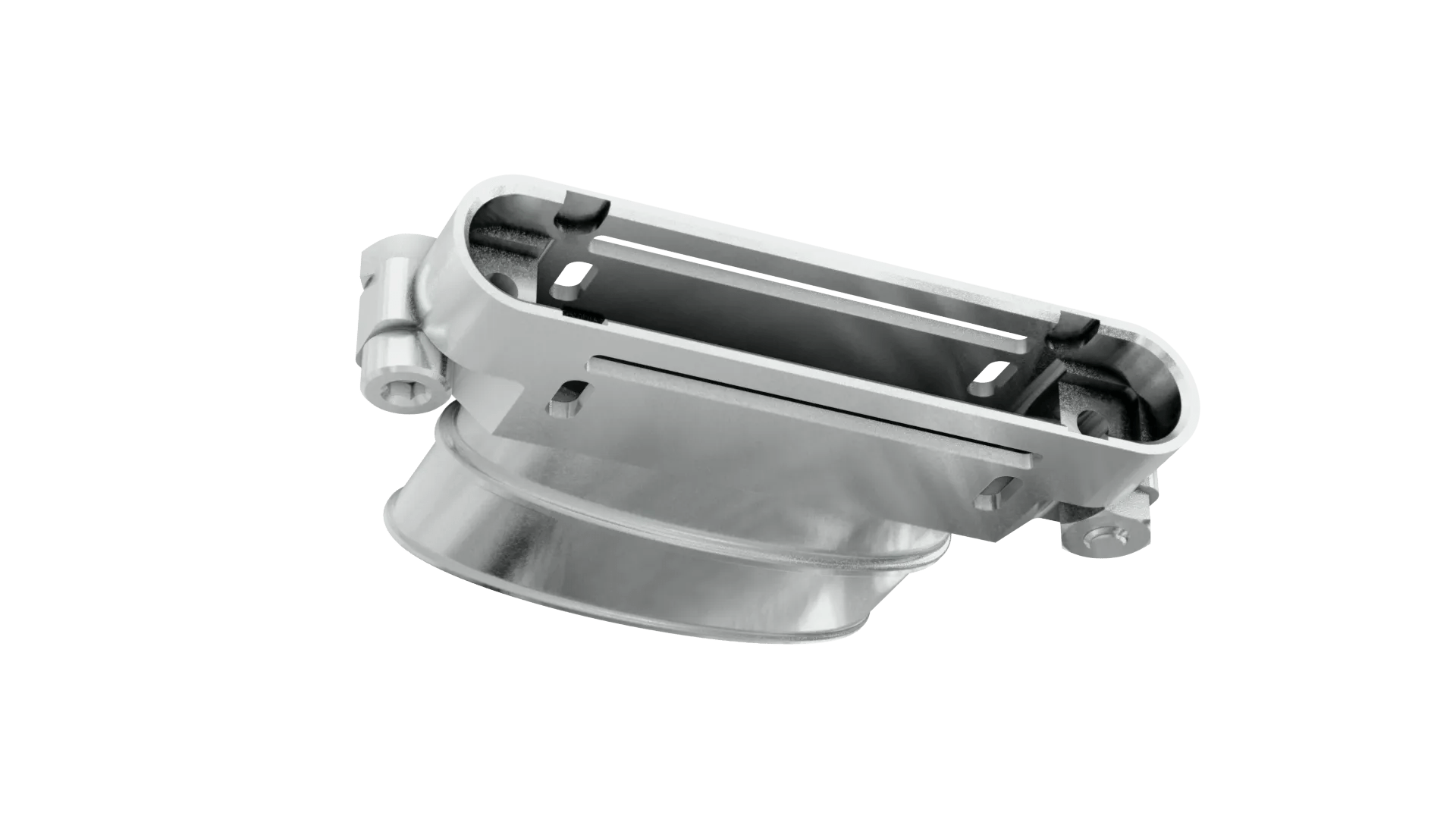

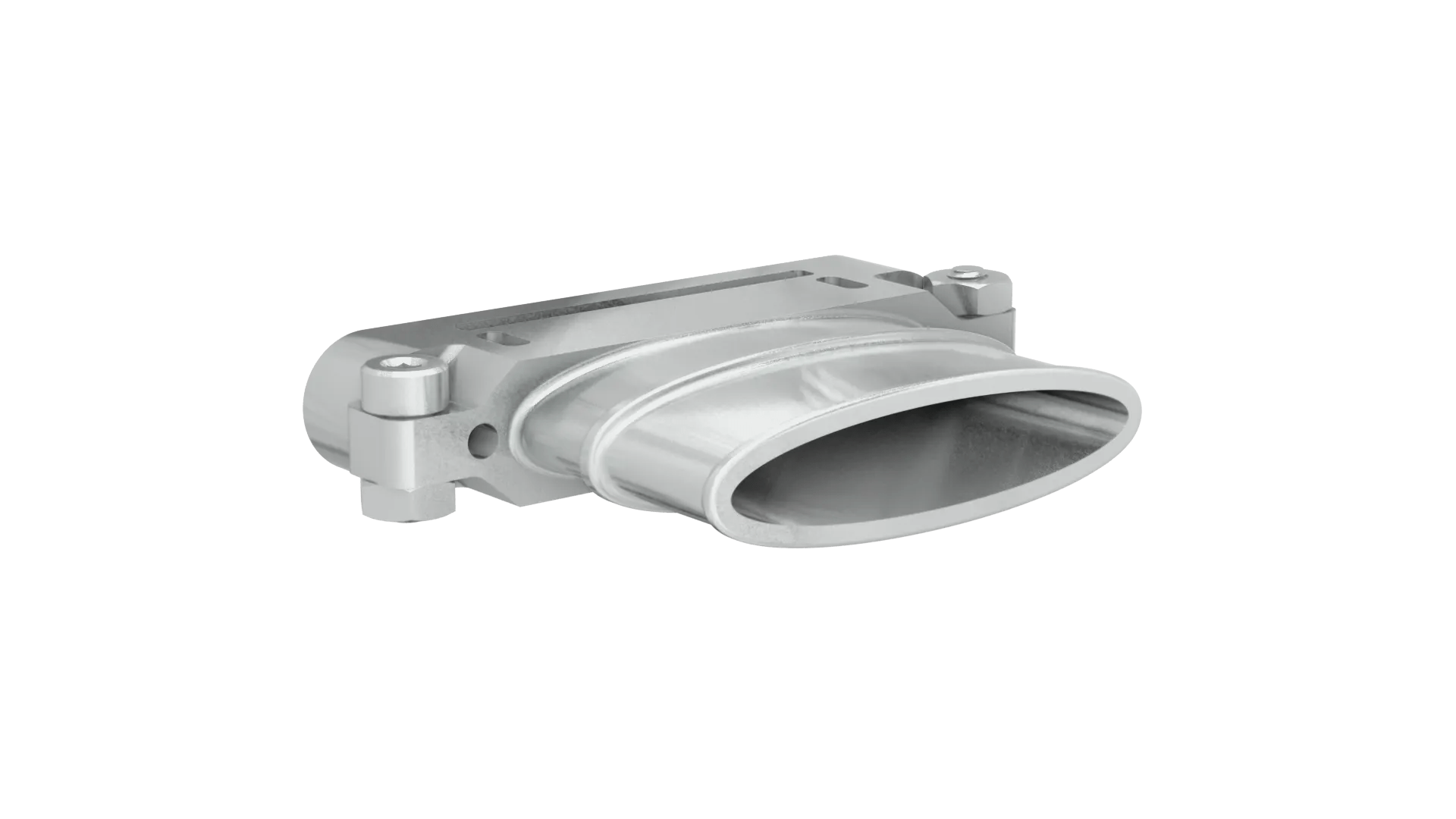

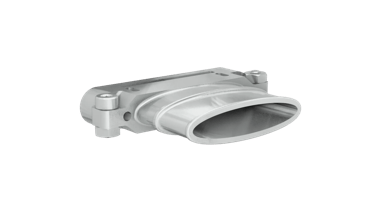

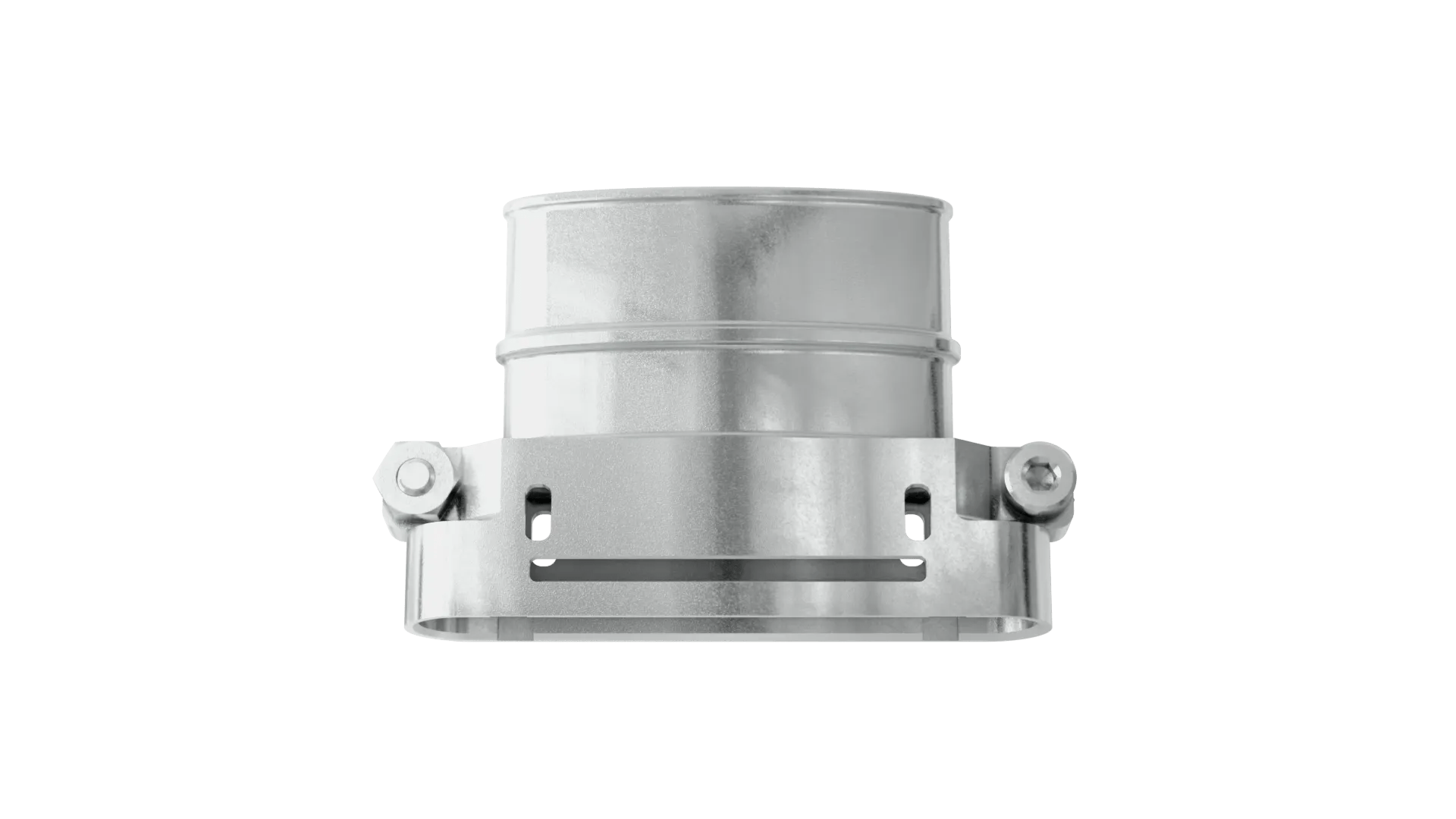

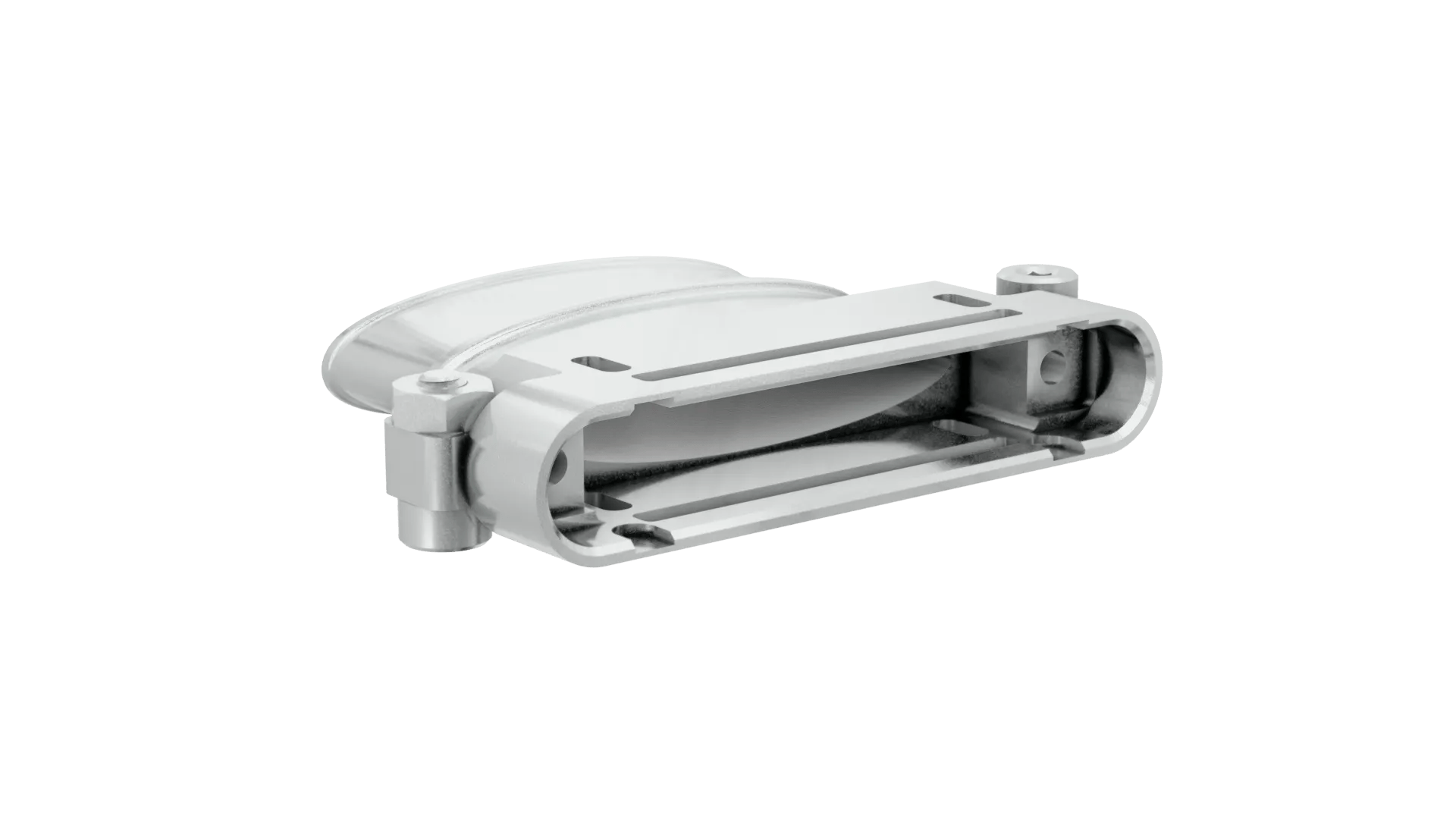

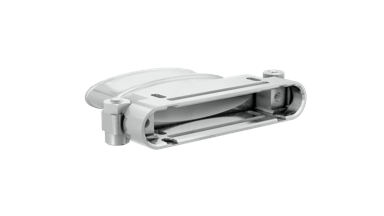

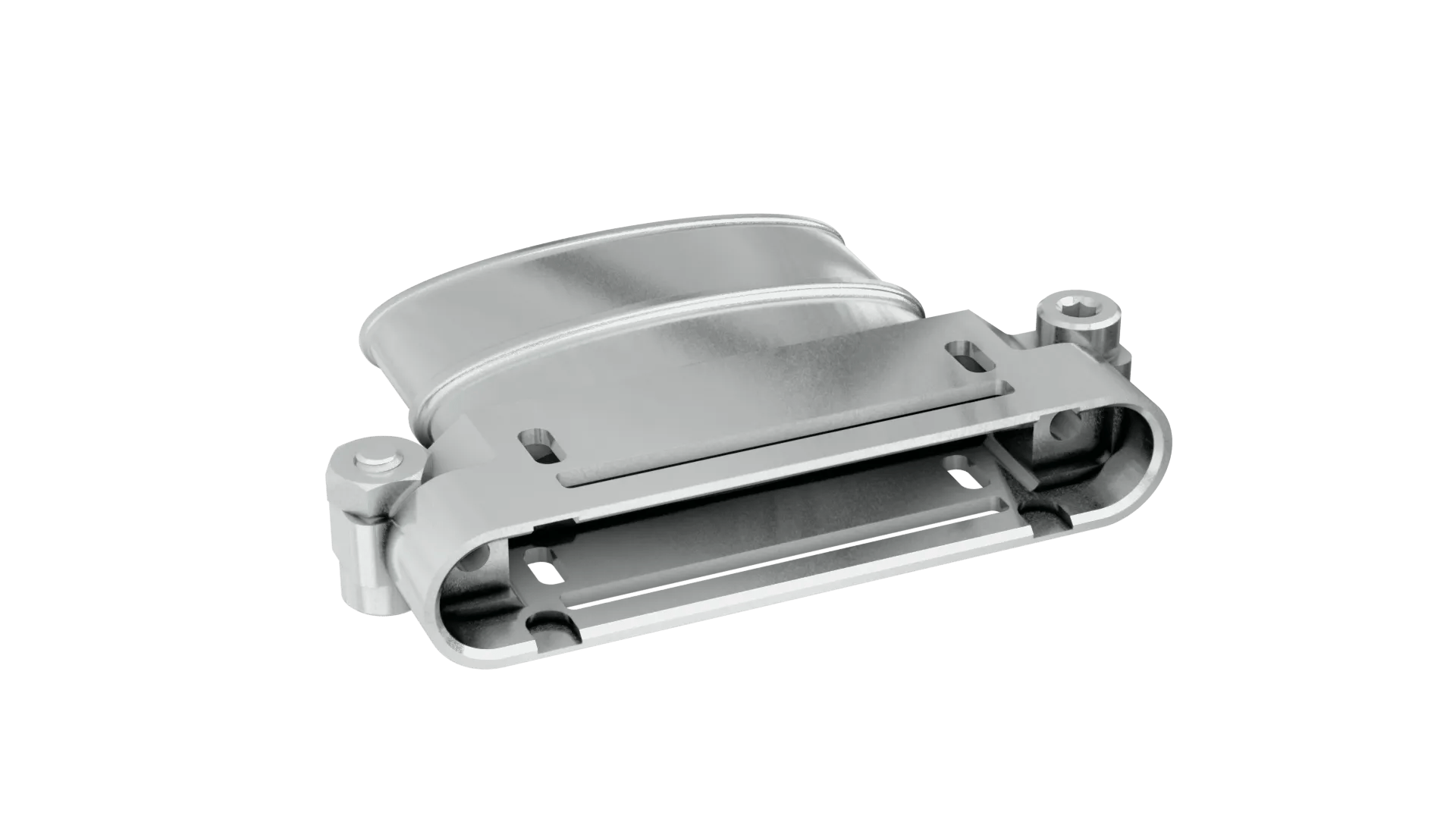

Metal Backshell kit for cable connectors - includes 2 metal hood halves and short screws & nuts for joining the halves.
Use with male crimp housing G125-3243496M1 (34 contact). Can be fitted after cable assembly construction.
Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid. See instruction sheet IS-45 for advice on use.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
None fitted
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
34
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
6.403g
Dimensions
36.80 x 5.70 x 23.80
Downloads
Product Change Notifications
Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties
Product Change Notification 30-Jul-2020 - Gecko-SL Cable Backshells
Technical Documentation
Technical Drawing / Datasheet - G125-964XX00.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Information
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-964XX00 series
RoHS Declaration - G125-9643400
