G125-9642600

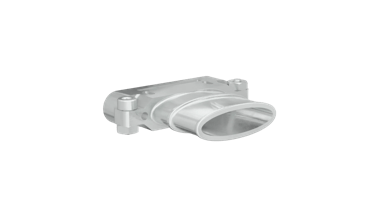

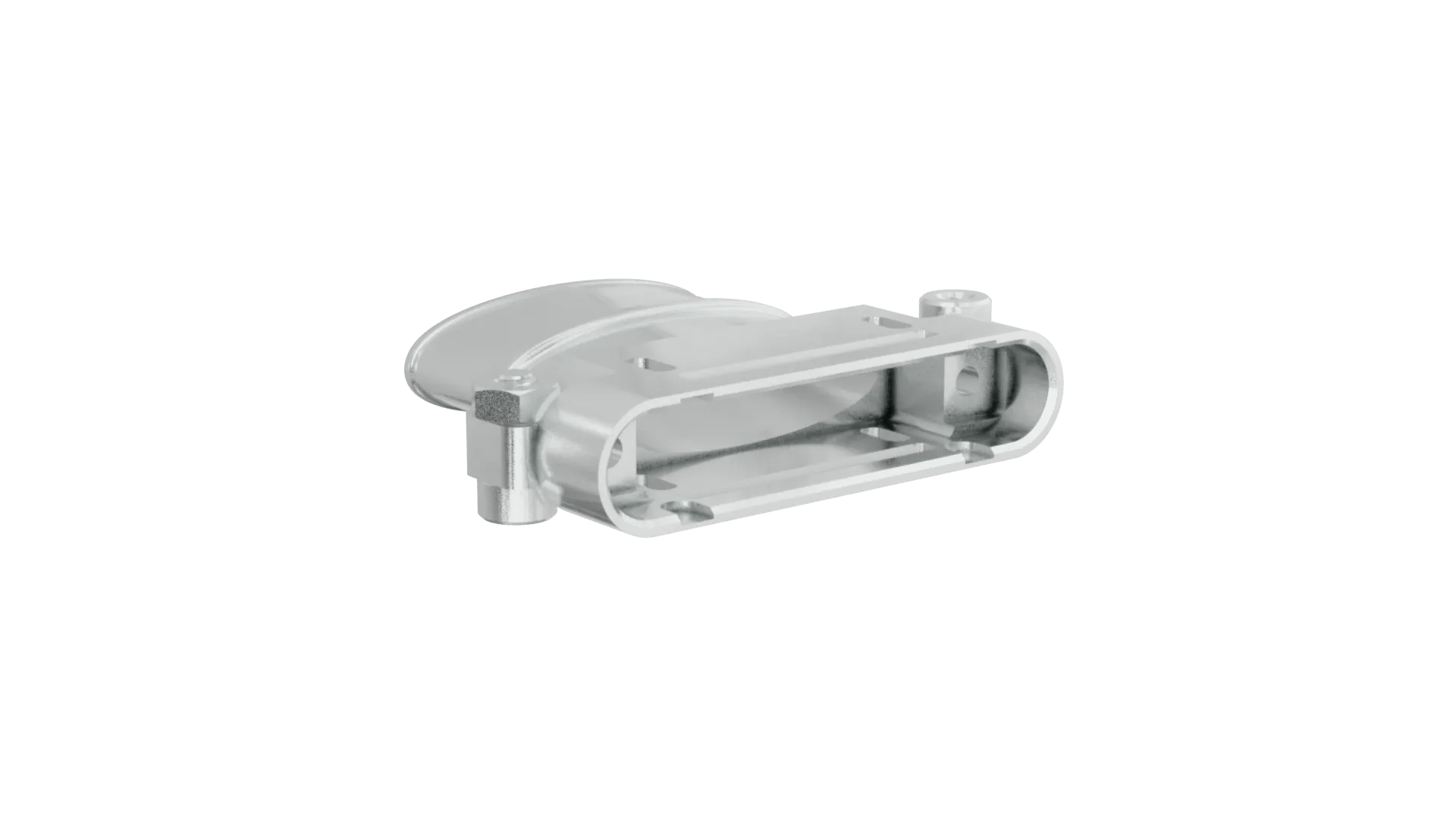

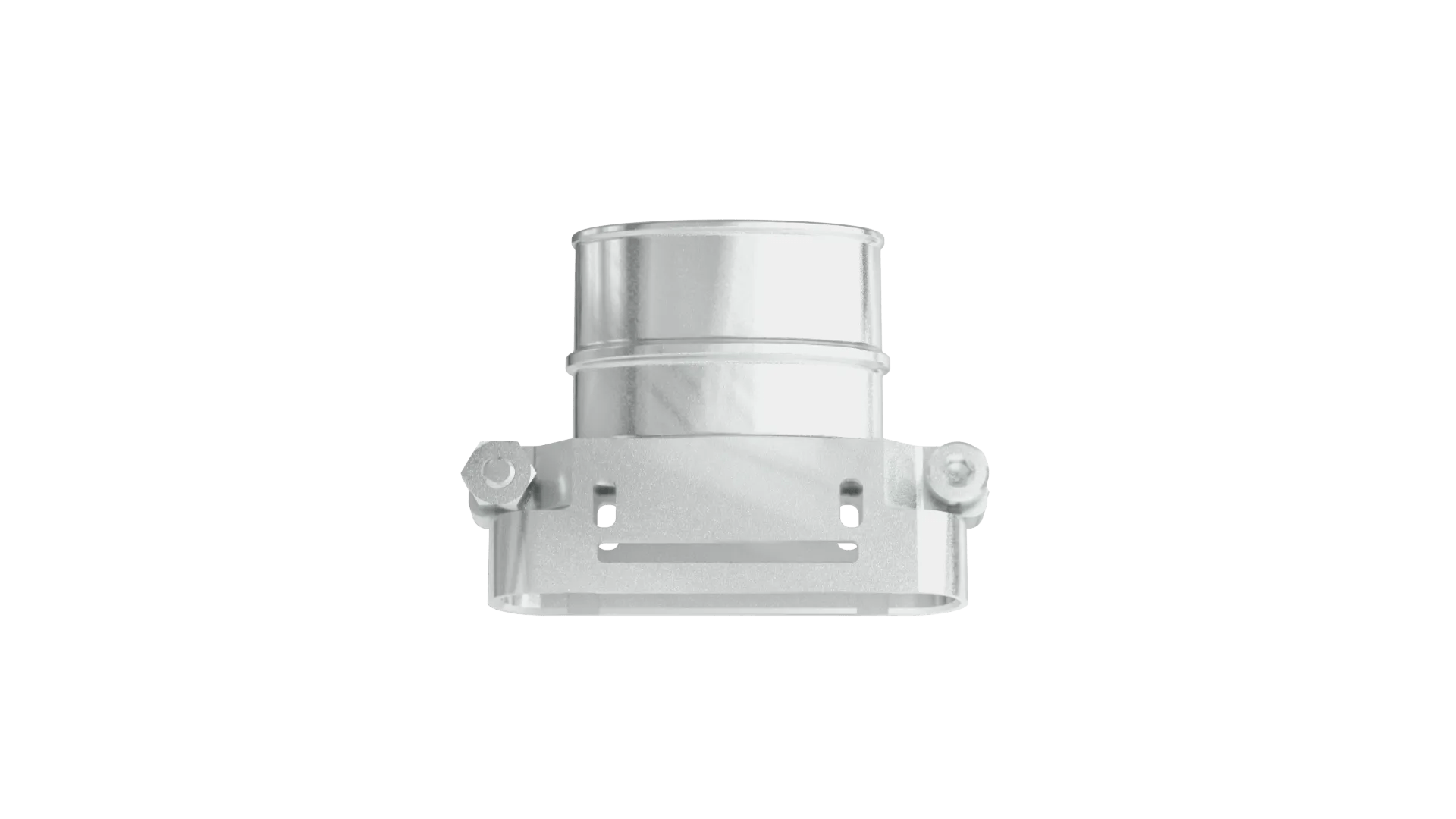

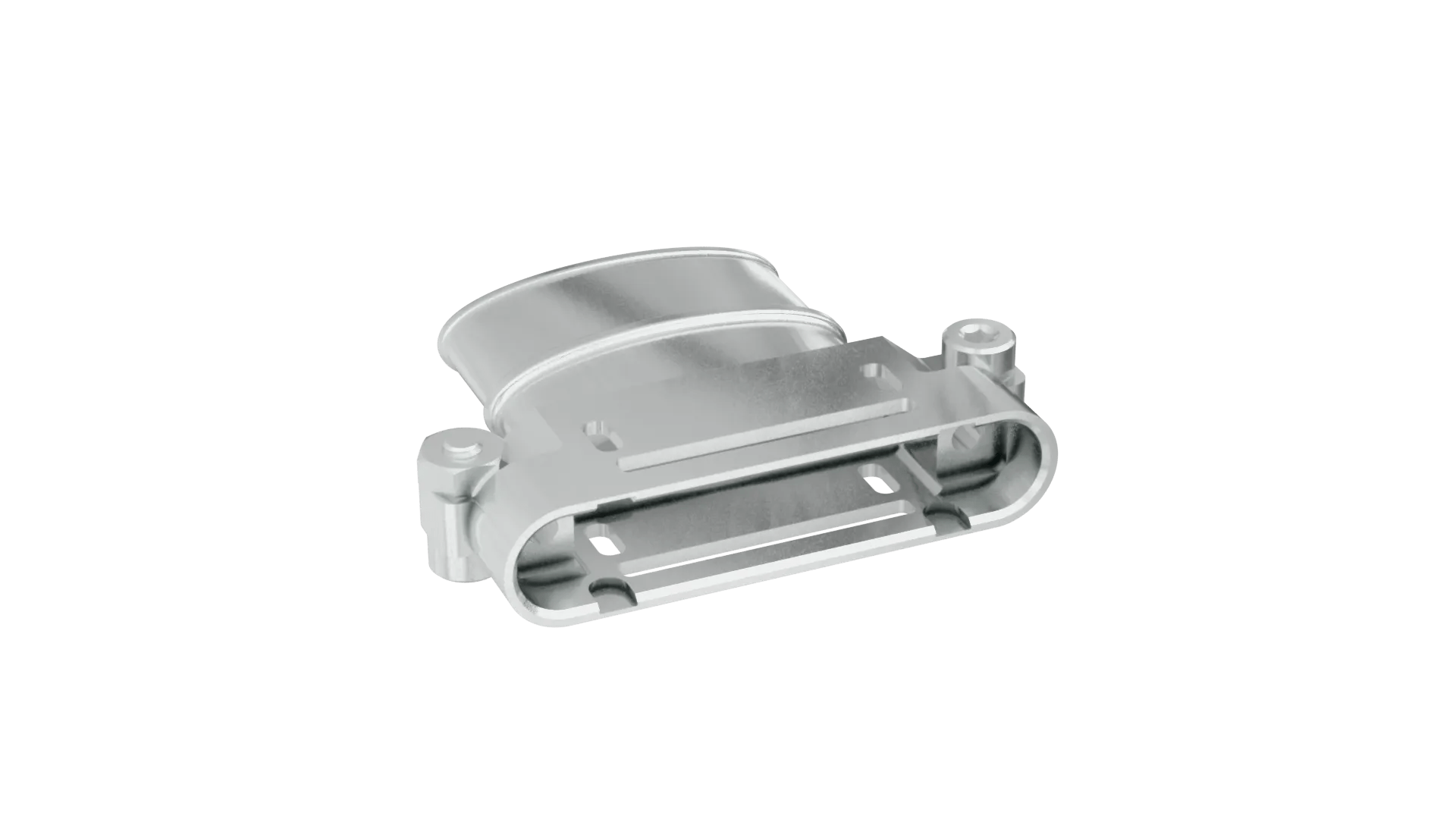

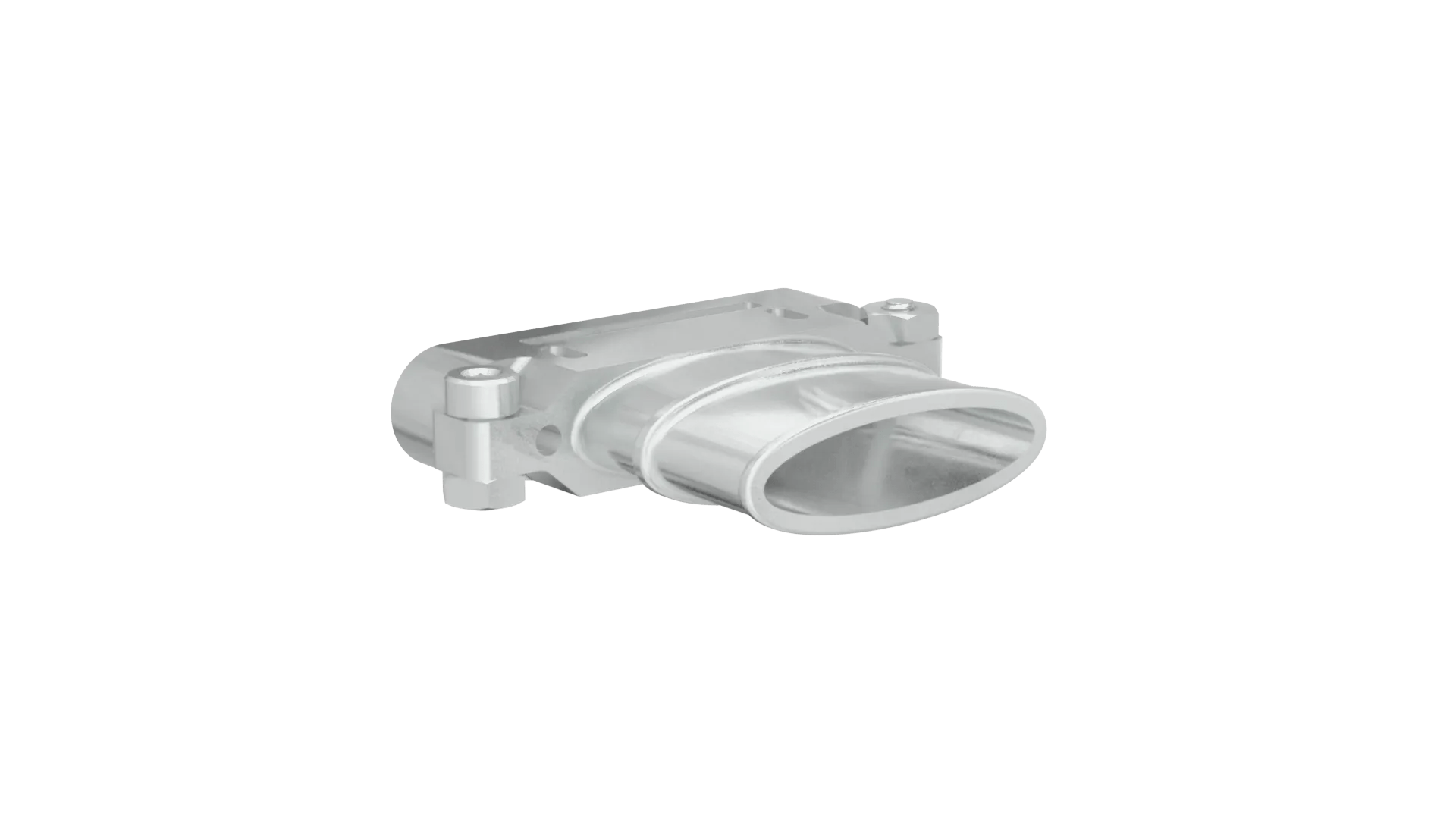

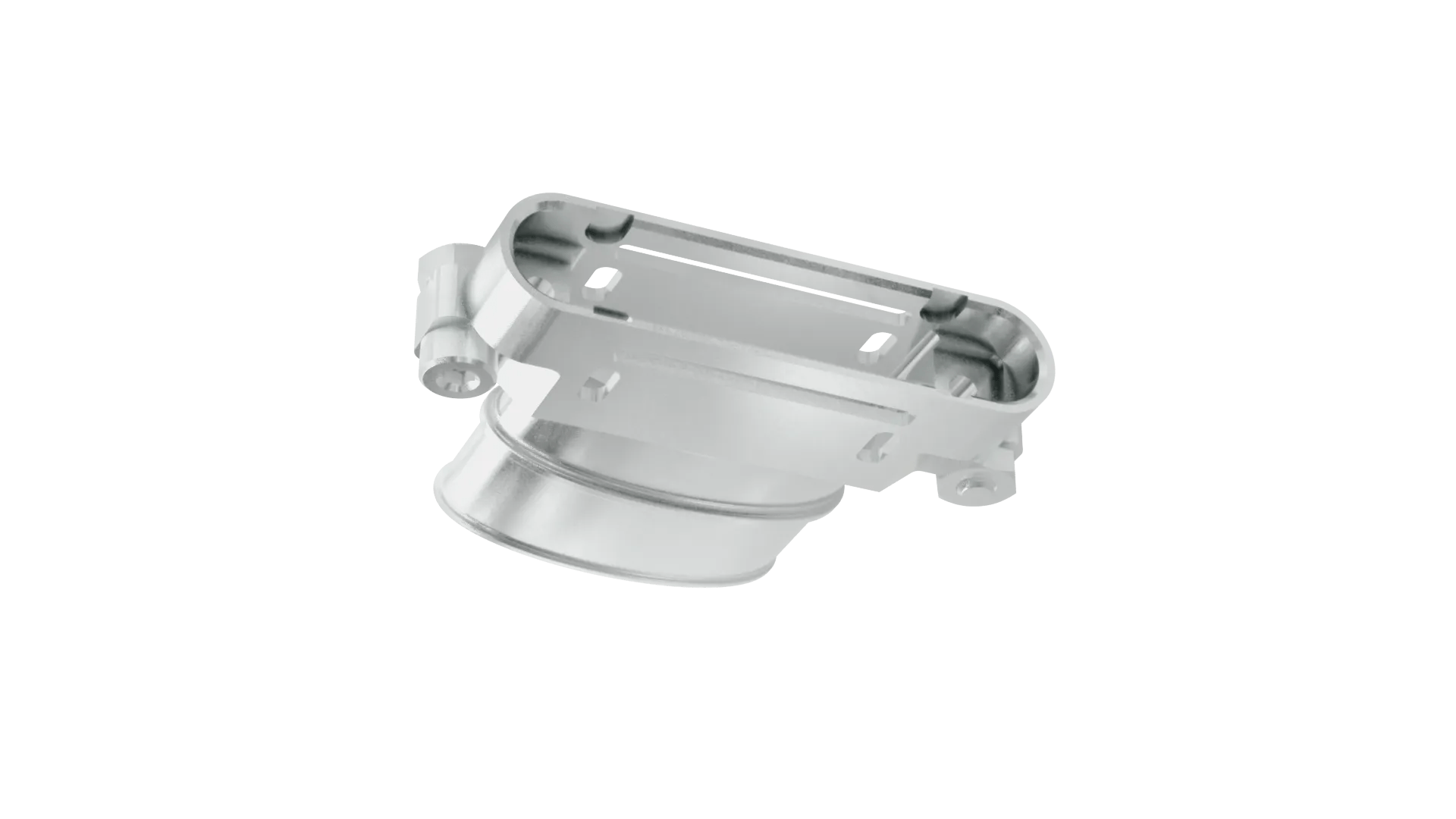

13+13 Pos. Male Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for male cable connectors – includes 2 metal hood halves and short screws & nuts for joining the halves.
  • Use with male crimp housing G125-3242696M1 (26 contact).
  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable Housing

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.834g

Overall Dimensions (L x W x D) in mm:

31.80 x 5.70 x 23.80
