Home > G125-9642000
Active Product

G125-9642000

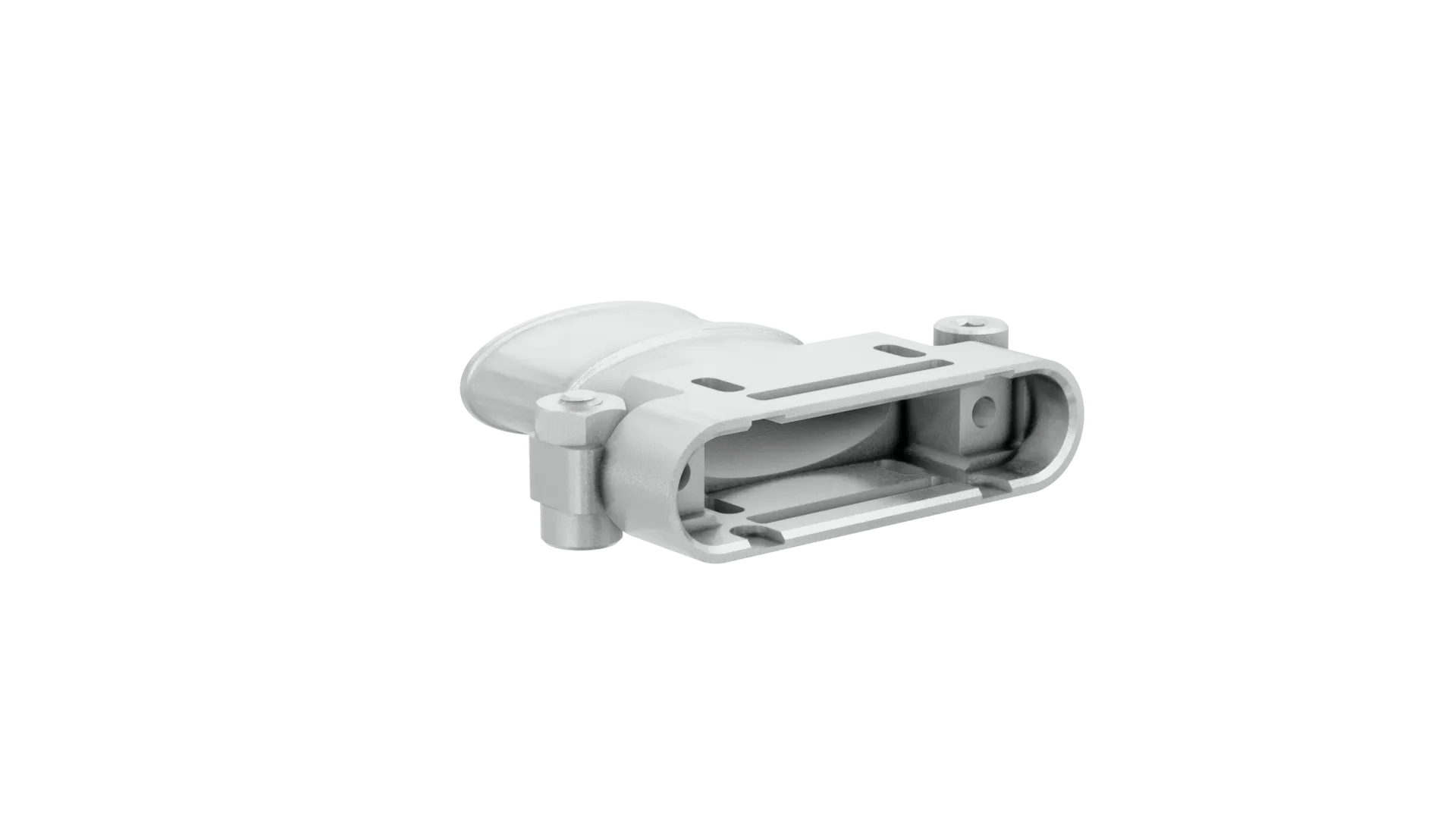

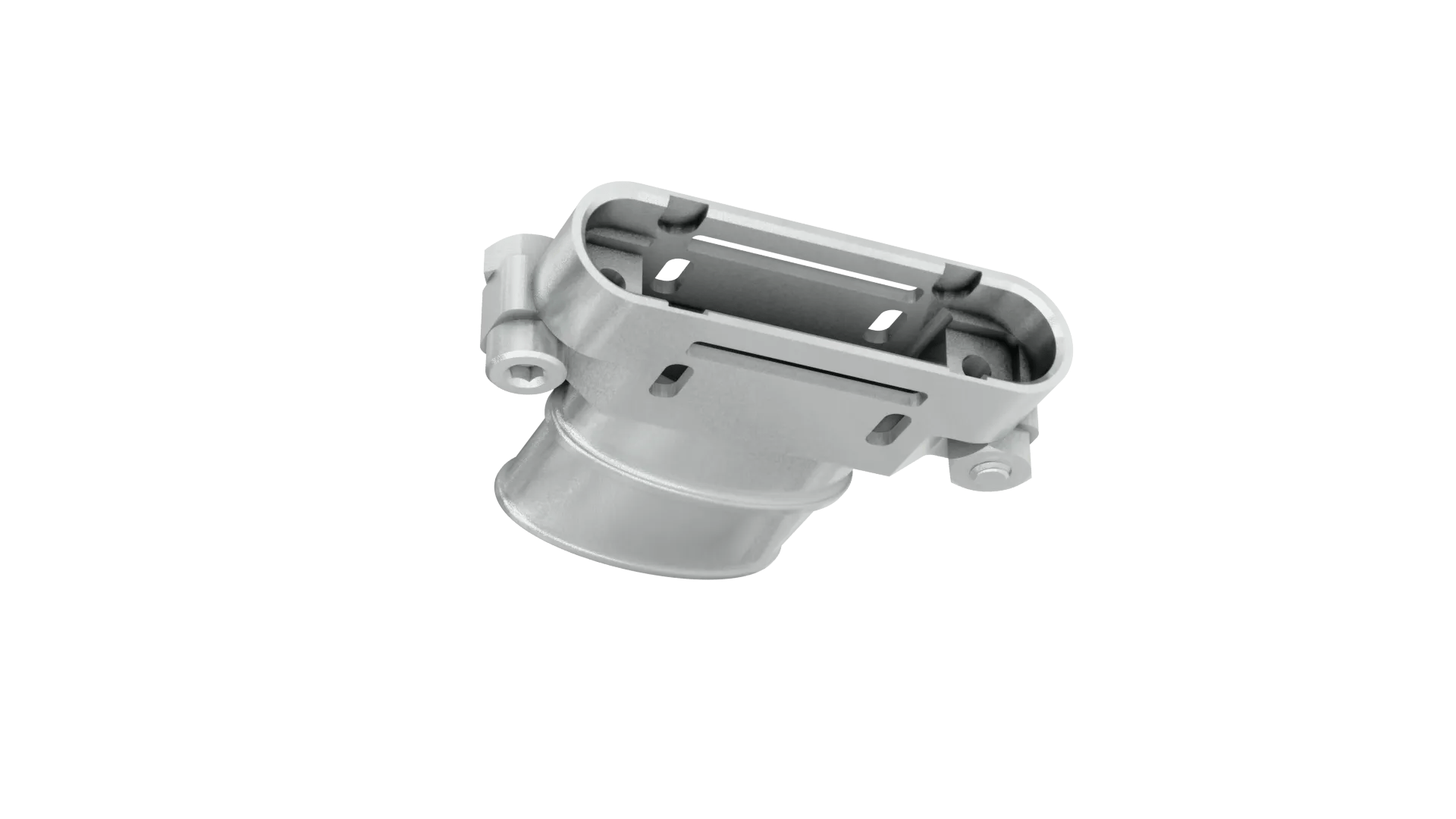

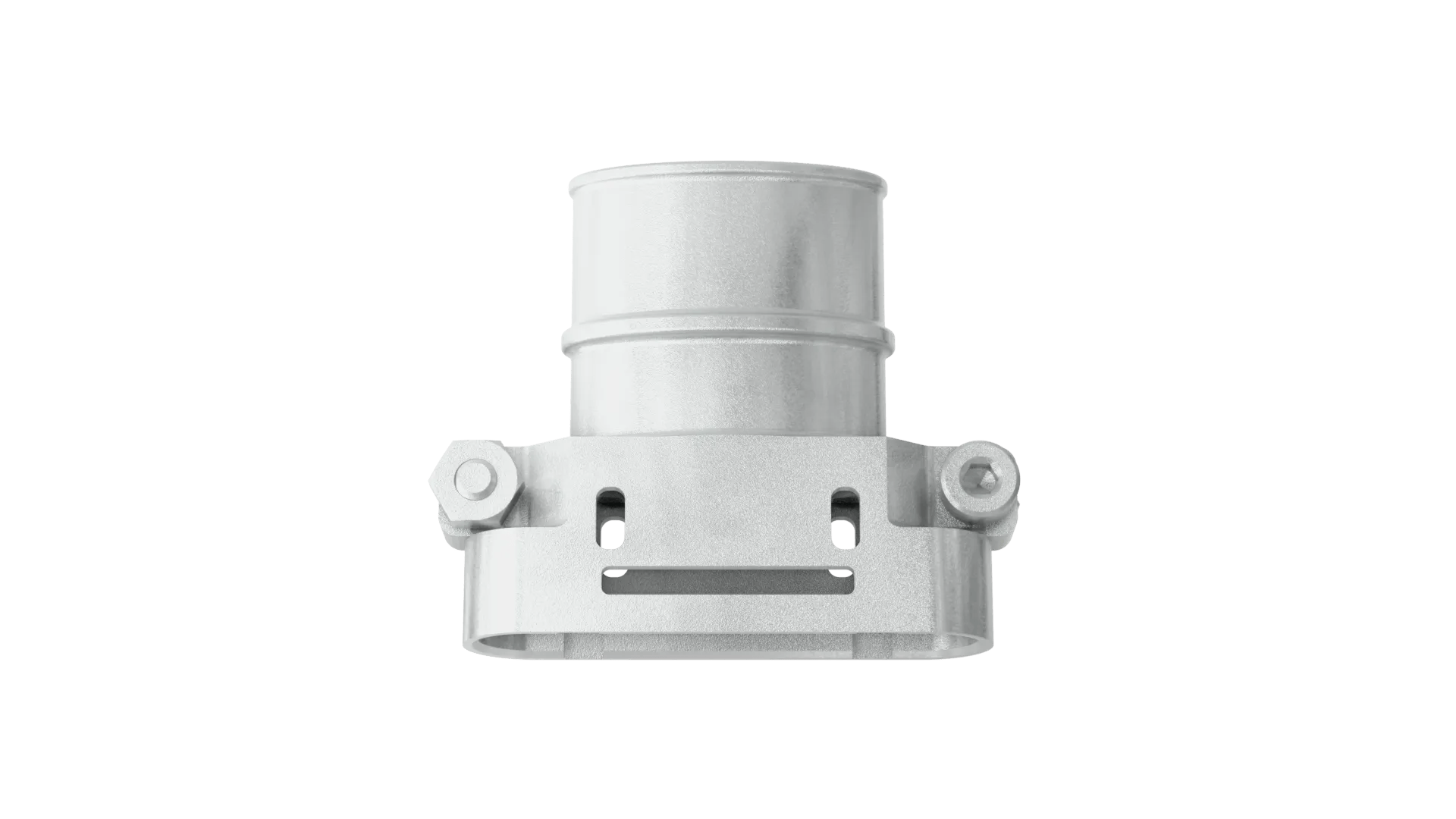

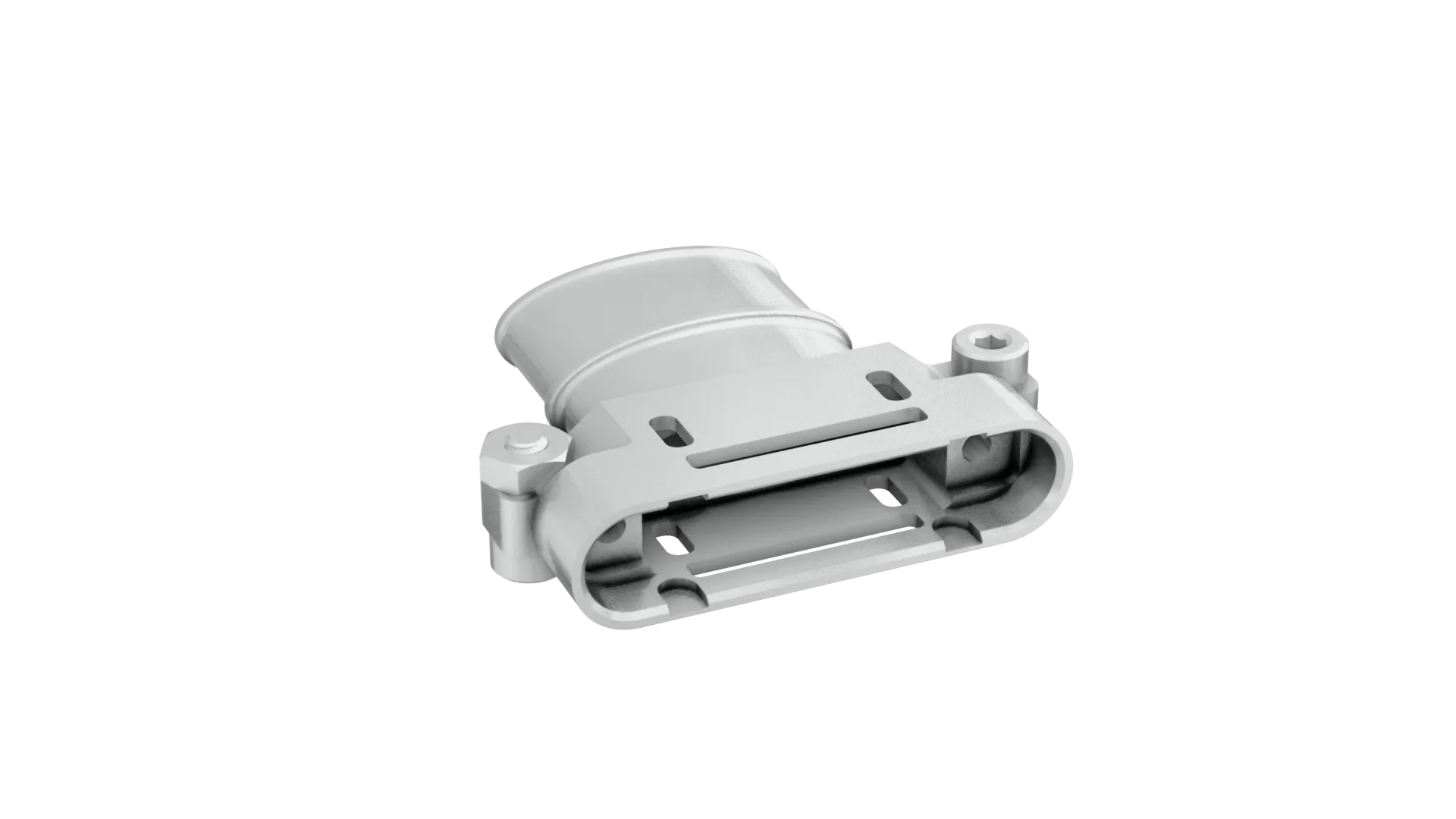

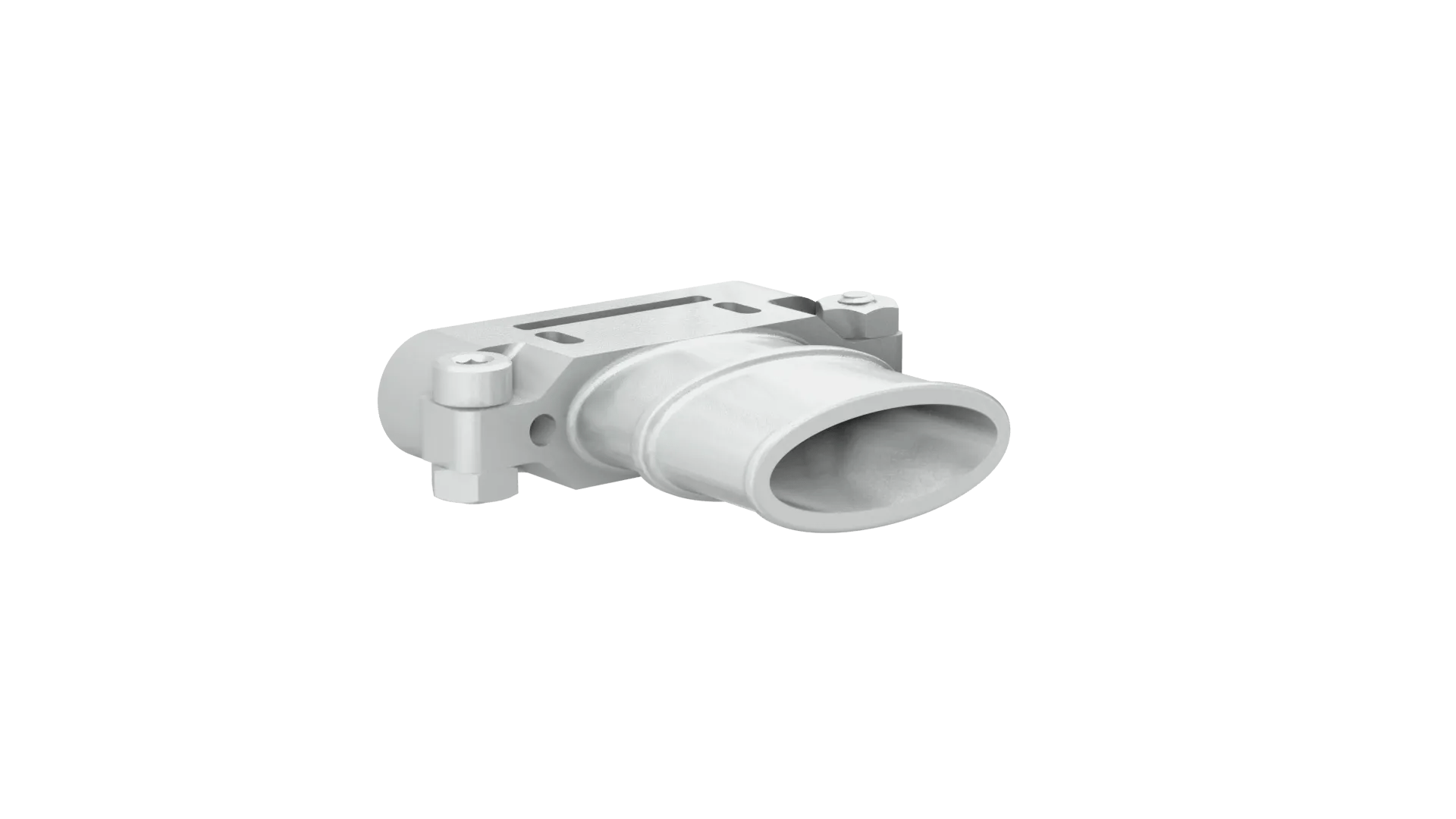

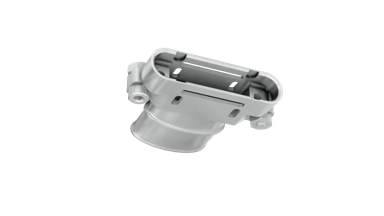

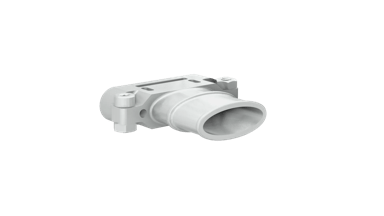

10+10 Pos. Cable Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Loading…   Check availability

5 similar products View products

Traceparts account required

Product Description

  • Metal Backshell kit for cable connectors – includes 2 metal hood halves and short screws & nuts for joining the halves.
  • Use with male crimp housing G125-3242096M1 (20 contact).
  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-65°C to +150°C

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.408g

Overall Dimensions (L x W x D) in mm:

28.05 x 5.70 x 23.80

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
