Home > G125-96416F1
Active

G125-96416F1

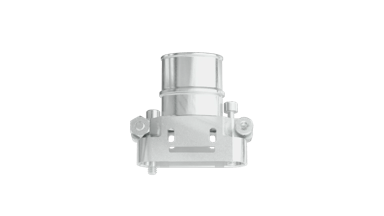

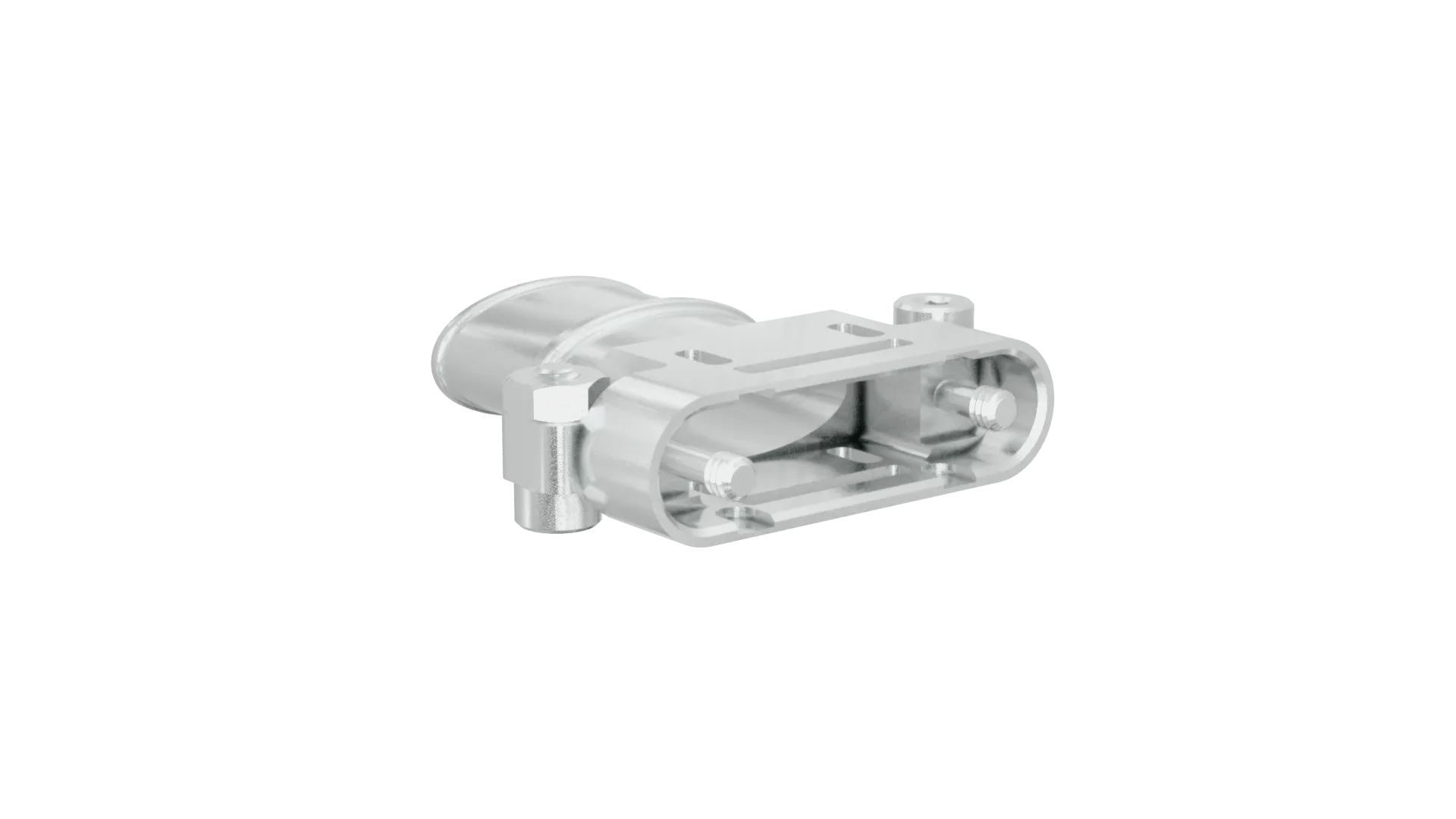

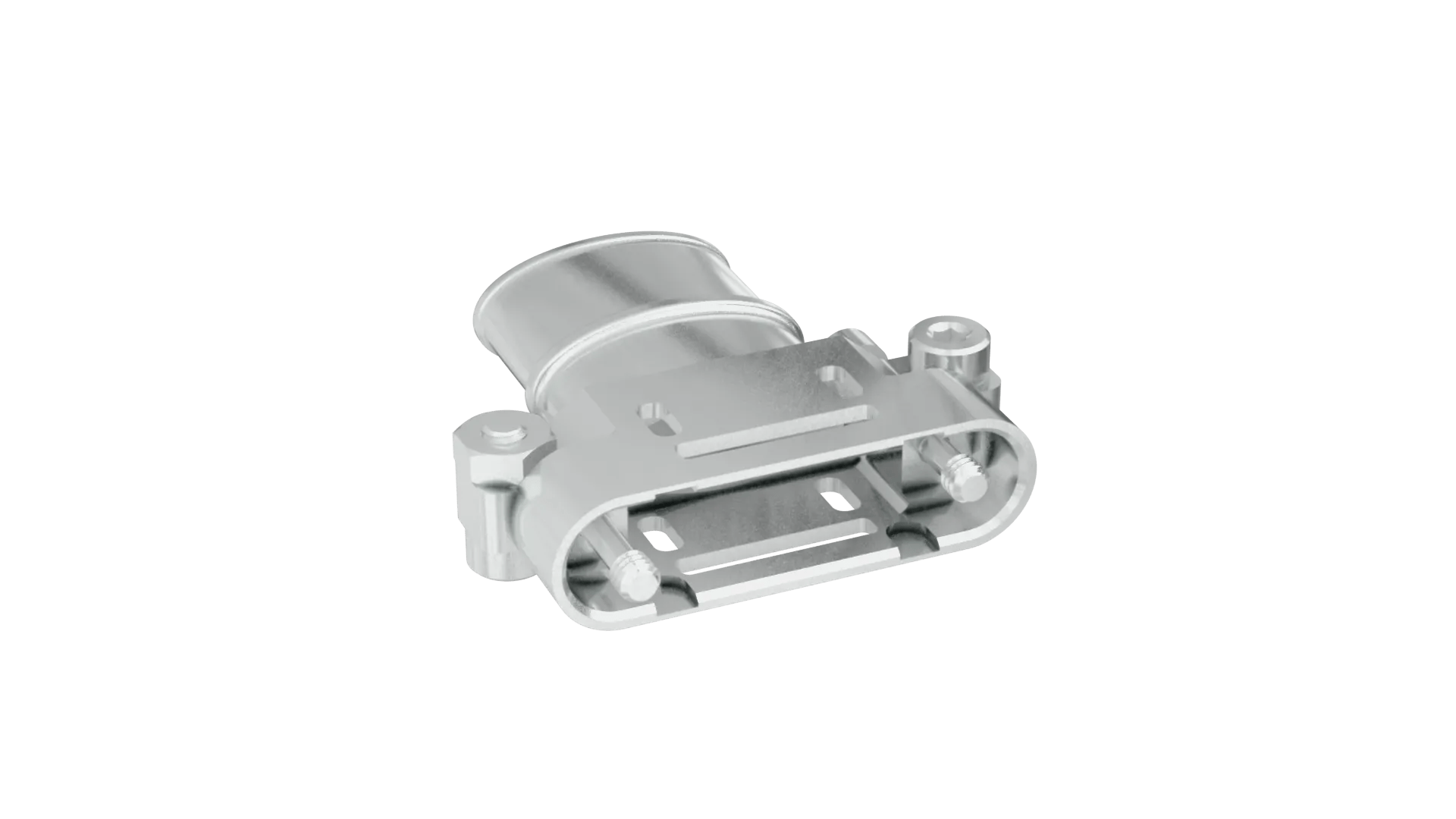

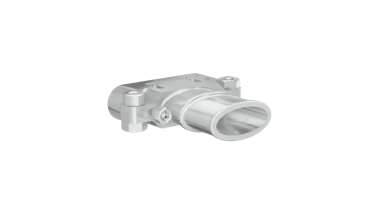

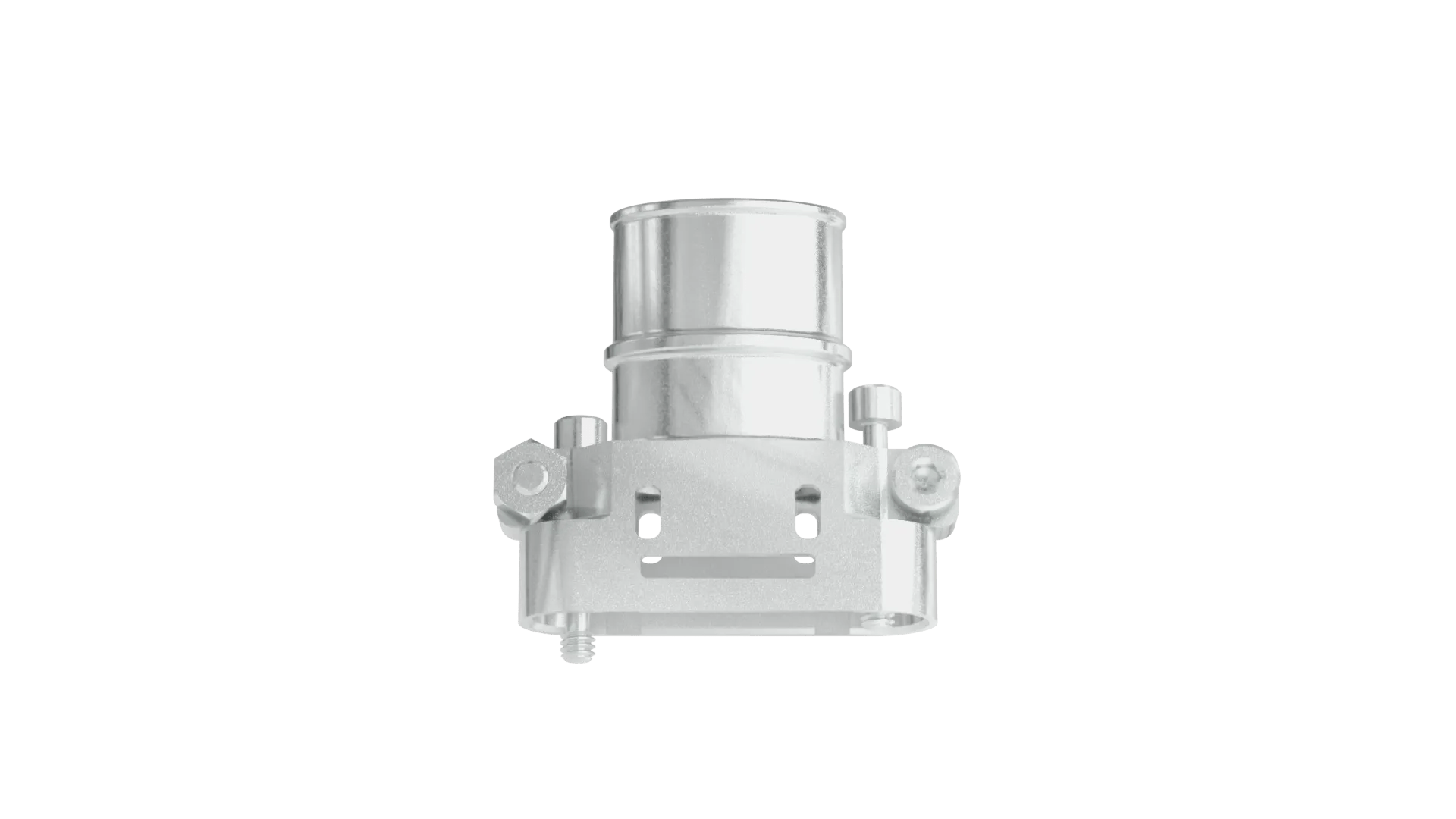

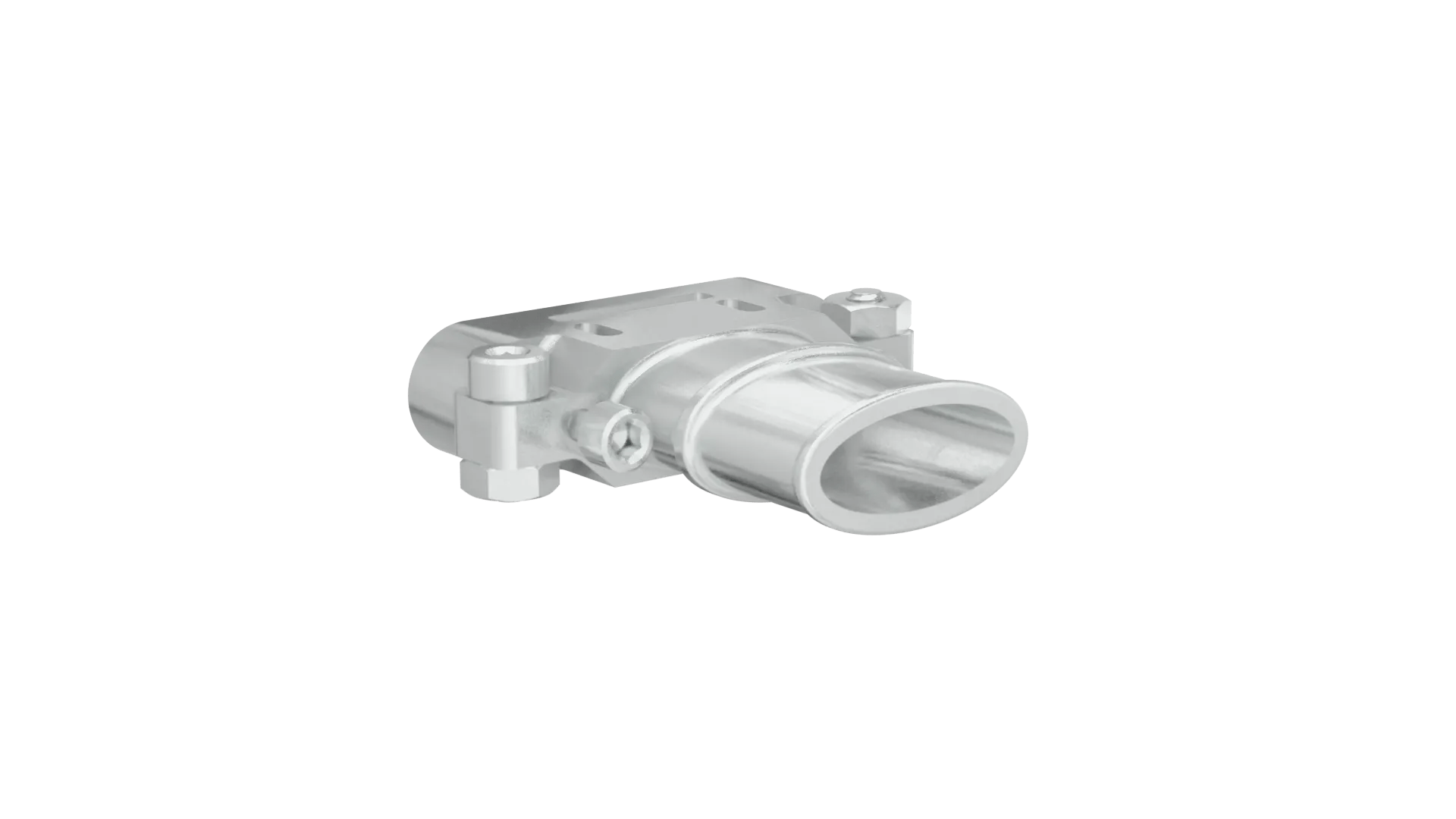

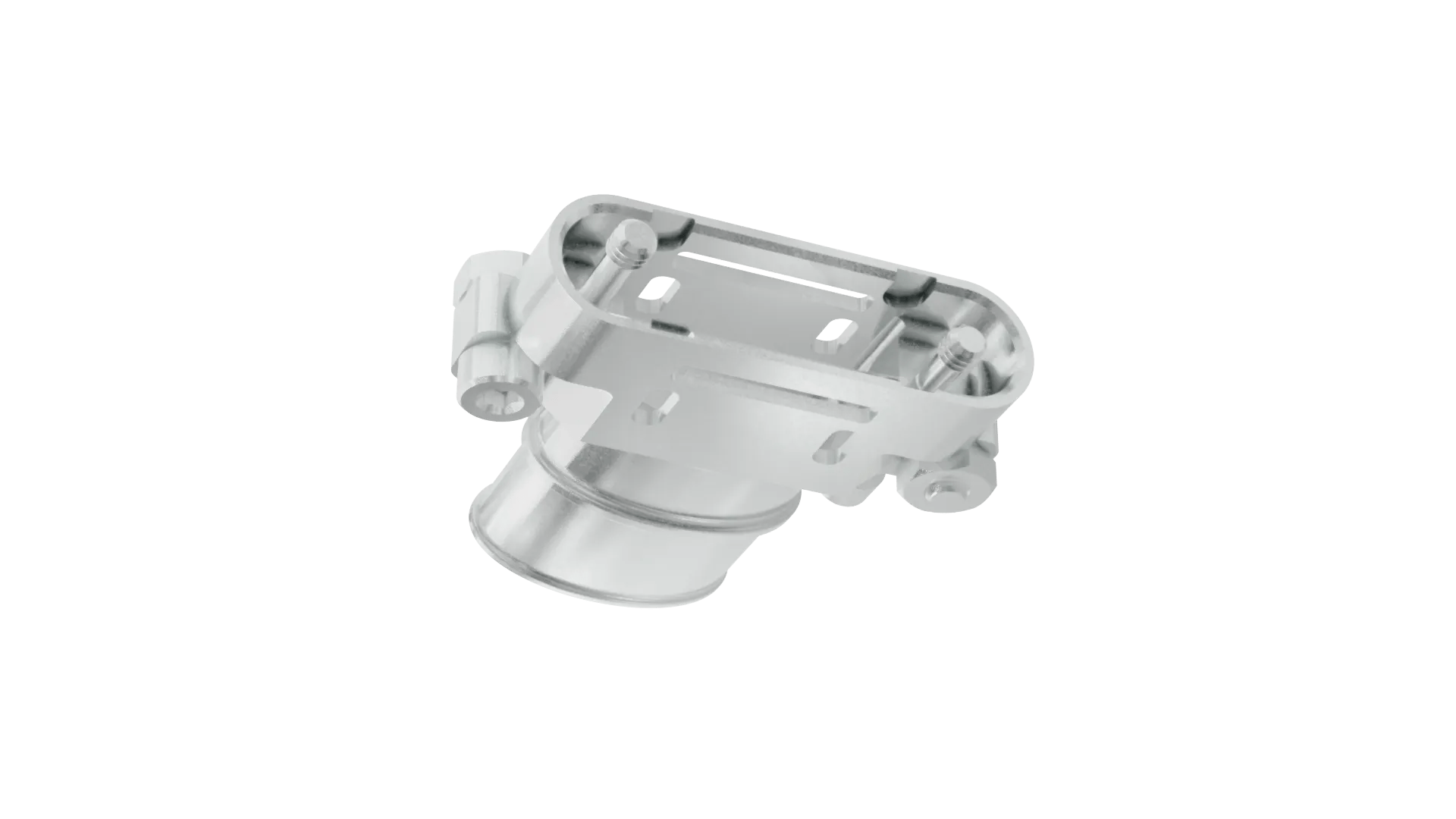

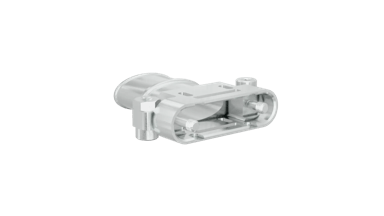

8+8 Pos. Female Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for female cable connectors – includes 2 metal hood halves, extended fixing screws and short screws for joining the halves.
  • Use with female crimp housing G125-224169600 (16 contact).
  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable Housing

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Hex Socket

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.599g

Overall Dimensions (L x W x D) in mm:

25.55 x 5.70 x 23.80

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status9
Farnell
Europe
Status5
Harwin
Global
Status22
Mouser Electronics Inc
Global
Status7

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-964XXF1.pdf

ZIP

G125-96416F1 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for G125-964XXF1 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko-MT Female Metal Backshell

PDF

Catalog page - Gecko Screw-Lok Female Metal Backshell

PDF

Catalog page - Gecko Introduction

PDF

Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties
