G125-9641600

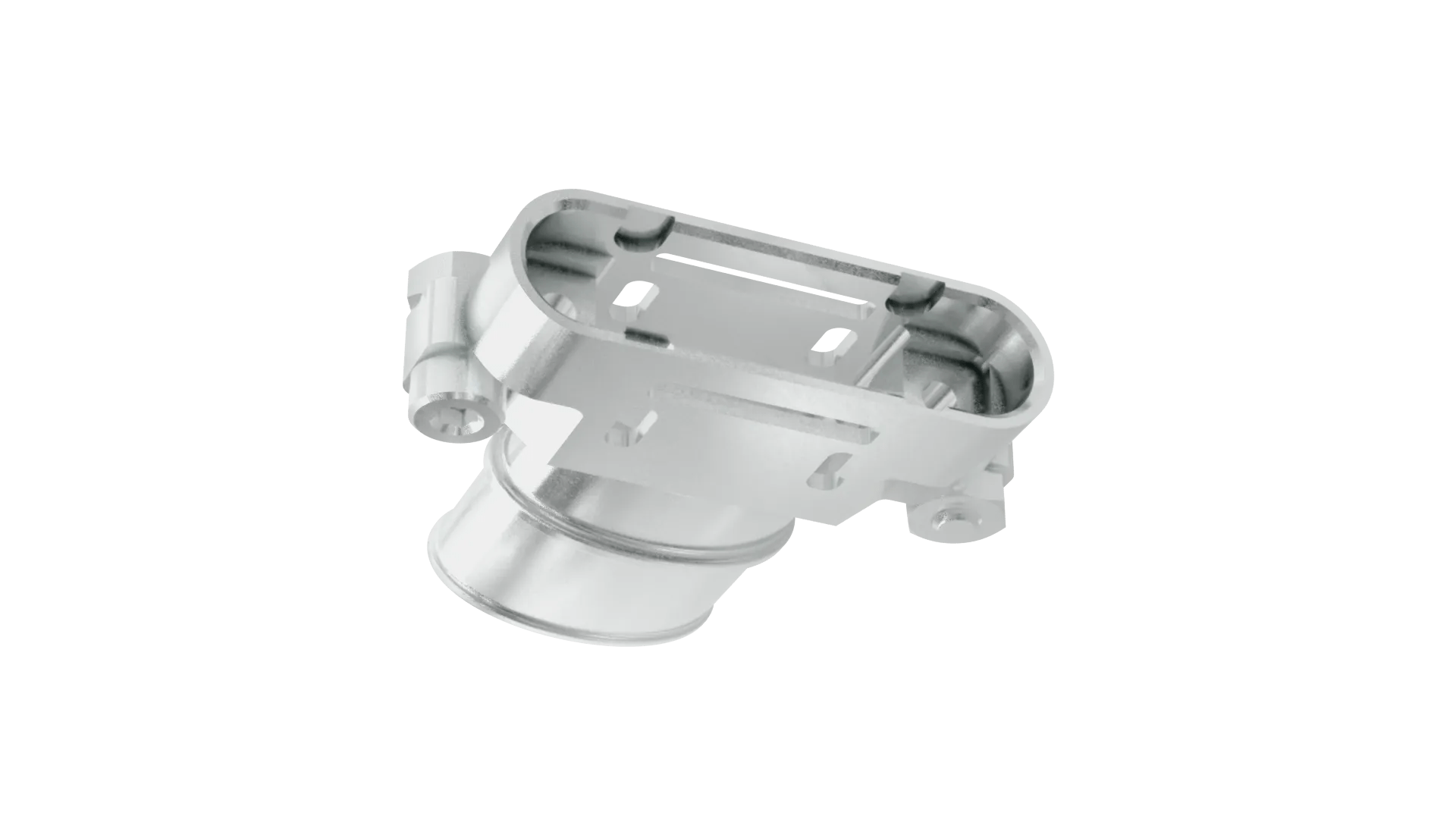

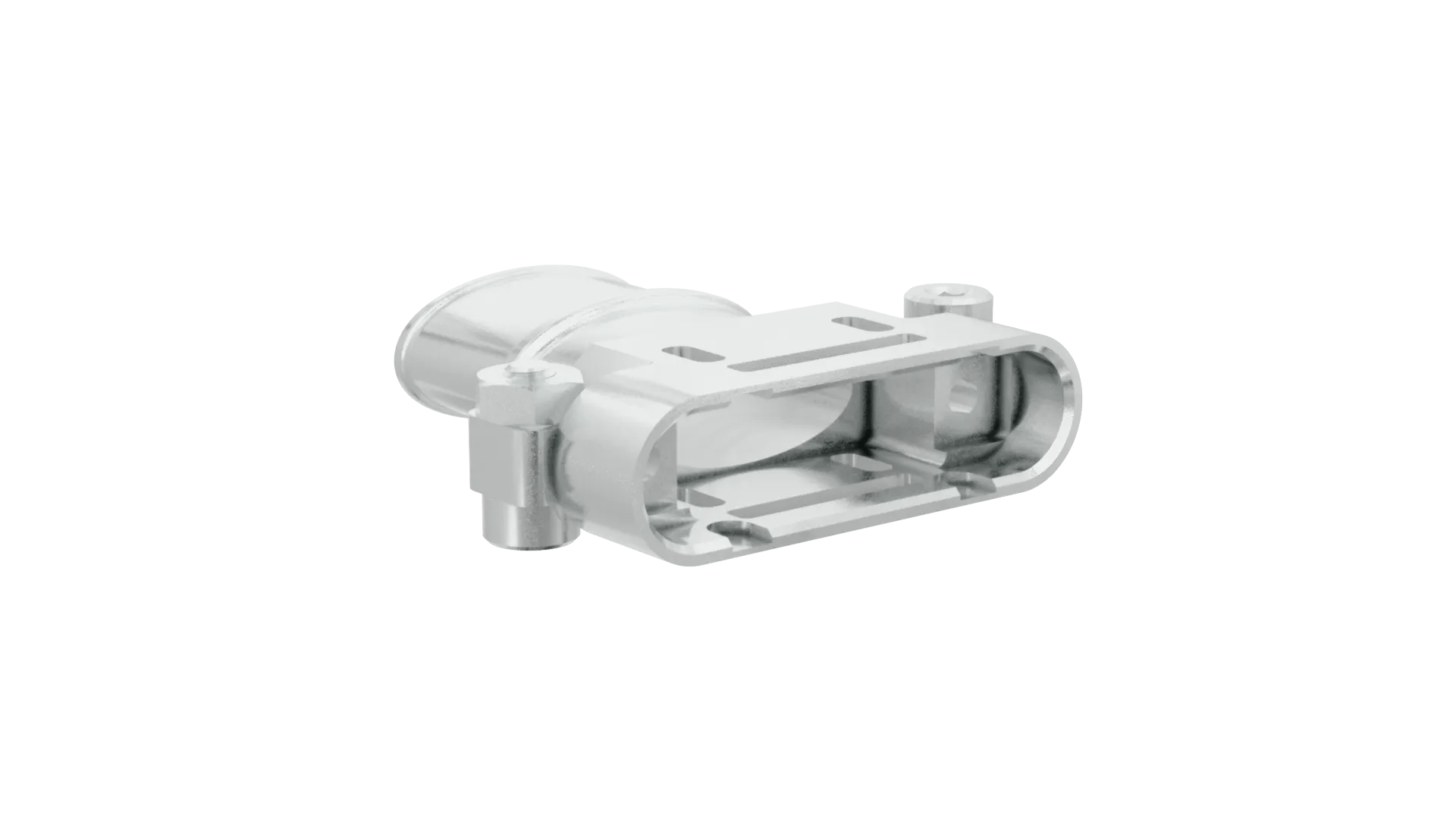

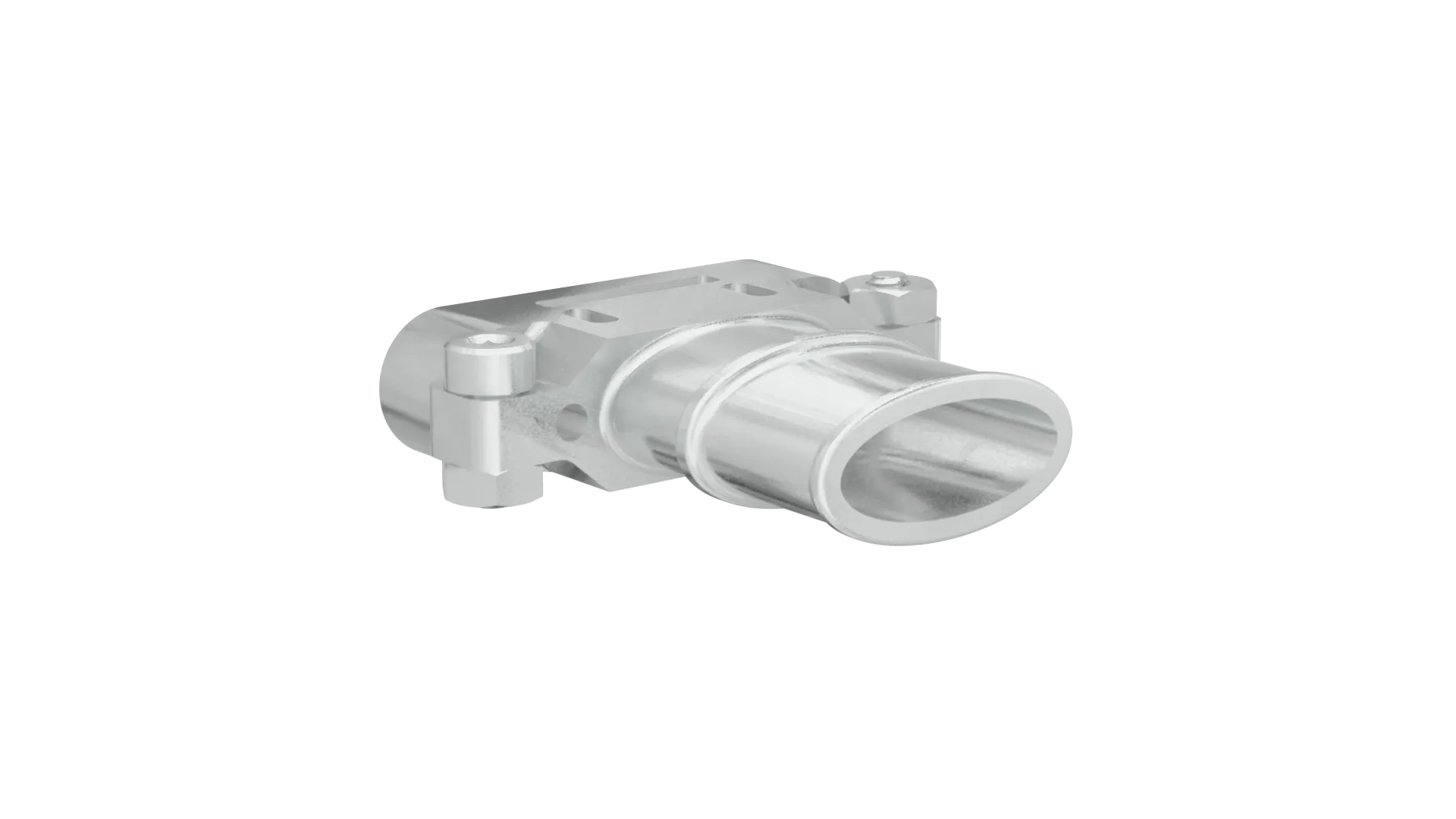

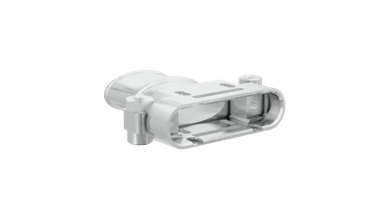

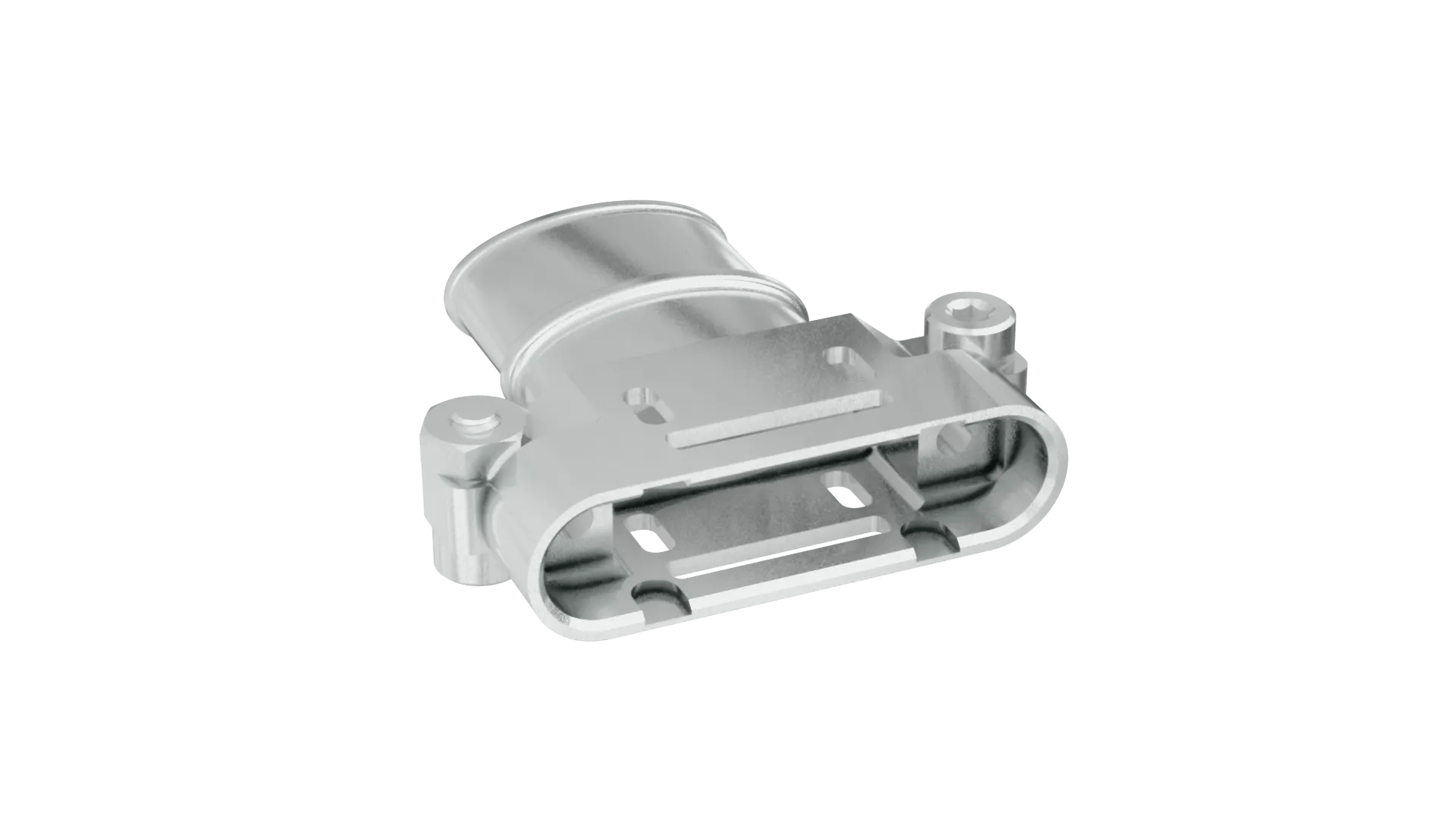

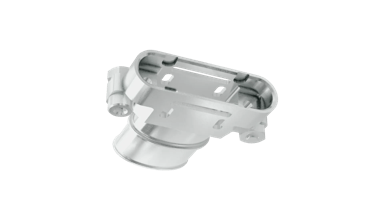

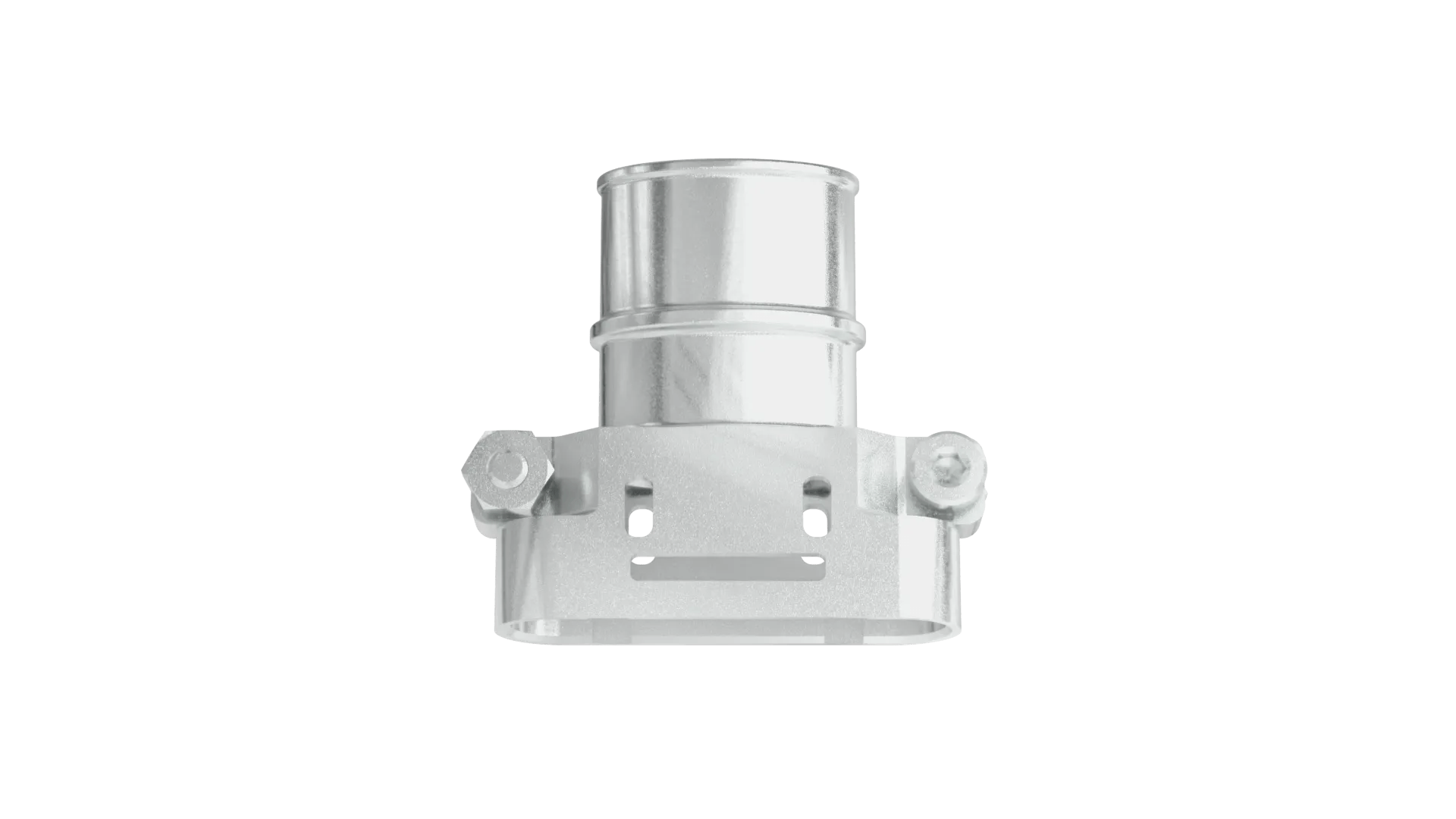

8+8 Pos. Male Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for male cable connectors – includes 2 metal hood halves, tie-band and short screws for joining the halves.
  • Use with male crimp housing G125-3241696M1 (16 contact).
  • Can be fitted after cable assembly construction.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable Housing

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.123g

Overall Dimensions (L x W x D) in mm:

25.55 x 5.70 x 23.80

Availability

Distributor Location Quantity
Digi-Key
Global
Status8
Harwin
Europe
Status58
Mouser Electronics Inc
Global
Status9
TTI Inc
USA
Status12

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-964XX00.pdf

ZIP

G125-9641600 CAD Model (ZIP file containing STP and IGES)

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for G125-964XX00 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Male Metal Hood

PDF

Catalog page - Gecko Introduction

PDF

Catalog page - Gecko Specification, Pin Numbering
