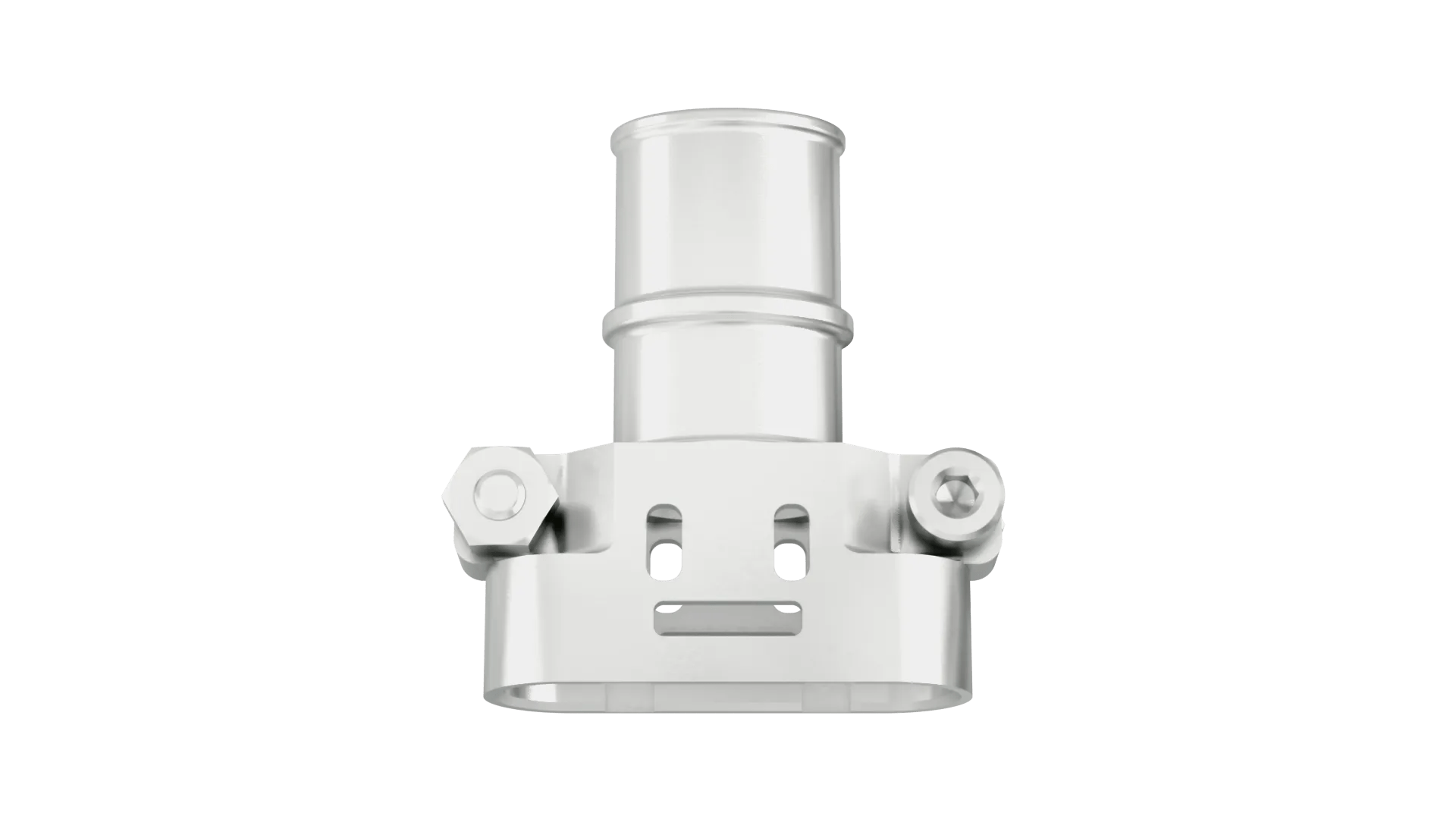

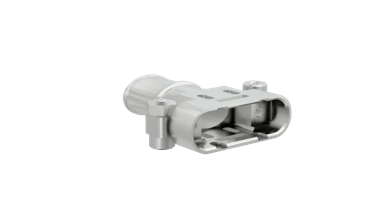

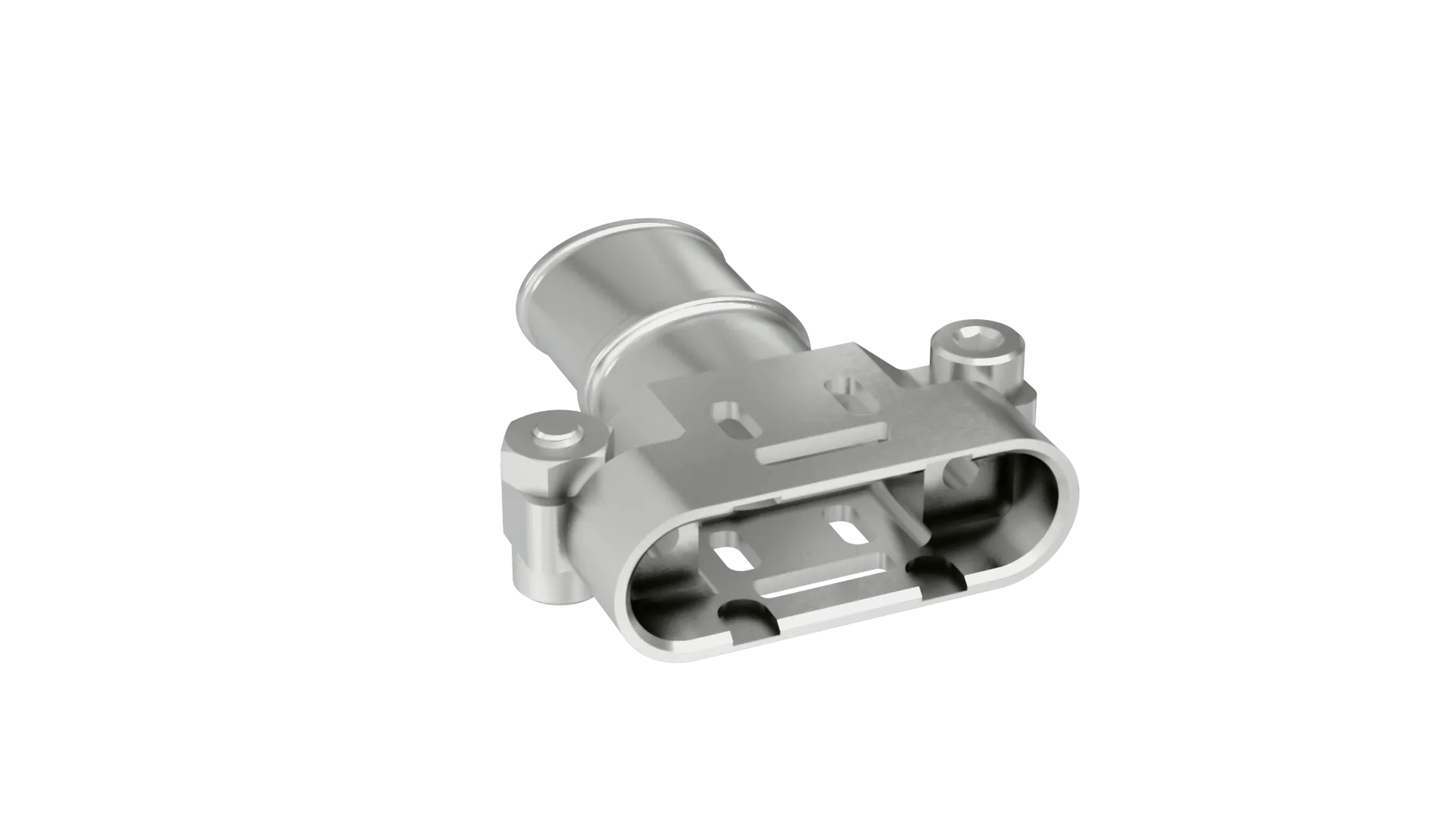

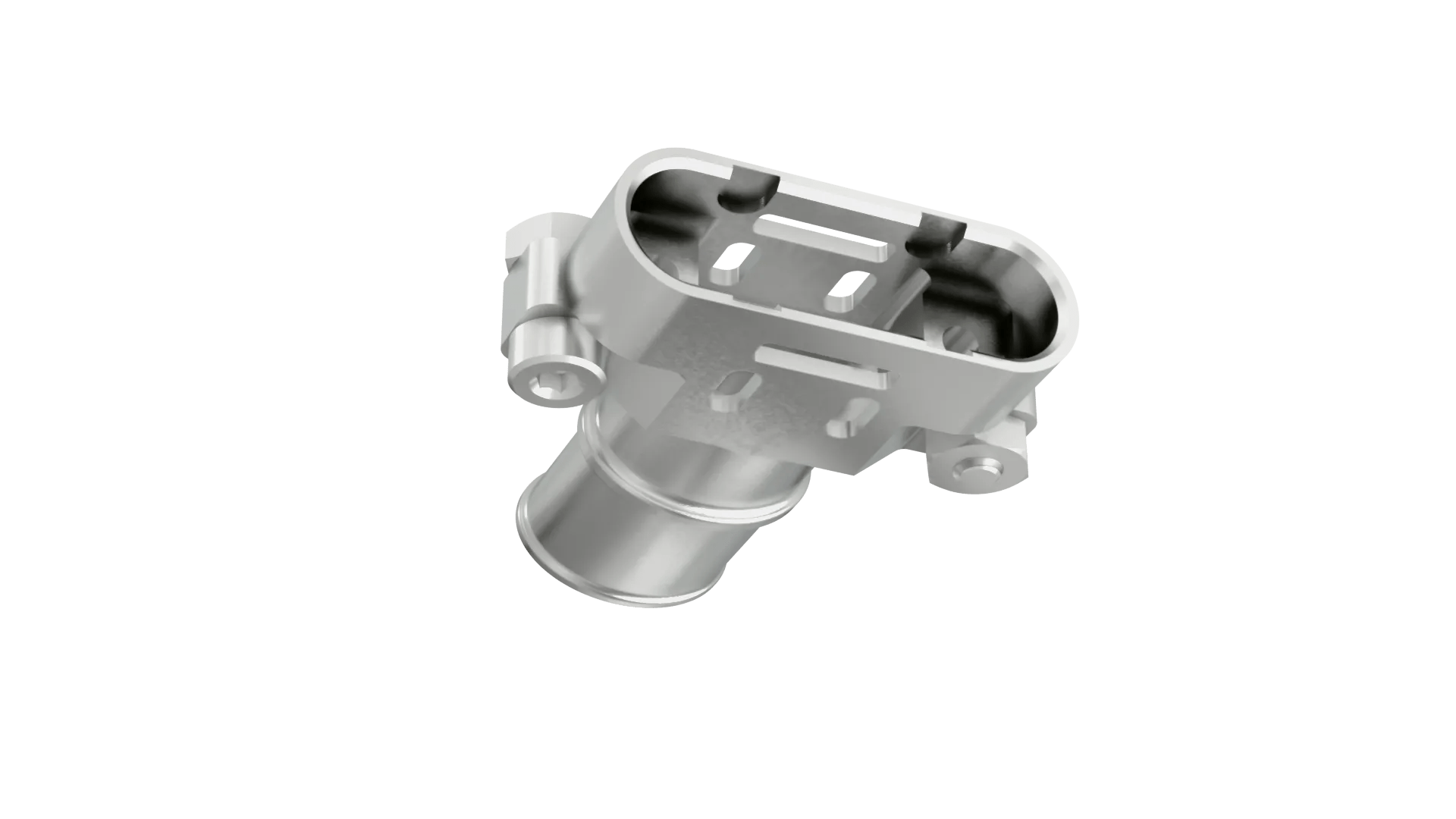

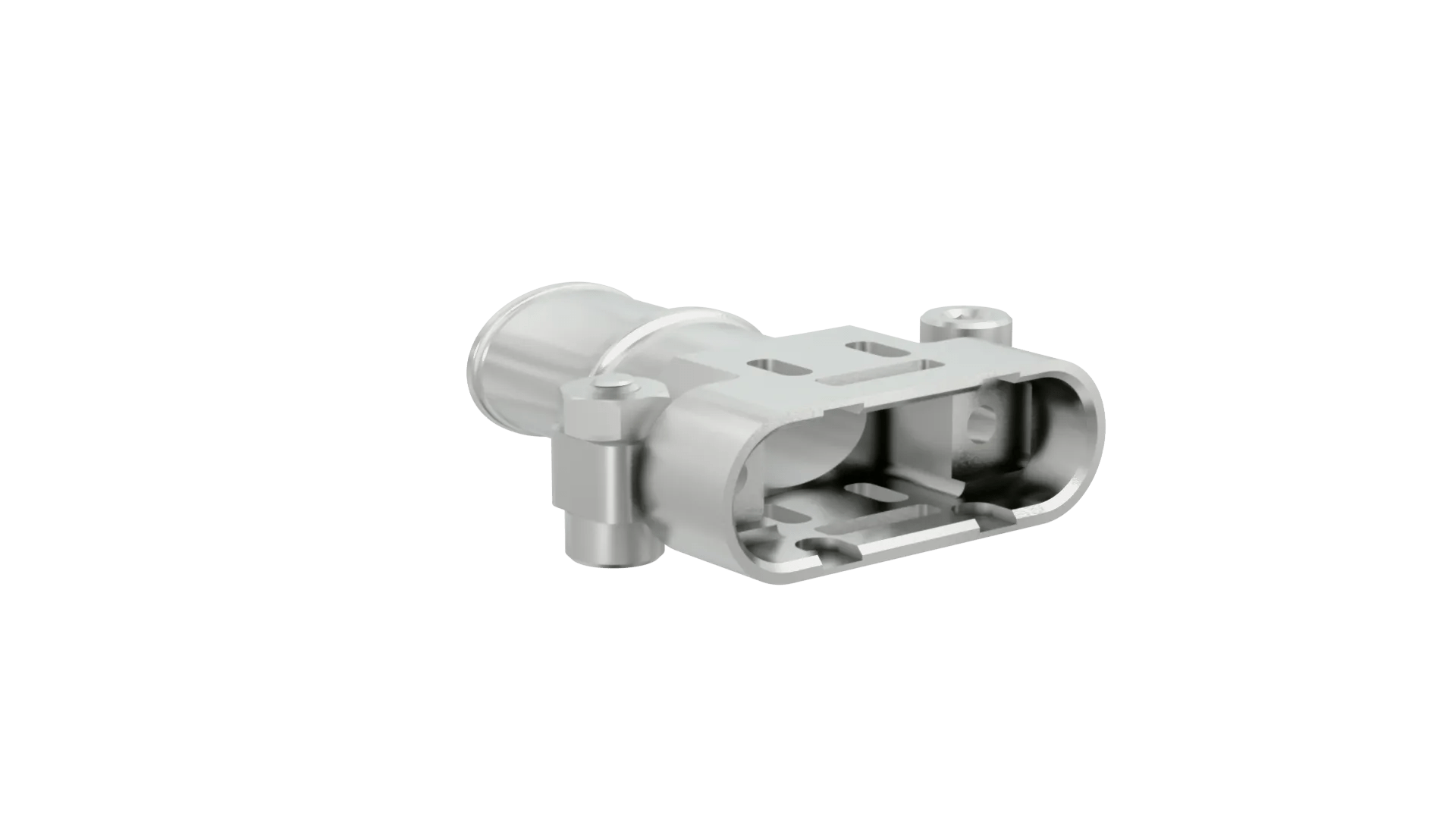

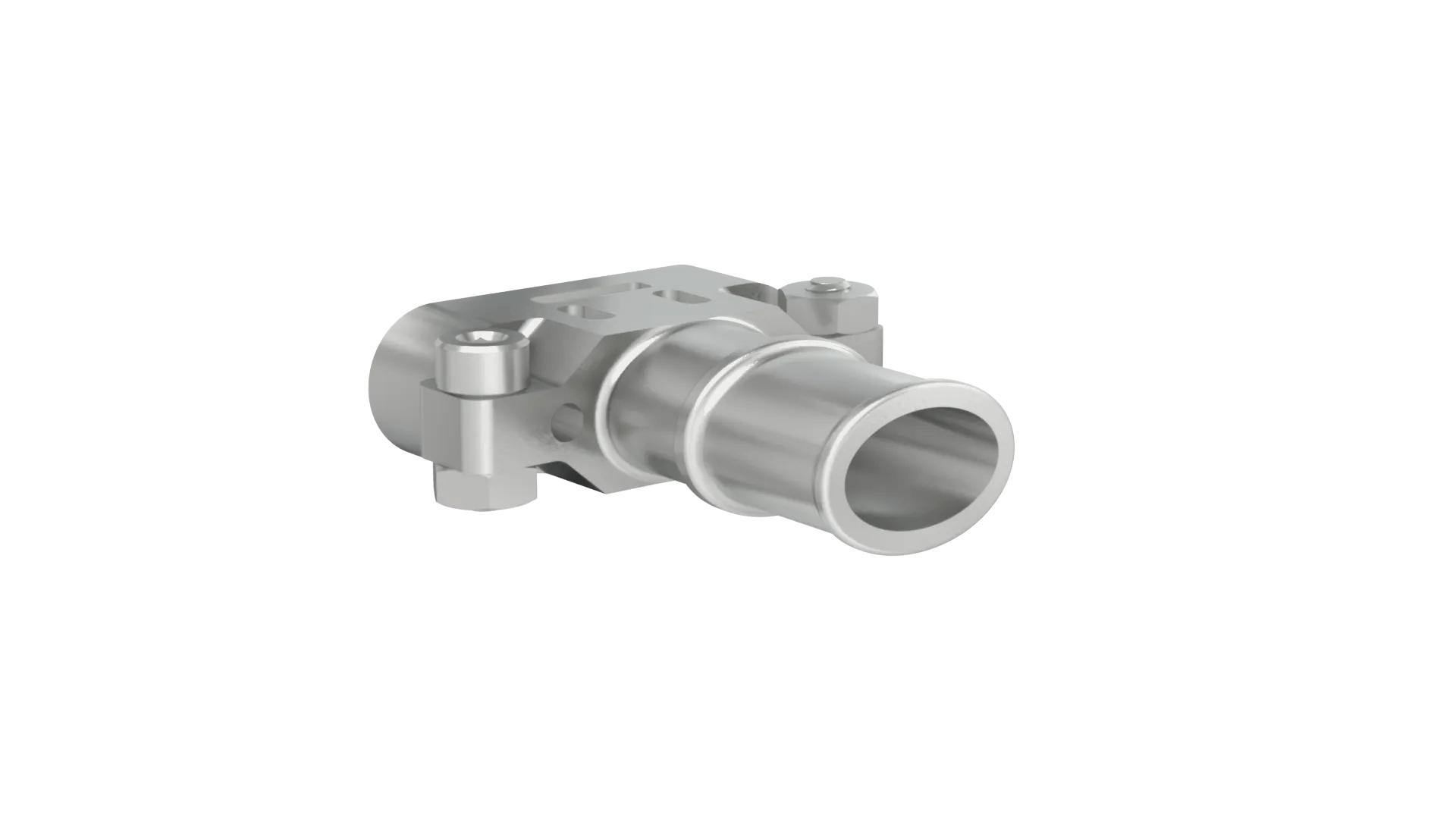

Metal Backshell kit for cable connectors - includes 2 metal hood halves and short screws & nuts for joining the halves.
Use with male crimp housing G125-3241096M1 (10 contact). Can be fitted after cable assembly construction.
Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid. See instruction sheet IS-45 for advice on use.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
None fitted
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
10
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
4.699g
Dimensions:
21.80 x 5.70 x 23.80
Downloads
Product Change Notifications
Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties
Product Change Notification 30-Jul-2020 - Gecko-SL Cable Backshells
Technical Documentation
Technical Drawing / Datasheet - G125-964XX00.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Information
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-964XX00 series
RoHS - G125-9641000
Cable Assembly
Ready-made complete cable assemblies and pre-wired contacts
