G125-9640600

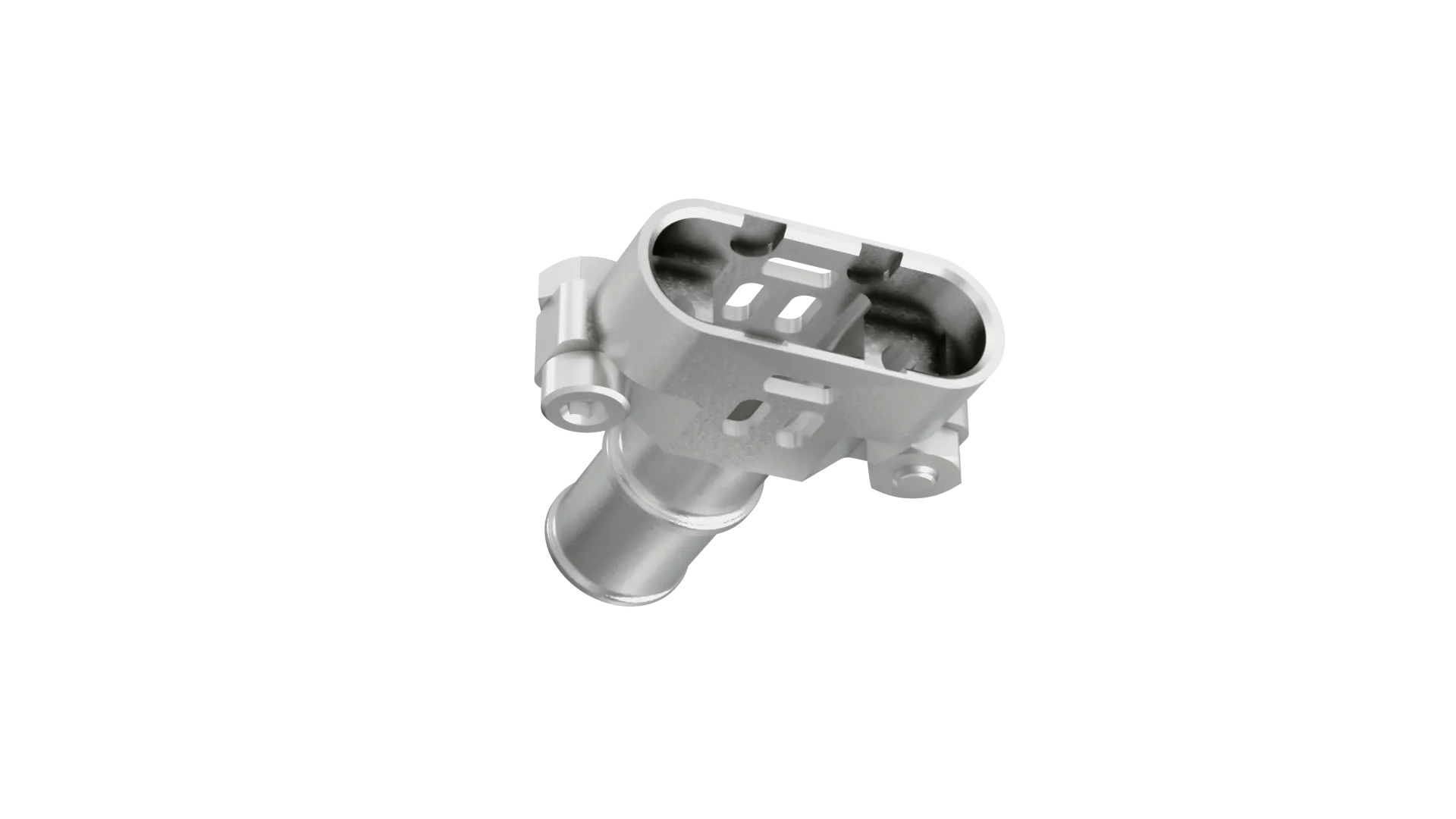

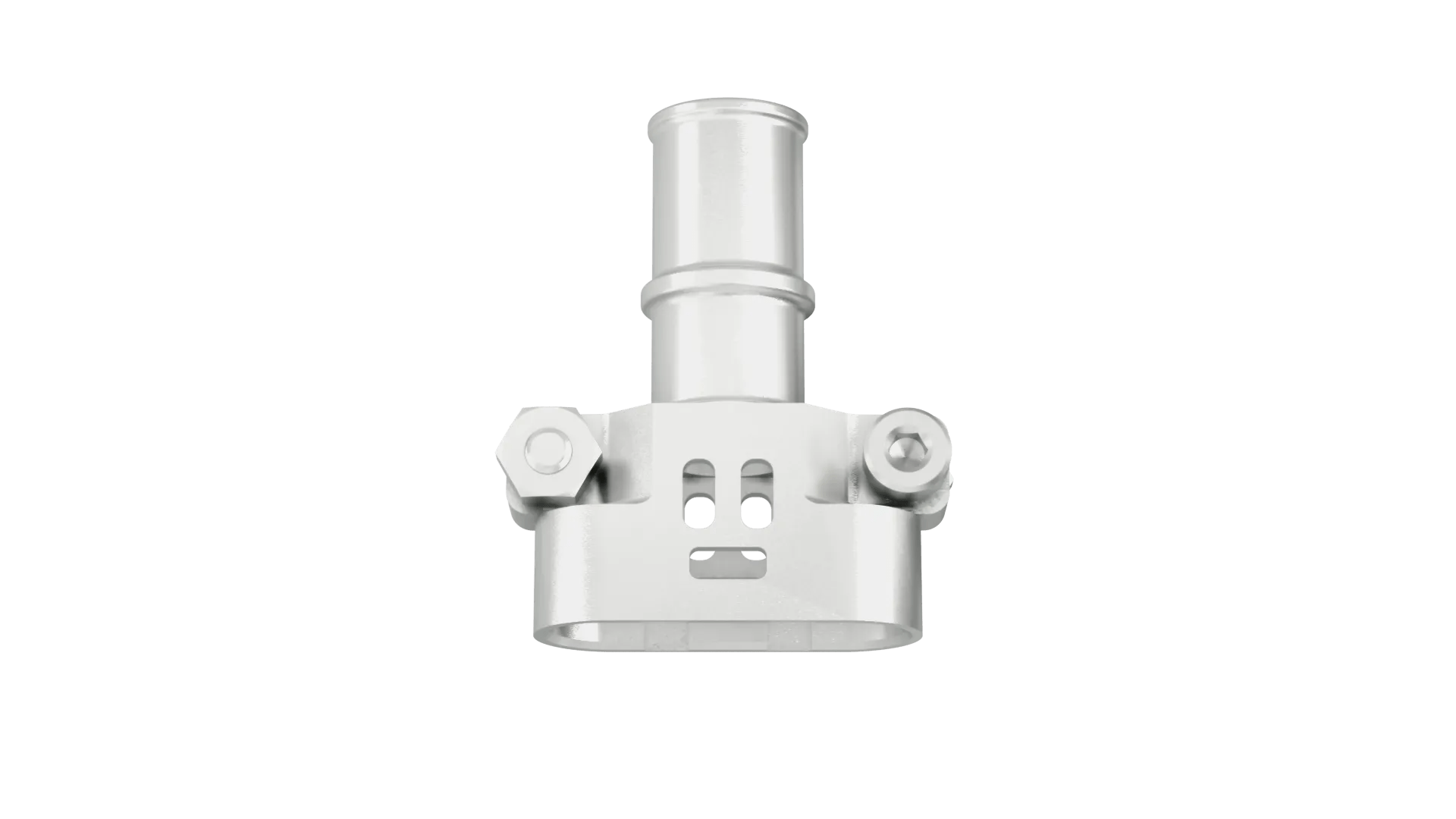

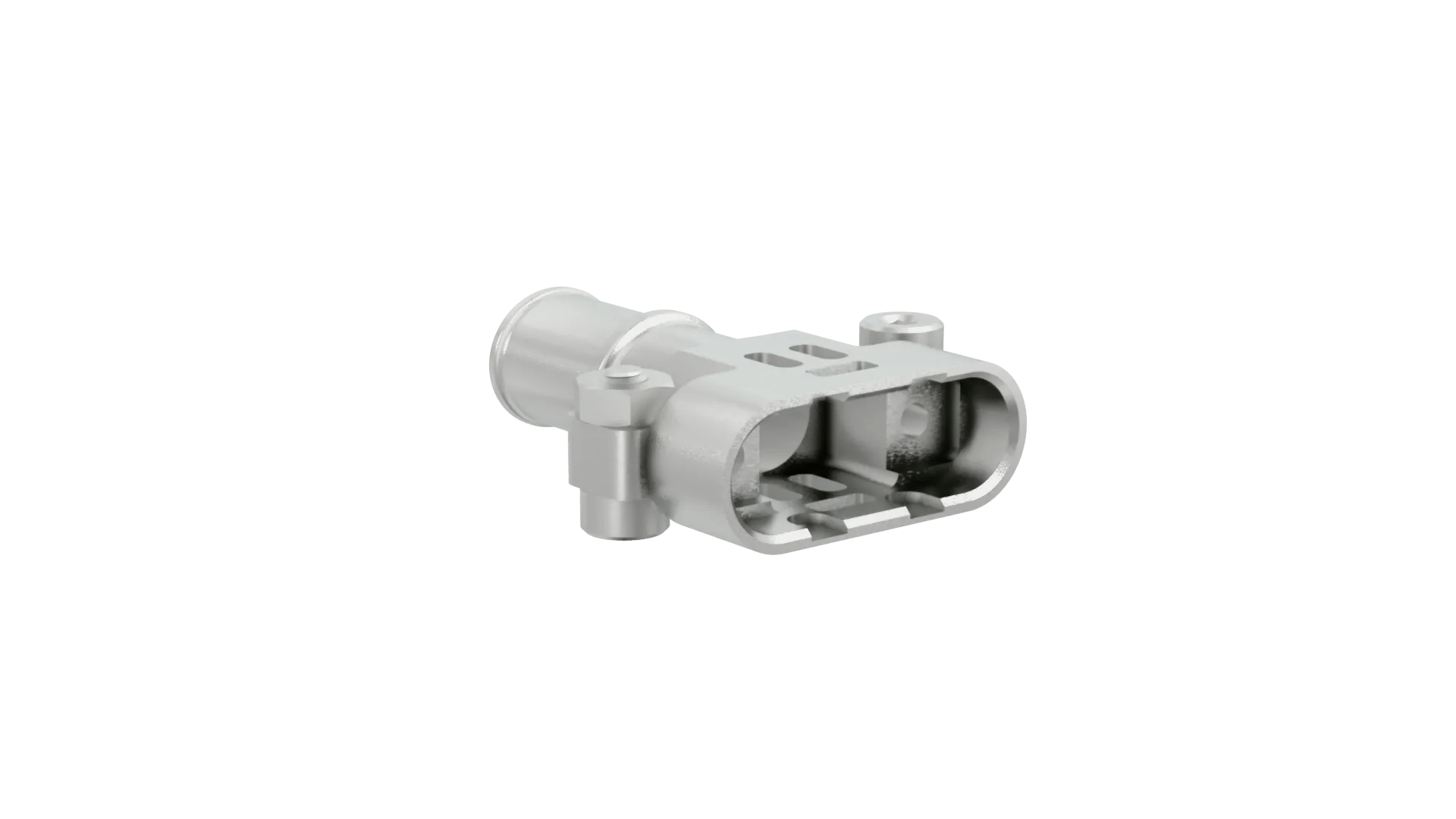

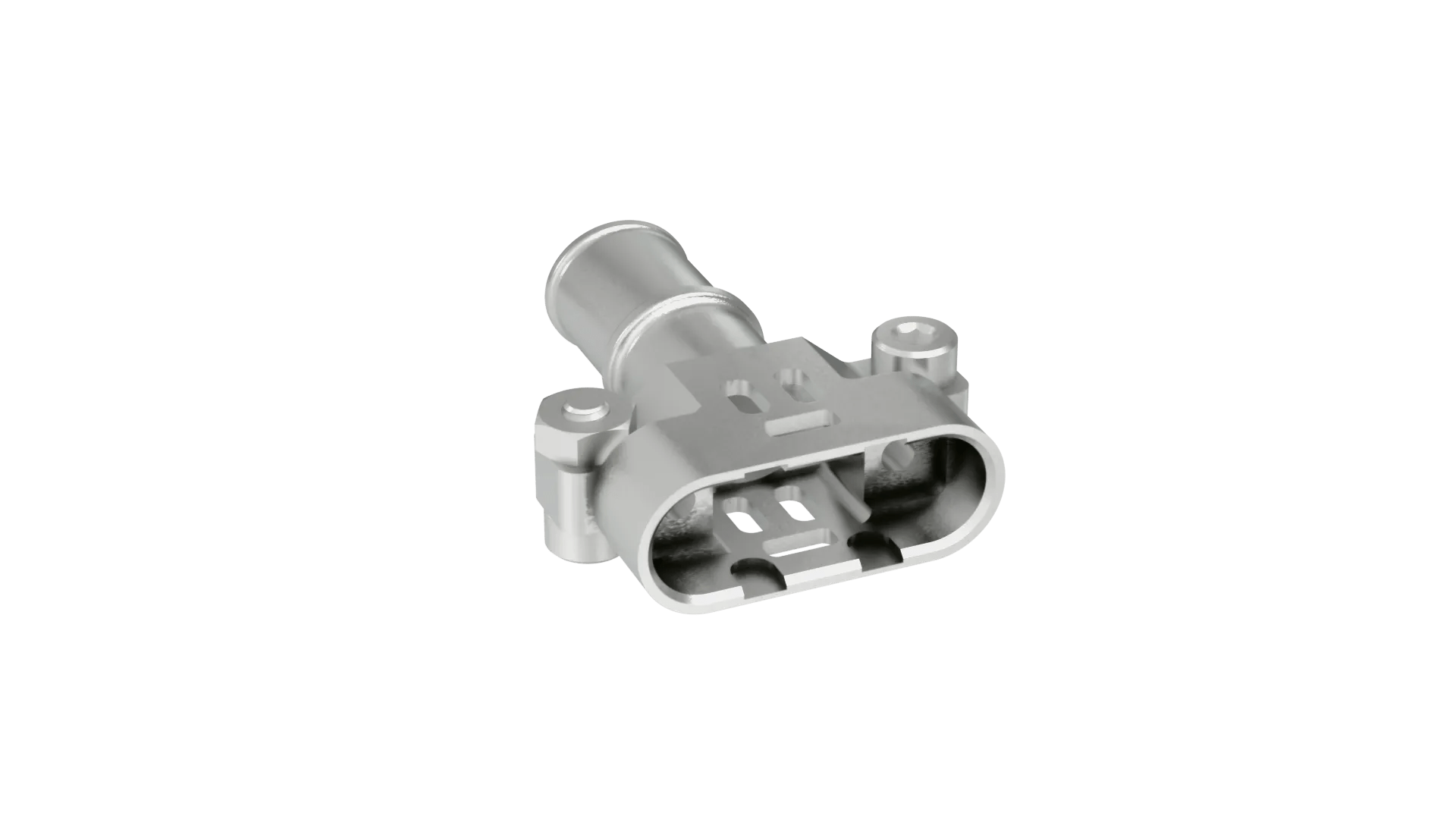

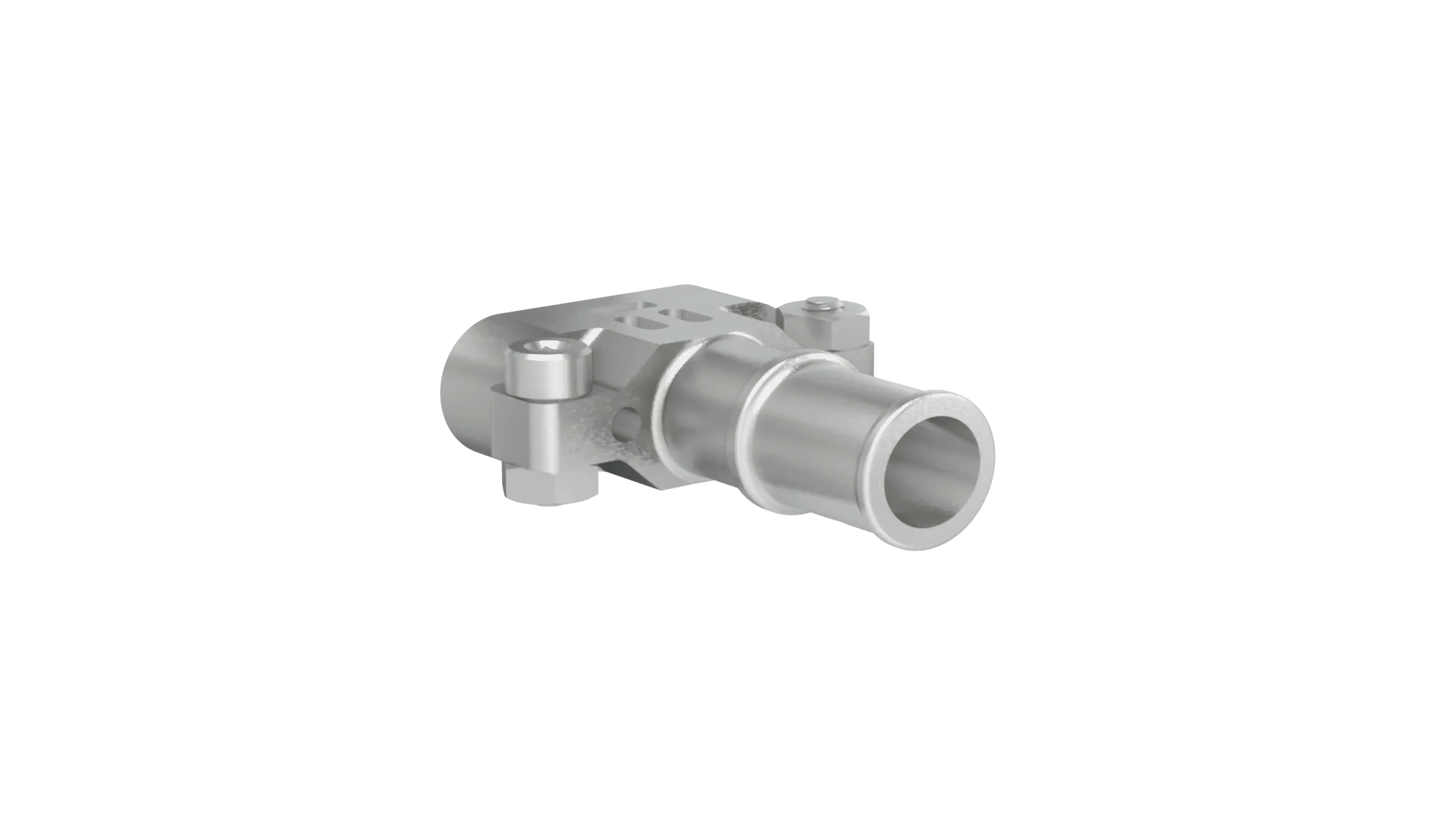

3+3 Pos. Cable Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for cable connectors – includes 2 metal hood halves and short screws & nuts for joining the halves.
  • Use with male crimp housing G125-3240696M1 (6 contact).
  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

4.426g

Overall Dimensions (L x W x D) in mm:

19.30 x 5.70 x 23.80

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.
