G125-9601602

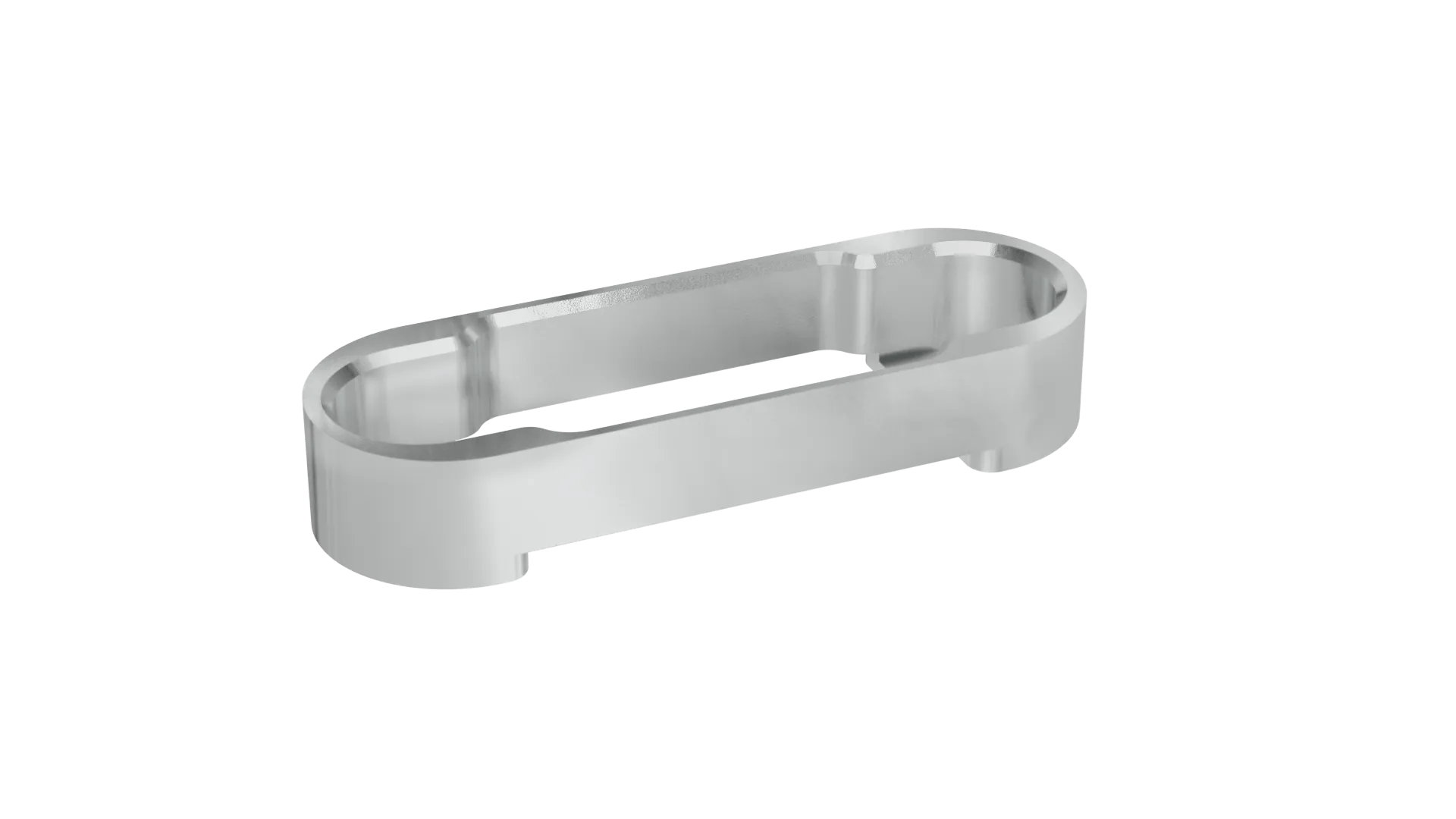

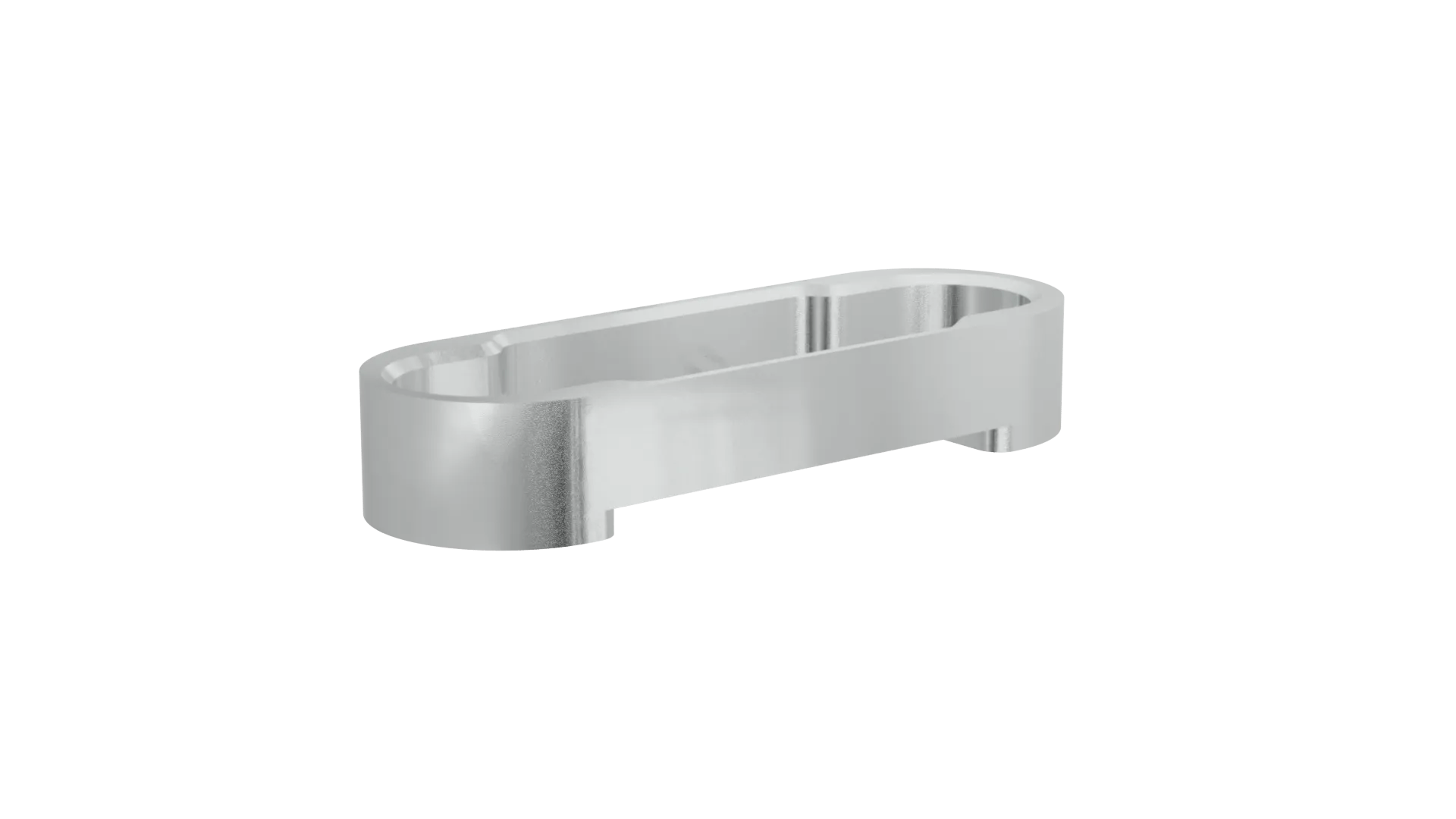

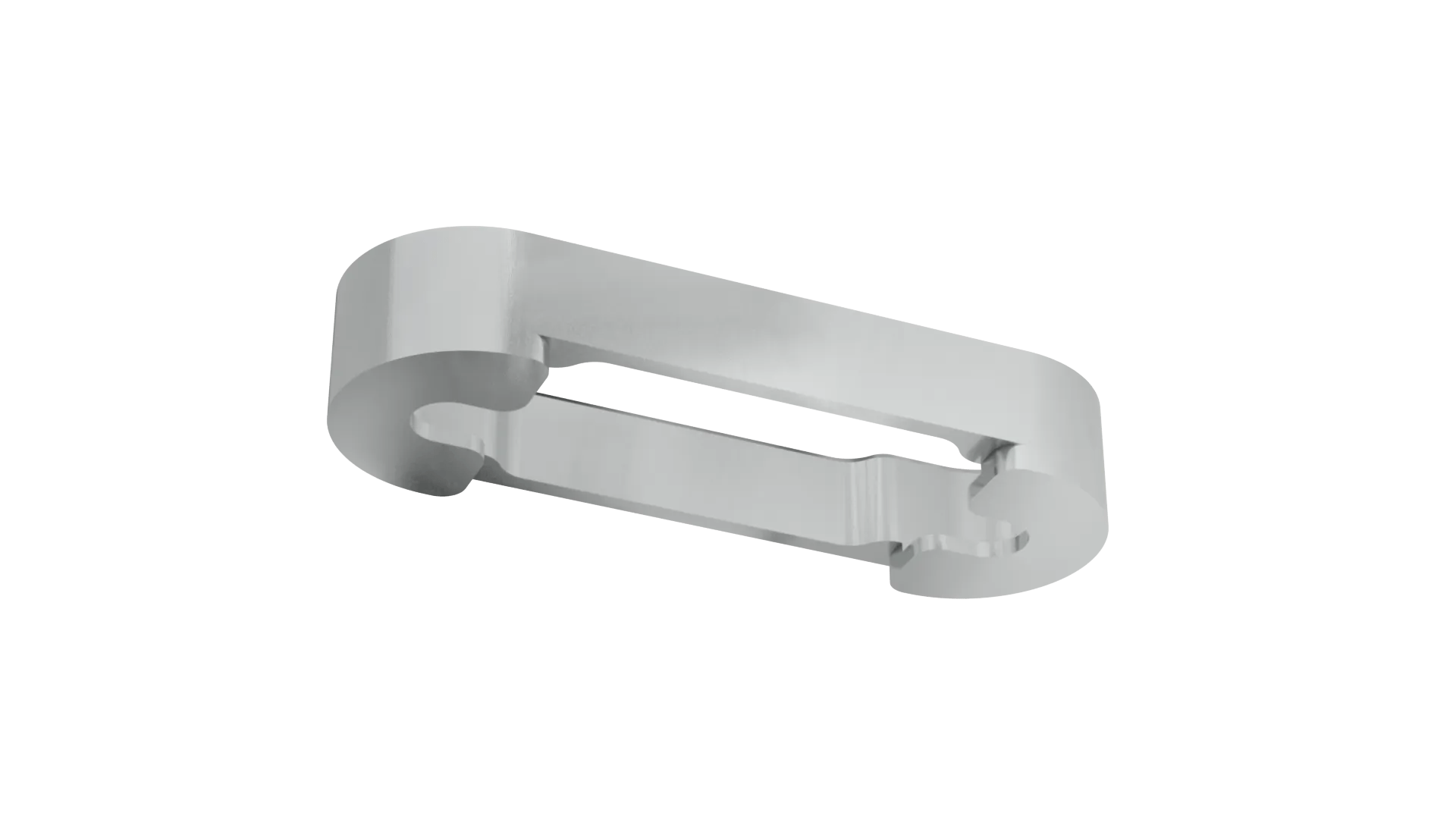

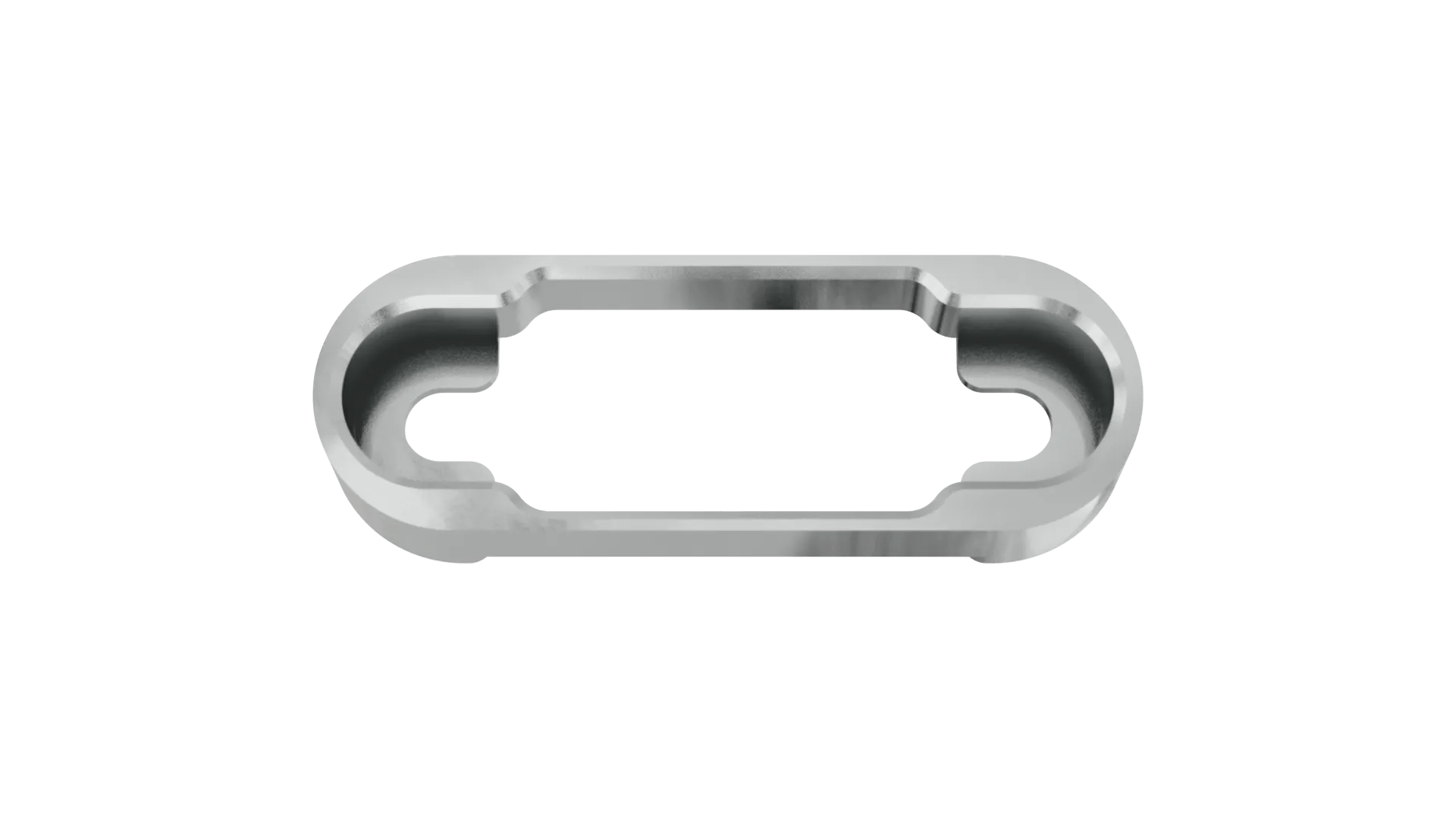

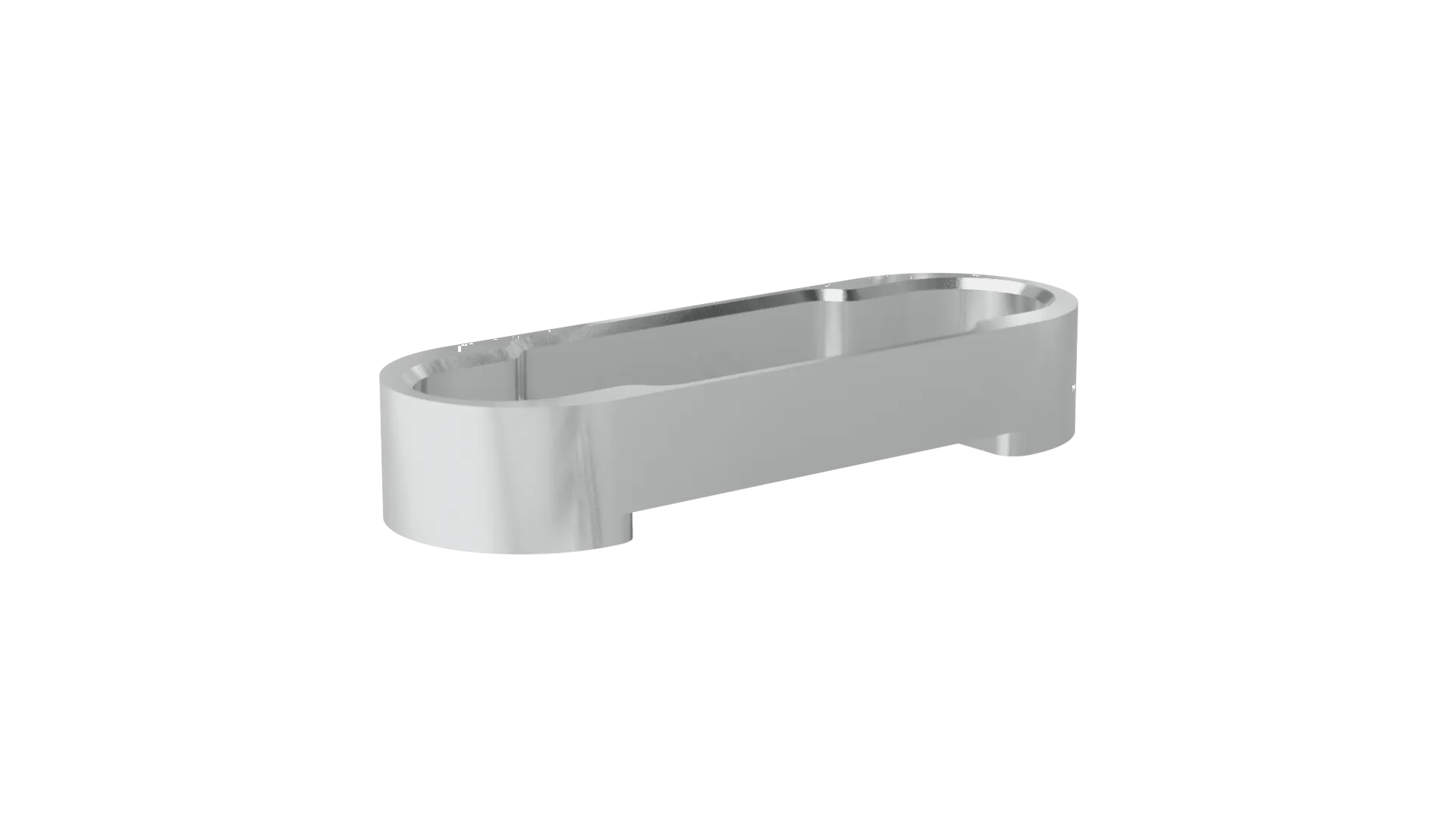

8+8 Pos. Panel Mount Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell item for use with panel mount or board mount connectors (male).
  • Use with the following 16-contact connectors or housings: G125-3241696M2 or G125-MV11605M2.
  • If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Panel Mount or Board Mount

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.591g

Overall Dimensions (L x W x D) in mm:

23.15 x 8.00 x 3.95

Height of Connector above PCB:

3.95mm
