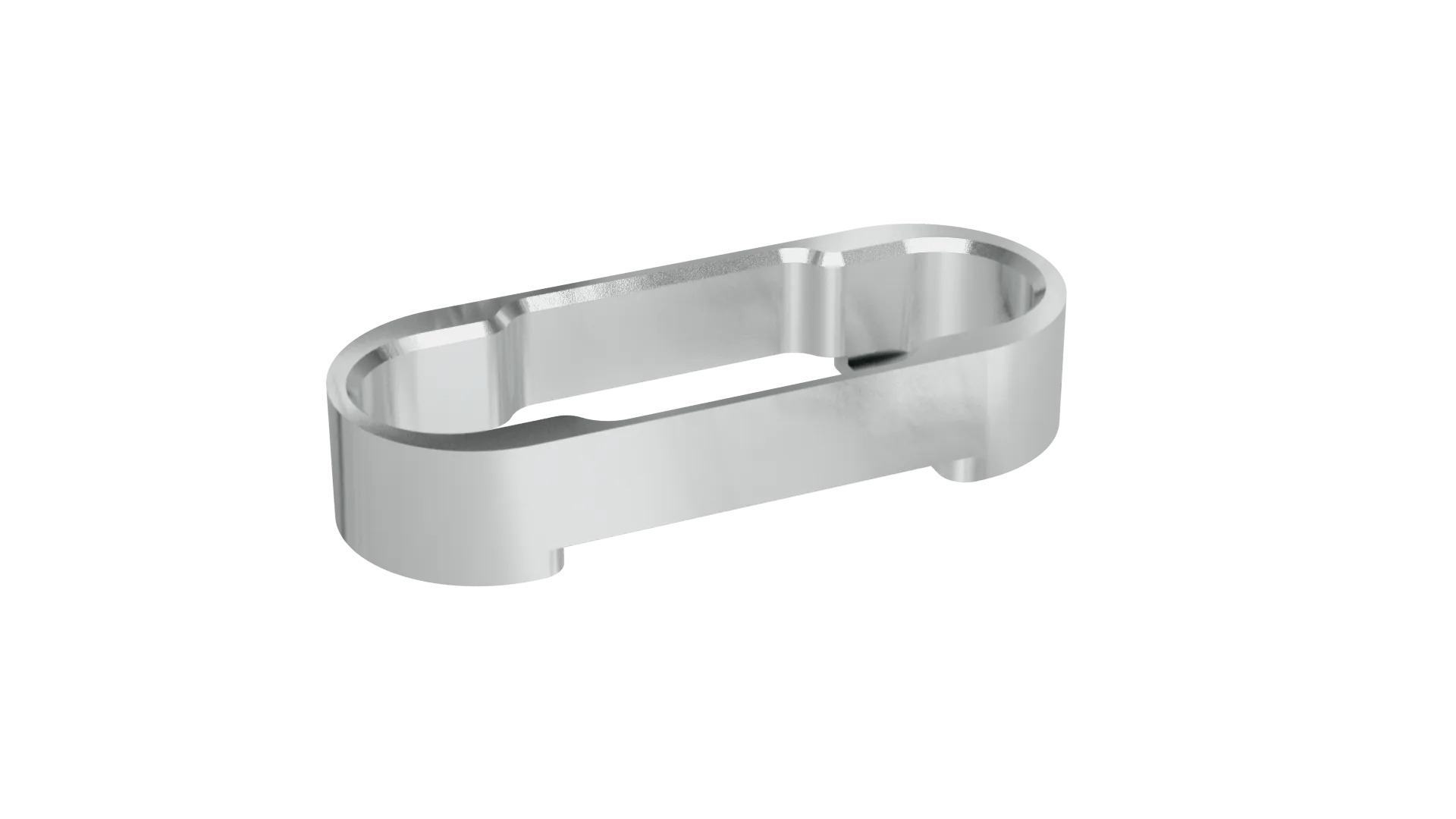

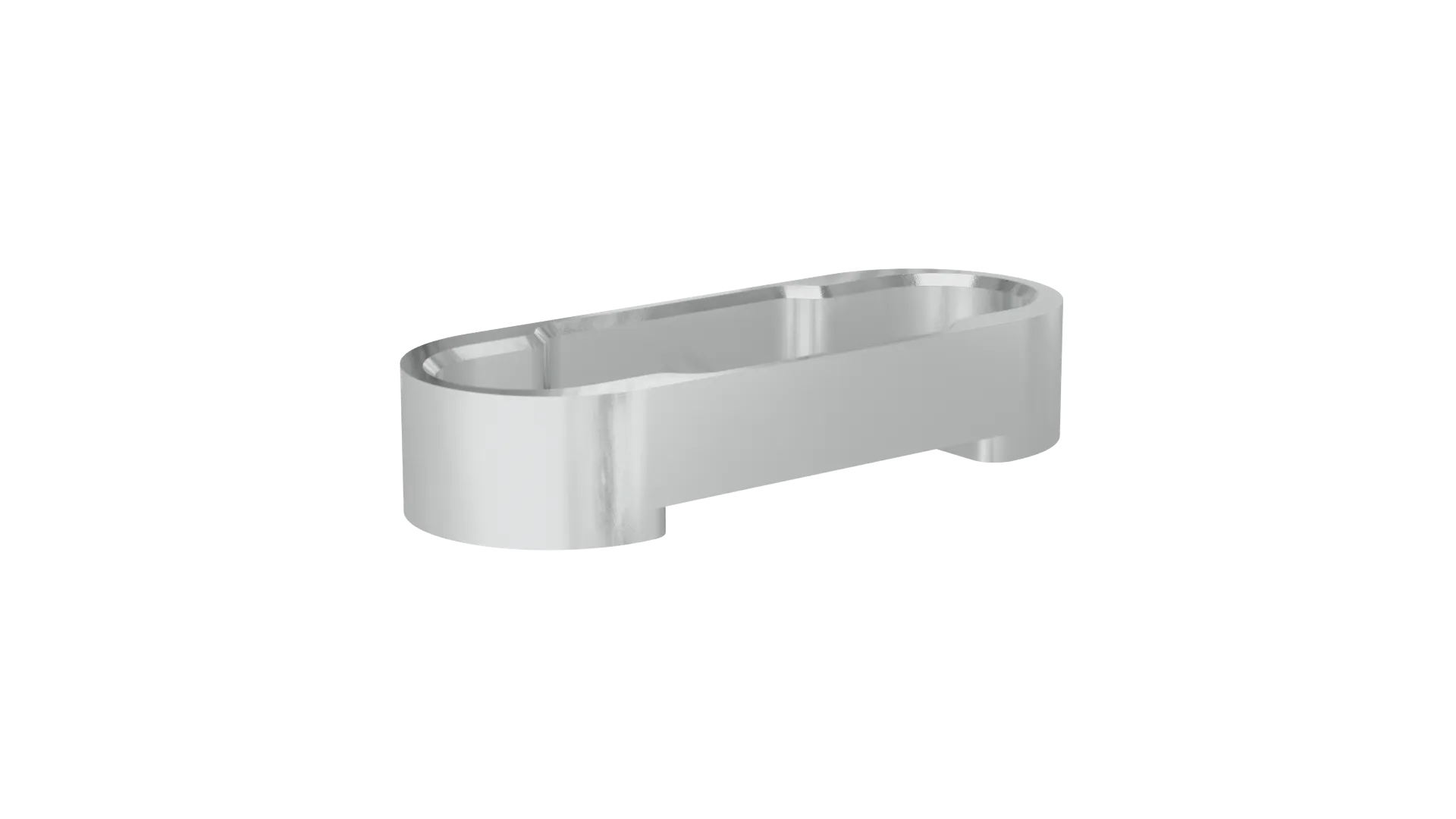

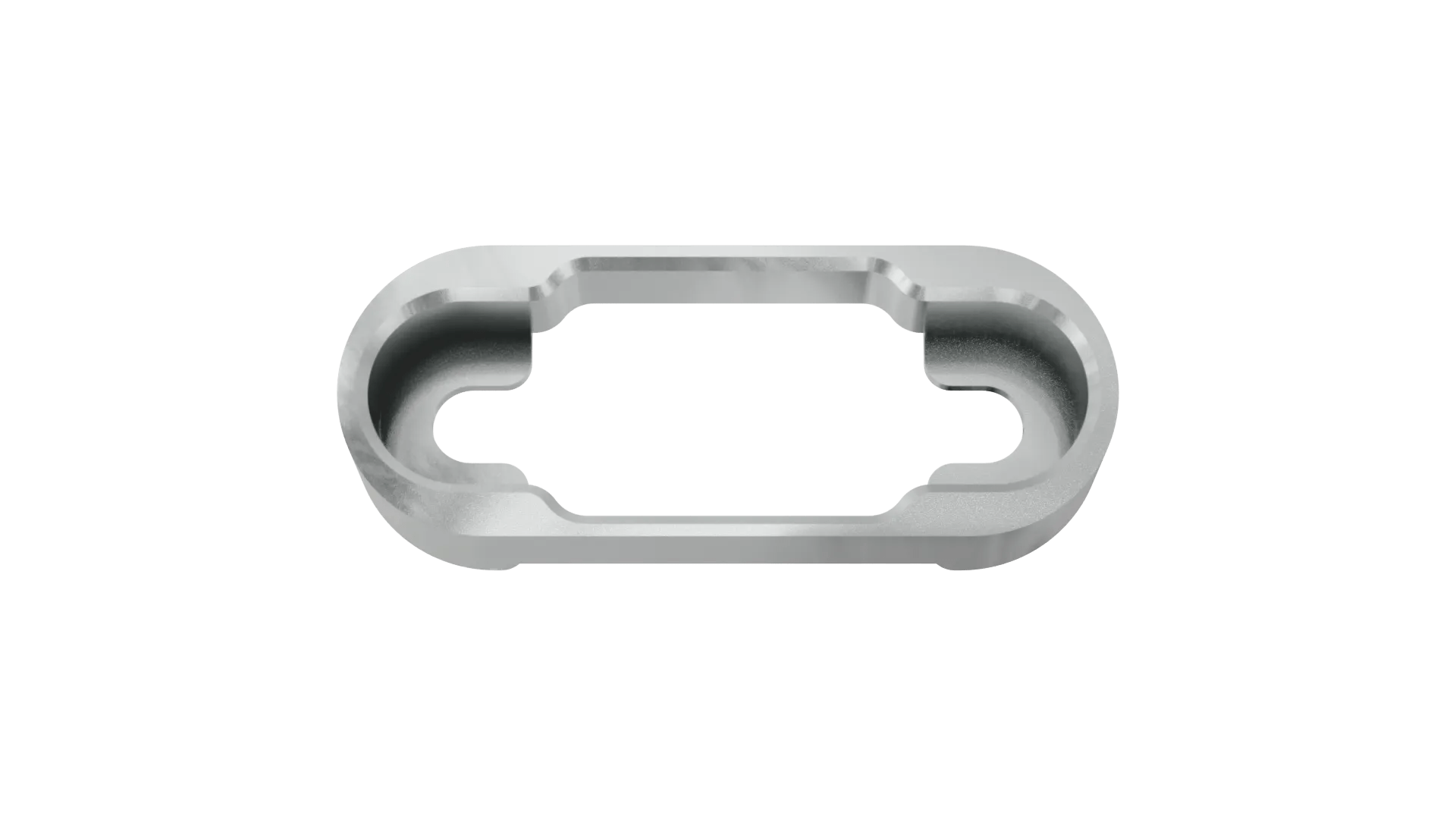

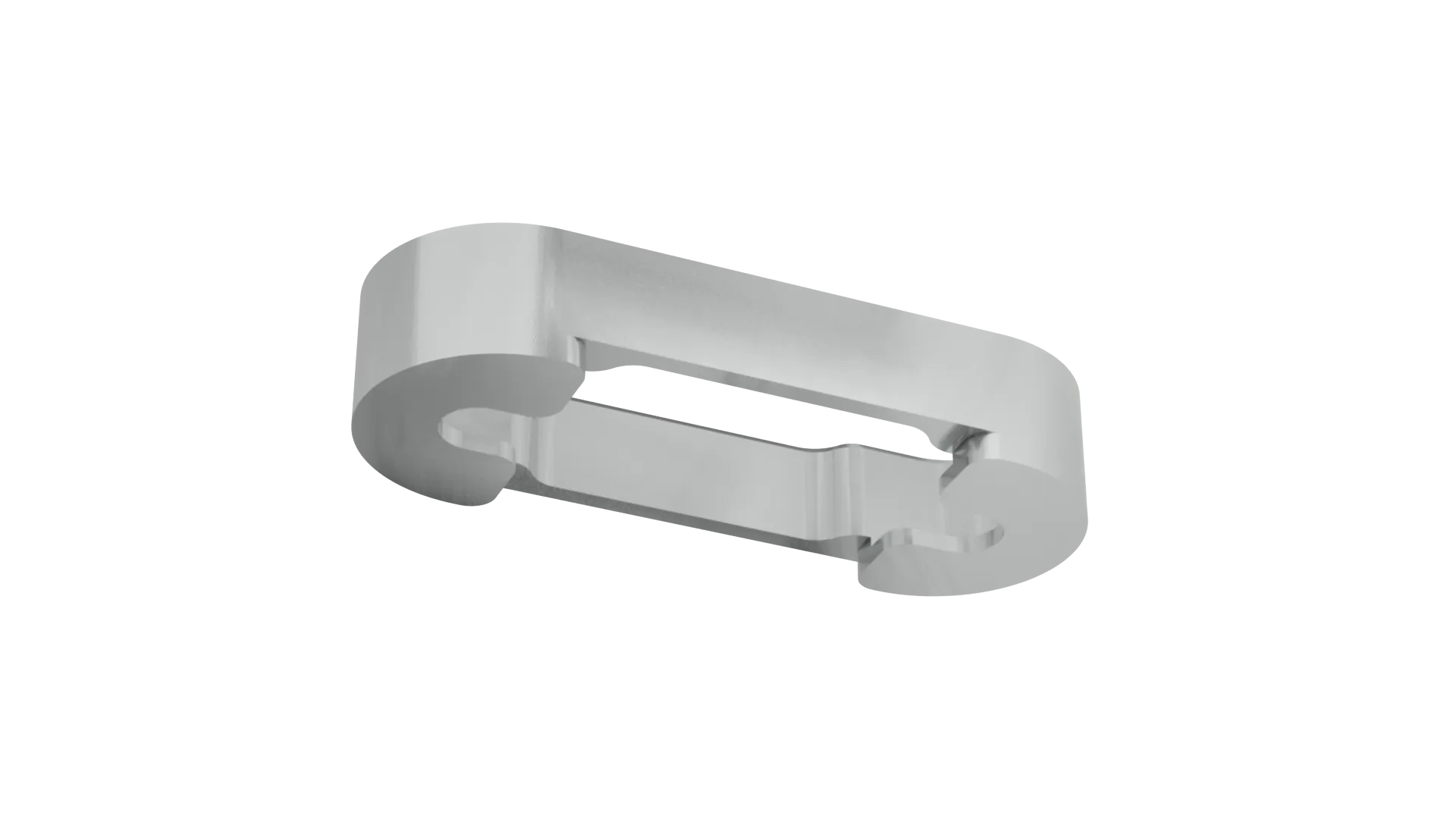

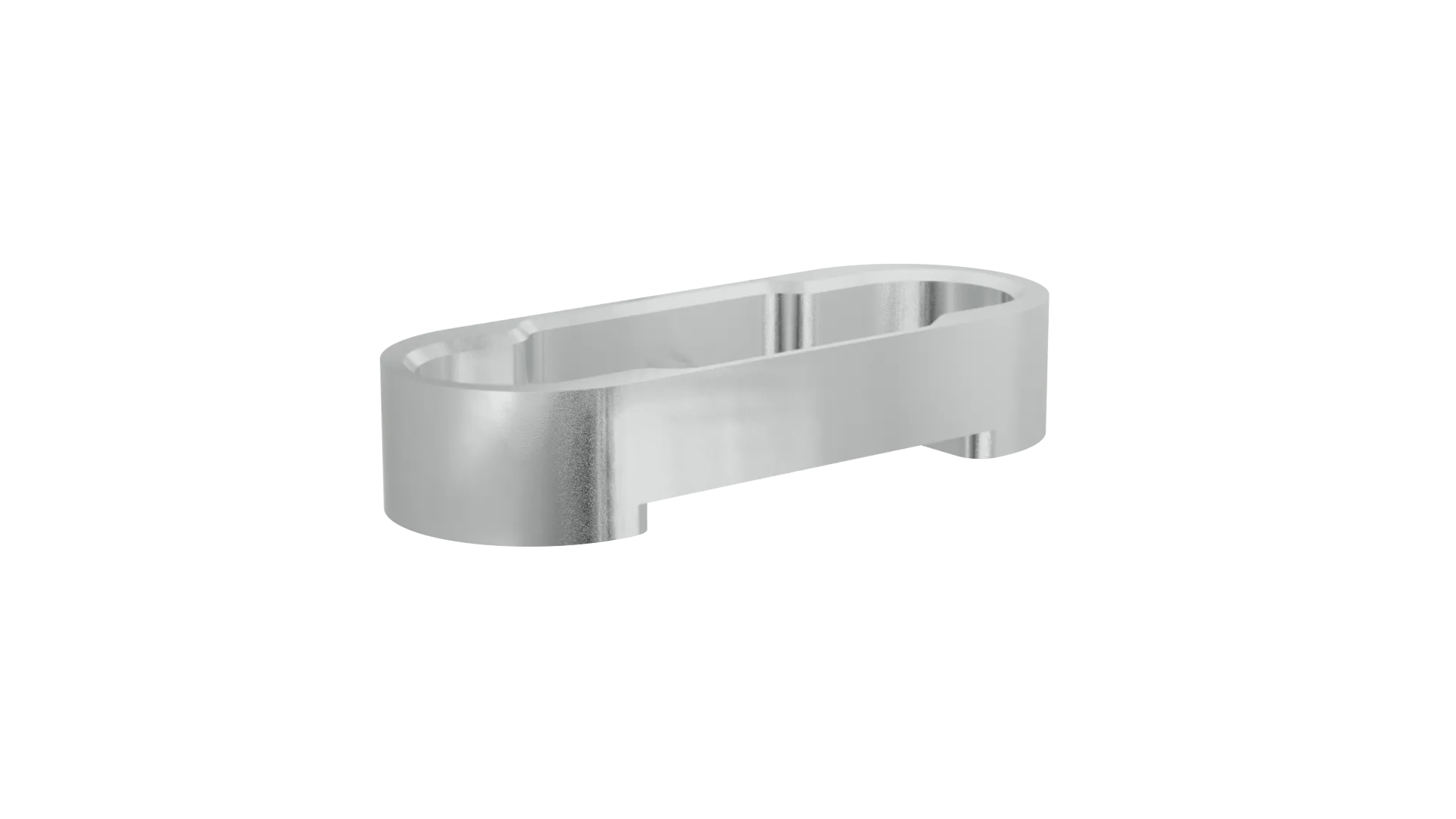

G125-9601202

6+6 Pos. Panel Mount Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell item for use with panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.
  • Use with the following 12-contact connectors or housings: male cable panel mount G125-3241296M2, male PCB connector G125-MV11205M2P, female cable panel mount G125-2241296F3 or female PCB connector G125-FV11205F3P .
  • If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Straight

Connection Type:

Panel Mount or Board Mount

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.559g

Overall Dimensions (L x W x D) in mm:

20.65 x 8.00 x 3.95

Height of Connector above PCB:

3.95mm

Availability

2,486 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 20
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 16
Distributor Farnell
Location Europe
Quantity (Updated Daily) 5
Distributor Newark
Location USA
Quantity (Updated Daily) 5

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 2440

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-960.pdf

ZIP

G125-9601202 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for G125-960XX02 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko-SL PCB & Panel Mount Metal Backshell

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-SL Metal Backshells

PDF

Product Summary - Gecko-SL High-Reliability Connectors

PDF

Plating thickness on Gecko contacts (signal and power)
