Home > G125-9601002
Active Product

G125-9601002

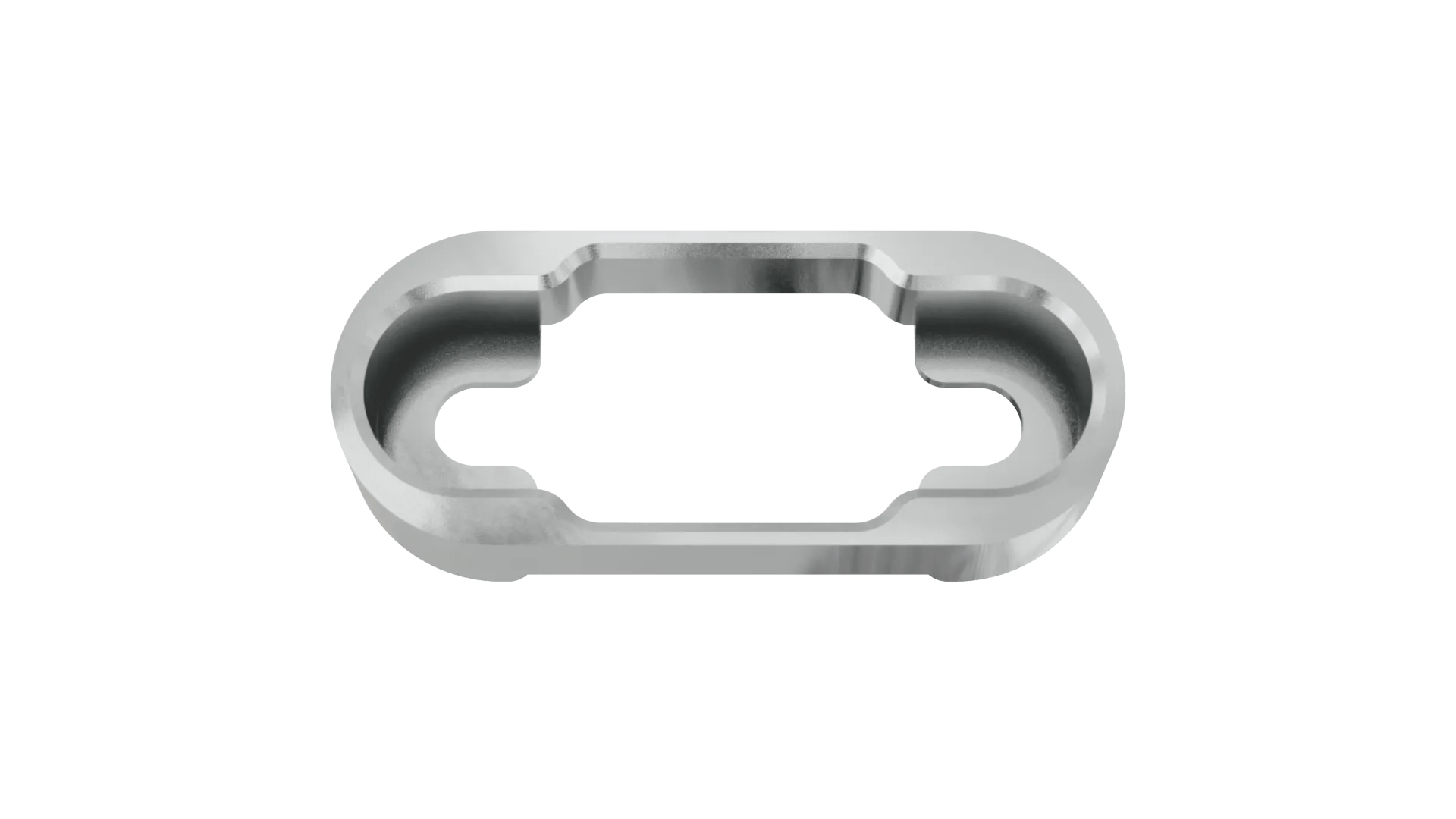

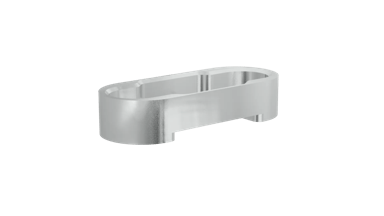

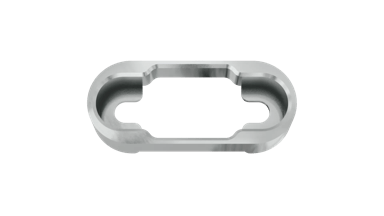

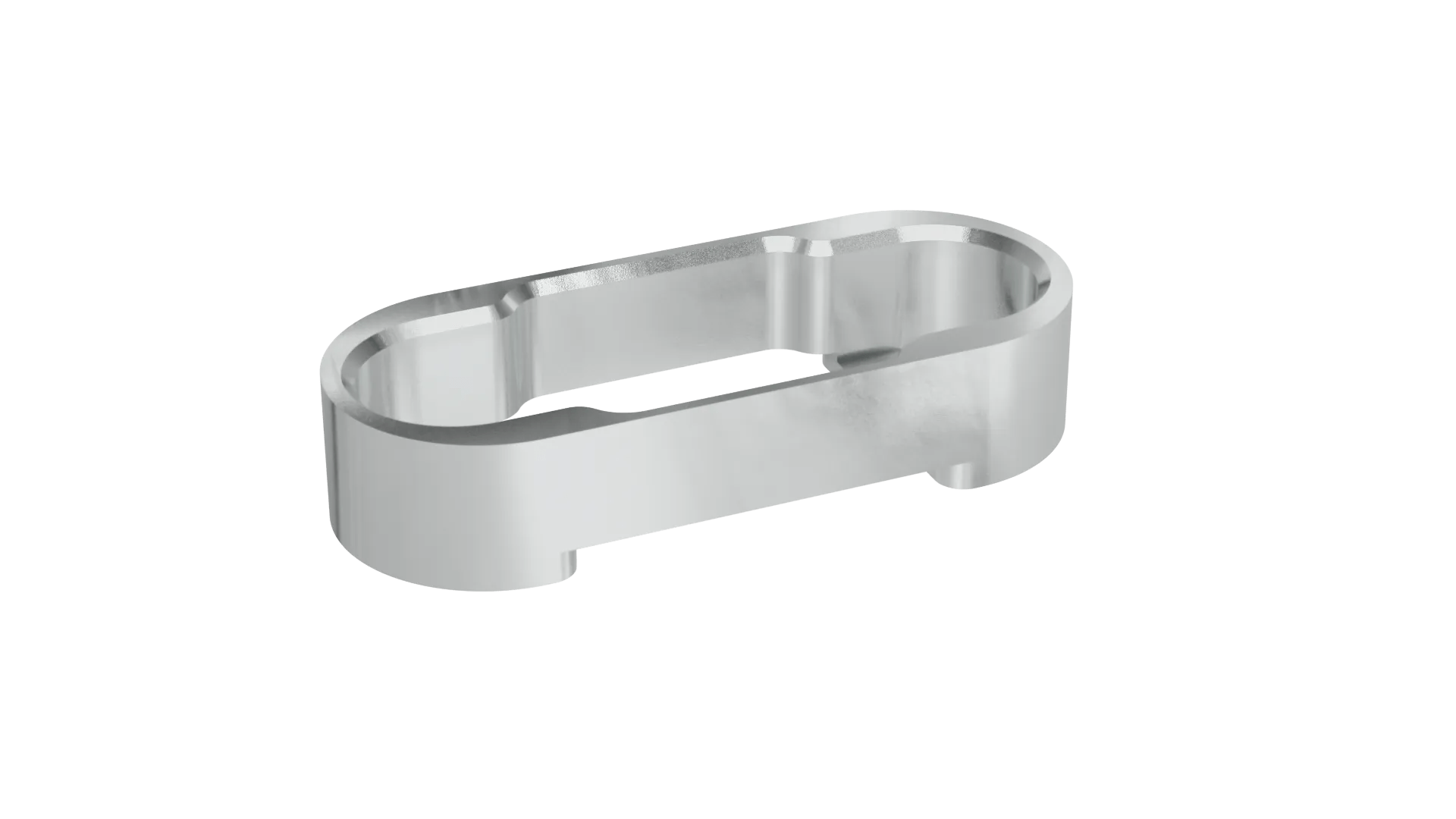

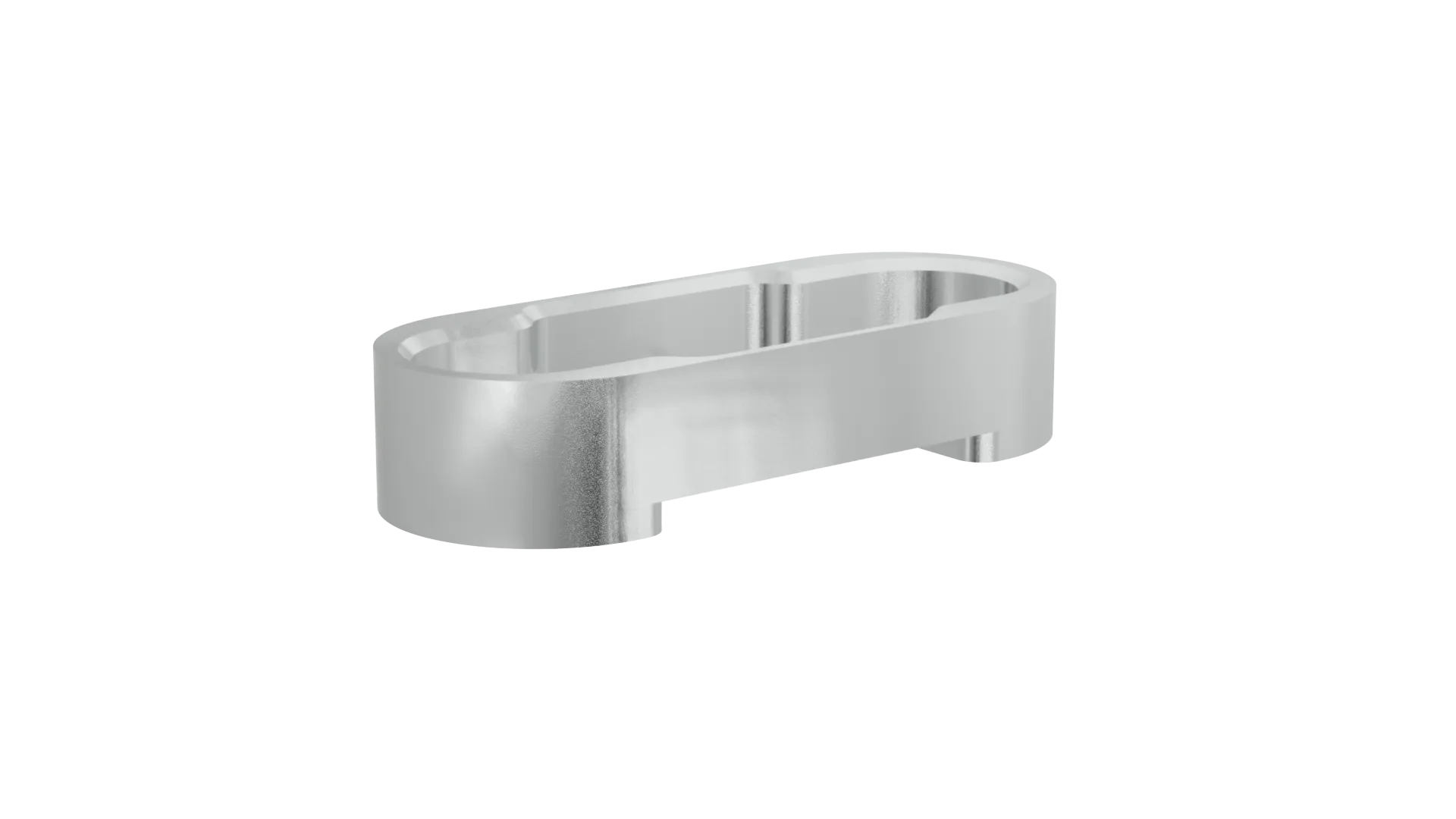

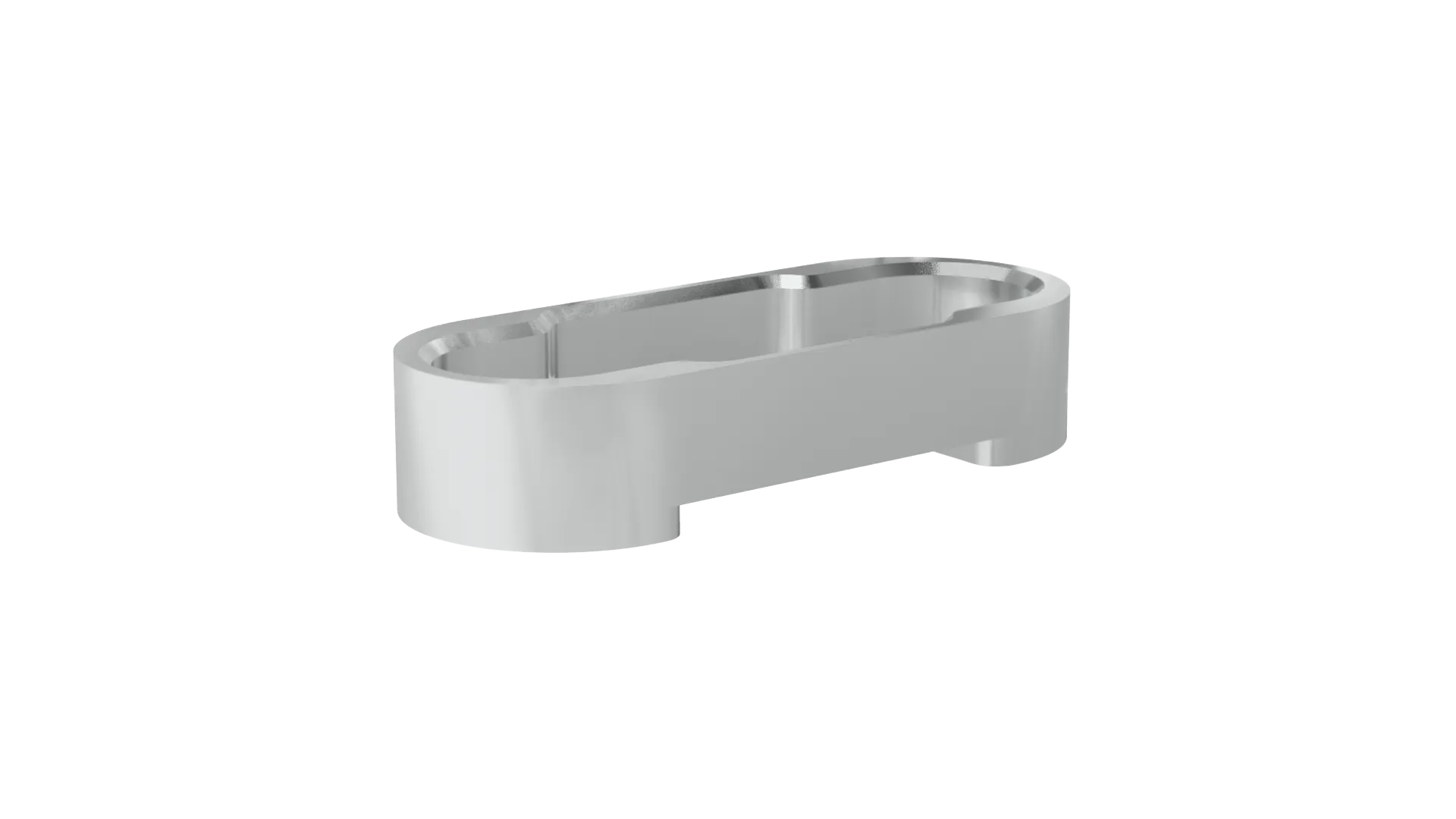

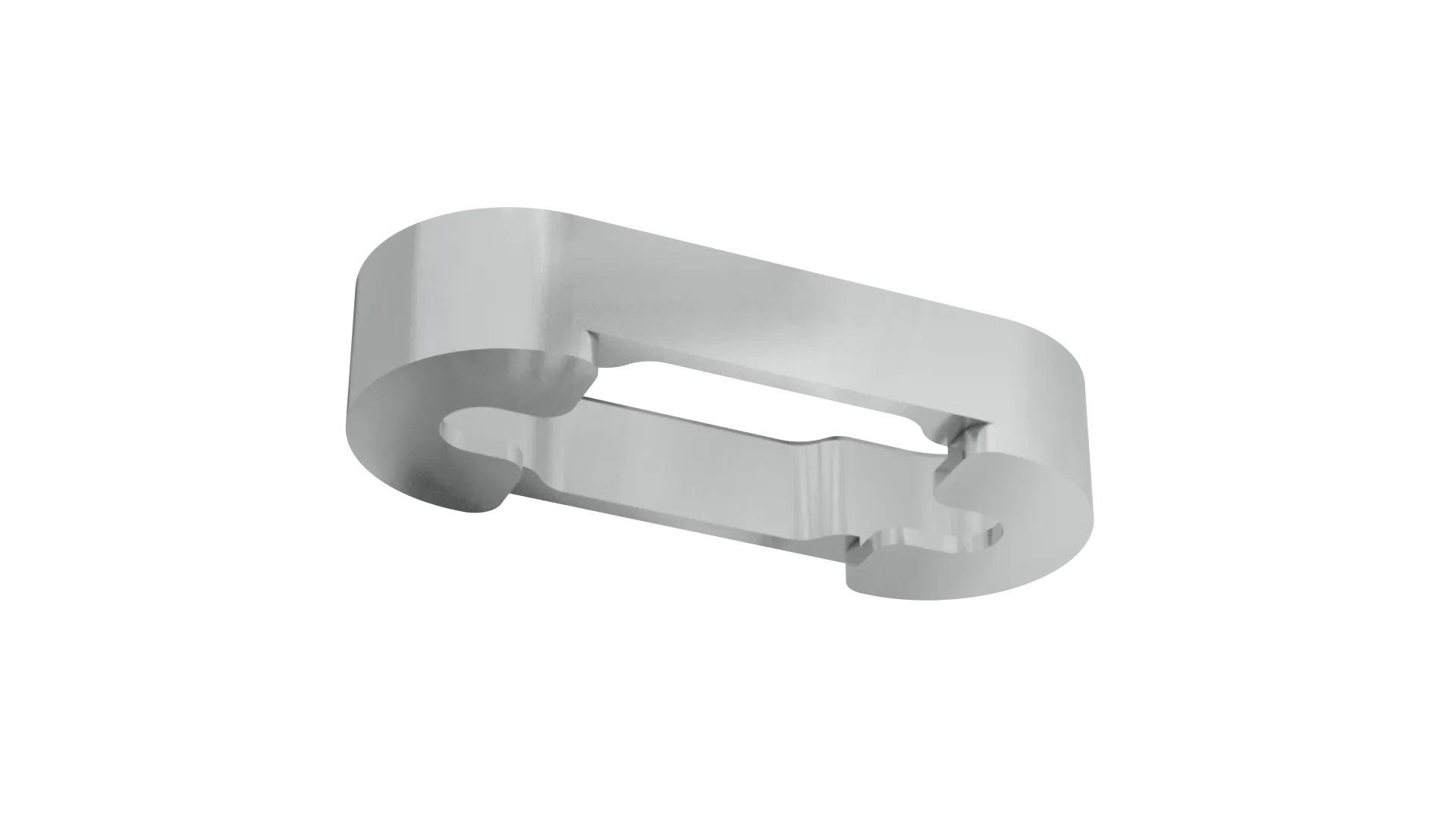

5+5 Pos. Panel Mount Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Loading…   Check availability

4 similar products View products

Traceparts account required

Product Description

  • Metal Backshell item for use with front panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.
  • Use with the following 10-contact connectors or housings: male cable front panel mount G125-3241096M2, male PCB connector G125-MV11005M2P, female cable front panel mount G125-2241096F3 or female PCB connector G125-FV11005F3P .
  • If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Vertical

Connection Type:

Front Panel Mount or Board Mount

Operating Temperature:

-65°C to +150°C

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.542g

Overall Dimensions (L x W x D) in mm:

19.40 x 8.00 x 3.95

Height of Connector above PCB:

3.95mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
