G125-4520000B

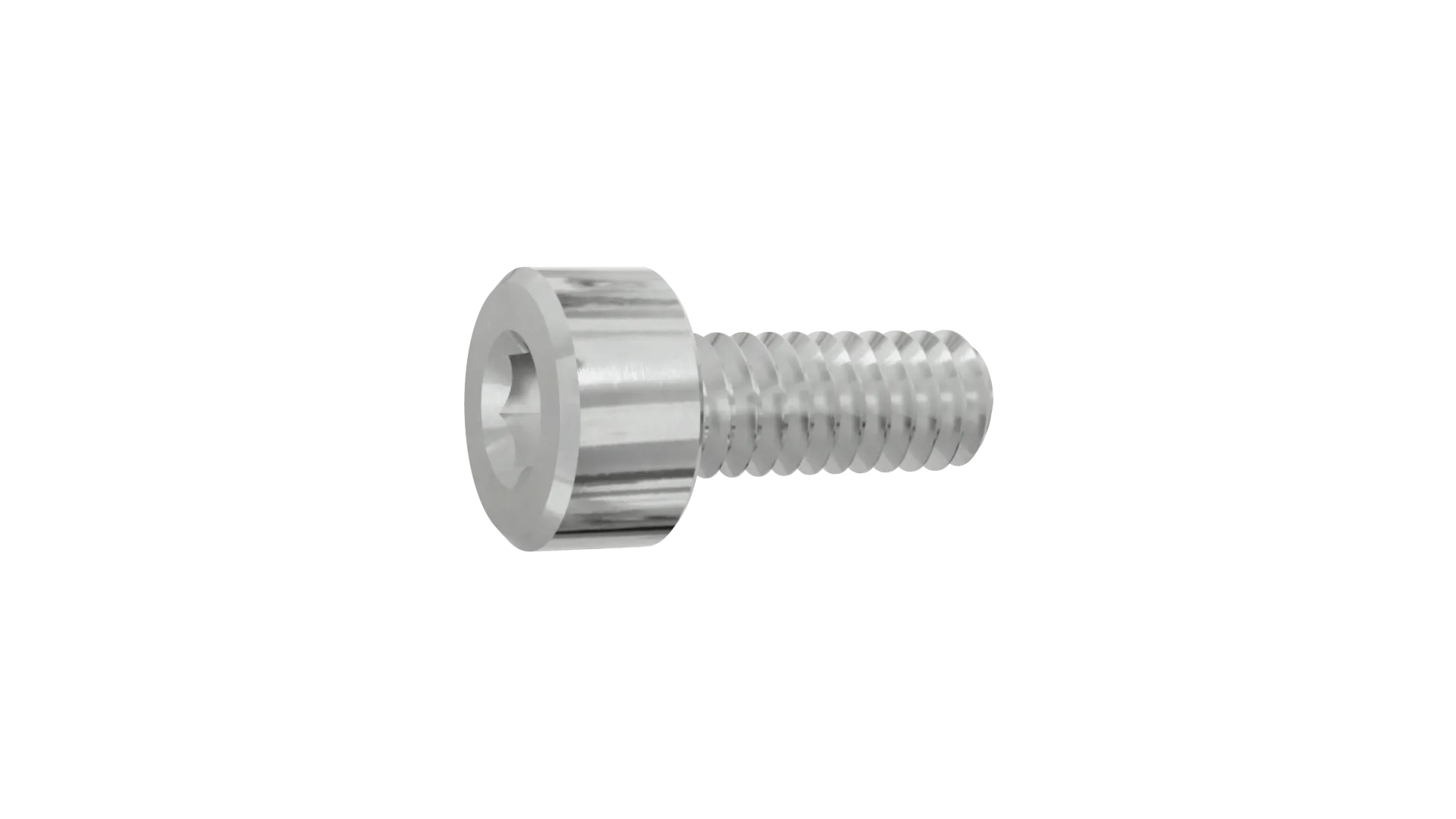

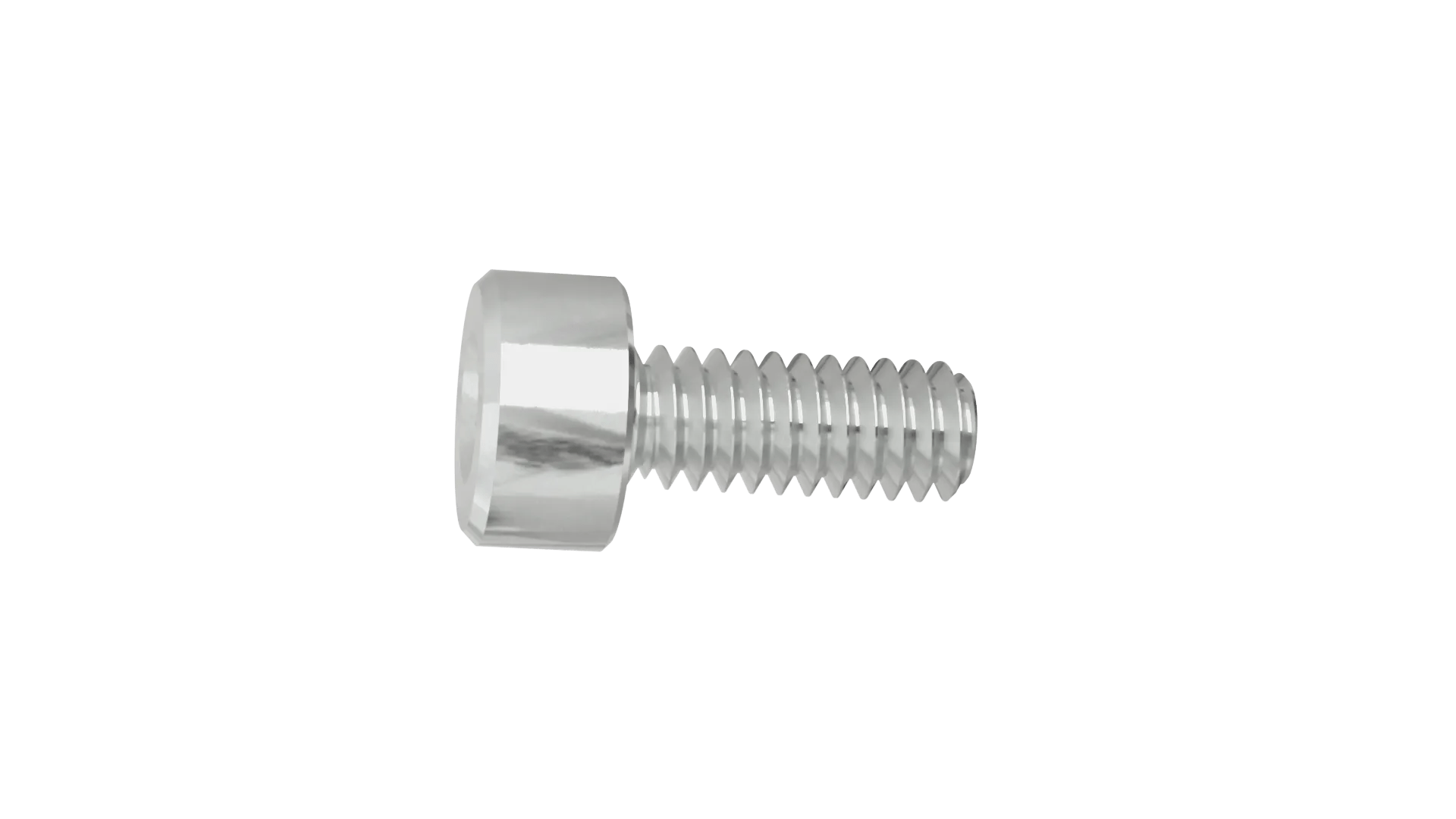

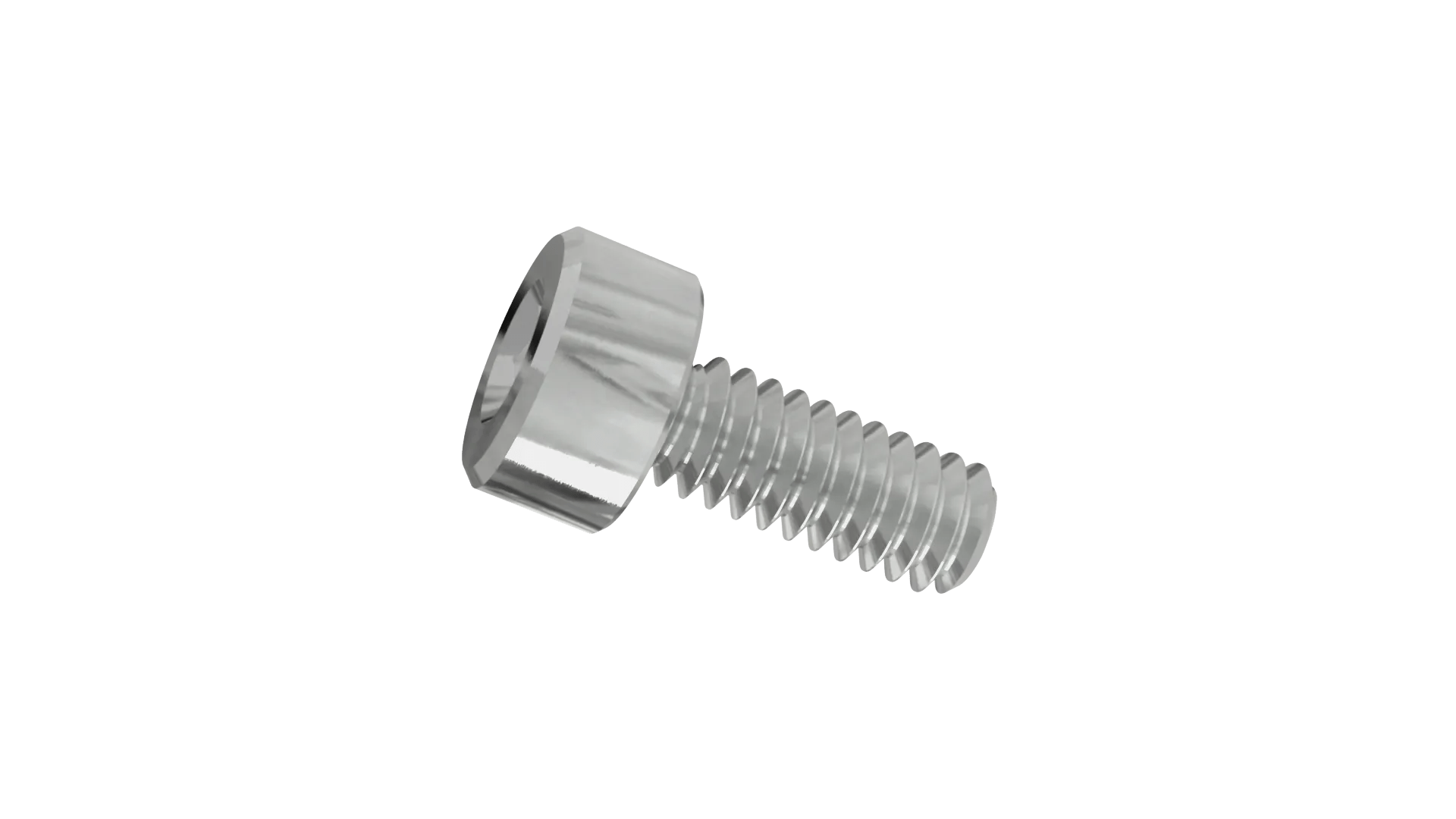

Panel Mount or Board Mount Screw-Lok Bolt

1.25mm Pitch High-Reliability Connector - Gecko

  • Hex Socket 5mm long Jackscrew bolt, to use with threaded screw-loks for board-mount strain relief.
  • Use with Male Gecko-MT connectors.
  • M2 threaded, 1.5mm A/F hex socket. See Component Specification C125xx for Torque recommendations.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.25g

Overall Dimensions (L x W x D) in mm:

7.00 x Ø3.80

Male Stud Length:

5.00mm

Thread Size:

M2

Availability

1,832 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 79
Distributor Newark
Location USA
Quantity (Updated Daily) 64
Distributor Farnell
Location Europe
Quantity (Updated Daily) 36
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 12

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 1641

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-4520000B.pdf

ZIP

G125-4520000B CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for G125-4520000B product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power

OTHER DOWNLOADS

PDF

Catalog page - Gecko-MT Male Horizontal Throughboard

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-MT High-Reliability Connectors
