Home > G125-32496M5-03-08-00
Active Product

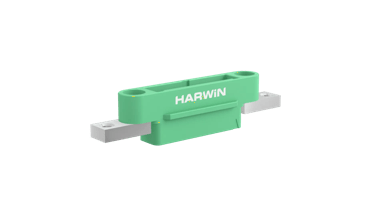

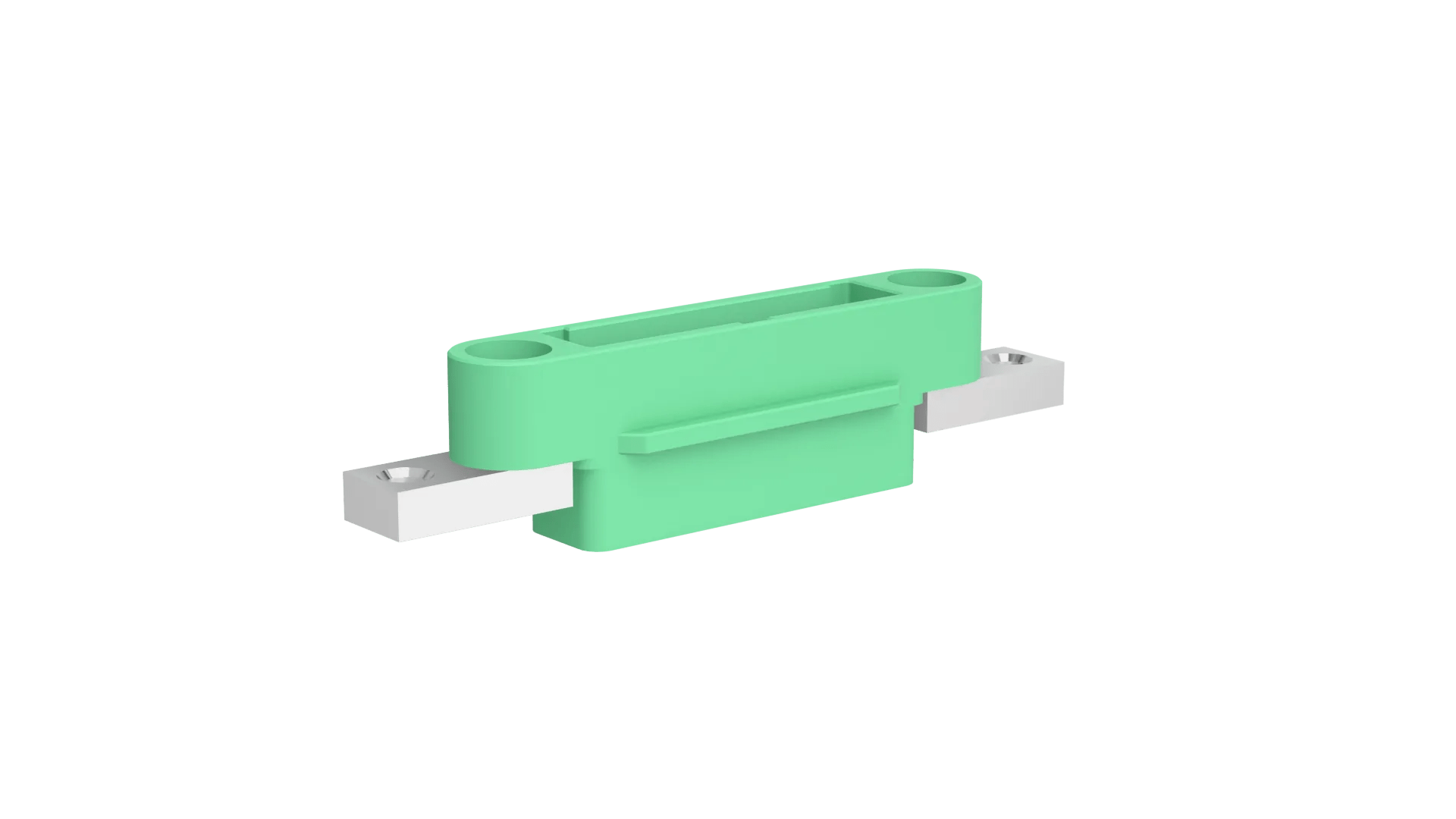

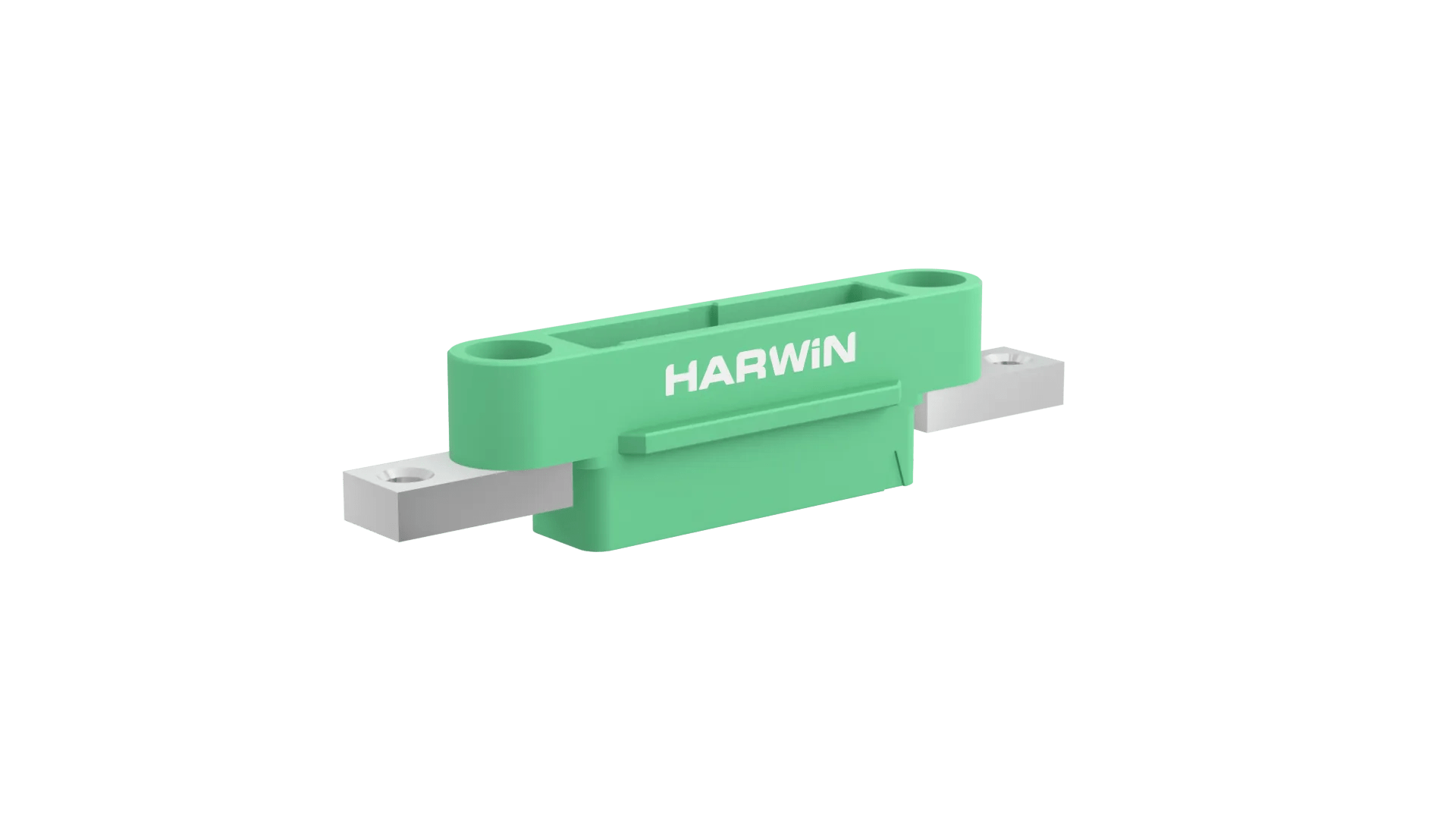

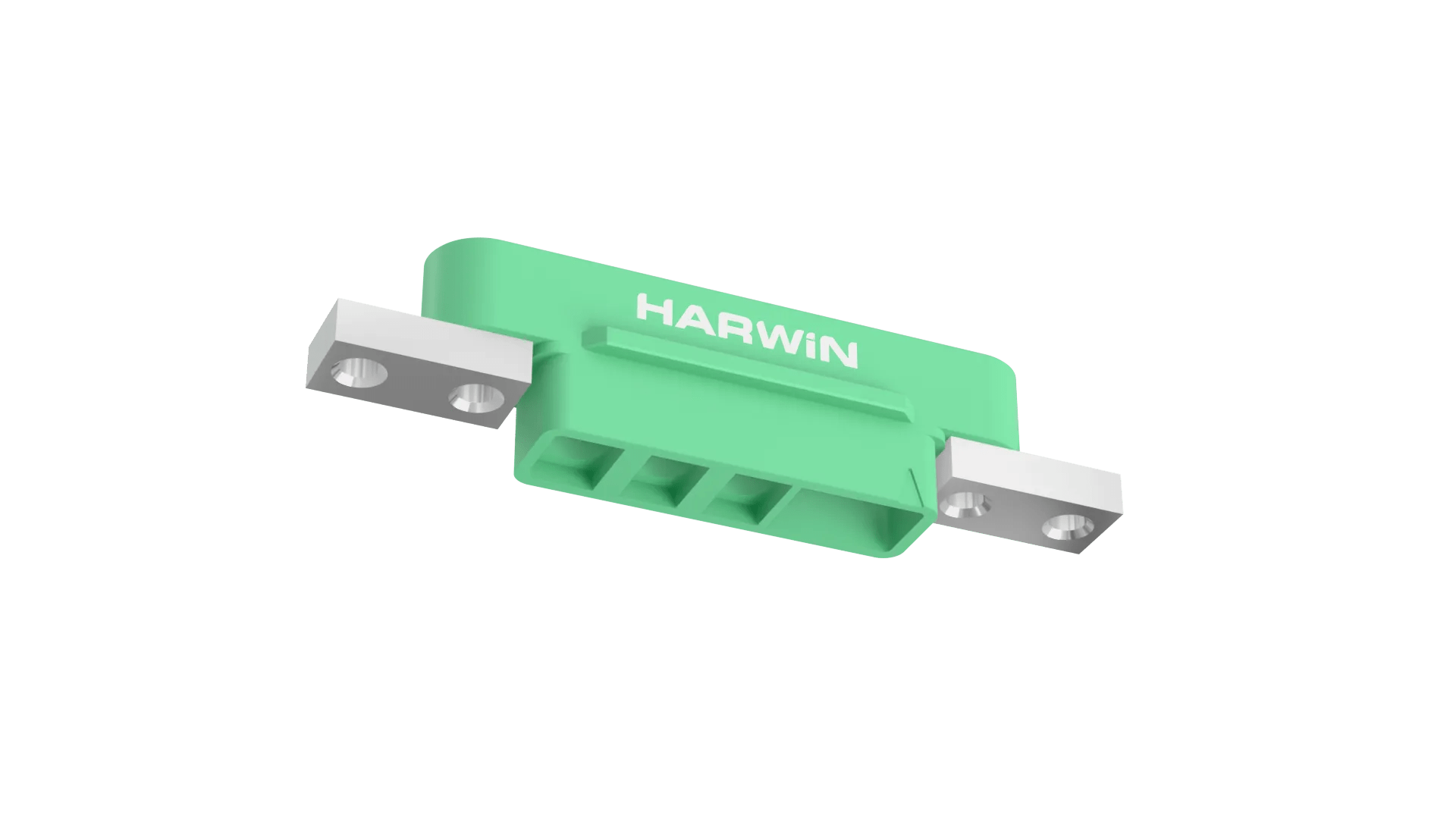

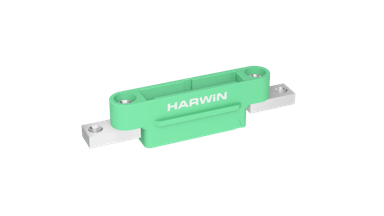

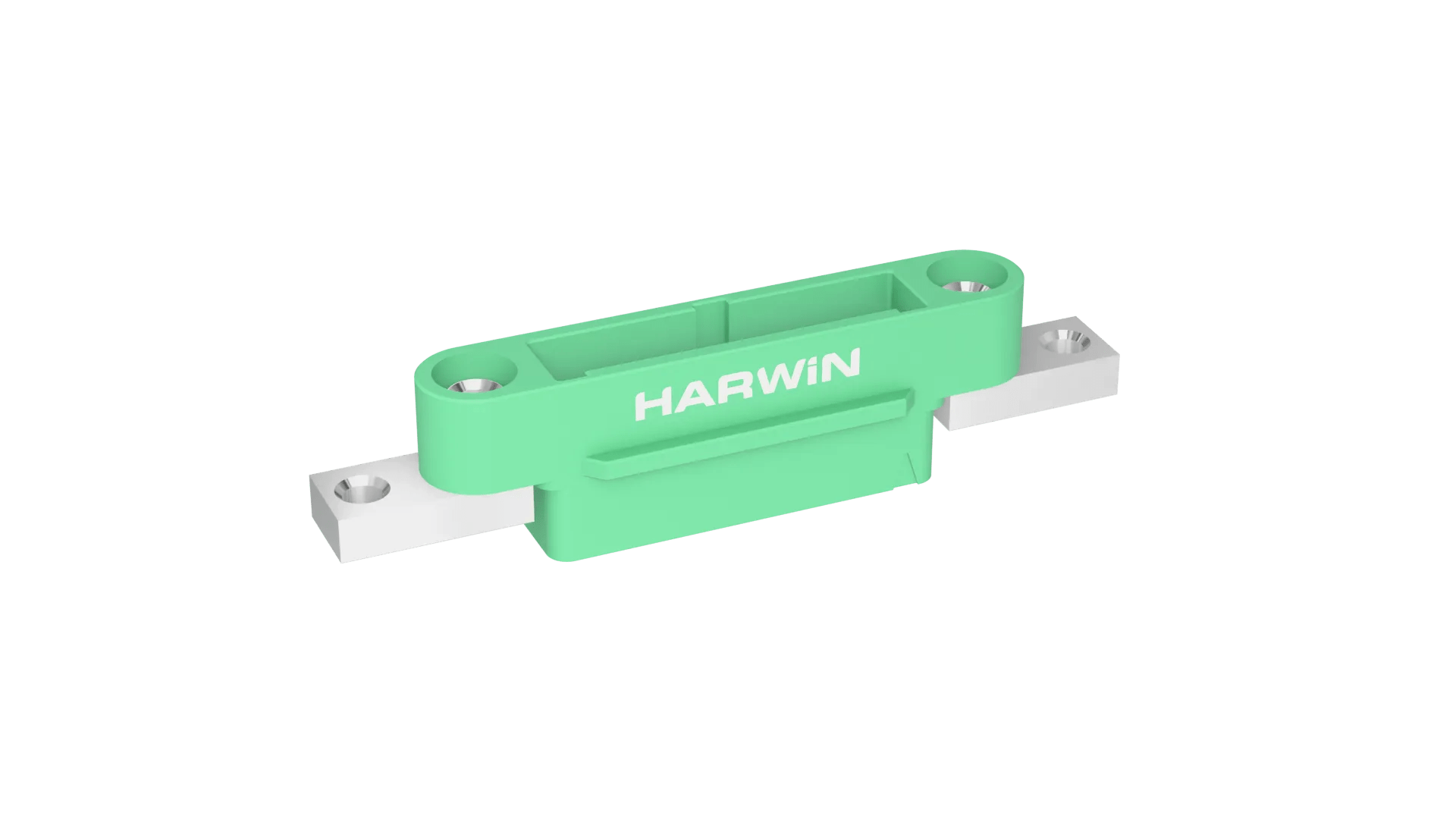

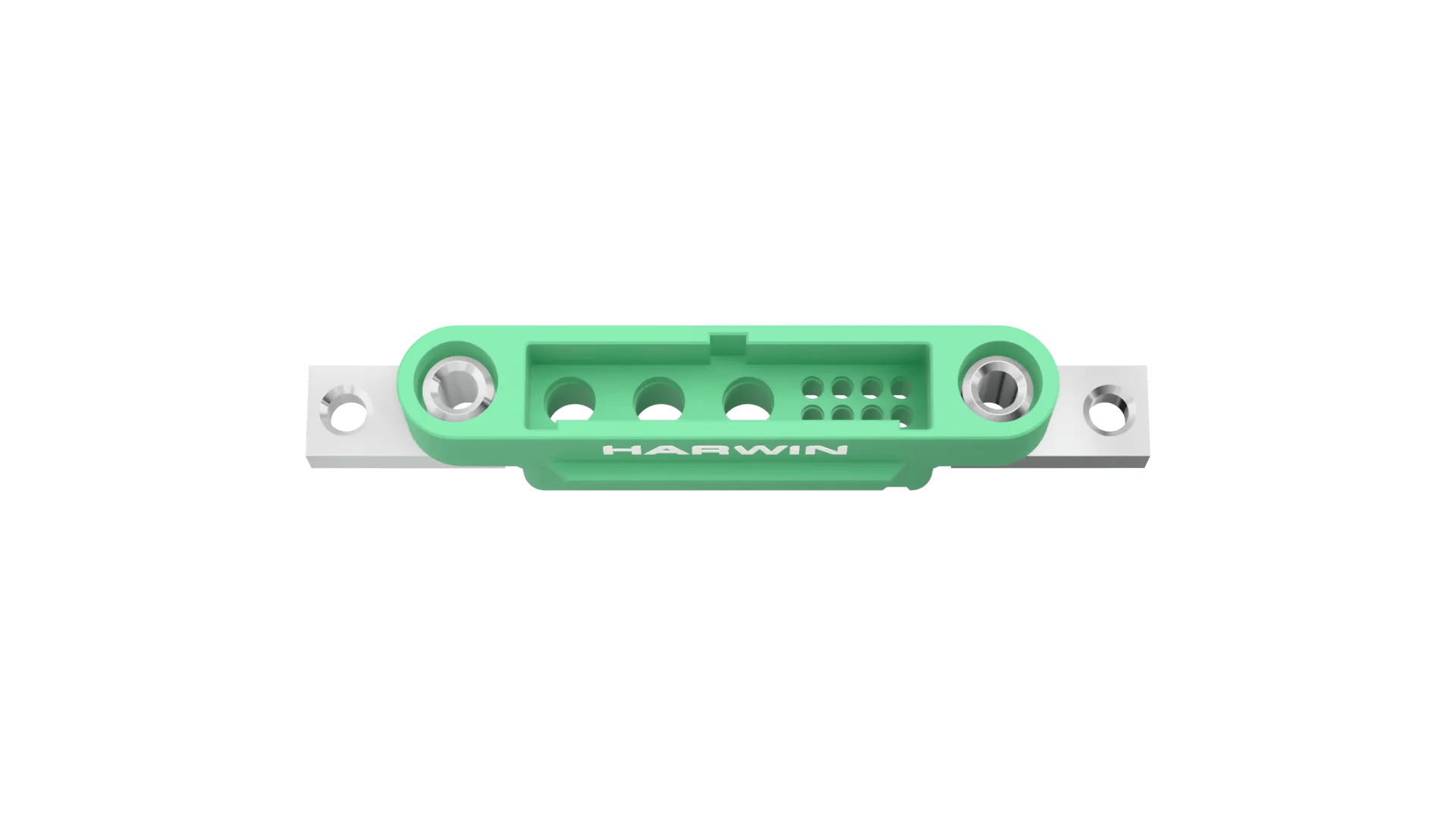

G125-32496M5-03-08-00

8+3 Pos. Male Cable Housing, Screw-Lok Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko-MT

Add to Favorites

60 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Male Cable Connector Housing – 3 power, 8 signal contact arrangement. Fitted with internally threaded Screw-Lok fixings with extended lugs for rear panel mount. Use hex socket bolt G125-4520000B for mounting to panels up to 3mm thickness.
  • Use with signal crimp contacts G125-1010005 (for 26 AWG) or G125-1020005 (for 28-32 AWG), and power crimp contacts G125-1500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-MW; for power, see G125-MP.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Internal Thread Screw-Lok with Rear Panel Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

3

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.852g

Overall Dimensions (L x W x D) in mm:

27.30 x 6.50 x 8.40

Thread Size:

M2

Frequently Asked Questions Ask a Question

Does the female crimp contact G125-0010005 (26 AWG) mate with male contact G125-1020005 (28-32 AWG)?

Yes, you can mate together the two different cable size contacts. Both male contacts and both female contacts have the same front half of the contact for mating compatibility. It is only the bore at the rear of the contact, where the wire is inserted, that is different for the 26 AWG and 28-32 AWG types. So both female contacts G125-0010005 and G125-002005 mate with both male contacts G125-1010005 and G125-1020005.

Was this answer useful?

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount bolts – you will need to order them separately. The part number is G125-4520000B for a 5mm hex socket bolt.

Was this answer useful?

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

Was this answer useful?

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).

Was this answer useful?
