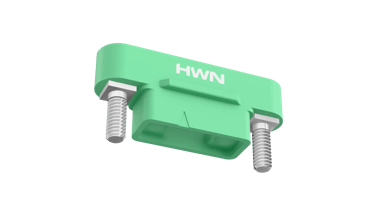

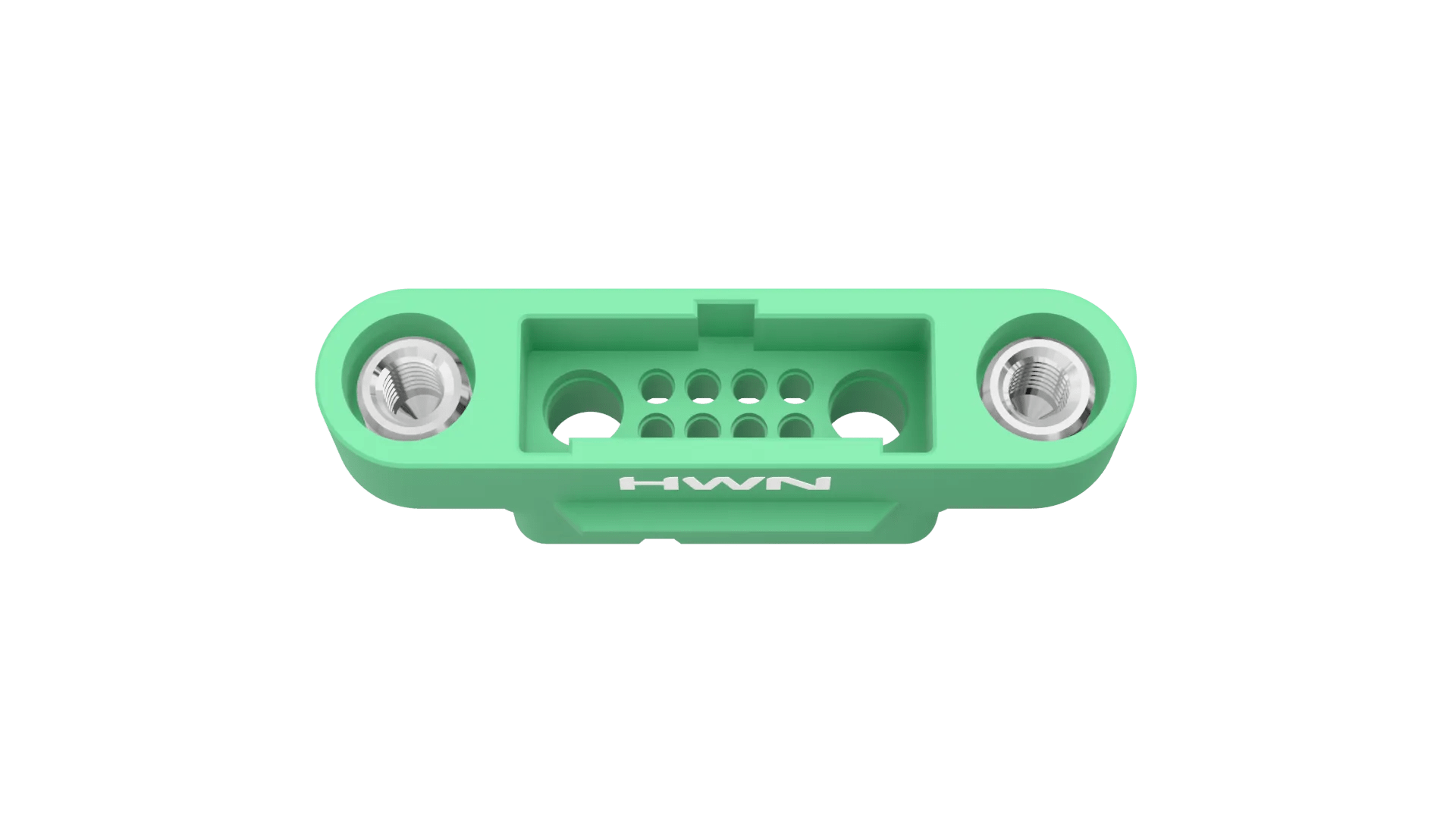

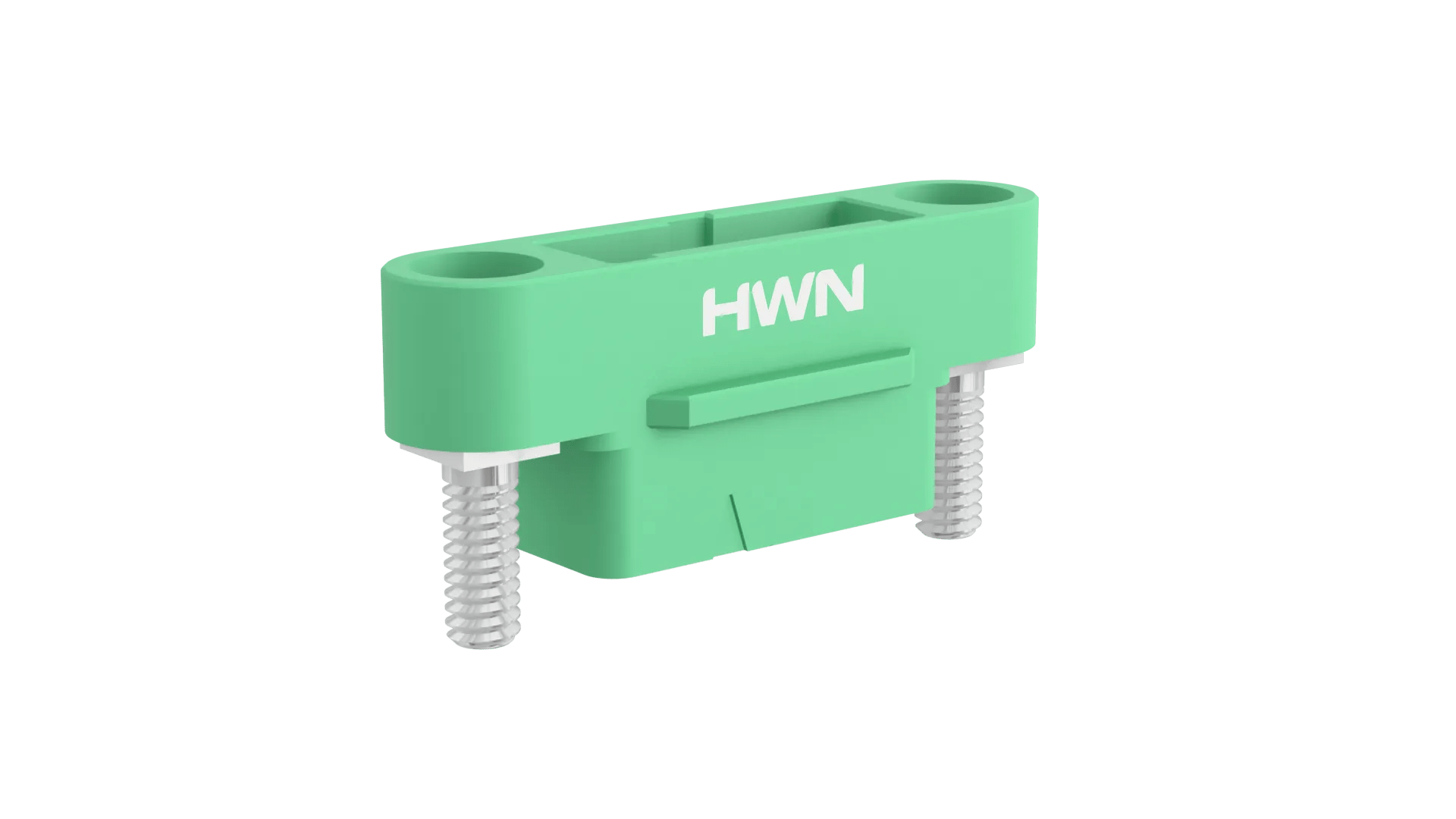

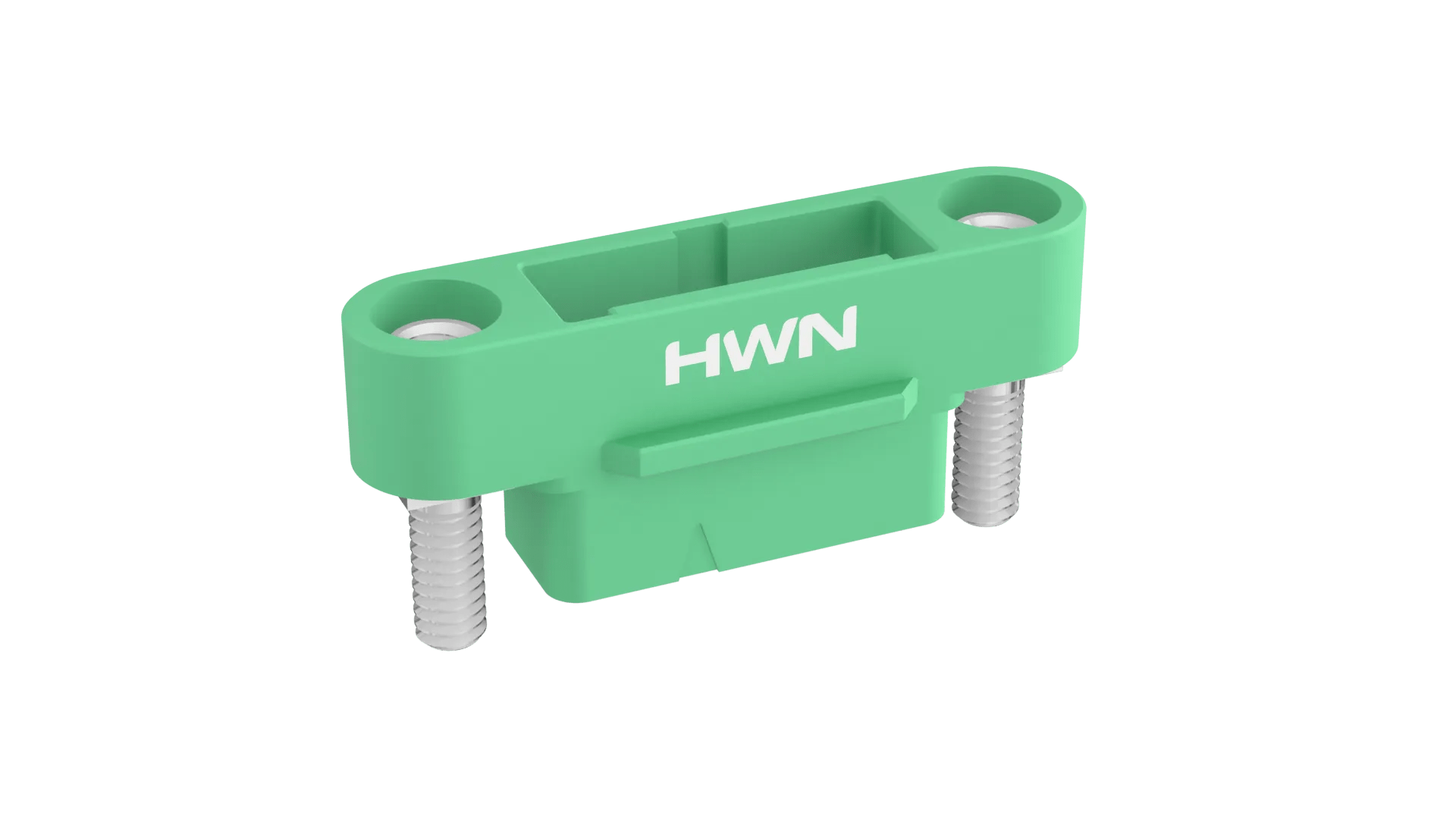

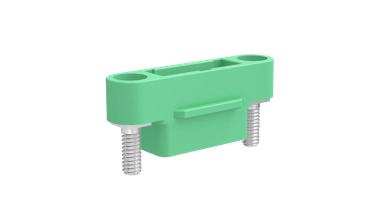

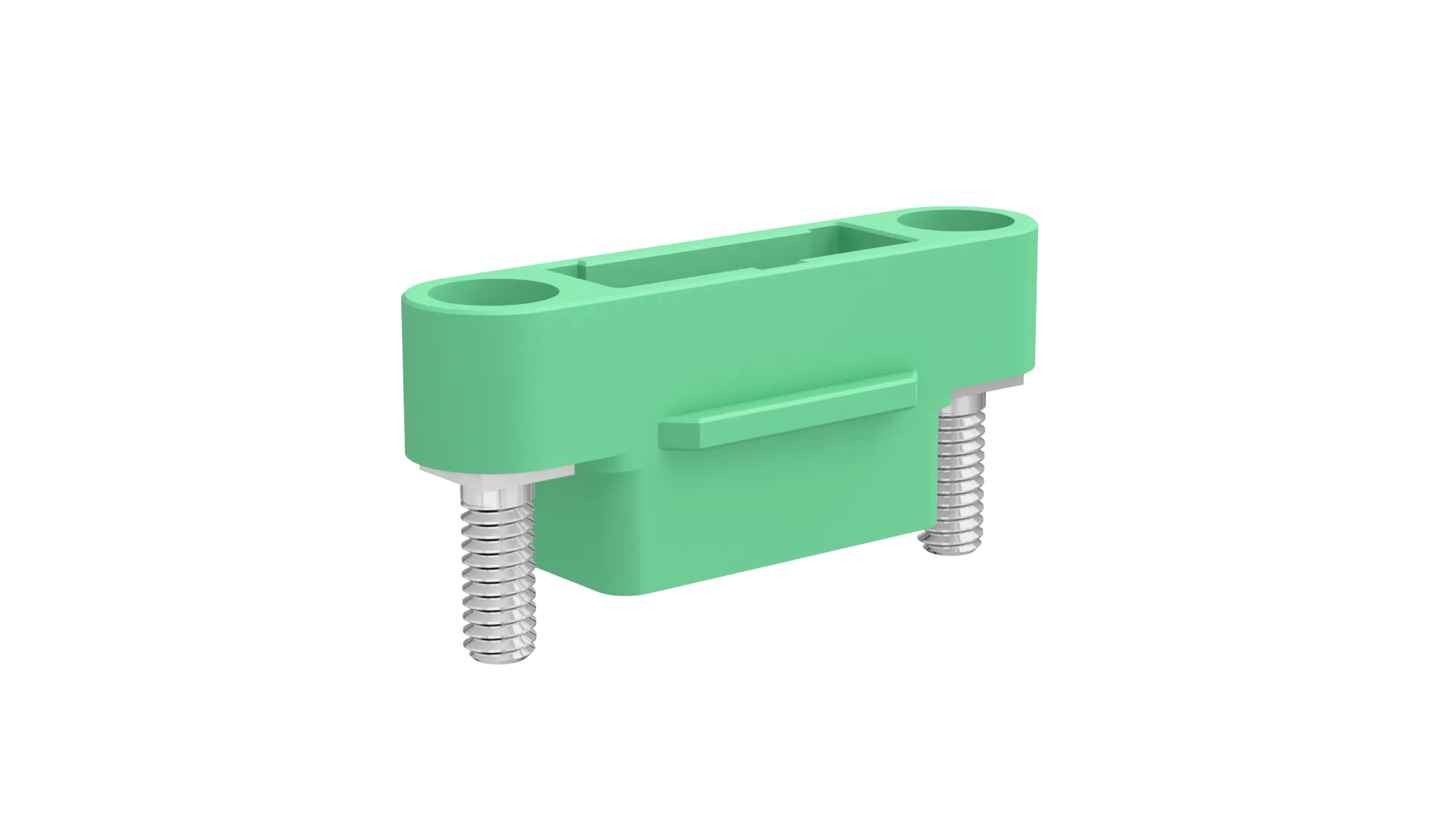

G125-32496M2-01-08-01

8+2 Pos. Male Cable Housing, Screw-Lok Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko-MT

Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Screw-Lok with Panel Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

2

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.116g

Overall Dimensions (L x W x D) in mm:

21.50 x 6.50 x 10.15

Male Stud Length:

5.20mm

Thread Size:

M2

Availability

80 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product

Stock held by Harwin: contact distributor to purchase.

Distributor Location Quantity (Updated Daily)
Distributor Harwin
Location Global
Quantity (Updated Daily) 80

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-32496M2-01-08-01.pdf

ZIP

G125-32496M2-01-08-01 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

PDF

Test Report HT072 - Gecko-MT General (Electrical, Mechanical and Environmental)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

PDF

IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet

PDF

IS-47 - Z125-905 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko-MT Male Cable Housings Panel Mount

PDF

Catalog page - Gecko-MT Specification

PDF

Catalog page - Gecko-MT Pin Numbering, Mating Profiles

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Gecko-MT High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on Gecko contacts (signal and power)
