G125-32496M1-02-08-02

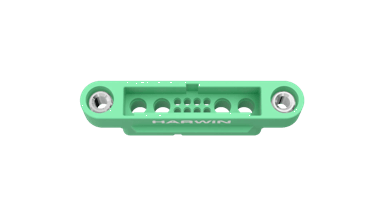

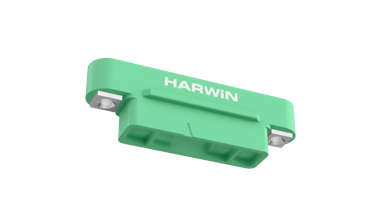

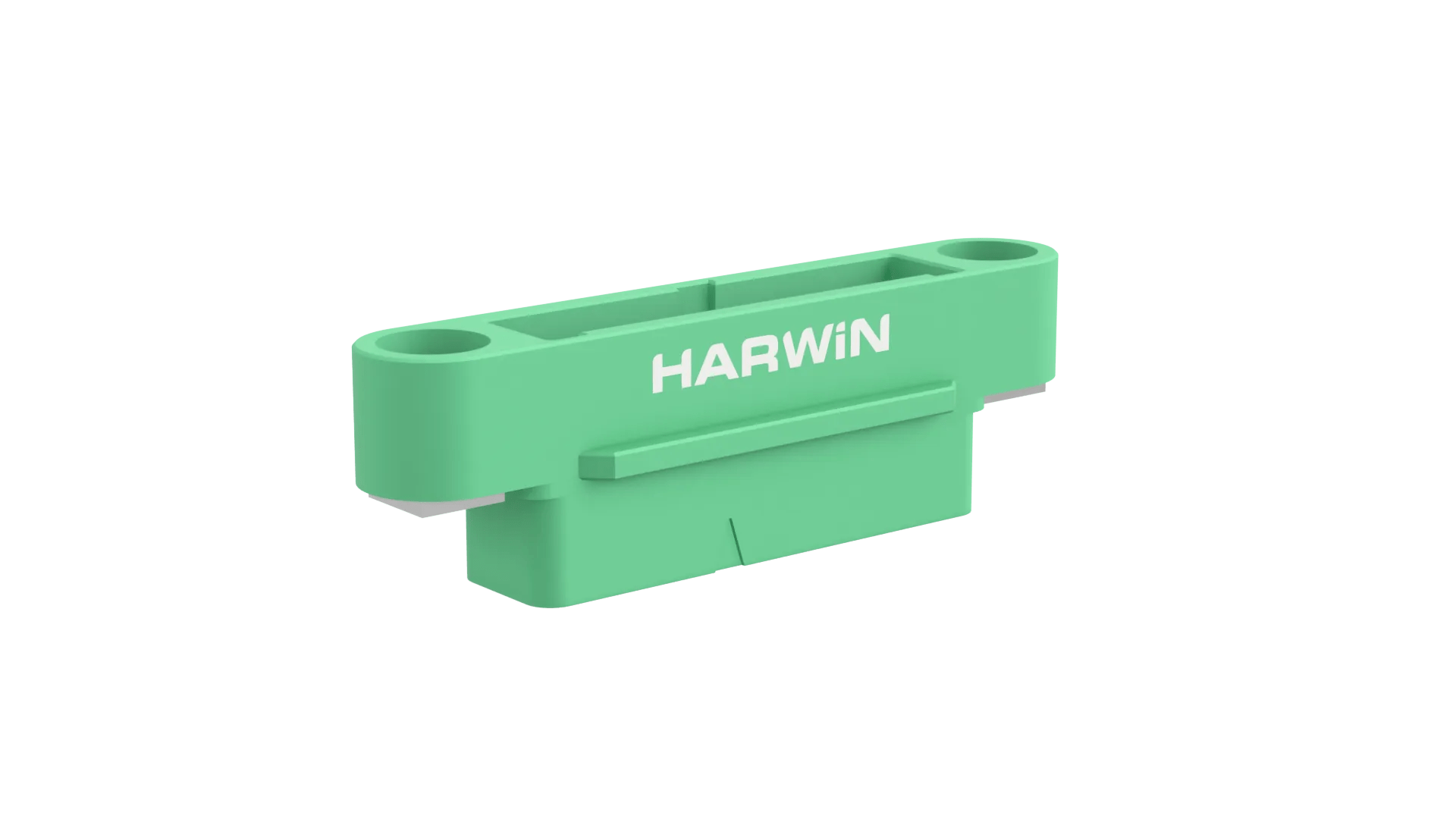

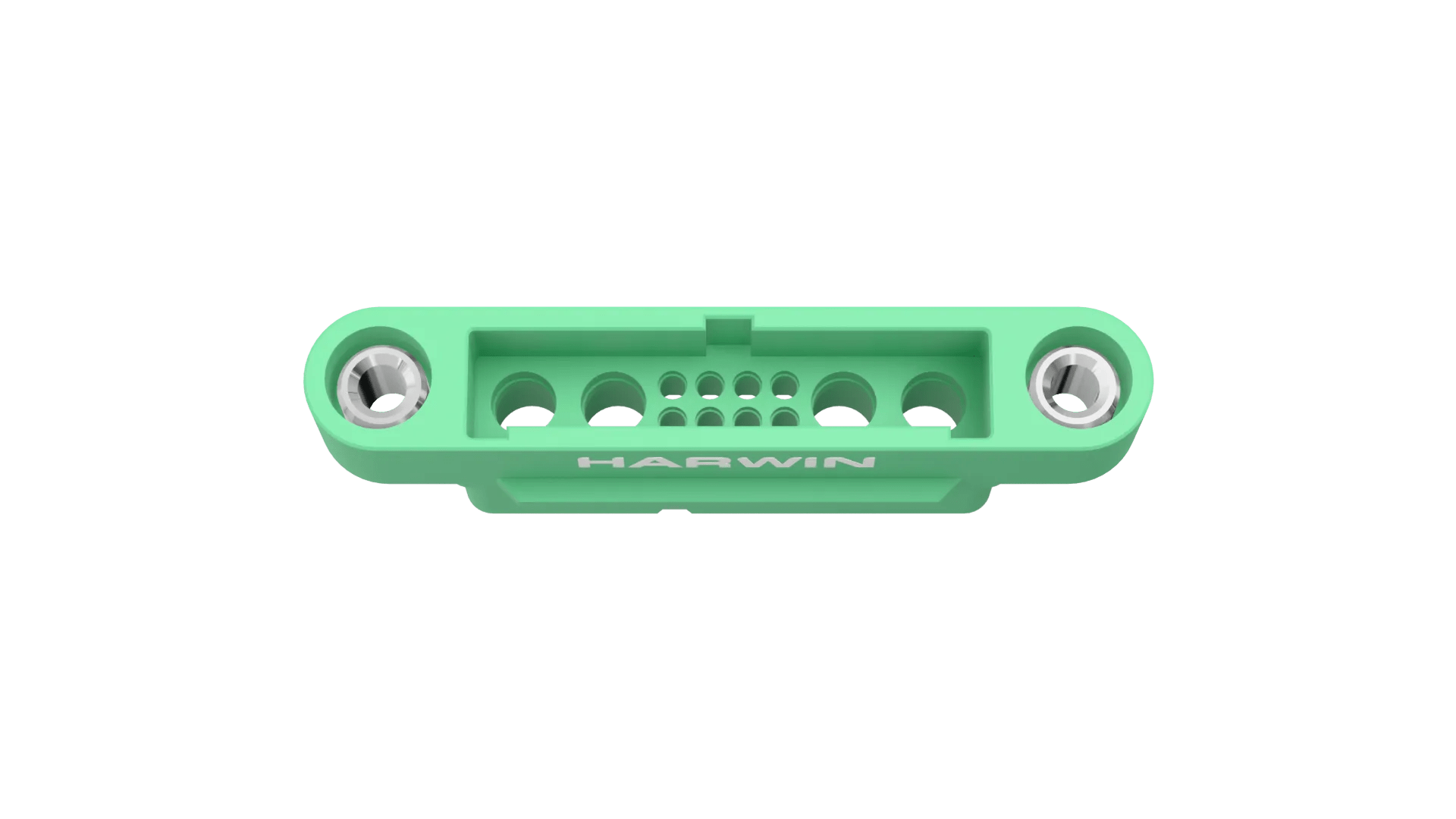

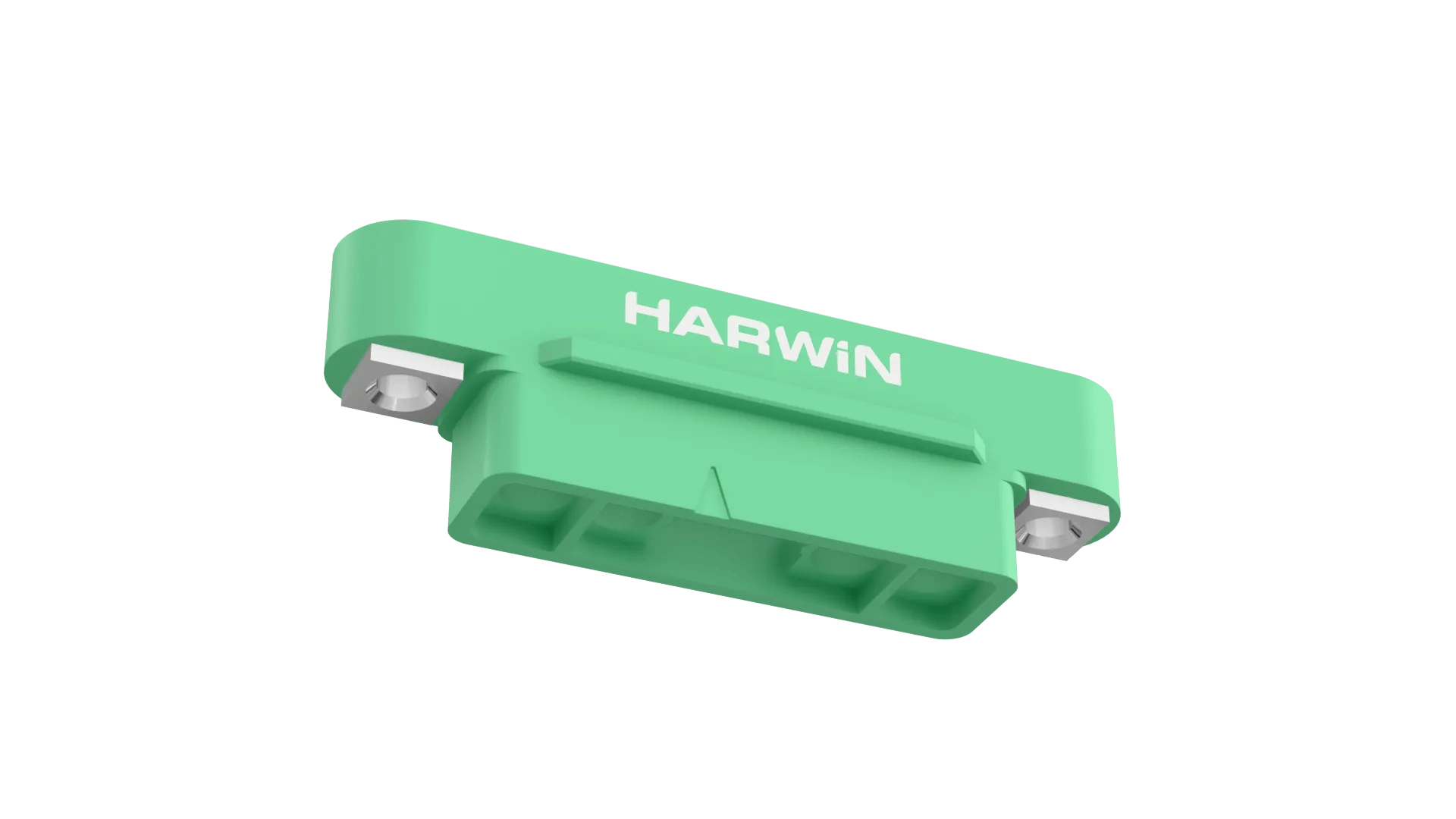

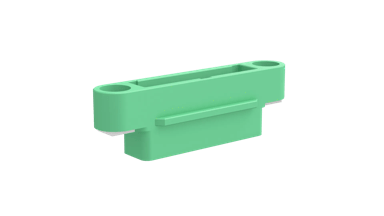

8+4 Pos. Male Cable Housing, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Male Crimp Connector Housing – 2 power, 8 signal, 2 power contact arrangement. Compatible with metal backshell (G125-9642600). Fitted with internally threaded Screw-Lok fixings.
  • Use with signal crimp contacts G125-1010005 (for 26 AWG) or G125-1020005 (for 28-32 AWG), and power crimp contacts G125-1500005 (for 18 AWG).
  • Pre-cabled contacts also available: for signal, see G125-MW; for power, see G125-MP.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

2A (signal), 10A (power)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

4

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.105g

Overall Dimensions (L x W x D) in mm:

27.70 x 6.50 x 8.40

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status48
Farnell
Europe
Status23
Harwin
Global
Status50
Mouser Electronics Inc
Global
Status27
Newark
USA
Status30

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
