G125-3243496M2

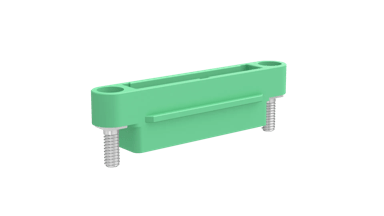

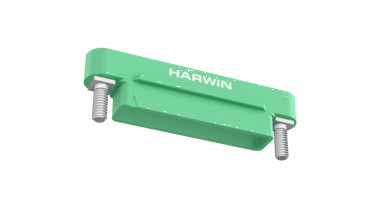

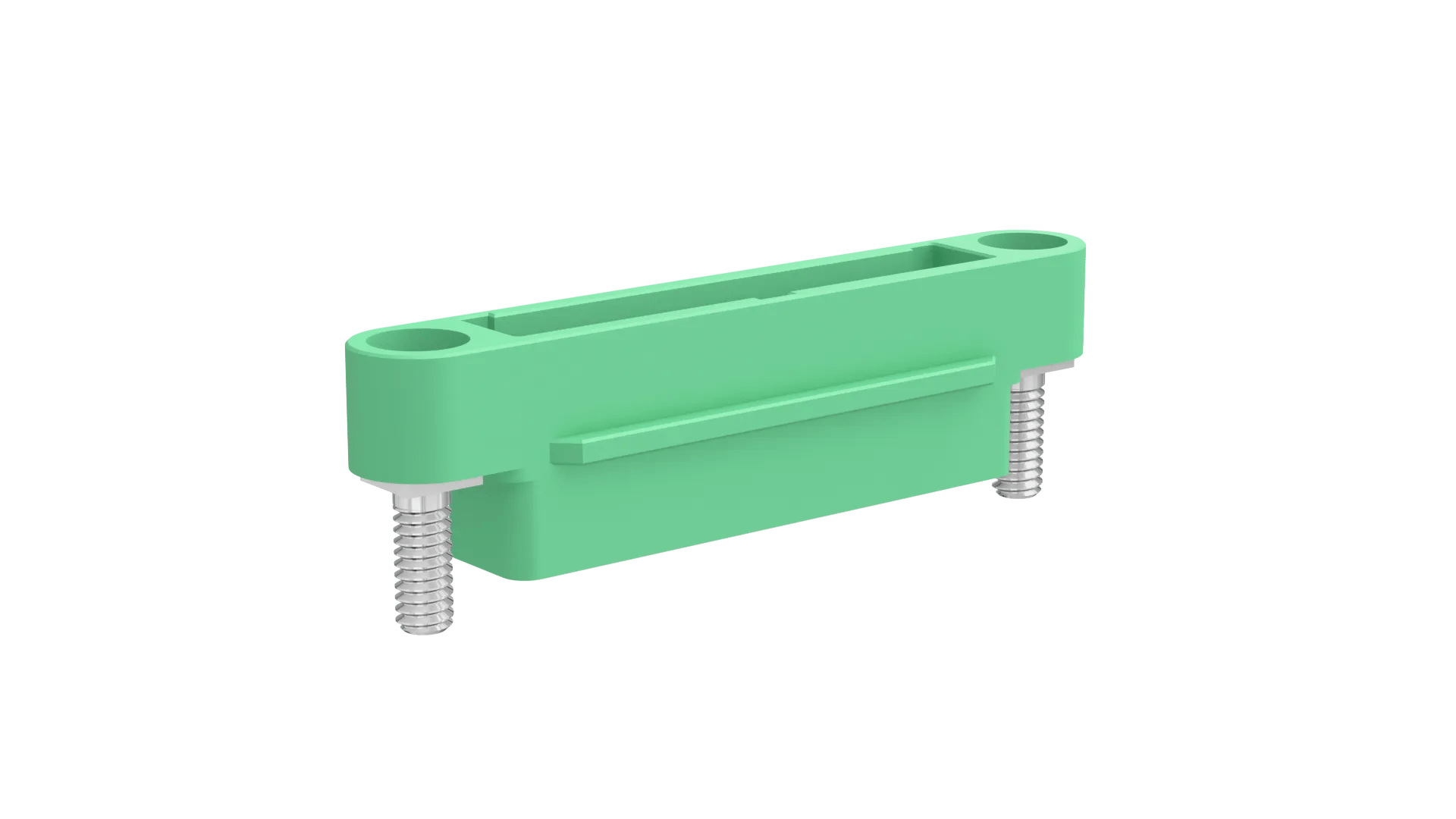

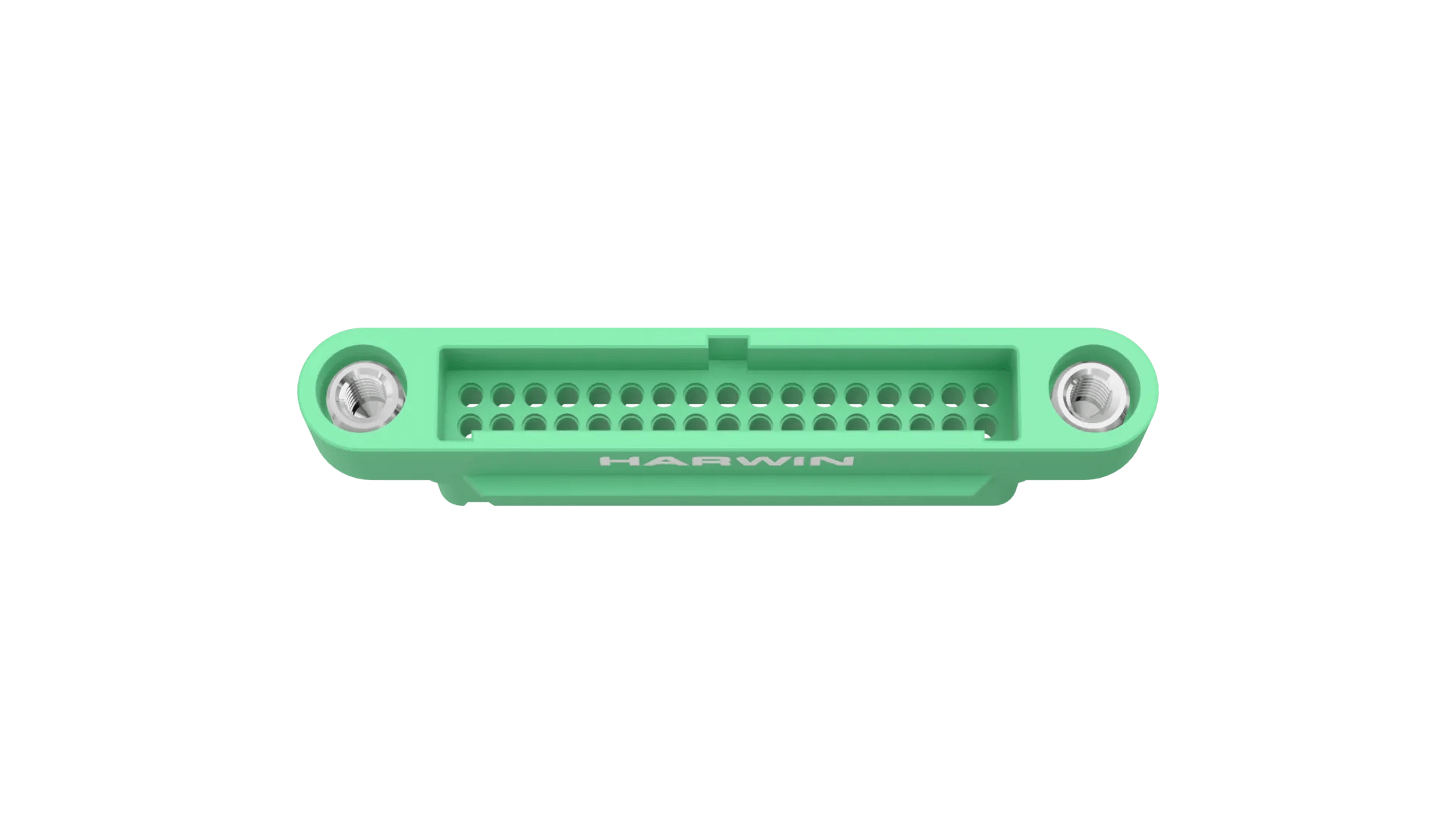

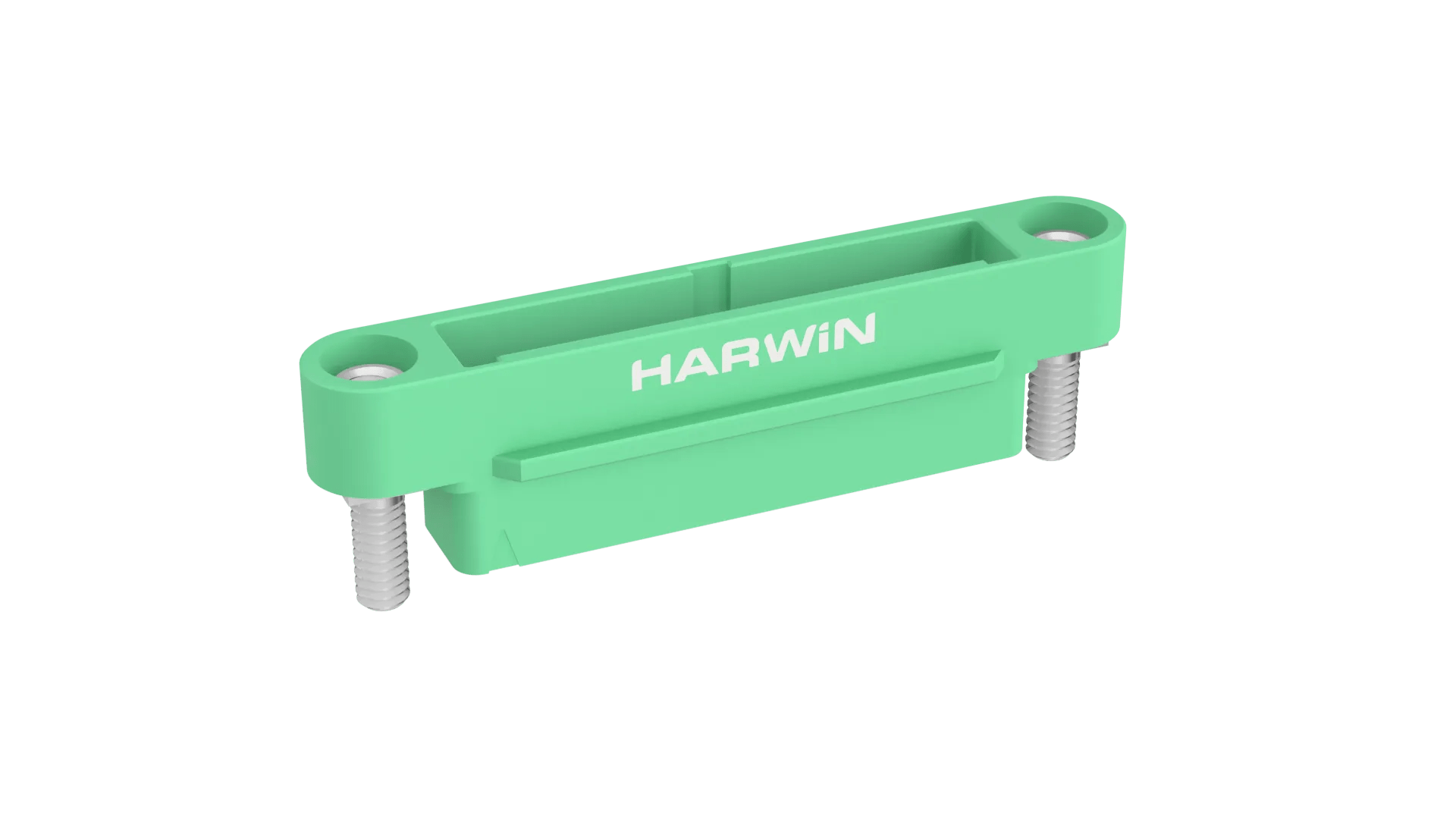

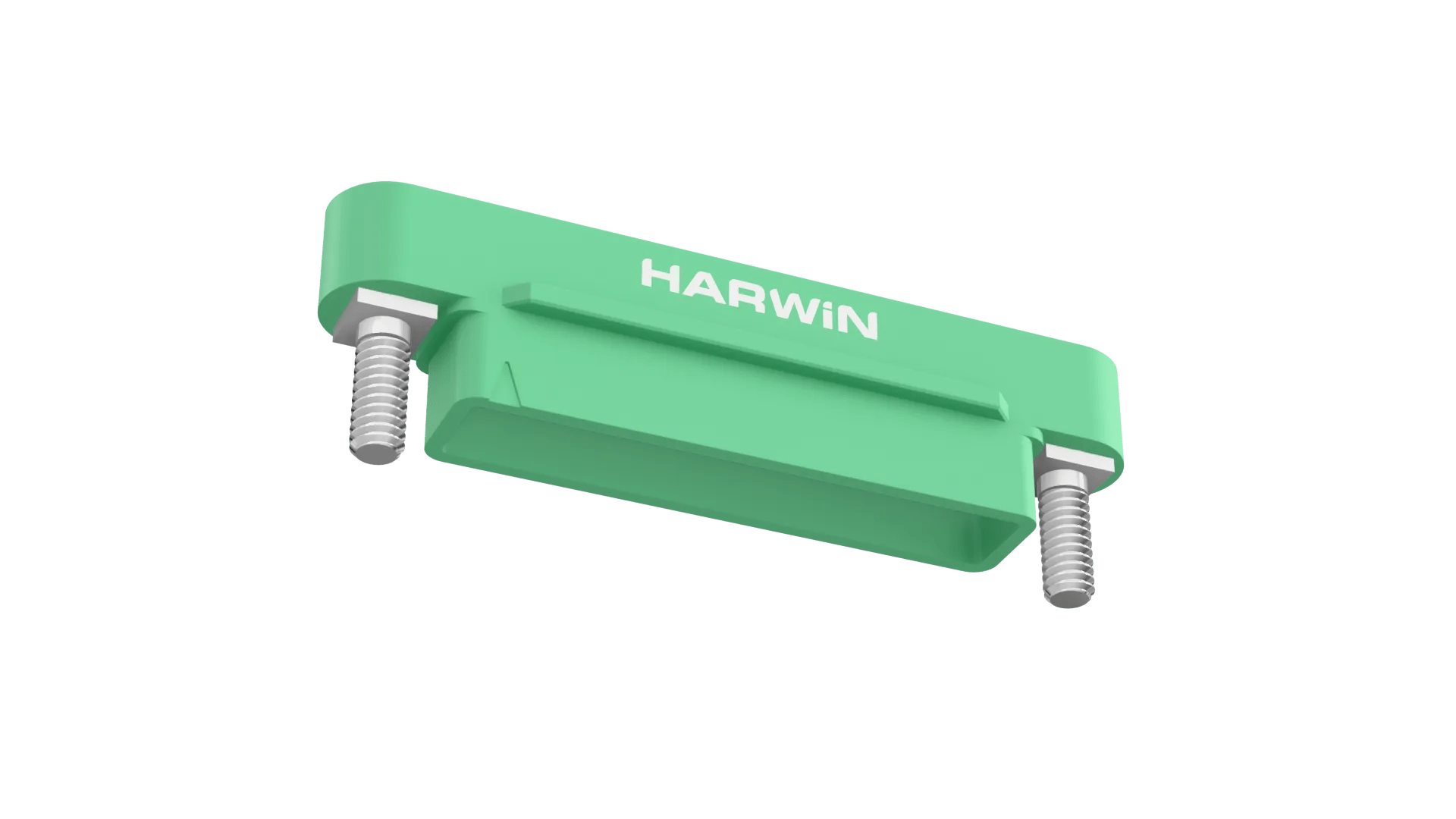

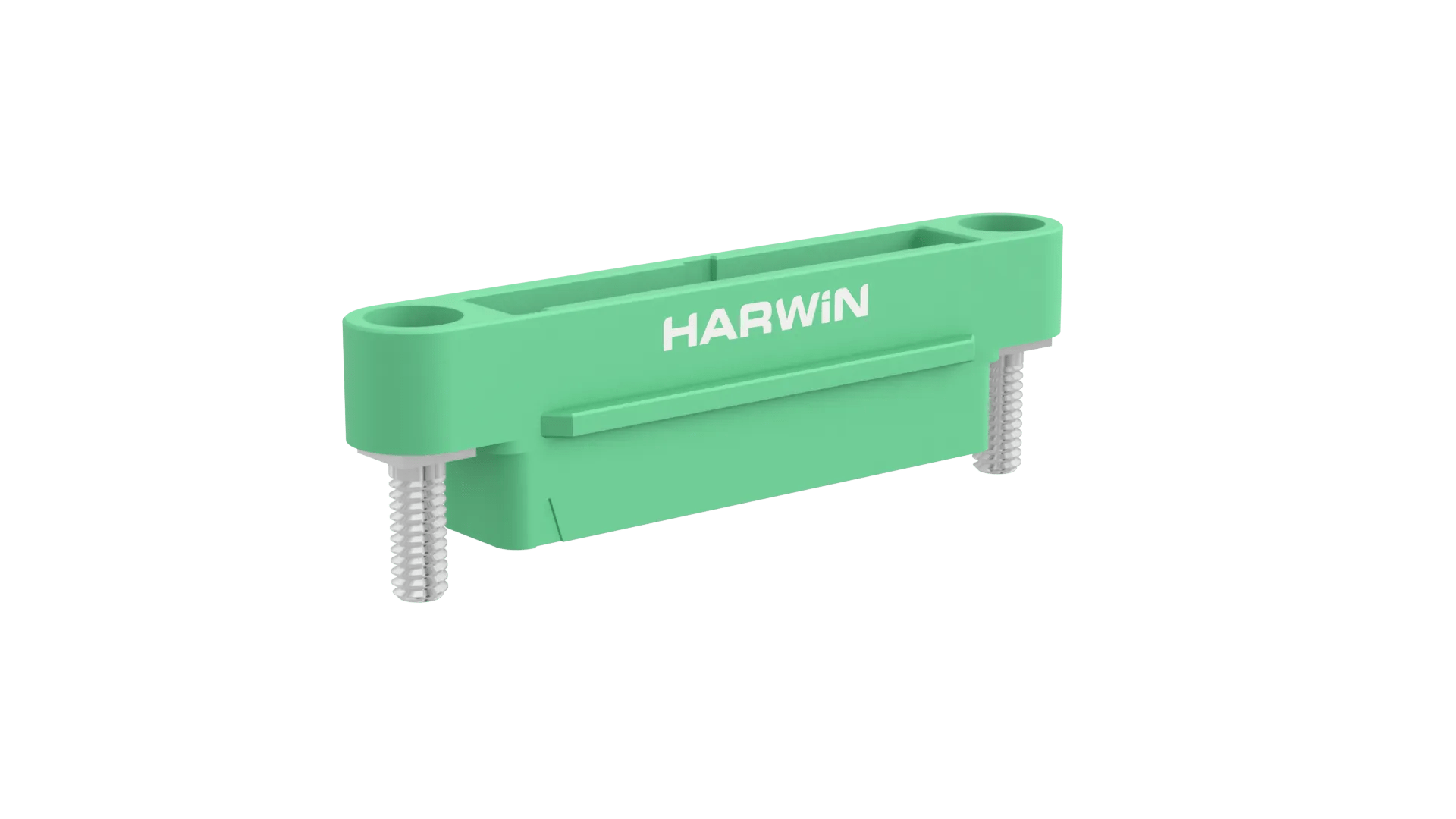

17+17 Pos. Male DIL Cable Housing, Screw-Lok Panel Mount
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Double Row Crimp Connector Housing, screw fixings with panel mount studs – 34 (17+17) contacts. Compatible with metal backshell for panel mount (G125-9603402). Fitted with threaded Screw-Lok fixings with 5.2mm panel mount studs. Use Slotted Board Mount nut G125-4510000B for panel mounting.
- Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Style of Jackscrews:
Screw-Lok with Panel Mount
Polarising Features:
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
34
Materials
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.424g
Overall Dimensions (L x W x D) in mm:
32.70 x 6.50 x 8.40
Male Stud Length:
5.20mm
Thread Size:
M2
Mating Profiles:
Availability
288 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these screw-loks?
The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).
