G125-3242696M1

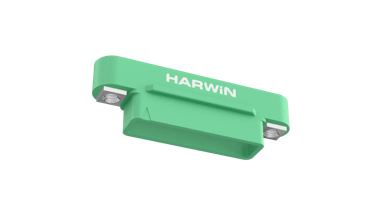

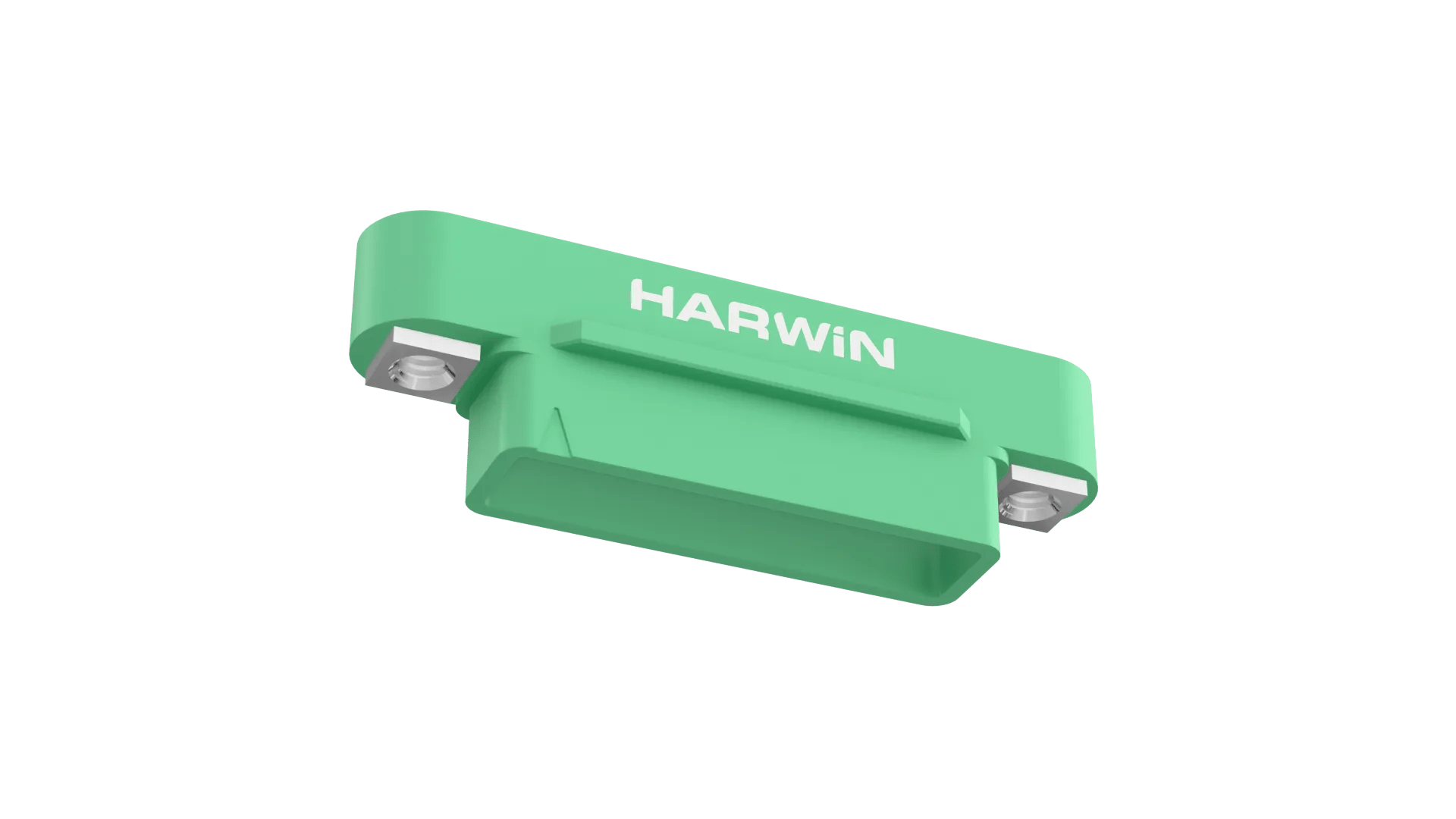

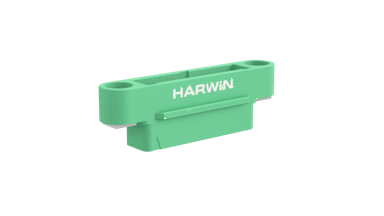

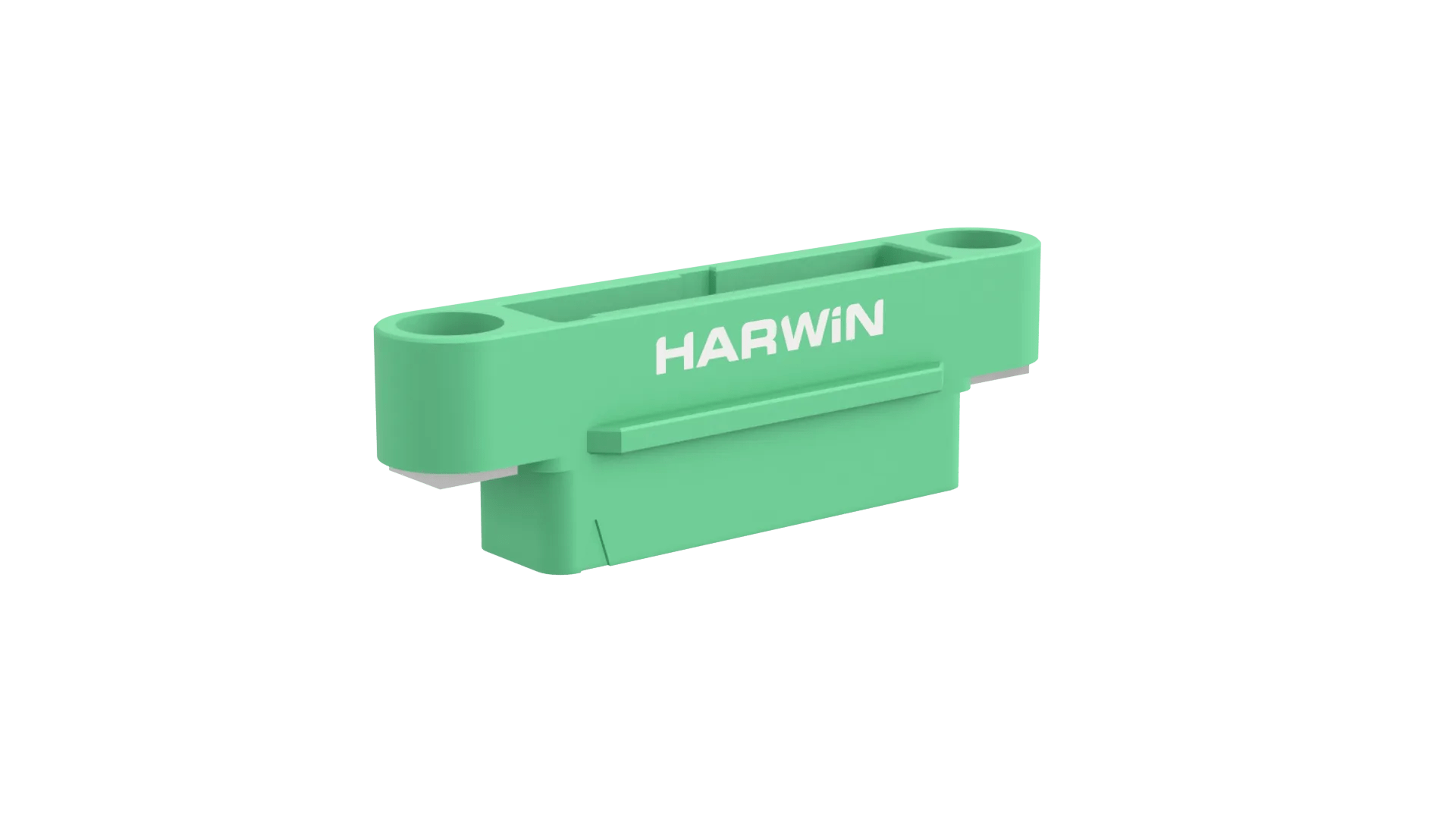

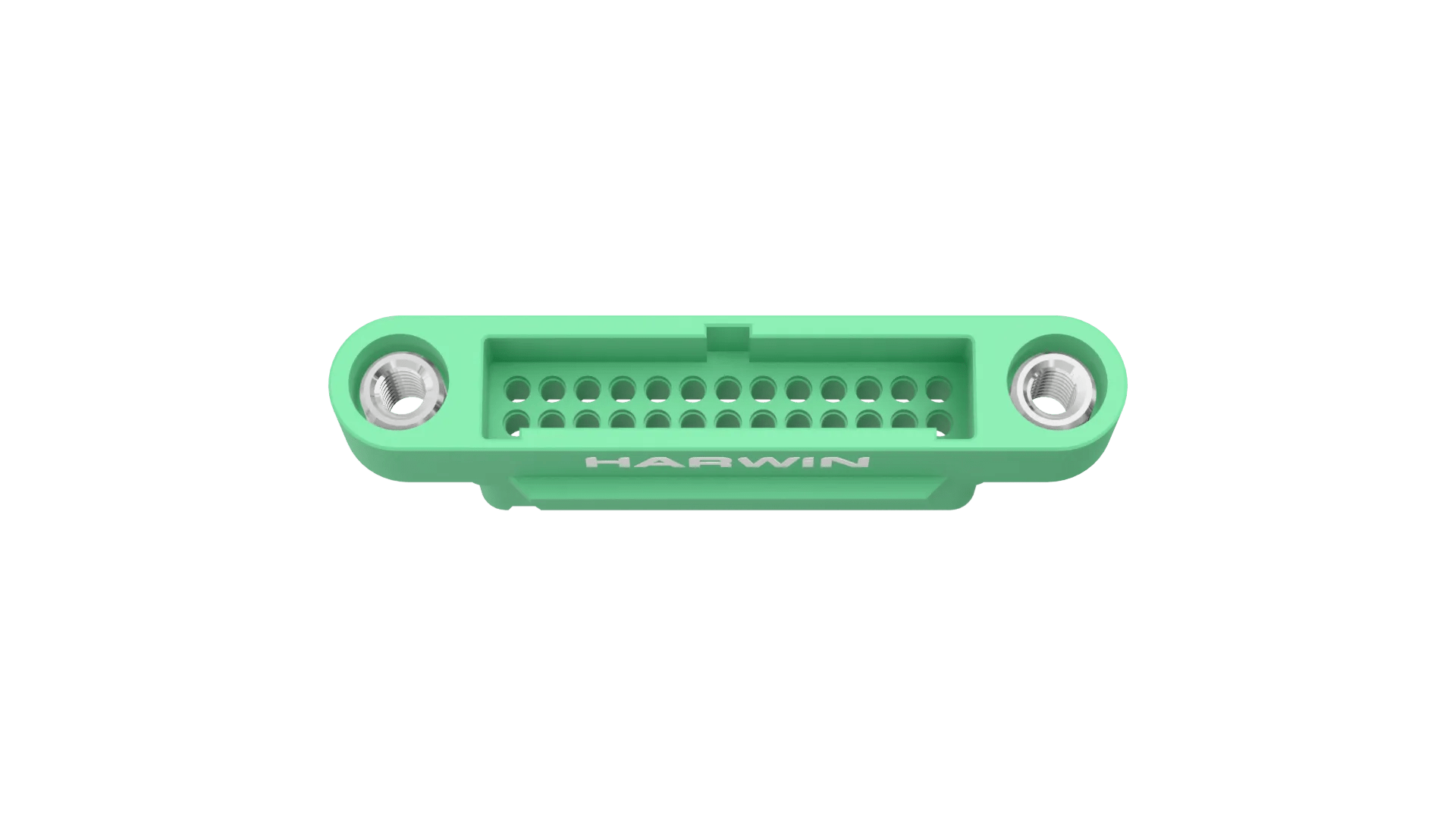

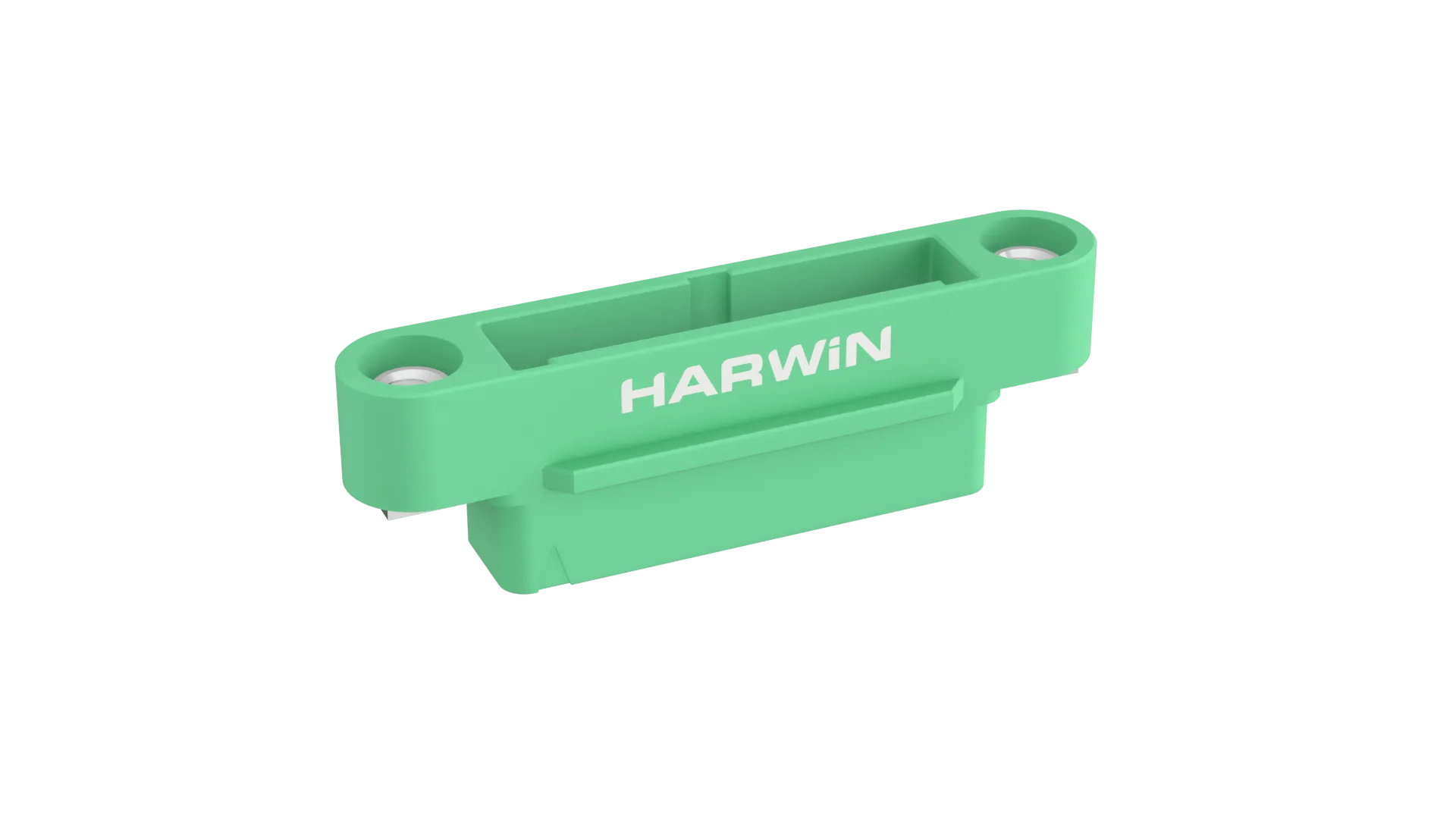

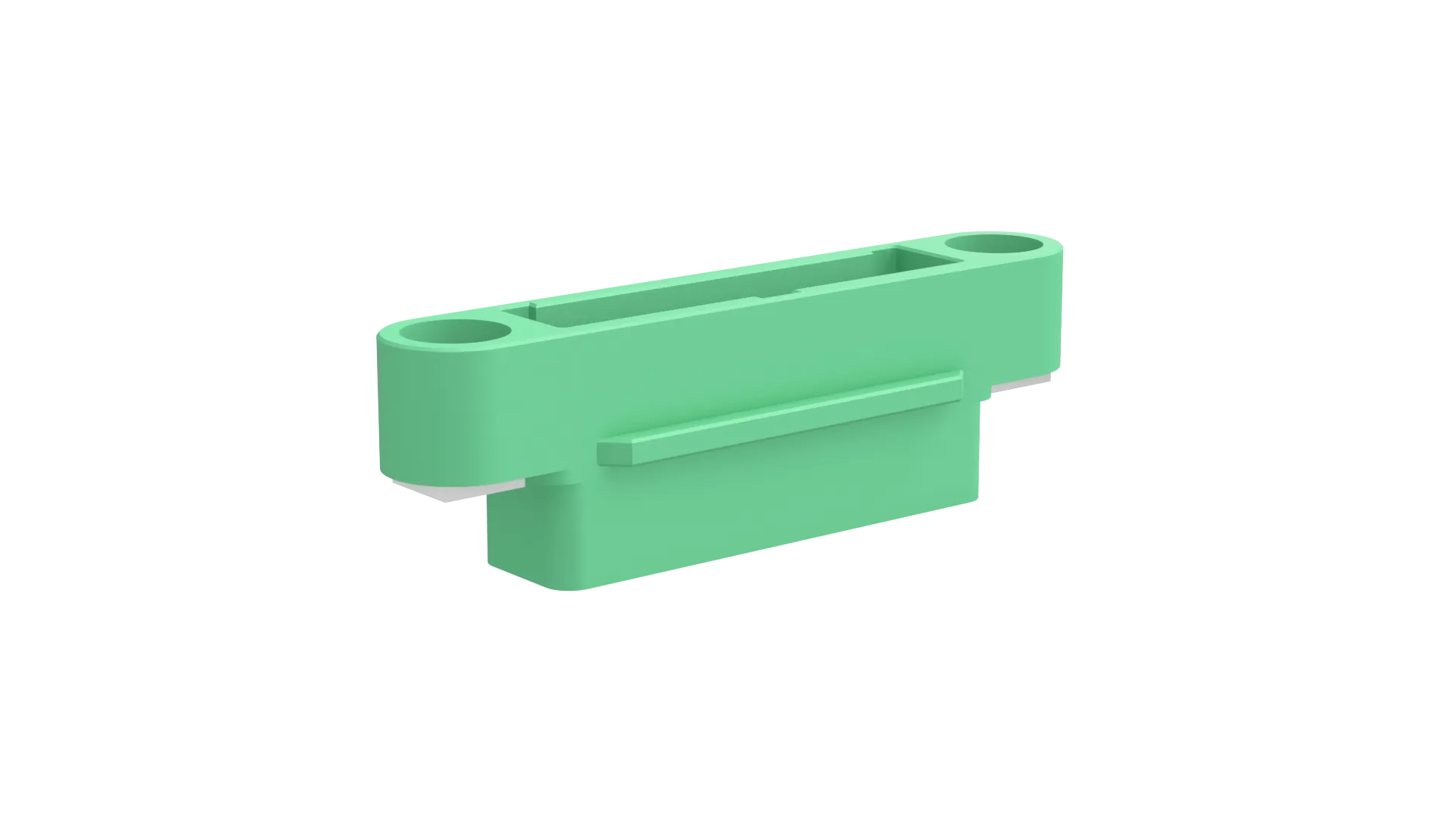

13+13 Pos. Male DIL Cable Housing, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row Crimp Connector Housing with screw fixings – 26 (13+13) contacts. Compatible with metal backshell for cable (G125-9642600).
  • Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
  • Fitted with internally threaded Screw-Lok fixings.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.014g

Overall Dimensions (L x W x D) in mm:

27.70 x 6.50 x 8.40

Thread Size:

M2

Availability

Distributor Location Quantity
Digi-Key
Global
Status1
Harwin
Europe
Status1000
Harwin Inc
USA
Status90
Mouser Electronics Inc
Global
Status27
TTI Inc
USA
Status70

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-324XX96M1.pdf

ZIP

G125-3242696M1 CAD Model (ZIP file containing STP and IGES)

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for Gecko G125-324XX96M1 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Male Cable Housings

PDF

Catalog page - Gecko Introduction

PDF

Catalog page - Gecko Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
