10+10 Pos. Male DIL Cable Housing, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

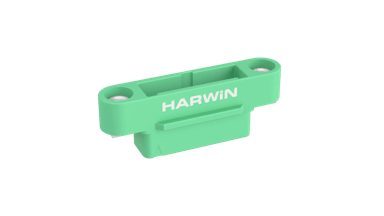

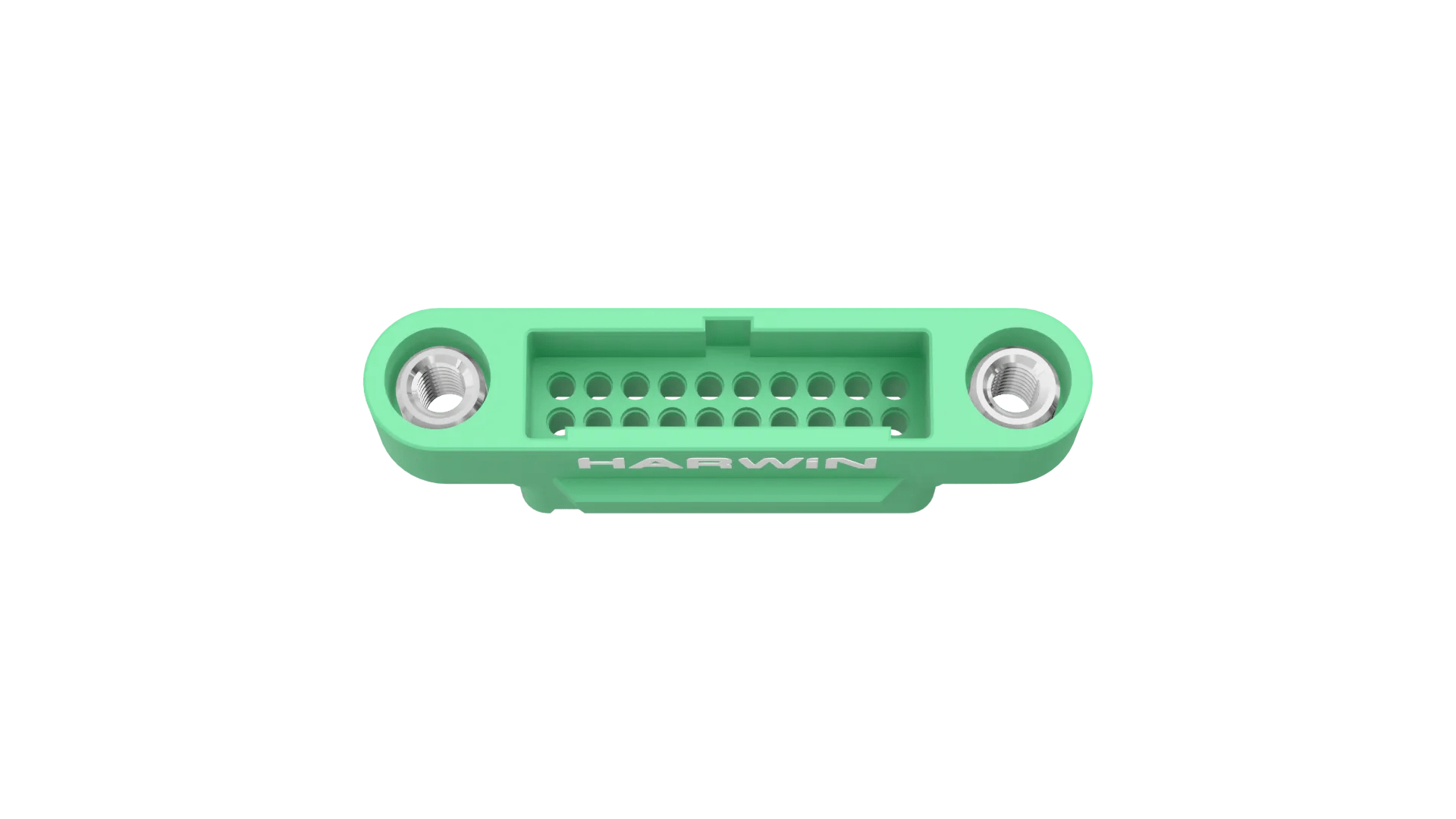

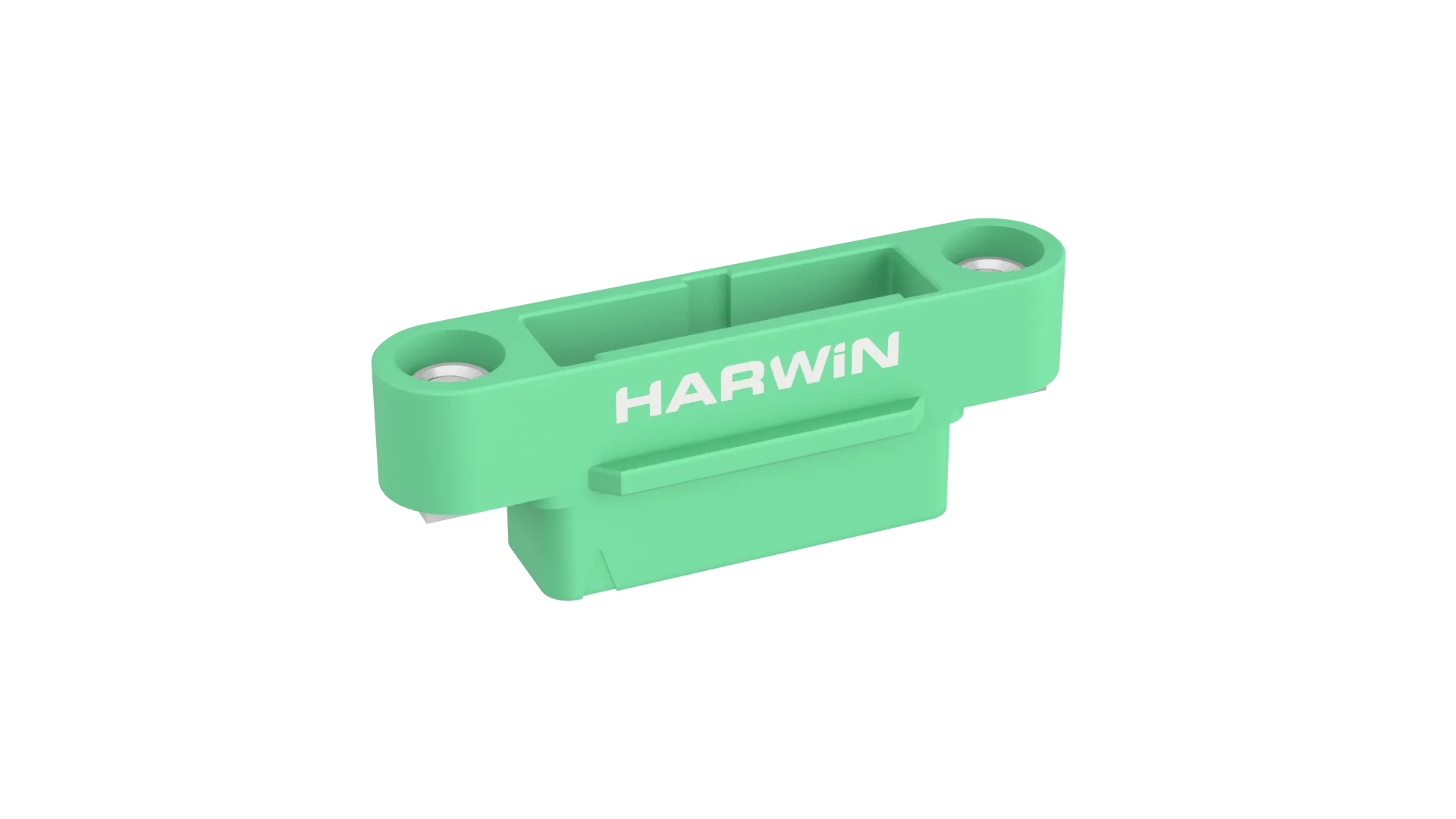

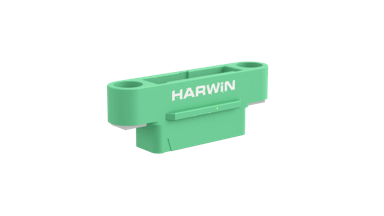

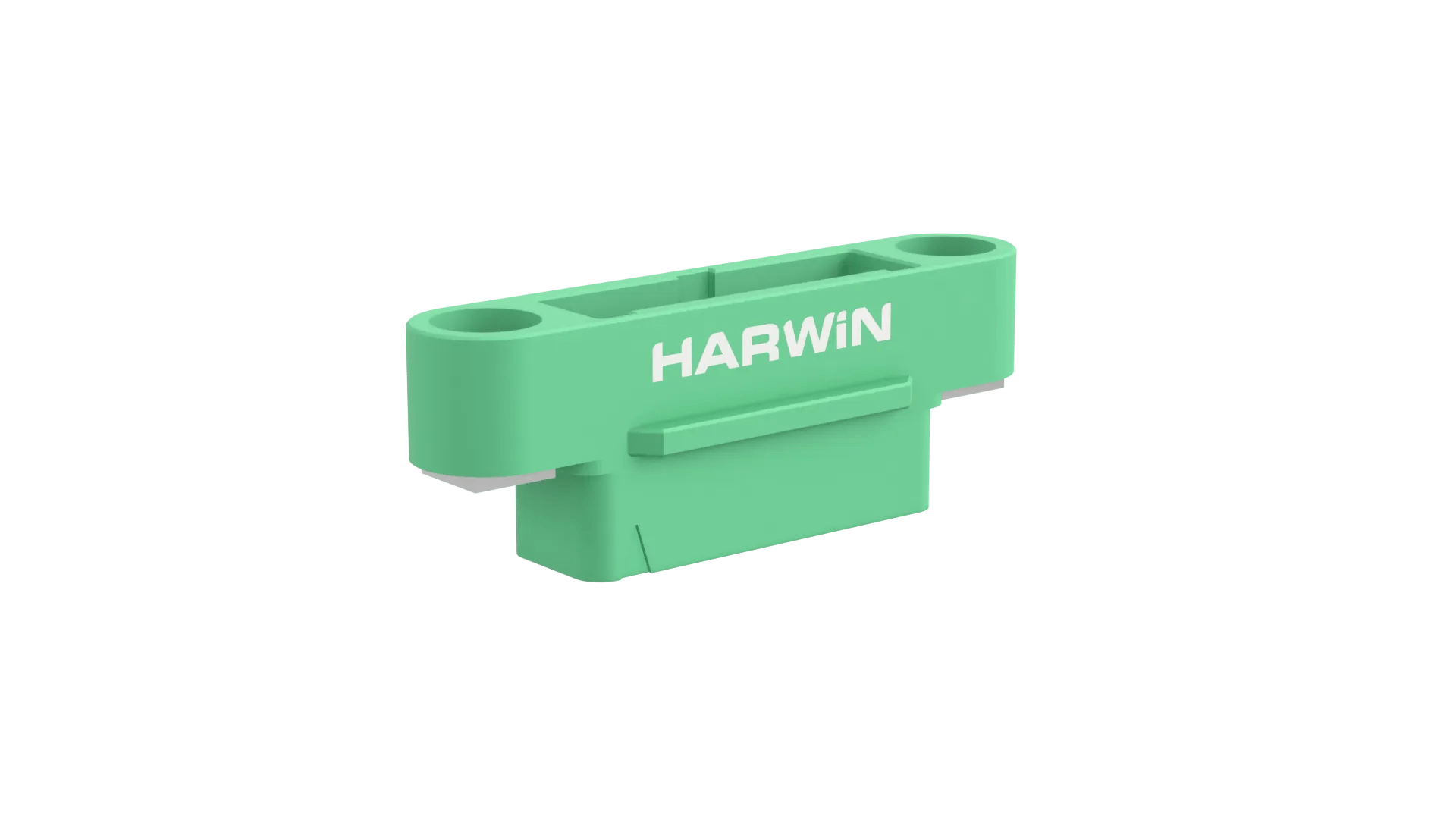

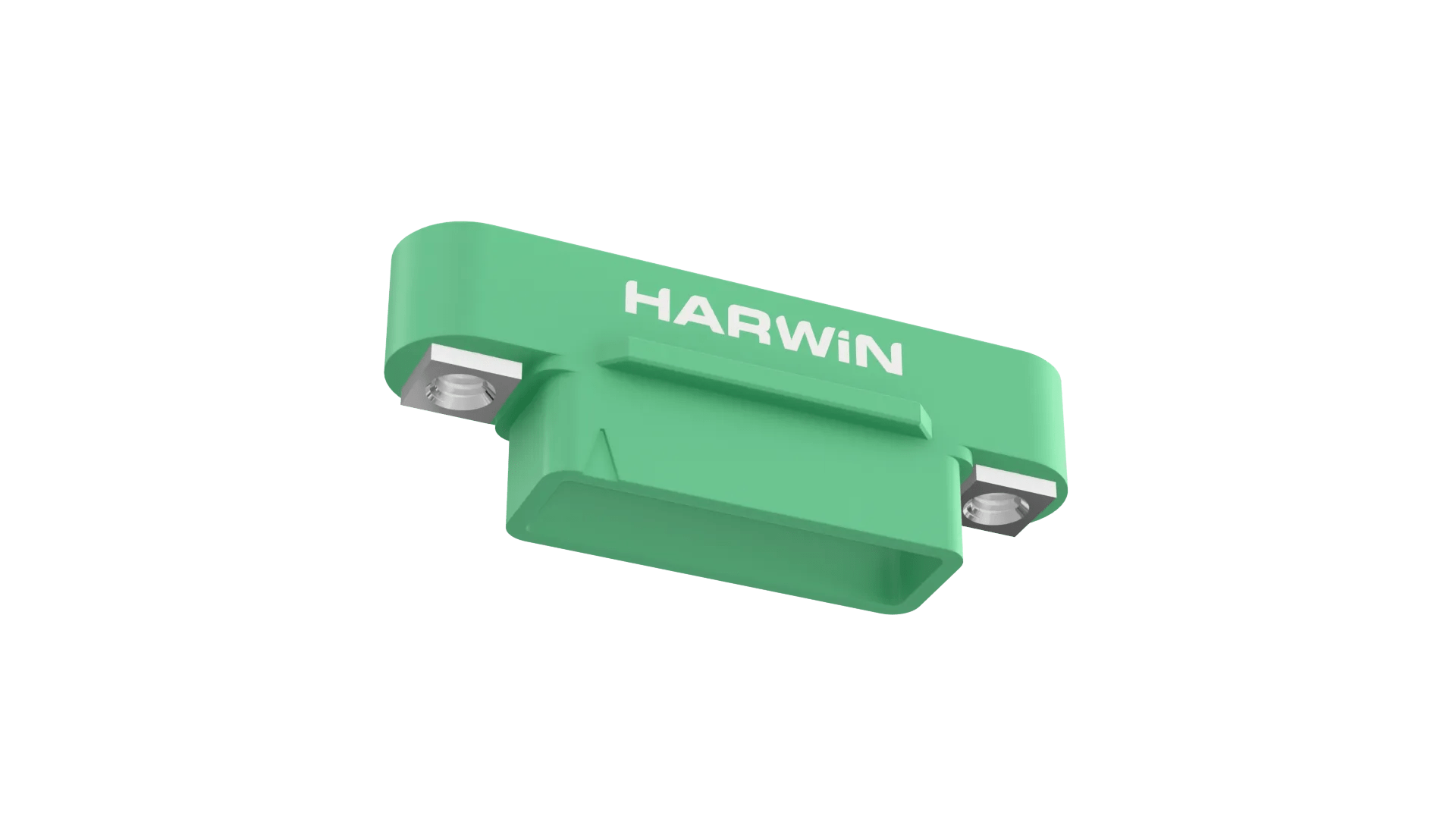

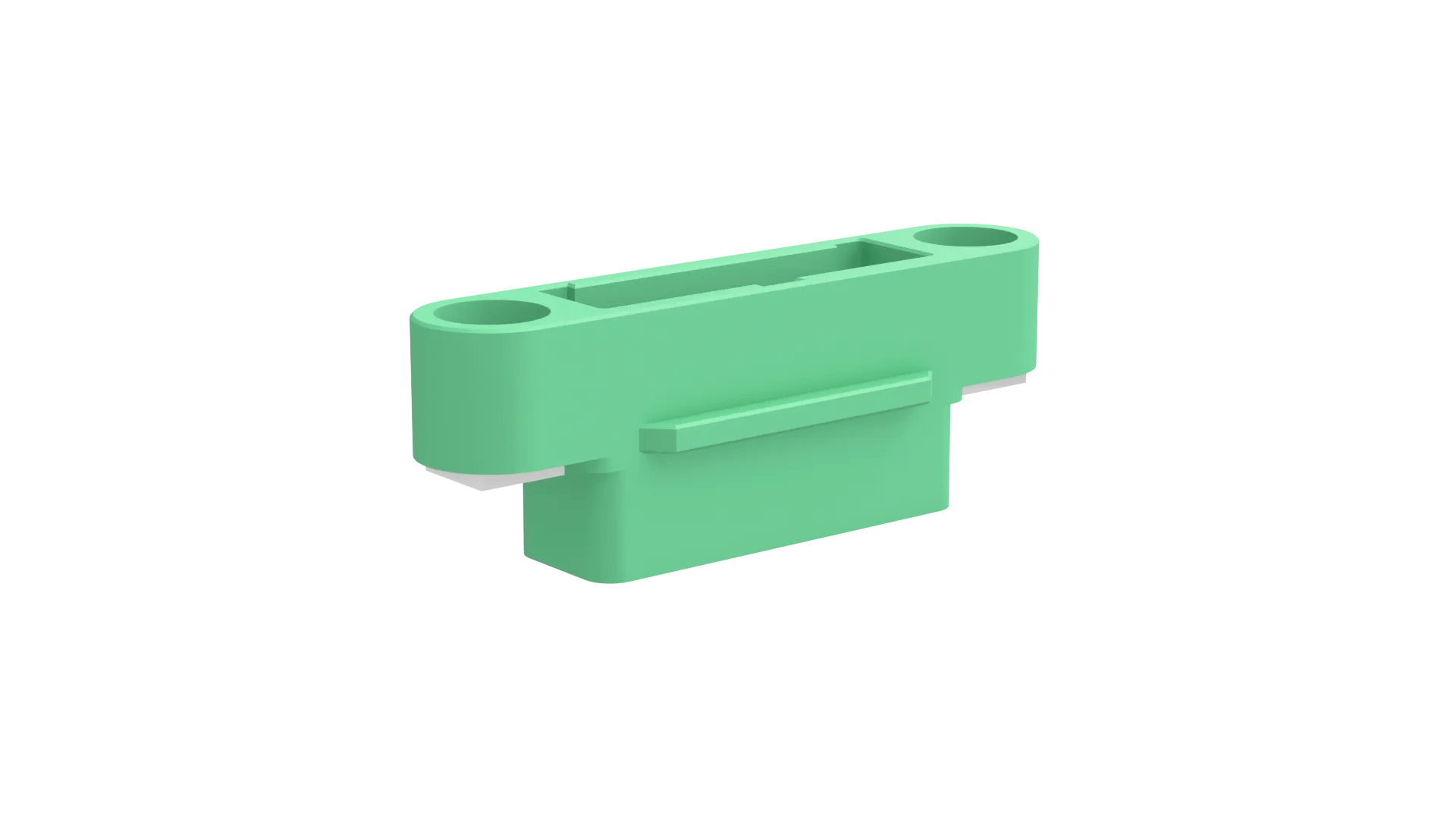

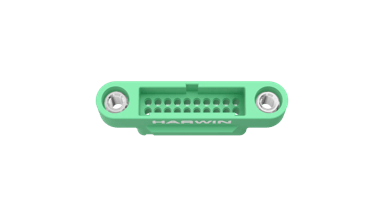

- Male Double Row Crimp Connector Housing with screw fixings – 20 (10+10) contacts. Compatible with metal backshell for cable (G125-9642000). Fitted with internally threaded Screw-Lok fixings.
- Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Internal Thread Screw-Lok (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
23.95 x 6.50 x 8.40
120 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
