1.25mm Pitch High-Reliability Connector - Gecko Latch

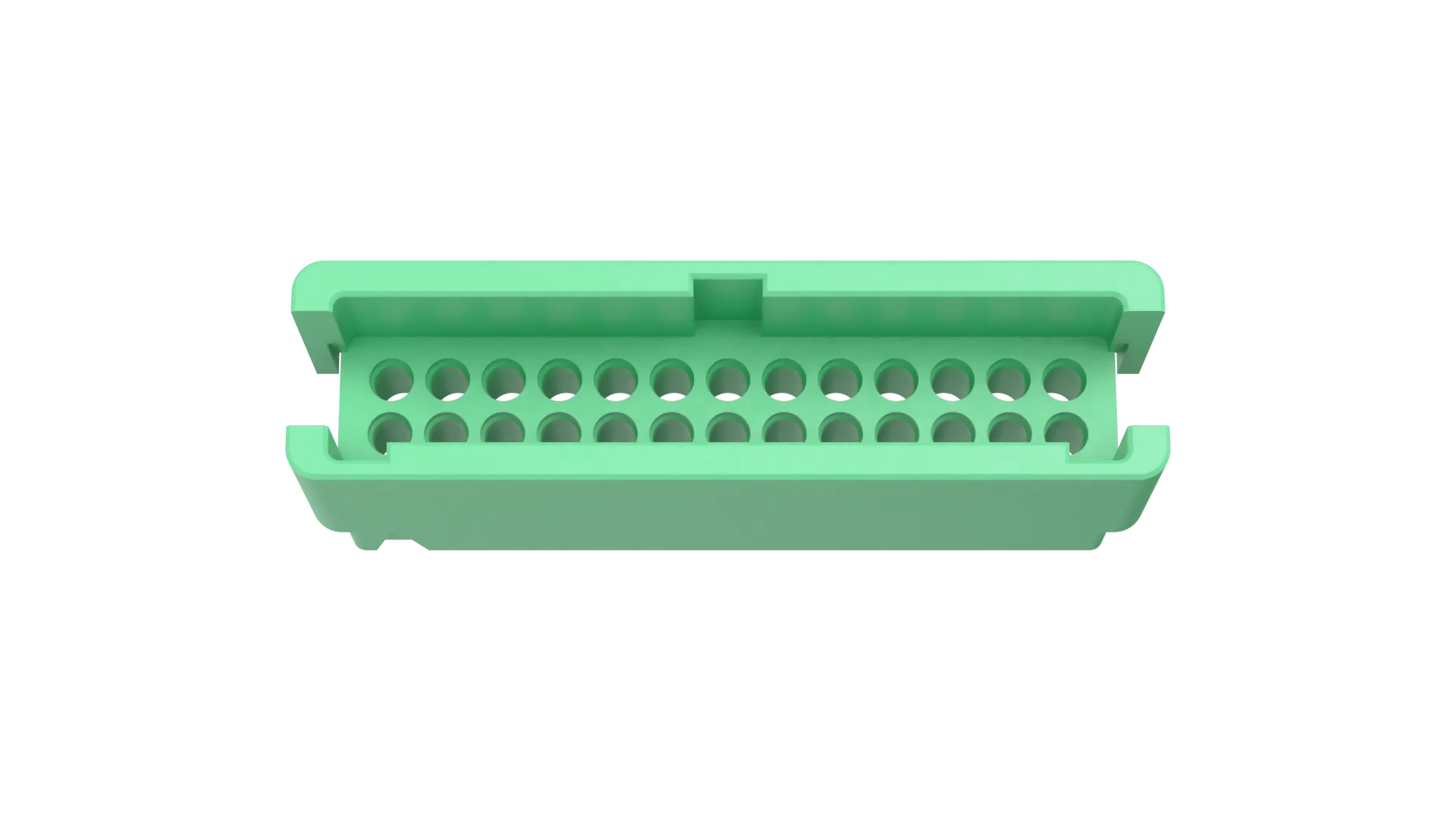

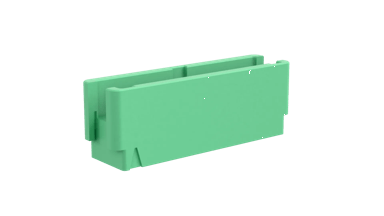

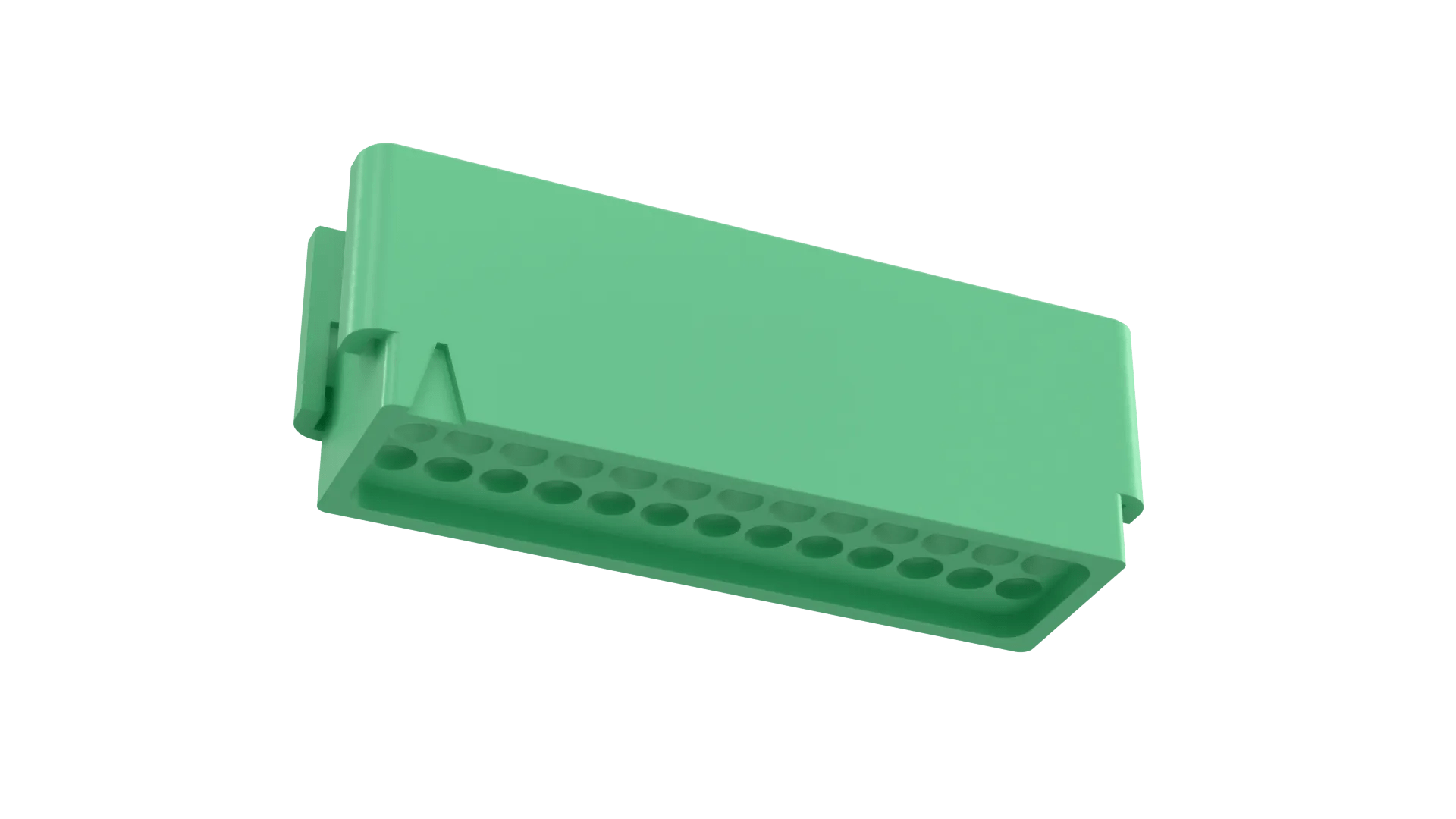

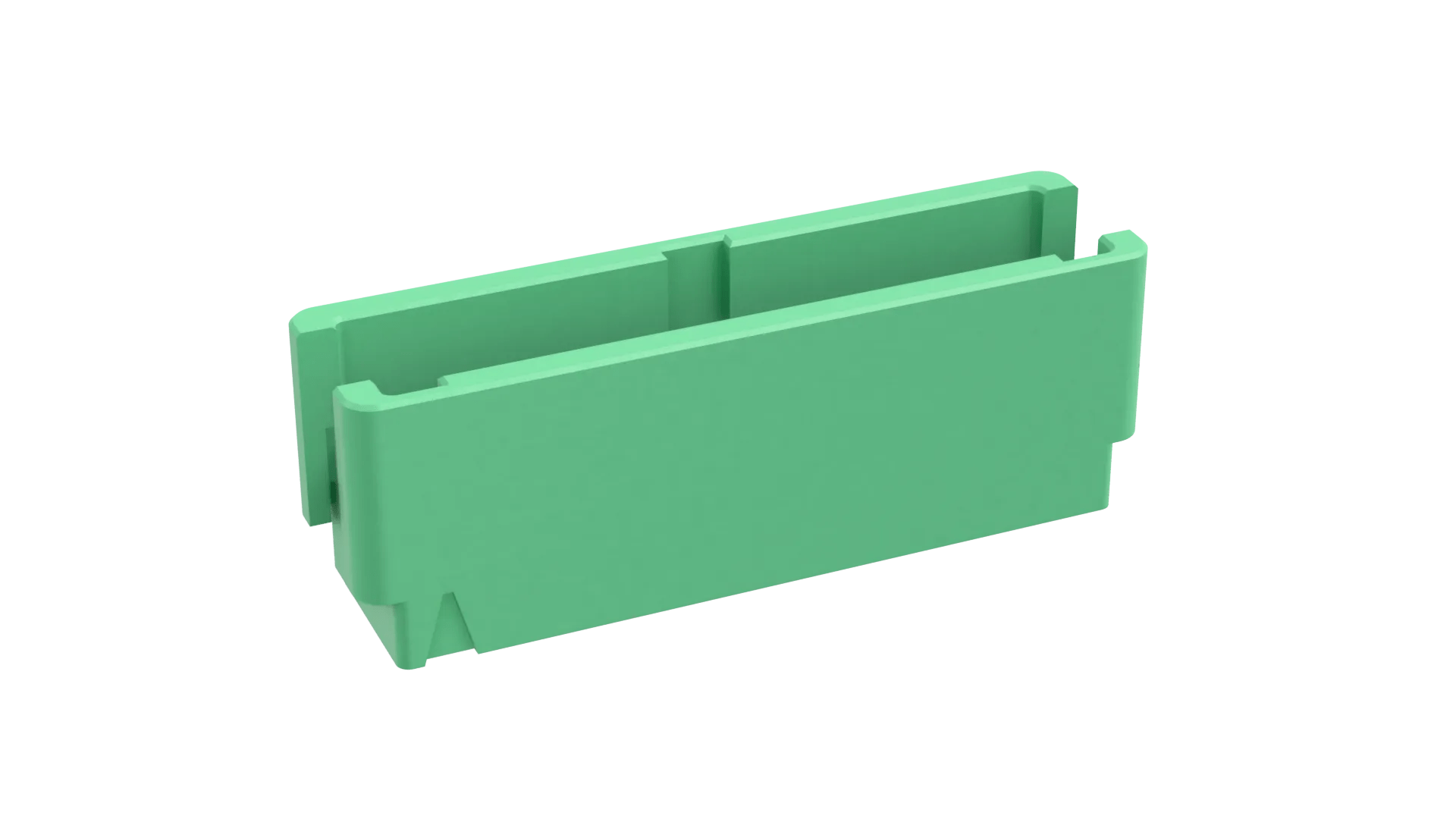

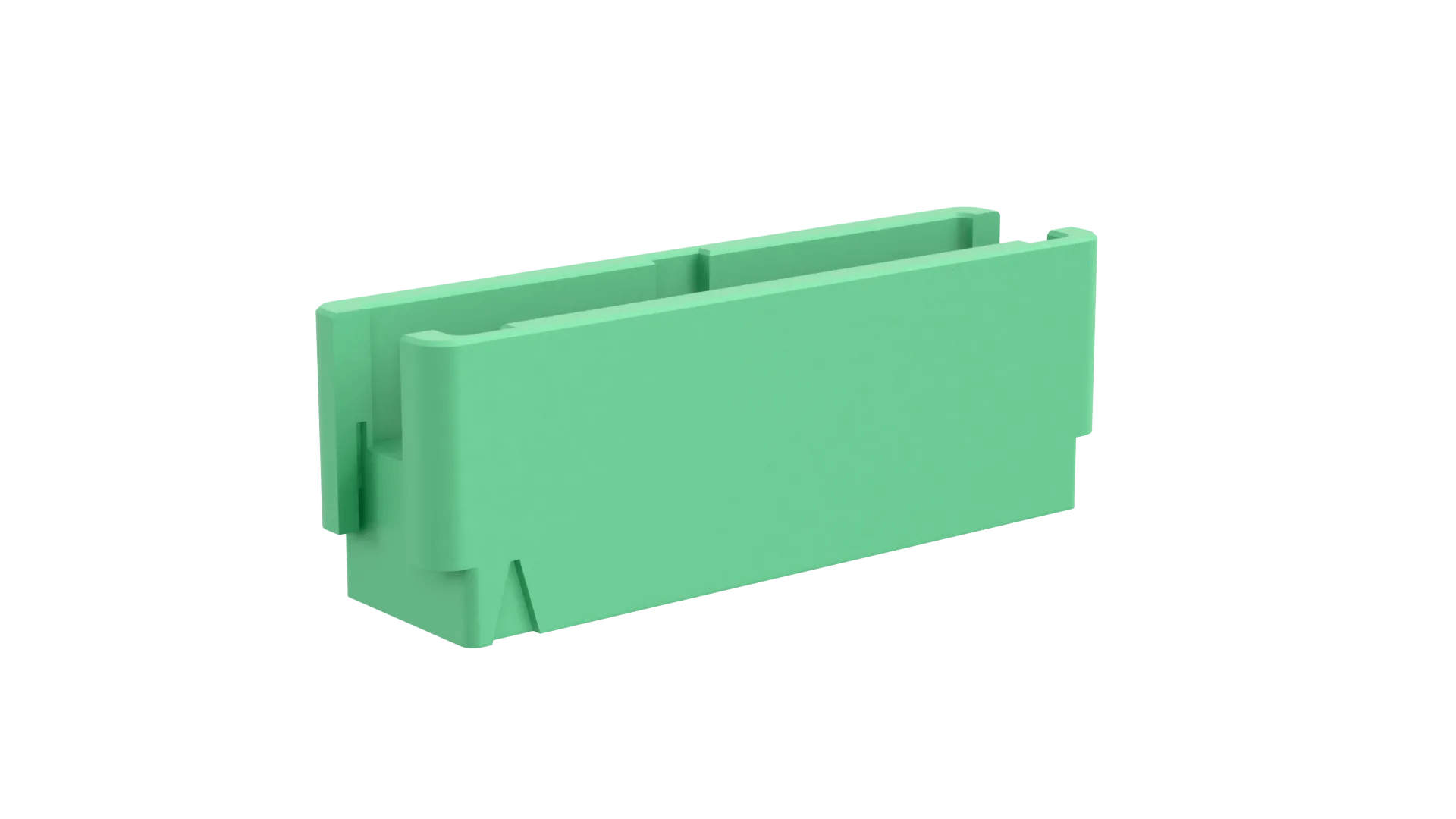

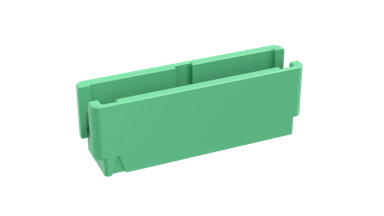

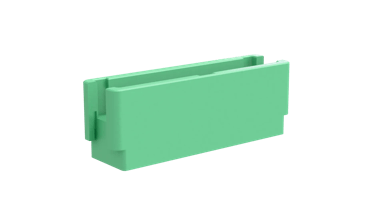

Male Double Row Crimp Connector Housing without latches - 26 (13+13) contacts. Connector housing is not fitted with latches.
Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
None
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 4T
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
0.486g
Dimensions:
18.80 x 4.90 x 6.50
Downloads
Technical Drawing / Datasheet - G125-304XX96L0.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet
IS-38 - Z125-902 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Gecko range: signal connectors (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for Gecko G125-304 series
RoHS - G125-3042696L0
