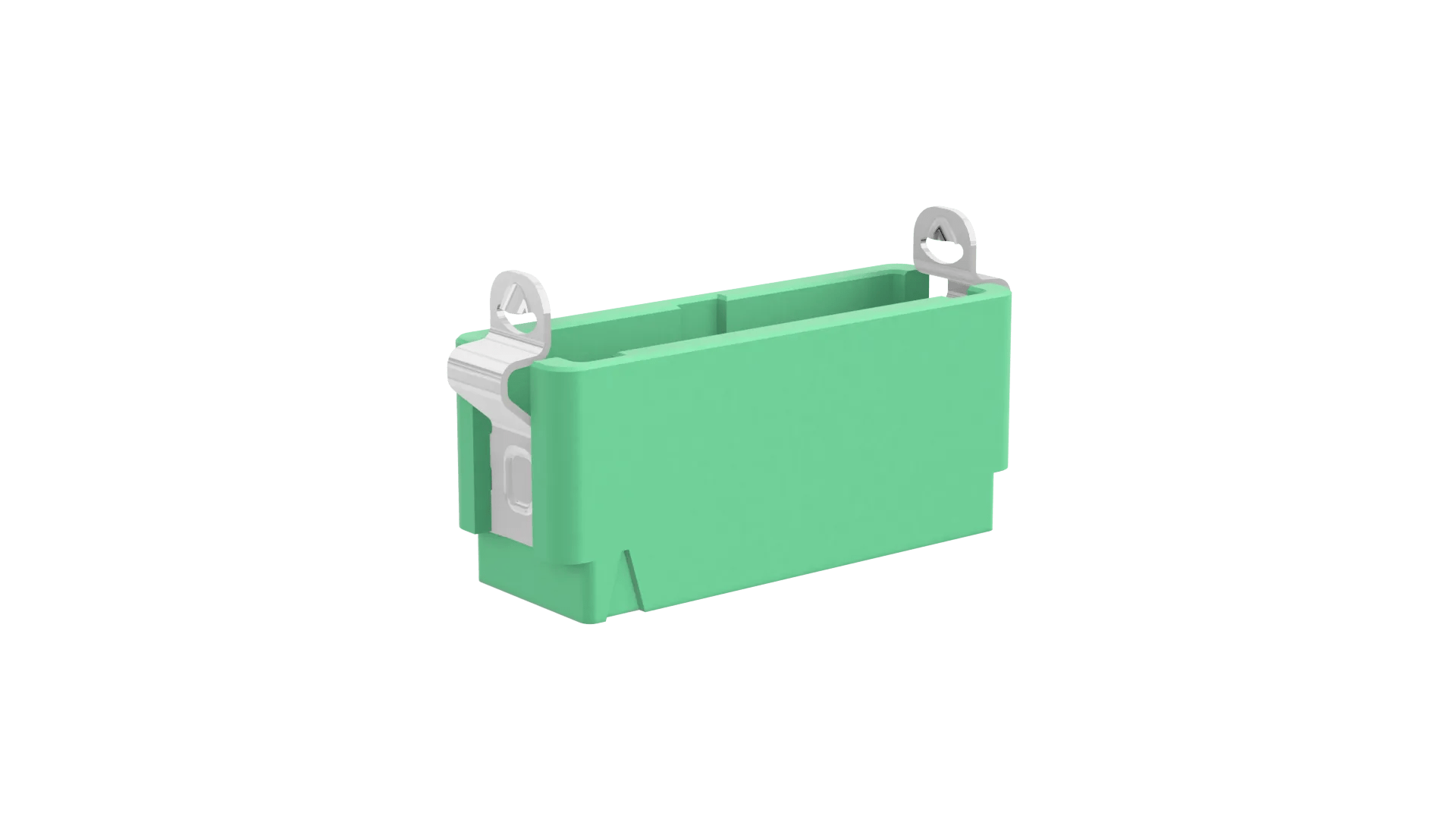

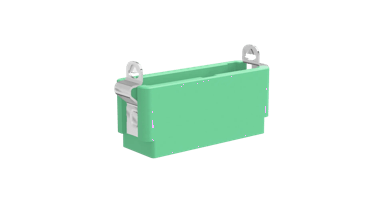

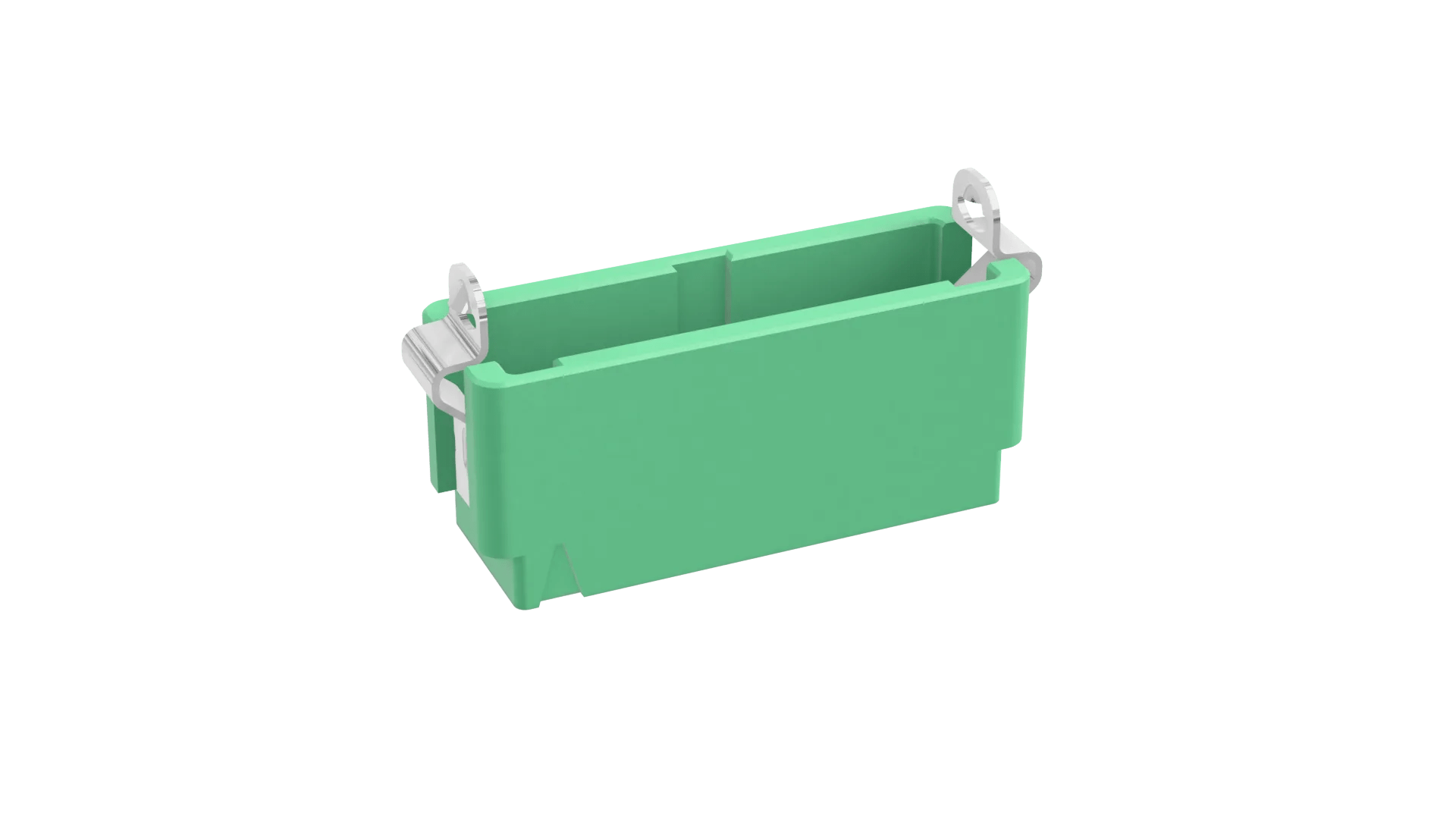

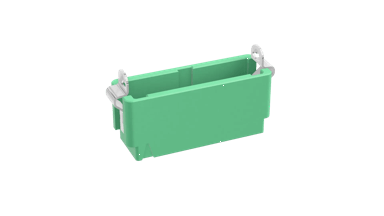

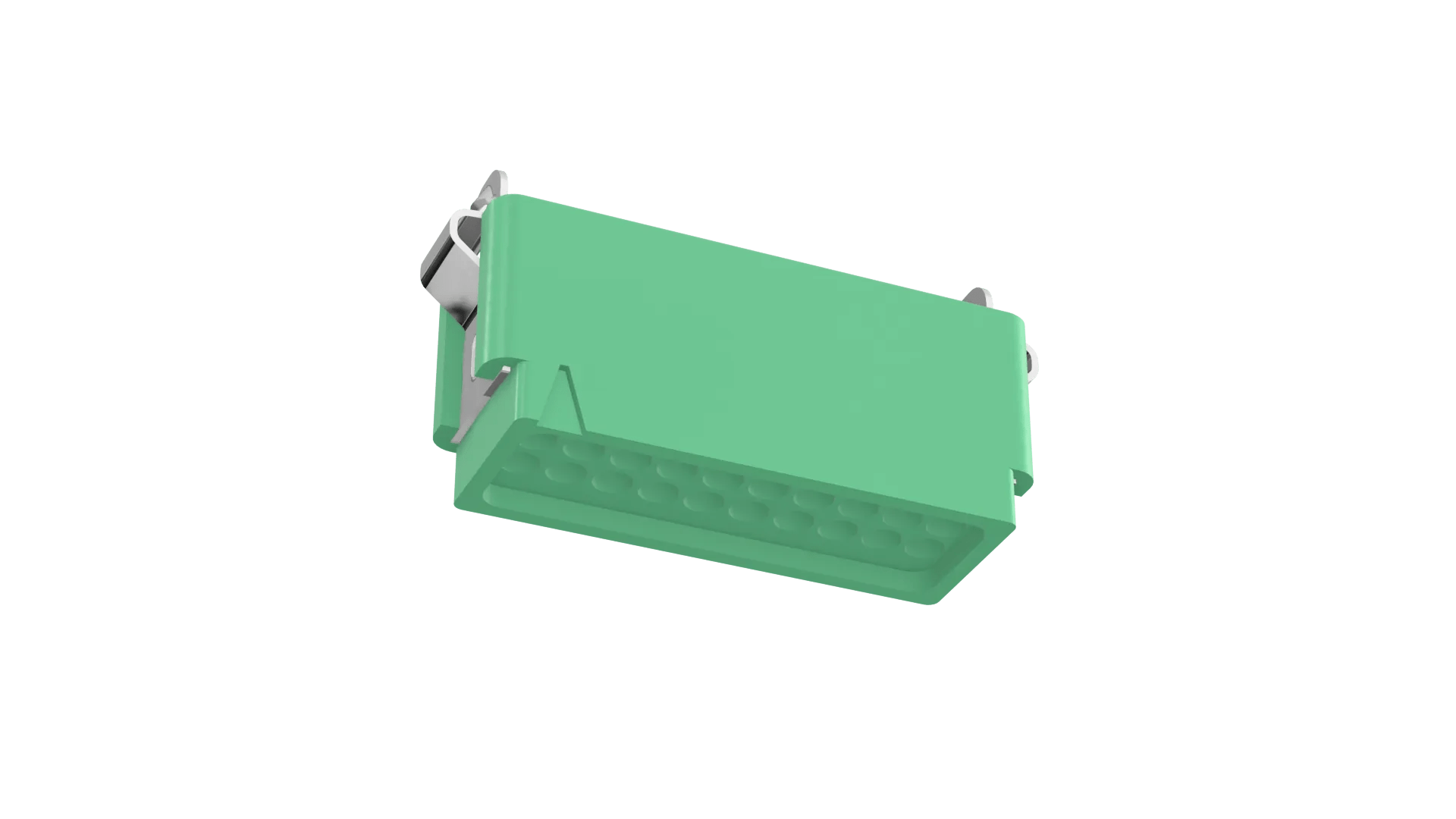

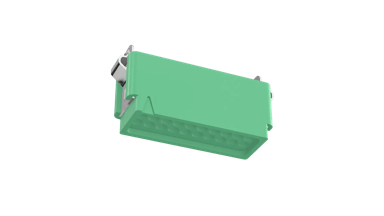

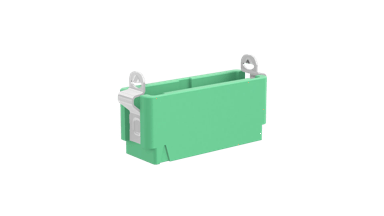

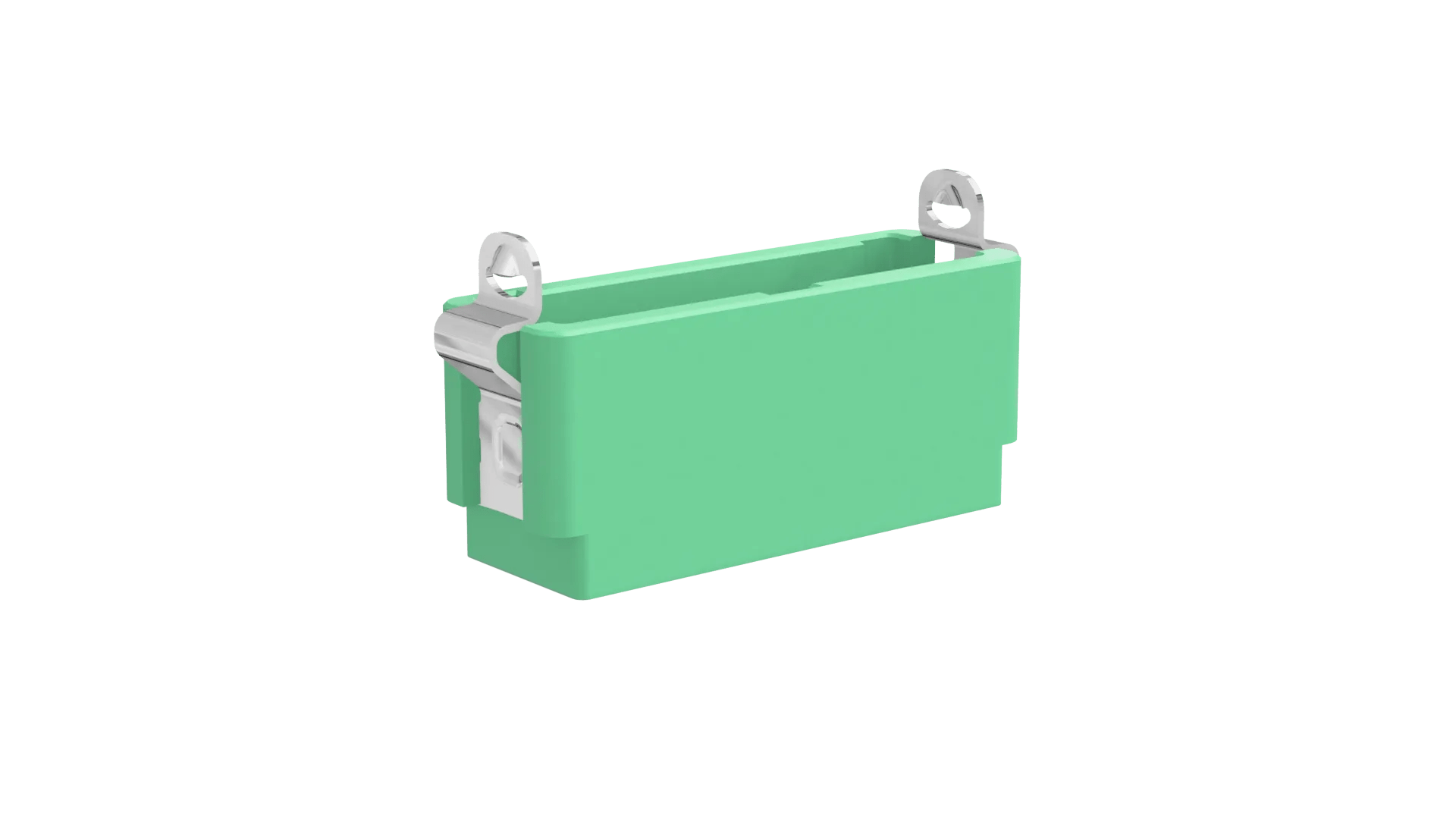

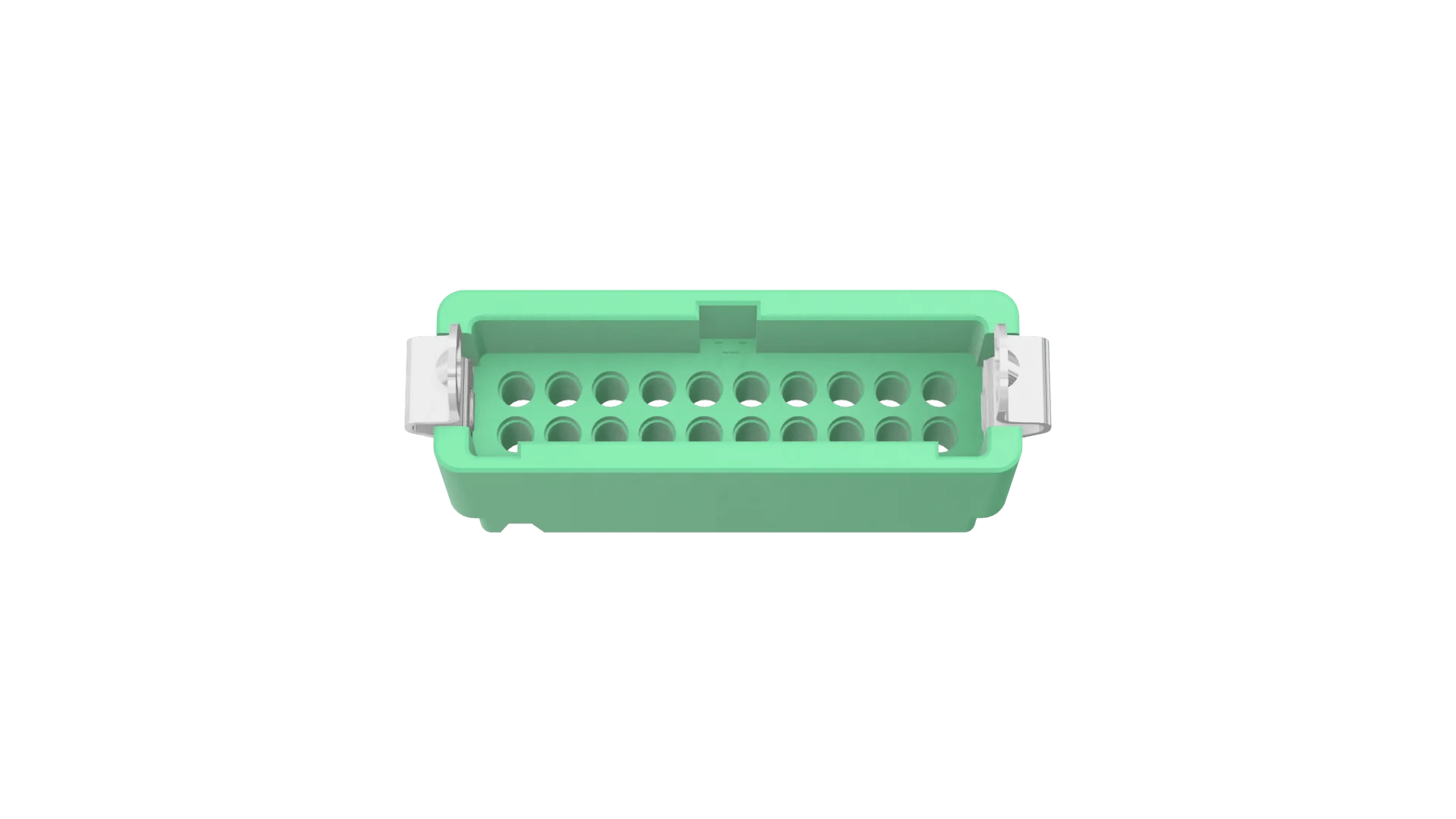

Gecko DIL Male Crimp Connector Housing, with Latches, 10+10 contacts

HRi

Traceparts account required

G125-3042096L4

Gecko DIL Male Crimp Connector Housing, with Latches, 10+10 contacts


1.25mm Pitch High-Reliability Connector - Gecko with Latches


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Mating Pin Size:

    Ø0.4mm

  • Latching Style:

    Locking Latch

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    20

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Weight:

    0.42g

  • Dimensions:

    16.45 x 4.90 x 6.50

  • Operating Temperature:

    -65°C to +150°C

Downloads

    Environmental Compliance

  • G125-3042096L4

  • Material composition for Gecko G125-304 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-304XX96L4.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

  • IS-38 - Z125-902 Assembly Tool Instruction Sheet

  • Catalog page - Gecko with Latches Mating Profiles

  • Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Test Reports

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
