Home > G125-3041696L0
Active Product

G125-3041696L0

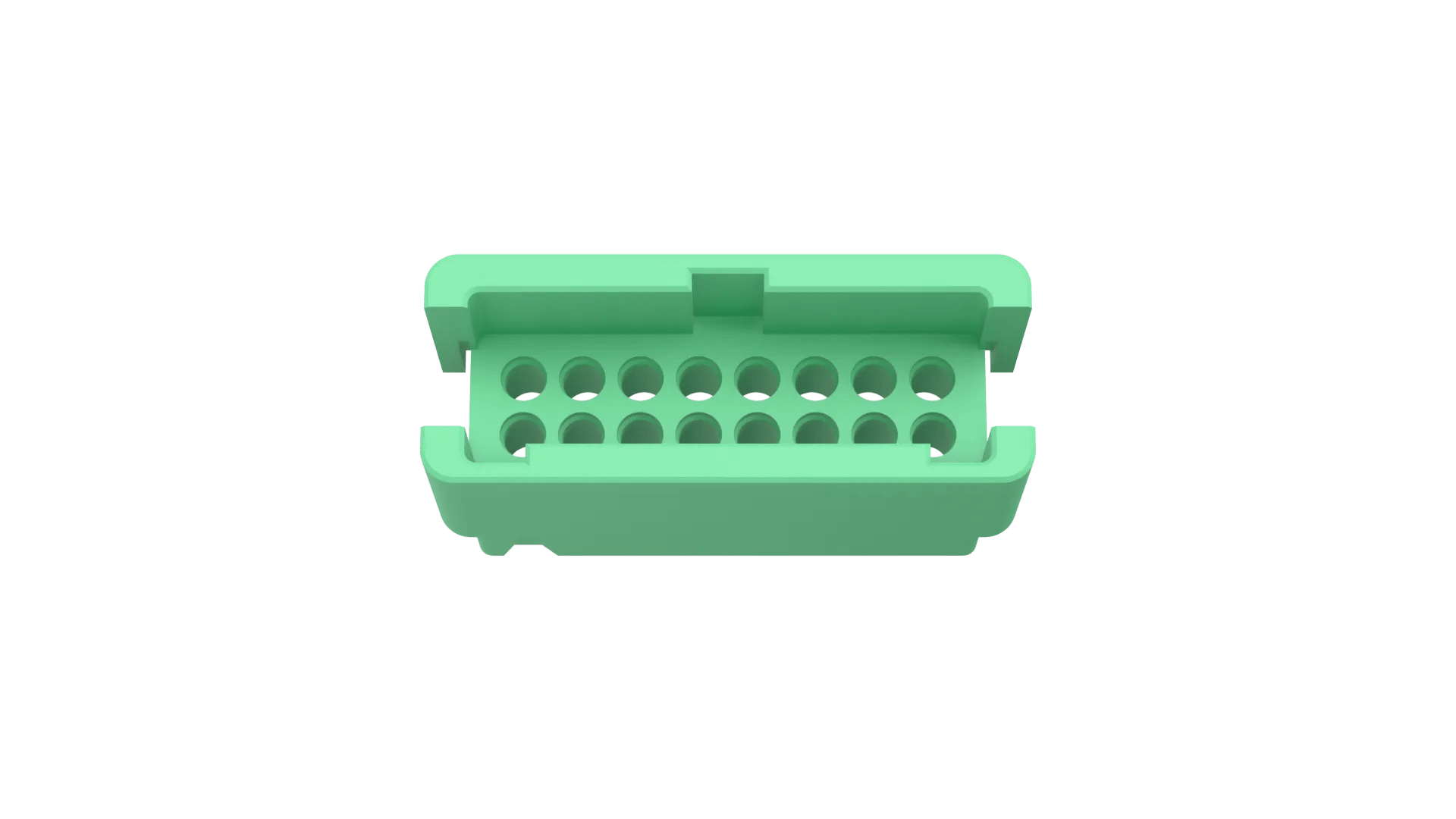

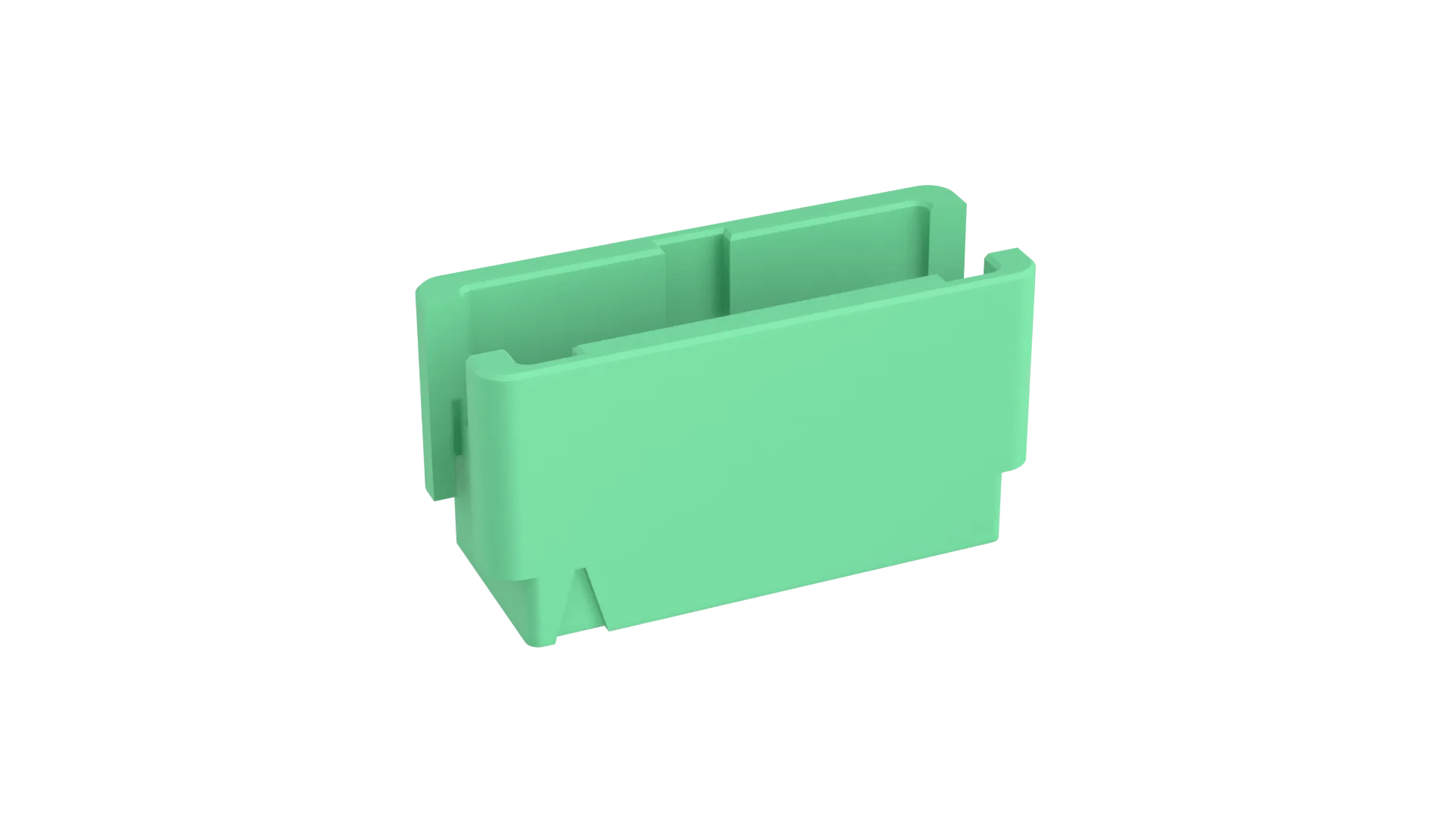

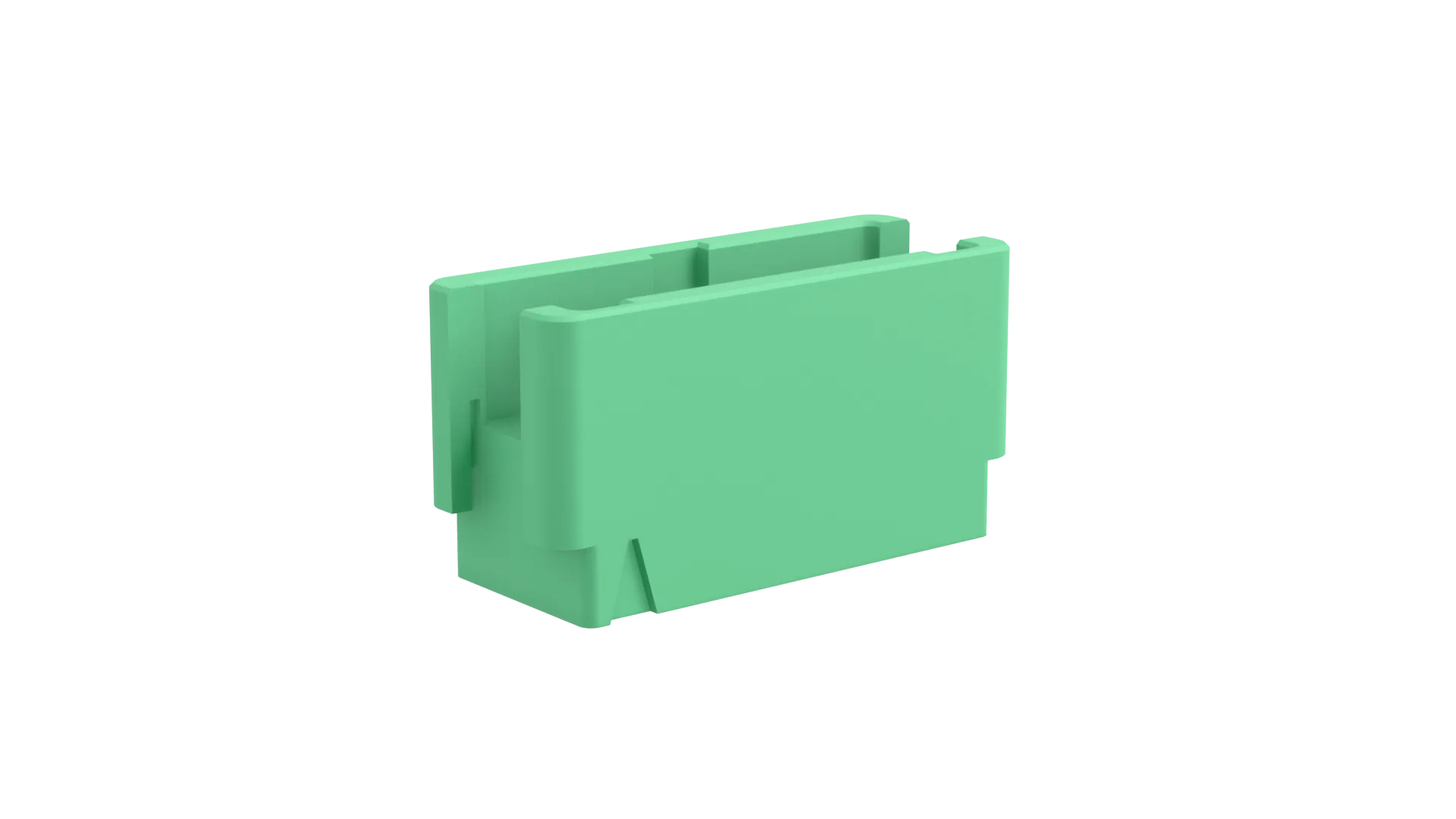

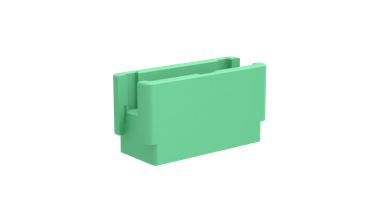

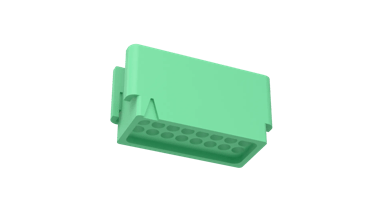

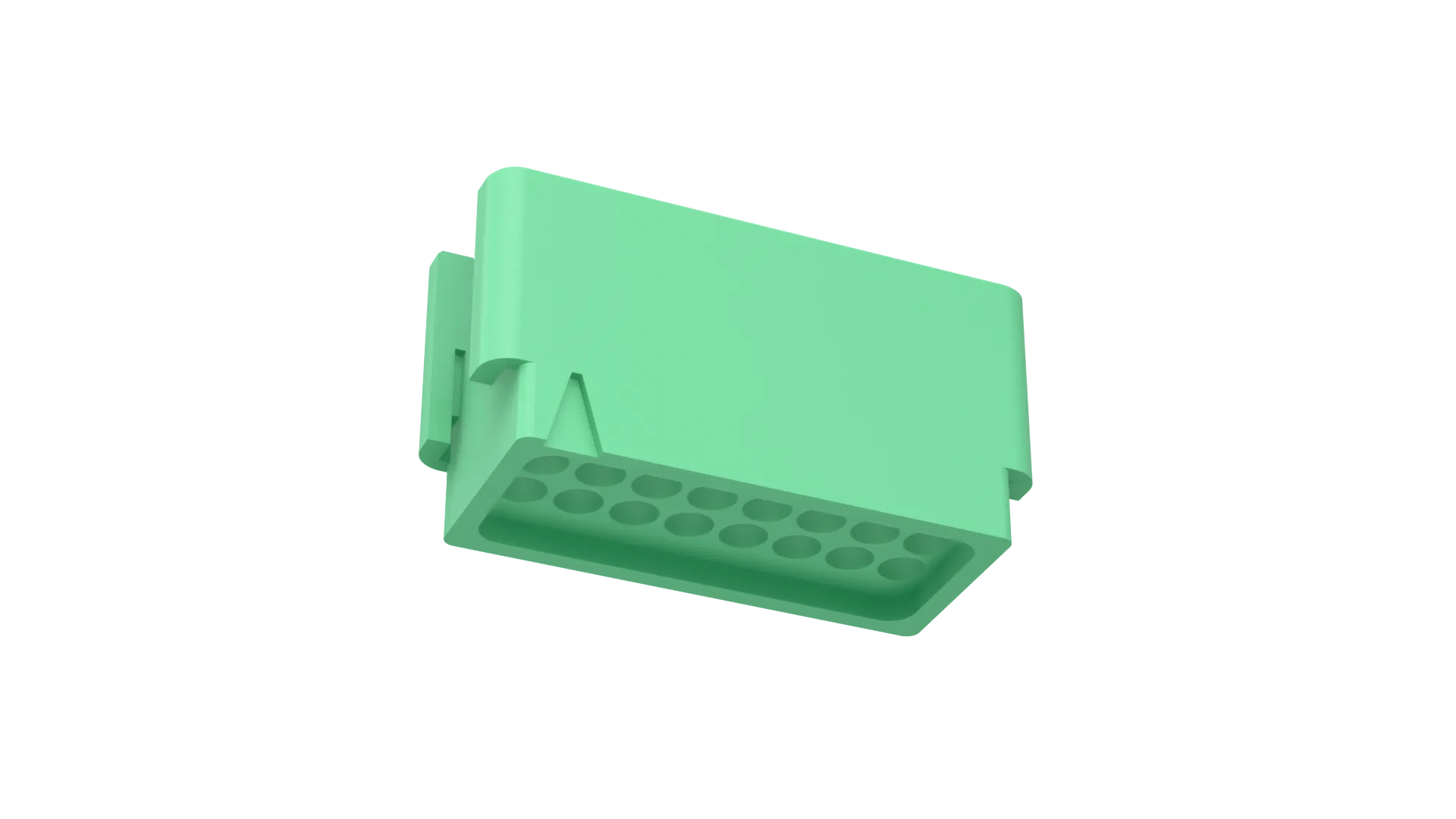

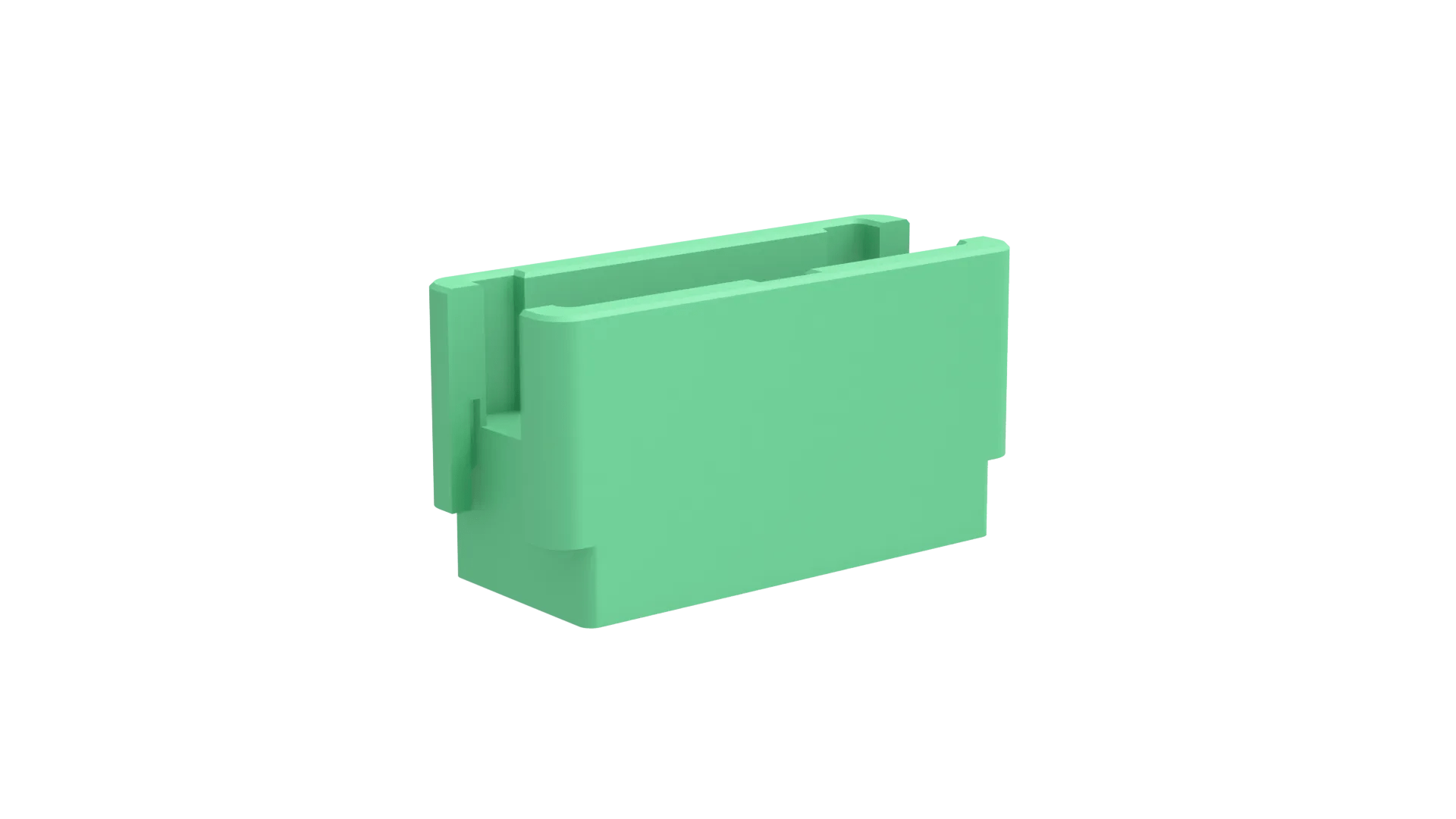

8+8 Pos. Male DIL Cable Housing, no Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Add to Favorites

391 in stock   Check availability

11 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Male Double Row Crimp Connector Housing without latches – 16 (8+8) contacts. Connector housing is not fitted with latches.
  • Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.32g

Overall Dimensions (L x W x D) in mm:

12.55 x 4.90 x 6.50

Frequently Asked Questions Ask a Question

Does the female crimp contact G125-0010005 (26 AWG) mate with male contact G125-1020005 (28-32 AWG)?

Yes, you can mate together the two different cable size contacts. Both male contacts and both female contacts have the same front half of the contact for mating compatibility. It is only the bore at the rear of the contact, where the wire is inserted, that is different for the 26 AWG and 28-32 AWG types. So both female contacts G125-0010005 and G125-002005 mate with both male contacts G125-1010005 and G125-1020005.

Was this answer useful?

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
